UBaseDynamicMeshComponent Class Reference

#include <BaseDynamicMeshComponent.h>

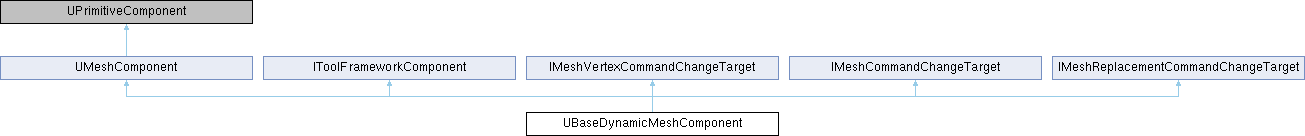

Inheritance diagram for UBaseDynamicMeshComponent:

Public Member Functions
virtual void	SetMesh (UE::Geometry::FDynamicMesh3 &&MoveMesh)
virtual FDynamicMesh3 *	GetMesh ()
virtual const FDynamicMesh3 *	GetMesh () const
virtual void	ProcessMesh (TFunctionRef< void(const UE::Geometry::FDynamicMesh3 &)> ProcessFunc) const
virtual UDynamicMesh *	GetDynamicMesh ()
virtual void	NotifyMeshUpdated ()
virtual void	ApplyChange (const FMeshVertexChange *Change, bool bRevert) override
virtual void	ApplyChange (const FMeshChange *Change, bool bRevert) override
virtual void	ApplyChange (const FMeshReplacementChange *Change, bool bRevert) override
virtual void	ApplyTransform (const FTransform3d &Transform, bool bInvert)
virtual void	SetEnableWireframeRenderPass (bool bEnable)
virtual bool	GetEnableWireframeRenderPass () const
virtual GEOMETRYFRAMEWORK_API void	SetColorOverrideMode (EDynamicMeshComponentColorOverrideMode NewMode)
virtual EDynamicMeshComponentColorOverrideMode	GetColorOverrideMode () const
virtual GEOMETRYFRAMEWORK_API void	SetConstantOverrideColor (FColor NewColor)
virtual FColor	GetConstantOverrideColor () const
virtual GEOMETRYFRAMEWORK_API void	SetVertexColorSpaceTransformMode (EDynamicMeshVertexColorTransformMode NewMode)
virtual EDynamicMeshVertexColorTransformMode	GetVertexColorSpaceTransformMode () const
virtual GEOMETRYFRAMEWORK_API void	SetTwoSided (bool bEnable)
virtual bool	GetTwoSided () const
virtual GEOMETRYFRAMEWORK_API void	SetEnableFlatShading (bool bEnable)
virtual bool	GetFlatShadingEnabled () const
virtual GEOMETRYFRAMEWORK_API void	SetShadowsEnabled (bool bEnabled)
virtual bool	GetShadowsEnabled () const
virtual GEOMETRYFRAMEWORK_API void	SetViewModeOverridesEnabled (bool bEnabled)
virtual bool	GetViewModeOverridesEnabled () const
virtual GEOMETRYFRAMEWORK_API void	SetOverrideRenderMaterial (UMaterialInterface *Material)
virtual GEOMETRYFRAMEWORK_API void	ClearOverrideRenderMaterial ()
virtual bool	HasOverrideRenderMaterial (int k) const
virtual UMaterialInterface *	GetOverrideRenderMaterial (int MaterialIndex) const
virtual GEOMETRYFRAMEWORK_API void	SetSecondaryRenderMaterial (UMaterialInterface *Material)
virtual GEOMETRYFRAMEWORK_API void	ClearSecondaryRenderMaterial ()
virtual bool	HasSecondaryRenderMaterial () const
virtual UMaterialInterface *	GetSecondaryRenderMaterial () const
virtual GEOMETRYFRAMEWORK_API void	SetSecondaryBuffersVisibility (bool bSetVisible)
virtual GEOMETRYFRAMEWORK_API bool	GetSecondaryBuffersVisibility () const
virtual GEOMETRYFRAMEWORK_API void	SetOverrideWireframeRenderMaterial (UMaterialInterface *Material)
virtual GEOMETRYFRAMEWORK_API void	ClearOverrideWireframeRenderMaterial ()
virtual bool	HasOverrideWireframeRenderMaterial () const
virtual UMaterialInterface *	GetOverrideWireframeRenderMaterial () const
virtual GEOMETRYFRAMEWORK_API void	SetOverrideSecondaryWireframeRenderMaterial (UMaterialInterface *Material)
virtual GEOMETRYFRAMEWORK_API void	ClearOverrideSecondaryWireframeRenderMaterial ()
virtual bool	HasOverrideSecondaryWireframeRenderMaterial () const
virtual UMaterialInterface *	GetOverrideSecondaryWireframeRenderMaterial () const
virtual GEOMETRYFRAMEWORK_API void	SetEnableRaytracing (bool bSetEnabled)
virtual GEOMETRYFRAMEWORK_API bool	GetEnableRaytracing () const
virtual GEOMETRYFRAMEWORK_API void	SetMeshDrawPath (EDynamicMeshDrawPath NewDrawPath)
virtual GEOMETRYFRAMEWORK_API EDynamicMeshDrawPath	GetMeshDrawPath () const
virtual void	SetDistanceFieldMode (EDynamicMeshComponentDistanceFieldMode NewDistFieldMode)
virtual EDynamicMeshComponentDistanceFieldMode	GetDistanceFieldMode () const
virtual GEOMETRYFRAMEWORK_API int32	GetNumMaterials () const override
virtual GEOMETRYFRAMEWORK_API UMaterialInterface *	GetMaterial (int32 ElementIndex) const override
virtual GEOMETRYFRAMEWORK_API FMaterialRelevance	GetMaterialRelevance (ERHIFeatureLevel::Type InFeatureLevel) const override
virtual GEOMETRYFRAMEWORK_API FMaterialRelevance	GetMaterialRelevance (EShaderPlatform InShaderPlatform) const override
virtual GEOMETRYFRAMEWORK_API void	SetMaterial (int32 ElementIndex, UMaterialInterface *Material) override
virtual GEOMETRYFRAMEWORK_API void	GetUsedMaterials (TArray< UMaterialInterface * > &OutMaterials, bool bGetDebugMaterials=false) const override
virtual GEOMETRYFRAMEWORK_API void	SetNumMaterials (int32 NumMaterials)
virtual GEOMETRYFRAMEWORK_API TArray< FName >	GetMaterialSlotNames () const override
virtual GEOMETRYFRAMEWORK_API bool	IsMaterialSlotNameValid (FName MaterialSlotName) const override
virtual GEOMETRYFRAMEWORK_API UMaterialInterface *	GetMaterialByName (FName MaterialSlotName) const override
Public Member Functions inherited from UMeshComponent
virtual ENGINE_API TArray< class UMaterialInterface * >	GetMaterials () const
virtual bool	UseNaniteOverrideMaterials () const
virtual ENGINE_API int32	GetNumOverrideMaterials () const
ENGINE_API class UMaterialInterface *	GetOverlayMaterial () const
ENGINE_API void	SetOverlayMaterial (class UMaterialInterface *NewOverlayMaterial)
ENGINE_API float	GetOverlayMaterialMaxDrawDistance () const
ENGINE_API void	SetOverlayMaterialMaxDrawDistance (float InMaxDrawDistance)
ENGINE_API void	GetMaterialSlotsOverlayMaterial (TArray< TObjectPtr< class UMaterialInterface > > &OutMaterialSlotOverlayMaterials) const
ENGINE_API void	EmptyOverrideMaterials ()
ENGINE_API bool	HasOverrideMaterials ()
virtual ENGINE_API void	SetMaterialByName (FName MaterialSlotName, class UMaterialInterface *Material) override
virtual ENGINE_API void	SetTextureForceResidentFlag (bool bForceMiplevelsToBeResident)
virtual ENGINE_API void	PrestreamTextures (float Seconds, bool bPrioritizeCharacterTextures, int32 CinematicTextureGroups=0)
virtual bool	PrestreamMeshLODs (float Seconds)
virtual ENGINE_API void	RegisterLODStreamingCallback (FLODStreamingCallback &&Callback, int32 LODIdx, float TimeoutSecs, bool bOnStreamIn)
virtual ENGINE_API void	RegisterLODStreamingCallback (FLODStreamingCallback &&CallbackStreamingStart, FLODStreamingCallback &&CallbackStreamingDone, float TimeoutStartSecs, float TimeoutDoneSecs)
virtual bool	GetMaterialStreamingData (int32 MaterialIndex, FPrimitiveMaterialInfo &MaterialData) const
ENGINE_API void	GetStreamingTextureInfoInner (FStreamingTextureLevelContext &LevelContext, const TArray< FStreamingTextureBuildInfo > *PreBuiltData, float ComponentScaling, TArray< FStreamingRenderAssetPrimitiveInfo > &OutStreamingTextures) const
ENGINE_API FColor	GetWireframeColorForSceneProxy () const
virtual ENGINE_API void	LogMaterialsAndTextures (FOutputDevice &Ar, int32 Indent) const
virtual UTexture *	GetMeshPaintTexture () const
virtual void	SetMeshPaintTexture (UTexture *Texture)
virtual void	SetMeshPaintTextureOverride (UTexture *OverrideTexture)
virtual int32	GetMeshPaintTextureCoordinateIndex () const
ENGINE_API void	SetScalarParameterValueOnMaterials (const FName ParameterName, const float ParameterValue)
ENGINE_API void	SetVectorParameterValueOnMaterials (const FName ParameterName, const FVector ParameterValue)
ENGINE_API void	SetColorParameterValueOnMaterials (const FName ParameterName, const FLinearColor ParameterValue)
float	GetScalarParameterDefaultValue (const FName ParameterName)
ENGINE_API const TArray< TObjectPtr< UMaterialInterface > > &	GetComponentMaterialSlotsOverlayMaterial () const
virtual void	GetDefaultMaterialSlotsOverlayMaterial (TArray< TObjectPtr< UMaterialInterface > > &OutMaterialSlotOverlayMaterials) const

Static Public Member Functions
static GEOMETRYFRAMEWORK_API void	SetDefaultWireframeMaterial (UMaterialInterface *Material)
static GEOMETRYFRAMEWORK_API void	SetDefaultVertexColorMaterial (UMaterialInterface *Material)

Public Attributes
bool	bExplicitShowWireframe = false
FLinearColor	WireframeColor = FLinearColor(0, 0.5f, 1.f)
EDynamicMeshComponentColorOverrideMode	ColorMode = EDynamicMeshComponentColorOverrideMode::None
FColor	ConstantColor = FColor::White
EDynamicMeshVertexColorTransformMode	ColorSpaceMode = EDynamicMeshVertexColorTransformMode::NoTransform
bool	bEnableFlatShading = false
bool	bEnableViewModeOverrides = true
bool	bEnableRaytracing = true
TArray< TObjectPtr< UMaterialInterface > >	BaseMaterials
Public Attributes inherited from UMeshComponent
TArray< TObjectPtr< class UMaterialInterface > >	OverrideMaterials
TObjectPtr< class UMaterialInterface >	OverlayMaterial
float	OverlayMaterialMaxDrawDistance
TArray< TObjectPtr< class UMaterialInterface > >	MaterialSlotsOverlayMaterial
uint8	bEnableMaterialParameterCaching: 1

Protected Member Functions
virtual FBaseDynamicMeshSceneProxy *	GetBaseSceneProxy ()
virtual void	NotifyMaterialSetUpdated ()
	UPROPERTY (EditAnywhere, Category="Dynamic Mesh Component|Rendering")
	UPROPERTY ()
	UPROPERTY ()
virtual GEOMETRYFRAMEWORK_API void	OnRenderingStateChanged (bool bForceImmedateRebuild)
	UPROPERTY (EditAnywhere, BlueprintReadWrite, BlueprintSetter=SetMeshDrawPath, BlueprintGetter=GetMeshDrawPath, Category="Dynamic Mesh Component|Rendering") EDynamicMeshDrawPath DrawPath
virtual bool	AllowFastUpdate ()
virtual GEOMETRYFRAMEWORK_API void	OnNewDistanceFieldMode ()
Protected Member Functions inherited from UMeshComponent
virtual ENGINE_API void	BeginDestroy () override
virtual UMaterialInterface *	GetDefaultOverlayMaterial () const
virtual float	GetDefaultOverlayMaterialMaxDrawDistance () const
ENGINE_API void	CacheMaterialParameterNameIndices ()
ENGINE_API void	MarkCachedMaterialParameterNameIndicesDirty ()

Static Protected Member Functions
static GEOMETRYFRAMEWORK_API void	InitializeDefaultMaterials ()
static GEOMETRYFRAMEWORK_API UMaterialInterface *	GetDefaultWireframeMaterial_RenderThread ()
static GEOMETRYFRAMEWORK_API UMaterialInterface *	GetDefaultVertexColorMaterial_RenderThread ()

Protected Attributes
bool	bTwoSided = false
TObjectPtr< UMaterialInterface >	OverrideRenderMaterial = nullptr
TObjectPtr< UMaterialInterface >	SecondaryRenderMaterial = nullptr
bool	bDrawSecondaryBuffers = true
TObjectPtr< UMaterialInterface >	WireframeMaterialOverride = nullptr
TObjectPtr< UMaterialInterface >	SecondaryWireframeMaterialOverride = nullptr
EDynamicMeshComponentDistanceFieldMode	DistanceFieldMode_DEPRECATED = EDynamicMeshComponentDistanceFieldMode::NoDistanceField
Protected Attributes inherited from UMeshComponent
uint8	bCachedMaterialParameterIndicesAreDirty: 1
TSortedMap< FName, FMaterialParameterCache, FDefaultAllocator, FNameFastLess >	MaterialParameterCache

Friends
class	FGeometryFrameworkModule
class	FBaseDynamicMeshSceneProxy

Detailed Description

UBaseDynamicMeshComponent is a base interface for a UMeshComponent based on a UDynamicMesh.

Member Function Documentation

AllowFastUpdate()

virtual bool UBaseDynamicMeshComponent::AllowFastUpdate ( )

inlineprotectedvirtual

ApplyChange() [1/3]

virtual void UBaseDynamicMeshComponent::ApplyChange ( const FMeshChange *  Change, bool  bRevert  )

inlineoverridevirtual

Apply a general mesh change to the internal mesh (implements IMeshCommandChangeTarget)

Implements IMeshCommandChangeTarget.

ApplyChange() [2/3]

virtual void UBaseDynamicMeshComponent::ApplyChange ( const FMeshReplacementChange *  Change, bool  bRevert  )

inlineoverridevirtual

Apply a full mesh replacement change to the internal mesh (implements IMeshReplacementCommandChangeTarget)

Implements IMeshReplacementCommandChangeTarget.

ApplyChange() [3/3]

virtual void UBaseDynamicMeshComponent::ApplyChange ( const FMeshVertexChange *  Change, bool  bRevert  )

inlineoverridevirtual

Apply a vertex deformation change to the internal mesh (implements IMeshVertexCommandChangeTarget)

Implements IMeshVertexCommandChangeTarget.

ApplyTransform()

virtual void UBaseDynamicMeshComponent::ApplyTransform ( const FTransform3d &  Transform, bool  bInvert  )

inlinevirtual

Apply a transform to the mesh

ClearOverrideRenderMaterial()

void UBaseDynamicMeshComponent::ClearOverrideRenderMaterial ( )

virtual

Clear any active override render material

ClearOverrideSecondaryWireframeRenderMaterial()

void UBaseDynamicMeshComponent::ClearOverrideSecondaryWireframeRenderMaterial ( )

virtual

Clear any active secondary wireframe override render material

ClearOverrideWireframeRenderMaterial()

void UBaseDynamicMeshComponent::ClearOverrideWireframeRenderMaterial ( )

virtual

Clear any active wireframe override render material

ClearSecondaryRenderMaterial()

void UBaseDynamicMeshComponent::ClearSecondaryRenderMaterial ( )

virtual

Clear any active secondary render material

GetBaseSceneProxy()

virtual FBaseDynamicMeshSceneProxy * UBaseDynamicMeshComponent::GetBaseSceneProxy ( )

inlineprotectedvirtual

Subclass must implement this to return scene proxy if available, or nullptr

GetColorOverrideMode()

virtual EDynamicMeshComponentColorOverrideMode UBaseDynamicMeshComponent::GetColorOverrideMode ( ) const

inlinevirtual

Returns

active Color Override mode

GetConstantOverrideColor()

virtual FColor UBaseDynamicMeshComponent::GetConstantOverrideColor ( ) const

inlinevirtual

Returns

active Color used for Constant Color Override Mode

GetDefaultVertexColorMaterial_RenderThread()

UMaterialInterface * UBaseDynamicMeshComponent::GetDefaultVertexColorMaterial_RenderThread ( )

staticprotected

GetDefaultWireframeMaterial_RenderThread()

UMaterialInterface * UBaseDynamicMeshComponent::GetDefaultWireframeMaterial_RenderThread ( )

staticprotected

GetDistanceFieldMode()

virtual EDynamicMeshComponentDistanceFieldMode UBaseDynamicMeshComponent::GetDistanceFieldMode ( ) const

inlinevirtual

Returns

Method used to compute the distance field

GetDynamicMesh()

virtual UDynamicMesh * UBaseDynamicMeshComponent::GetDynamicMesh ( )

inlinevirtual

Returns

the child UDynamicMesh

GetEnableRaytracing()

bool UBaseDynamicMeshComponent::GetEnableRaytracing ( ) const

virtual

Returns

true if raytracing support is currently enabled

GetEnableWireframeRenderPass()

virtual bool UBaseDynamicMeshComponent::GetEnableWireframeRenderPass ( ) const

inlinevirtual

Returns

true if wireframe rendering pass is enabled

GetFlatShadingEnabled()

virtual bool UBaseDynamicMeshComponent::GetFlatShadingEnabled ( ) const

inlinevirtual

Returns

Whether mesh will be rendered with per-triangle normals

GetMaterial()

UMaterialInterface * UBaseDynamicMeshComponent::GetMaterial ( int32  ElementIndex ) const

overridevirtual

Reimplemented from UMeshComponent.

GetMaterialByName()

UMaterialInterface * UBaseDynamicMeshComponent::GetMaterialByName ( FName  MaterialSlotName ) const

overridevirtual

Reimplemented from UMeshComponent.

GetMaterialRelevance() [1/2]

FMaterialRelevance UBaseDynamicMeshComponent::GetMaterialRelevance ( ERHIFeatureLevel::Type  InFeatureLevel ) const

overridevirtual

Accesses the scene relevance information for the materials applied to the mesh. Valid from game thread only.

Reimplemented from UMeshComponent.

GetMaterialRelevance() [2/2]

FMaterialRelevance UBaseDynamicMeshComponent::GetMaterialRelevance ( EShaderPlatform  InShaderPlatform ) const

overridevirtual

Reimplemented from UMeshComponent.

GetMaterialSlotNames()

TArray< FName > UBaseDynamicMeshComponent::GetMaterialSlotNames ( ) const

overridevirtual

GetMesh() [1/2]

virtual FDynamicMesh3 * UBaseDynamicMeshComponent::GetMesh ( )

inlinevirtual

Returns

pointer to internal mesh

Warning

avoid usage of this function, access via GetDynamicMesh() instead

GetMesh() [2/2]

virtual const FDynamicMesh3 * UBaseDynamicMeshComponent::GetMesh ( ) const

inlinevirtual

Returns

pointer to internal mesh

GetMeshDrawPath()

EDynamicMeshDrawPath UBaseDynamicMeshComponent::GetMeshDrawPath ( ) const

virtual

Returns

Whether the mesh renders using the static or dynamic draw path

GetNumMaterials()

int32 UBaseDynamicMeshComponent::GetNumMaterials ( ) const

overridevirtual

Reimplemented from UMeshComponent.

GetOverrideRenderMaterial()

virtual UMaterialInterface * UBaseDynamicMeshComponent::GetOverrideRenderMaterial ( int  MaterialIndex ) const

inlinevirtual

Returns

active override render material for the given MaterialIndex

GetOverrideSecondaryWireframeRenderMaterial()

virtual UMaterialInterface * UBaseDynamicMeshComponent::GetOverrideSecondaryWireframeRenderMaterial ( ) const

inlinevirtual

Returns

active secondary wireframe override render material

GetOverrideWireframeRenderMaterial()

virtual UMaterialInterface * UBaseDynamicMeshComponent::GetOverrideWireframeRenderMaterial ( ) const

inlinevirtual

Returns

active wireframe override render material

GetSecondaryBuffersVisibility()

bool UBaseDynamicMeshComponent::GetSecondaryBuffersVisibility ( ) const

virtual

Returns

true if secondary buffers are currently set to be visible

GetSecondaryRenderMaterial()

virtual UMaterialInterface * UBaseDynamicMeshComponent::GetSecondaryRenderMaterial ( ) const

inlinevirtual

Returns

active secondary render material

GetShadowsEnabled()

virtual bool UBaseDynamicMeshComponent::GetShadowsEnabled ( ) const

inlinevirtual

GetTwoSided()

virtual bool UBaseDynamicMeshComponent::GetTwoSided ( ) const

inlinevirtual

GetUsedMaterials()

void UBaseDynamicMeshComponent::GetUsedMaterials ( TArray< UMaterialInterface * > &  OutMaterials, bool  bGetDebugMaterials = false  ) const

overridevirtual

Reimplemented from UMeshComponent.

GetVertexColorSpaceTransformMode()

virtual EDynamicMeshVertexColorTransformMode UBaseDynamicMeshComponent::GetVertexColorSpaceTransformMode ( ) const

inlinevirtual

Returns

active Color Override mode

GetViewModeOverridesEnabled()

virtual bool UBaseDynamicMeshComponent::GetViewModeOverridesEnabled ( ) const

inlinevirtual

HasOverrideRenderMaterial()

virtual bool UBaseDynamicMeshComponent::HasOverrideRenderMaterial ( int  k ) const

inlinevirtual

Returns

true if an override render material is currently enabled for the given MaterialIndex

HasOverrideSecondaryWireframeRenderMaterial()

virtual bool UBaseDynamicMeshComponent::HasOverrideSecondaryWireframeRenderMaterial ( ) const

inlinevirtual

Returns

true if a active secondary wireframe override render material is set

HasOverrideWireframeRenderMaterial()

virtual bool UBaseDynamicMeshComponent::HasOverrideWireframeRenderMaterial ( ) const

inlinevirtual

Returns

true if a active wireframe override render material is set

HasSecondaryRenderMaterial()

virtual bool UBaseDynamicMeshComponent::HasSecondaryRenderMaterial ( ) const

inlinevirtual

Returns

true if a secondary render material is set

InitializeDefaultMaterials()

void UBaseDynamicMeshComponent::InitializeDefaultMaterials ( )

staticprotected

IsMaterialSlotNameValid()

bool UBaseDynamicMeshComponent::IsMaterialSlotNameValid ( FName  MaterialSlotName ) const

overridevirtual

NotifyMaterialSetUpdated()

virtual void UBaseDynamicMeshComponent::NotifyMaterialSetUpdated ( )

inlineprotectedvirtual

Subclass must implement this to notify allocated proxies of updated materials

NotifyMeshUpdated()

virtual void UBaseDynamicMeshComponent::NotifyMeshUpdated ( )

inlinevirtual

Call this if you update the mesh via GetMesh()

OnNewDistanceFieldMode()

virtual GEOMETRYFRAMEWORK_API void UBaseDynamicMeshComponent::OnNewDistanceFieldMode ( )

inlineprotectedvirtual

OnRenderingStateChanged()

void UBaseDynamicMeshComponent::OnRenderingStateChanged ( bool  bForceImmedateRebuild )

protectedvirtual

ProcessMesh()

virtual void UBaseDynamicMeshComponent::ProcessMesh ( TFunctionRef< void(const UE::Geometry::FDynamicMesh3 &)>  ProcessFunc ) const

inlinevirtual

Allow external code to read the internal mesh.

SetColorOverrideMode()

void UBaseDynamicMeshComponent::SetColorOverrideMode ( EDynamicMeshComponentColorOverrideMode  NewMode )

virtual

Configure the active Color Override

SetConstantOverrideColor()

void UBaseDynamicMeshComponent::SetConstantOverrideColor ( FColor  NewColor )

virtual

Configure the Color used with Constant Color Override Mode

SetDefaultVertexColorMaterial()

void UBaseDynamicMeshComponent::SetDefaultVertexColorMaterial ( UMaterialInterface *  Material )

static

Set the vertex color material used for all BaseDynamicMeshComponent-derived Components

SetDefaultWireframeMaterial()

void UBaseDynamicMeshComponent::SetDefaultWireframeMaterial ( UMaterialInterface *  Material )

static

Set the wireframe material used for all BaseDynamicMeshComponent-derived Components

SetDistanceFieldMode()

virtual void UBaseDynamicMeshComponent::SetDistanceFieldMode ( EDynamicMeshComponentDistanceFieldMode  NewDistFieldMode )

inlinevirtual

Configure Distance Field computation mode

SetEnableFlatShading()

void UBaseDynamicMeshComponent::SetEnableFlatShading ( bool  bEnable )

virtual

Configure the Color used with Constant Color Override Mode

SetEnableRaytracing()

void UBaseDynamicMeshComponent::SetEnableRaytracing ( bool  bSetEnabled )

virtual

Enable/Disable raytracing support. This is an expensive call as it flushes the rendering queue and forces an immediate rebuild of the SceneProxy.

SetEnableWireframeRenderPass()

virtual void UBaseDynamicMeshComponent::SetEnableWireframeRenderPass ( bool  bEnable )

inlinevirtual

Configure whether wireframe rendering is enabled or not

SetMaterial()

void UBaseDynamicMeshComponent::SetMaterial ( int32  ElementIndex, UMaterialInterface *  Material  )

overridevirtual

Reimplemented from UMeshComponent.

SetMesh()

virtual void UBaseDynamicMeshComponent::SetMesh ( UE::Geometry::FDynamicMesh3 &&  MoveMesh )

inlinevirtual

initialize the internal mesh from a DynamicMesh

SetMeshDrawPath()

void UBaseDynamicMeshComponent::SetMeshDrawPath ( EDynamicMeshDrawPath  NewDrawPath )

virtual

Set the mesh rendering to use the static or dynamic draw path

SetNumMaterials()

void UBaseDynamicMeshComponent::SetNumMaterials ( int32  NumMaterials )

virtual

SetOverrideRenderMaterial()

void UBaseDynamicMeshComponent::SetOverrideRenderMaterial ( UMaterialInterface *  Material )

virtual

Set an active override render material. This should replace all materials during rendering.

SetOverrideSecondaryWireframeRenderMaterial()

void UBaseDynamicMeshComponent::SetOverrideSecondaryWireframeRenderMaterial ( UMaterialInterface *  Material )

virtual

Set an active secondary wireframe override render material

SetOverrideWireframeRenderMaterial()

void UBaseDynamicMeshComponent::SetOverrideWireframeRenderMaterial ( UMaterialInterface *  Material )

virtual

Set an active wireframe override render Material

SetSecondaryBuffersVisibility()

void UBaseDynamicMeshComponent::SetSecondaryBuffersVisibility ( bool  bSetVisible )

virtual

Show/Hide the secondary triangle buffers. Does not invalidate SceneProxy.

SetSecondaryRenderMaterial()

void UBaseDynamicMeshComponent::SetSecondaryRenderMaterial ( UMaterialInterface *  Material )

virtual

Set an active secondary render material.

SetShadowsEnabled()

void UBaseDynamicMeshComponent::SetShadowsEnabled ( bool  bEnabled )

virtual

SetTwoSided()

void UBaseDynamicMeshComponent::SetTwoSided ( bool  bEnable )

virtual

SetVertexColorSpaceTransformMode()

void UBaseDynamicMeshComponent::SetVertexColorSpaceTransformMode ( EDynamicMeshVertexColorTransformMode  NewMode )

virtual

Configure the active Color Space Transform Mode

SetViewModeOverridesEnabled()

void UBaseDynamicMeshComponent::SetViewModeOverridesEnabled ( bool  bEnabled )

virtual

UPROPERTY() [1/4]

UBaseDynamicMeshComponent::UPROPERTY ( )

protected

UPROPERTY() [2/4]

UBaseDynamicMeshComponent::UPROPERTY ( )

protected

UPROPERTY() [3/4]

UBaseDynamicMeshComponent::UPROPERTY ( EditAnywhere  , BlueprintReadWrite  , BlueprintSetter  = SetMeshDrawPath, BlueprintGetter  = GetMeshDrawPath, Category  = "Dynamic Mesh Component|Rendering"  )

protected

Controls whether to use the dynamic or static draw path

UPROPERTY() [4/4]

UBaseDynamicMeshComponent::UPROPERTY ( EditAnywhere  , Category  = "Dynamic Mesh Component|Rendering"  )

protected

Friends And Related Symbol Documentation

FBaseDynamicMeshSceneProxy

friend class FBaseDynamicMeshSceneProxy

friend

FGeometryFrameworkModule

friend class FGeometryFrameworkModule

friend

Member Data Documentation

BaseMaterials

TArray<TObjectPtr<UMaterialInterface> > UBaseDynamicMeshComponent::BaseMaterials

bDrawSecondaryBuffers

bool UBaseDynamicMeshComponent::bDrawSecondaryBuffers = true

protected

bEnableFlatShading

bool UBaseDynamicMeshComponent::bEnableFlatShading = false

Enable use of per-triangle facet normals in place of mesh normals

bEnableRaytracing

bool UBaseDynamicMeshComponent::bEnableRaytracing = true

Enable/disable Raytracing support on this Mesh, if Raytracing is currently enabled in the Project Settings. Use SetEnableRaytracing() to configure this flag in Blueprints/C++.

bEnableViewModeOverrides

bool UBaseDynamicMeshComponent::bEnableViewModeOverrides = true

This flag controls whether Editor View Mode Overrides are enabled for this mesh. For example, this controls hidden-line removal on the wireframe in Wireframe View Mode, and whether the normal map will be disabled in Lighting-Only View Mode, as well as various other things. Use SetViewModeOverridesEnabled() to control this setting in Blueprints/C++.

bExplicitShowWireframe

bool UBaseDynamicMeshComponent::bExplicitShowWireframe = false

If true, render the Wireframe on top of the Shaded Mesh

bTwoSided

bool UBaseDynamicMeshComponent::bTwoSided = false

protected

ColorMode

EDynamicMeshComponentColorOverrideMode UBaseDynamicMeshComponent::ColorMode = EDynamicMeshComponentColorOverrideMode::None

ColorSpaceMode

EDynamicMeshVertexColorTransformMode UBaseDynamicMeshComponent::ColorSpaceMode = EDynamicMeshVertexColorTransformMode::NoTransform

Color Space Transform that will be applied to the colors stored in the DynamicMesh Attribute Color Overlay when constructing render buffers. Default is "No Transform", ie color R/G/B/A will be independently converted from 32-bit float to 8-bit by direct mapping. LinearToSRGB mode will apply SRGB conversion, ie assumes colors in the Mesh are in Linear space. This will produce the same behavior as UStaticMesh. SRGBToLinear mode will invert SRGB conversion, ie assumes colors in the Mesh are in SRGB space.

ConstantColor

FColor UBaseDynamicMeshComponent::ConstantColor = FColor::White

Constant Color used when Override Color Mode is set to Constant

DistanceFieldMode_DEPRECATED

EDynamicMeshComponentDistanceFieldMode UBaseDynamicMeshComponent::DistanceFieldMode_DEPRECATED = EDynamicMeshComponentDistanceFieldMode::NoDistanceField

protected

Controls how distance field is computed

OverrideRenderMaterial

TObjectPtr<UMaterialInterface> UBaseDynamicMeshComponent::OverrideRenderMaterial = nullptr

protected

SecondaryRenderMaterial

TObjectPtr<UMaterialInterface> UBaseDynamicMeshComponent::SecondaryRenderMaterial = nullptr

protected

SecondaryWireframeMaterialOverride

TObjectPtr<UMaterialInterface> UBaseDynamicMeshComponent::SecondaryWireframeMaterialOverride = nullptr

protected

WireframeColor

FLinearColor UBaseDynamicMeshComponent::WireframeColor = FLinearColor(0, 0.5f, 1.f)

Constant Color used when Override Color Mode is set to Constant

WireframeMaterialOverride

TObjectPtr<UMaterialInterface> UBaseDynamicMeshComponent::WireframeMaterialOverride = nullptr

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/GeometryFramework/Public/Components/BaseDynamicMeshComponent.h
• Engine/Source/Runtime/GeometryFramework/Private/Components/BaseDynamicMeshComponent.cpp
