UE::Net::FNetBlob Class Reference

#include <NetBlob.h>

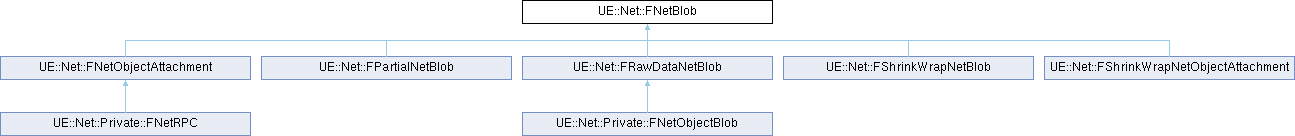

Inheritance diagram for UE::Net::FNetBlob:

Classes
struct	FQuantizedBlobState

Public Member Functions
IRISCORE_API	FNetBlob (const FNetBlobCreationInfo &)
IRISCORE_API void	SetState (const TRefCountPtr< const FReplicationStateDescriptor > &BlobDescriptor, FQuantizedBlobState &&QuantizedBlobState)
const FNetBlobCreationInfo &	GetCreationInfo () const
bool	IsReliable () const
const FReplicationStateDescriptor *	GetReplicationStateDescriptor () const
virtual IRISCORE_API void	SerializeWithObject (FNetSerializationContext &Context, FNetRefHandle RefHandle) const
virtual IRISCORE_API void	DeserializeWithObject (FNetSerializationContext &Context, FNetRefHandle RefHandle)
virtual IRISCORE_API void	Serialize (FNetSerializationContext &Context) const
virtual IRISCORE_API void	Deserialize (FNetSerializationContext &Context)
IRISCORE_API void	CollectObjectReferences (FNetSerializationContext &Context, FNetReferenceCollector &Collector) const
void	AddRef () const
IRISCORE_API void	Release () const
int32	GetRefCount () const
bool	HasExports () const
TArrayView< const FNetObjectReference >	CallGetNetObjectReferenceExports () const
TArrayView< const FNetToken >	CallGetNetTokenExports () const

Static Public Member Functions
static IRISCORE_API void	SerializeCreationInfo (FNetSerializationContext &Context, const FNetBlobCreationInfo &CreationInfo)
static IRISCORE_API void	DeserializeCreationInfo (FNetSerializationContext &Context, FNetBlobCreationInfo &OutCreationInfo)

Protected Member Functions
	FNetBlob (const FNetBlob &)=delete
FNetBlob &	operator= (const FNetBlob &)=delete
virtual IRISCORE_API	~FNetBlob ()
virtual TArrayView< const FNetObjectReference >	GetNetObjectReferenceExports () const
virtual TArrayView< const FNetToken >	GetNetTokenExports () const
IRISCORE_API void	SerializeBlob (FNetSerializationContext &Context) const
IRISCORE_API void	DeserializeBlob (FNetSerializationContext &Context)

Protected Attributes
FNetBlobCreationInfo	CreationInfo
TRefCountPtr< const FReplicationStateDescriptor >	BlobDescriptor
FQuantizedBlobState	QuantizedBlobState

Constructor & Destructor Documentation

FNetBlob() [1/2]

UE::Net::FNetBlob::FNetBlob

(

const FNetBlobCreationInfo &

InCreationInfo

)

Construct a NetBlob with reference count zero.

FNetBlob() [2/2]

UE::Net::FNetBlob::FNetBlob ( const FNetBlob &  )

protecteddelete

~FNetBlob()

UE::Net::FNetBlob::~FNetBlob ( )

protectedvirtual

The destructor will free dynamic state, if present, in the state buffer and remove a reference to the descriptor.

Member Function Documentation

AddRef()

void UE::Net::FNetBlob::AddRef ( ) const

inline

Adds a reference. A blob is created with reference count zero.

CallGetNetObjectReferenceExports()

TArrayView< const FNetObjectReference > UE::Net::FNetBlob::CallGetNetObjectReferenceExports ( ) const

inline

Retrieve the object references that need to be exported.

CallGetNetTokenExports()

TArrayView< const FNetToken > UE::Net::FNetBlob::CallGetNetTokenExports ( ) const

inline

Retrieve NetToken that needs to be exported.

CollectObjectReferences()

void UE::Net::FNetBlob::CollectObjectReferences	(	FNetSerializationContext &	Context,
		FNetReferenceCollector &	Collector
	)		const

Collect object references from quantized data

Deserialize()

void UE::Net::FNetBlob::Deserialize ( FNetSerializationContext &  Context )

virtual

Deserialize a blob that was serialized with Serialize.

DeserializeBlob()

void UE::Net::FNetBlob::DeserializeBlob ( FNetSerializationContext &  Context )

protected

Deserializes the state if there's a valid descriptor and state buffer.

DeserializeCreationInfo()

void UE::Net::FNetBlob::DeserializeCreationInfo ( FNetSerializationContext &  Context, FNetBlobCreationInfo &  OutCreationInfo  )

static

Deserializes the necessary parts of the creation info so that the correct blob can be created.

DeserializeWithObject()

void UE::Net::FNetBlob::DeserializeWithObject ( FNetSerializationContext &  Context, FNetRefHandle  RefHandle  )

virtual

Deserialize a blob that was serialized with SerializeWithObject.

GetCreationInfo()

const FNetBlobCreationInfo & UE::Net::FNetBlob::GetCreationInfo ( ) const

inline

Returns the FNetBlobCreationInfo.

GetNetObjectReferenceExports()

TArrayView< const FNetObjectReference > UE::Net::FNetBlob::GetNetObjectReferenceExports ( ) const

protectedvirtual

Override to return the object references that need to be exported.

GetNetTokenExports()

TArrayView< const FNetToken > UE::Net::FNetBlob::GetNetTokenExports ( ) const

protectedvirtual

Override to return NetTokenExports that need to be exported, mostly relevant for pre-serialized blobs.

GetRefCount()

int32 UE::Net::FNetBlob::GetRefCount ( ) const

inline

Returns the reference count. A blob is created with reference count zero.

GetReplicationStateDescriptor()

const FReplicationStateDescriptor * UE::Net::FNetBlob::GetReplicationStateDescriptor ( ) const

inline

Returns the FReplicationStateDescriptor if there is one. It's recommended to use a descriptor instead of overriding the serialization methods.

HasExports()

bool UE::Net::FNetBlob::HasExports ( ) const

inline

IsReliable()

bool UE::Net::FNetBlob::IsReliable ( ) const

inline

operator=()

FNetBlob & UE::Net::FNetBlob::operator= ( const FNetBlob &  )

protecteddelete

Release()

void UE::Net::FNetBlob::Release

(

)

const

Removes a reference. When the reference count reaches zero the blob will be deleted. A blob is created with reference count zero.

Serialize()

void UE::Net::FNetBlob::Serialize ( FNetSerializationContext &  Context ) const

virtual

Serialize the blob.

SerializeBlob()

void UE::Net::FNetBlob::SerializeBlob ( FNetSerializationContext &  Context ) const

protected

Serializes the state if there's a valid descriptor and state buffer.

SerializeCreationInfo()

void UE::Net::FNetBlob::SerializeCreationInfo ( FNetSerializationContext &  Context, const FNetBlobCreationInfo &  CreationInfo  )

static

Serializes the necessary parts of the creation info so that the blob can be recreated on the receiving side.

SerializeWithObject()

void UE::Net::FNetBlob::SerializeWithObject ( FNetSerializationContext &  Context, FNetRefHandle  RefHandle  ) const

virtual

Serialize the blob together with/targeting a specific object knowing the NetHandle has already been serialized.

SetState()

void UE::Net::FNetBlob::SetState	(	const TRefCountPtr< const FReplicationStateDescriptor > &	BlobDescriptor,
		FQuantizedBlobState &&	QuantizedBlobState
	)

Set the blob state. Use when there's a descriptor to avoid having to override serialization functions.

Member Data Documentation

BlobDescriptor

TRefCountPtr<const FReplicationStateDescriptor> UE::Net::FNetBlob::BlobDescriptor

protected

The state descriptor.

CreationInfo

FNetBlobCreationInfo UE::Net::FNetBlob::CreationInfo

protected

The CreationInfo that was passed to the constructor.

QuantizedBlobState

FQuantizedBlobState UE::Net::FNetBlob::QuantizedBlobState

protected

The state buffer that holds the data described by the descriptor.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Net/Iris/Public/Iris/ReplicationSystem/NetBlob/NetBlob.h
• Engine/Source/Runtime/Net/Iris/Private/Iris/ReplicationSystem/NetBlob/NetBlob.cpp
