FSplineMeshInstanceData Struct Reference

#include <SplineMeshComponent.h>

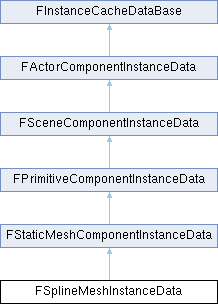

+ Inheritance diagram for FSplineMeshInstanceData:

Public Member Functions

 FSplineMeshInstanceData ()=default

 FSplineMeshInstanceData (const USplineMeshComponent *SourceComponent)

virtual ~FSplineMeshInstanceData () override=default

virtual bool ContainsData () const override

virtual void ApplyToComponent (UActorComponent *Component, const ECacheApplyPhase CacheApplyPhase) override

- Public Member Functions inherited from FStaticMeshComponentInstanceData
 FStaticMeshComponentInstanceData ()=default

 FStaticMeshComponentInstanceData (const UStaticMeshComponent *SourceComponent)

virtual ~FStaticMeshComponentInstanceData ()=default

virtual void AddReferencedObjects (FReferenceCollector &Collector) override

void AddVertexColorData (const struct FStaticMeshComponentLODInfo &LODInfo, uint32 LODIndex)

bool ApplyVertexColorData (UStaticMeshComponent *StaticMeshComponent) const

- Public Member Functions inherited from FPrimitiveComponentInstanceData
 FPrimitiveComponentInstanceData ()=default

ENGINE_API FPrimitiveComponentInstanceData (const UPrimitiveComponent *SourceComponent)

virtual ~FPrimitiveComponentInstanceData ()=default

virtual ENGINE_API void FindAndReplaceInstances (const TMap< UObject *, UObject * > &OldToNewInstanceMap) override

const FTransform & GetComponentTransform () const

- Public Member Functions inherited from FSceneComponentInstanceData
ENGINE_API FSceneComponentInstanceData ()

ENGINE_API FSceneComponentInstanceData (const USceneComponent *SourceComponent)

virtual ENGINE_API ~FSceneComponentInstanceData ()

- Public Member Functions inherited from FActorComponentInstanceData
ENGINE_API FActorComponentInstanceData ()

ENGINE_API FActorComponentInstanceData (const UActorComponent *SourceComponent)

ENGINE_API bool MatchesComponent (const UActorComponent *Component, const UObject *ComponentTemplate) const

const UClass * GetComponentClass () const

const UObject * GetComponentTemplate () const

- Public Member Functions inherited from FInstanceCacheDataBase
virtual ENGINE_API ~FInstanceCacheDataBase ()

UObject * GetUniqueTransientPackage ()

ENGINE_API UObject * GetUniqueTransientObject (UClass *Class)

const TArray< FDataCacheDuplicatedObjectData > & GetDuplicatedObjects () const

const TArray< TObjectPtr< UObject > > & GetReferencedObjects () const

const TArray< uint8 > & GetSavedProperties () const


Public Attributes

FVector StartPos = FVector::ZeroVector

FVector EndPos = FVector::ZeroVector

FVector StartTangent = FVector::ZeroVector

FVector EndTangent = FVector::ZeroVector

- Public Attributes inherited from FStaticMeshComponentInstanceData
TObjectPtr< class UStaticMesh > StaticMesh = nullptr

TArray< FStaticMeshVertexColorLODData > VertexColorLODs

TArray< FGuid > CachedStaticLighting

TArray< FStreamingTextureBuildInfo > StreamingTextureData

- Public Attributes inherited from FSceneComponentInstanceData
TMap< TObjectPtr< USceneComponent >, FTransform > AttachedInstanceComponents


Additional Inherited Members

- Protected Attributes inherited from FActorComponentInstanceData
TObjectPtr< const UObject > SourceComponentTemplate

EComponentCreationMethod SourceComponentCreationMethod

int32 SourceComponentTypeSerializedIndex

- Protected Attributes inherited from FInstanceCacheDataBase
TArray< uint8 > SavedProperties


Detailed Description

A Spline Mesh Component is a derivation of a Static Mesh Component which can be deformed using a spline. Only a start and end position (and tangent) can be specified.

See also
https://docs.unrealengine.com/latest/INT/Resources/ContentExamples/Blueprint_Splines Used to store spline mesh data during RerunConstructionScripts

Constructor & Destructor Documentation

◆ FSplineMeshInstanceData() [1/2]

FSplineMeshInstanceData::FSplineMeshInstanceData ( )
default

◆ FSplineMeshInstanceData() [2/2]

FSplineMeshInstanceData::FSplineMeshInstanceData ( const USplineMeshComponent *  SourceComponent)
explicit

◆ ~FSplineMeshInstanceData()

virtual FSplineMeshInstanceData::~FSplineMeshInstanceData ( )
overridevirtualdefault

Member Function Documentation

◆ ApplyToComponent()

virtual void FSplineMeshInstanceData::ApplyToComponent ( UActorComponent *  Component,
const ECacheApplyPhase  CacheApplyPhase
)
inlineoverridevirtual

Applies this component instance data to the supplied component

Reimplemented from FStaticMeshComponentInstanceData.

◆ ContainsData()

virtual bool FSplineMeshInstanceData::ContainsData ( ) const
inlineoverridevirtual

Determines if any instance data was actually saved.

Reimplemented from FStaticMeshComponentInstanceData.

Member Data Documentation

◆ EndPos

FVector FSplineMeshInstanceData::EndPos = FVector::ZeroVector

◆ EndTangent

FVector FSplineMeshInstanceData::EndTangent = FVector::ZeroVector

◆ StartPos

FVector FSplineMeshInstanceData::StartPos = FVector::ZeroVector

◆ StartTangent

FVector FSplineMeshInstanceData::StartTangent = FVector::ZeroVector
The documentation for this struct was generated from the following files:
