HActor Struct Reference

#include <EngineUtils.h>

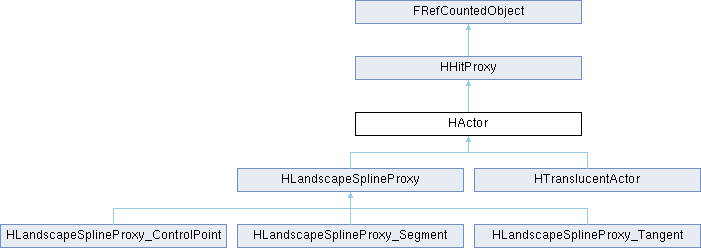

Inheritance diagram for HActor:

Public Member Functions
	HActor (AActor *InActor, const UPrimitiveComponent *InPrimComponent)
	HActor (AActor *InActor, const UPrimitiveComponent *InPrimComponent, int32 InSectionIndex, int32 InMaterialIndex)
	HActor (AActor *InActor, const UPrimitiveComponent *InPrimComponent, EHitProxyPriority InPriority)
	HActor (AActor *InActor, const UPrimitiveComponent *InPrimComponent, EHitProxyPriority InPriority, int32 InSectionIndex, int32 InMaterialIndex)
virtual ENGINE_API void	AddReferencedObjects (FReferenceCollector &Collector) override
virtual ENGINE_API EMouseCursor::Type	GetMouseCursor () override
virtual ENGINE_API FTypedElementHandle	GetElementHandle () const override
ENGINE_API bool	AlwaysAllowsTranslucentPrimitives () const override
Public Member Functions inherited from HHitProxy
ENGINE_API	HHitProxy (EHitProxyPriority InPriority=HPP_World)
	HHitProxy (EHitProxyPriority InPriority, EHitProxyPriority InOrthoPriority)
virtual ENGINE_API	~HHitProxy ()
ENGINE_API bool	IsA (HHitProxyType *TestType) const
Public Member Functions inherited from FRefCountedObject
	FRefCountedObject ()
virtual	~FRefCountedObject ()
	FRefCountedObject (const FRefCountedObject &Rhs)=delete
FRefCountedObject &	operator= (const FRefCountedObject &Rhs)=delete
FReturnedRefCountValue	AddRef () const
uint32	Release () const
uint32	GetRefCount () const

Public Attributes
TObjectPtr< AActor >	Actor
TObjectPtr< const UPrimitiveComponent >	PrimComponent
int32	SectionIndex
int32	MaterialIndex
Public Attributes inherited from HHitProxy
const EHitProxyPriority	Priority
const EHitProxyPriority	OrthoPriority
FHitProxyId	Id

Constructor & Destructor Documentation

HActor() [1/4]

HActor::HActor ( AActor *  InActor, const UPrimitiveComponent *  InPrimComponent  )

inline

HActor() [2/4]

HActor::HActor ( AActor *  InActor, const UPrimitiveComponent *  InPrimComponent, int32  InSectionIndex, int32  InMaterialIndex  )

inline

HActor() [3/4]

HActor::HActor ( AActor *  InActor, const UPrimitiveComponent *  InPrimComponent, EHitProxyPriority  InPriority  )

inline

HActor() [4/4]

HActor::HActor ( AActor *  InActor, const UPrimitiveComponent *  InPrimComponent, EHitProxyPriority  InPriority, int32  InSectionIndex, int32  InMaterialIndex  )

inline

Member Function Documentation

AddReferencedObjects()

void HActor::AddReferencedObjects ( FReferenceCollector &  Collector )

overridevirtual

Reimplemented from HHitProxy.

Reimplemented in HLandscapeSplineProxy_Segment, HLandscapeSplineProxy_ControlPoint, and HLandscapeSplineProxy_Tangent.

AlwaysAllowsTranslucentPrimitives()

bool HActor::AlwaysAllowsTranslucentPrimitives ( ) const

overridevirtual

Method that specifies whether the hit proxy always allows translucent primitives to be associated with it or not, regardless of any other engine/editor setting. For example, if translucent selection was disabled, any hit proxies returning true would still allow translucent selection.

Returns

true if translucent primitives are always allowed with this hit proxy; false otherwise

Reimplemented from HHitProxy.

Reimplemented in HTranslucentActor.

GetElementHandle()

FTypedElementHandle HActor::GetElementHandle ( ) const

overridevirtual

Get the element handle associated with this hit proxy, if any.

Reimplemented from HHitProxy.

GetMouseCursor()

EMouseCursor::Type HActor::GetMouseCursor ( )

overridevirtual

Override to change the mouse based on what it is hovering over.

Reimplemented from HHitProxy.

Reimplemented in HTranslucentActor, HLandscapeSplineProxy, and HLandscapeSplineProxy_Tangent.

Member Data Documentation

Actor

TObjectPtr<AActor> HActor::Actor

MaterialIndex

int32 HActor::MaterialIndex

PrimComponent

TObjectPtr<const UPrimitiveComponent> HActor::PrimComponent

SectionIndex

int32 HActor::SectionIndex

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/Engine/Public/EngineUtils.h
• Engine/Source/Runtime/Engine/Private/EngineUtils.cpp
