Audio::FAudioMixerPlatformSwappable Class Referenceabstract

#include <AudioMixer.h>

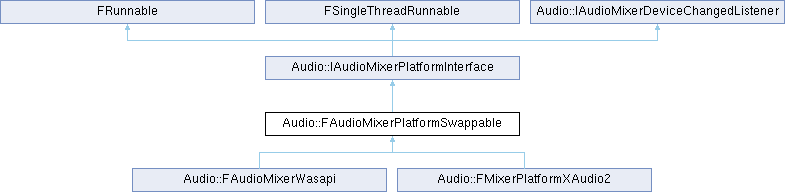

+ Inheritance diagram for Audio::FAudioMixerPlatformSwappable:

Public Member Functions

UE_API FAudioMixerPlatformSwappable ()

virtual ~FAudioMixerPlatformSwappable () override=default

virtual UE_API bool RequestDeviceSwap (const FString &DeviceID, const bool bInForce, const TCHAR *InReason) override

virtual UE_API bool CheckAudioDeviceChange () override

virtual UE_API bool MoveAudioStreamToNewAudioDevice () override

virtual UE_API void ResumePlaybackOnNewDevice () override

virtual UE_API bool AllowDeviceSwap (const bool bInForceSwap)

virtual bool InitializeDeviceSwapContext (const FString &InRequestedDeviceID, const TCHAR *InReason)=0

virtual UE_API bool CheckThreadedDeviceSwap ()

virtual bool PreDeviceSwap ()

virtual void EnqueueAsyncDeviceSwap ()=0

virtual void SynchronousDeviceSwap ()=0

virtual bool PostDeviceSwap ()

- Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
virtual AUDIOMIXERCORE_API ~IAudioMixerPlatformInterface ()

virtual FString GetPlatformApi () const =0

virtual bool InitializeHardware ()=0

virtual bool TeardownHardware ()=0

virtual bool IsInitialized () const =0

virtual bool GetNumOutputDevices (uint32 &OutNumOutputDevices)

virtual bool GetOutputDeviceInfo (const uint32 InDeviceIndex, FAudioPlatformDeviceInfo &OutInfo)=0

virtual FString GetCurrentDeviceName () const

virtual AUDIOMIXERCORE_API int32 GetIndexForDevice (const FString &InDeviceName)

virtual FAudioPlatformSettings GetPlatformSettings () const =0

virtual bool GetDefaultOutputDeviceIndex (uint32 &OutDefaultDeviceIndex) const

virtual bool OpenAudioStream (const FAudioMixerOpenStreamParams &Params)=0

virtual bool CloseAudioStream ()=0

virtual bool StartAudioStream ()=0

virtual bool StopAudioStream ()=0

virtual bool MoveAudioStreamToNewAudioDevice (const FString &InNewDeviceId)

virtual FAudioPlatformDeviceInfo GetPlatformDeviceInfo () const =0

virtual void SubmitBuffer (const uint8 *Buffer)

virtual void SubmitDirectOutBuffer (const int32 InDirectOutIndex, const Audio::FAlignedFloatBuffer &InBuffer)

virtual int32 GetNumFrames (const int32 InNumReqestedFrames)

virtual bool DisablePCMAudioCaching () const

virtual bool SupportsHardwareDecompression () const

virtual bool IsNonRealtime () const

virtual FString GetDefaultDeviceName ()=0

virtual void SuspendContext ()

virtual void ResumeContext ()

virtual void OnHardwareUpdate ()

virtual IAudioPlatformDeviceInfoCache * GetDeviceInfoCache () const

virtual bool IsDeviceInfoValid (const FAudioPlatformDeviceInfo &InDeviceInfo) const

virtual bool ShouldUseDeviceInfoCache () const

AUDIOMIXERCORE_API uint32 Run () override

virtual class FSingleThreadRunnable * GetSingleThreadInterface () override

virtual AUDIOMIXERCORE_API void Tick () override

AUDIOMIXERCORE_API IAudioMixerPlatformInterface ()

AUDIOMIXERCORE_API void ReadNextBuffer ()

virtual AUDIOMIXERCORE_API void FadeIn ()

virtual AUDIOMIXERCORE_API void FadeOut ()

FString GetLastError () const

AUDIOMIXERCORE_API void PostInitializeHardware ()

bool GetIsListeningForDeviceEvents () const

void SetIsListeningForDeviceEvents (bool bInListeningForDeviceEvents)

- Public Member Functions inherited from FRunnable
virtual bool Init ()

virtual void Stop ()

virtual void Exit ()

virtual ~FRunnable ()

- Public Member Functions inherited from FSingleThreadRunnable
virtual ~FSingleThreadRunnable ()

- Public Member Functions inherited from Audio::IAudioMixerDeviceChangedListener
virtual ~IAudioMixerDeviceChangedListener ()=default

virtual void RegisterDeviceChangedListener ()

virtual void UnregisterDeviceChangedListener ()

virtual void OnDefaultCaptureDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void OnDefaultRenderDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId)

virtual void OnDeviceAdded (const FString &DeviceId, bool bIsRenderDevice)

virtual void OnDeviceRemoved (const FString &DeviceId, bool bIsRenderDevice)

virtual void OnDeviceStateChanged (const FString &DeviceId, const EAudioDeviceState InState, bool bIsRenderDevice)

virtual void OnFormatChanged (const FString &InDeviceId, const FFormatChangedData &InFormat)

virtual void OnSessionDisconnect (EDisconnectReason InReason)

virtual FString GetDeviceId () const


Protected Member Functions

FString GetOriginalAudioDeviceId () const

void SetOriginalAudioDeviceId (const FString &InAudioDeviceId)

void SetActiveDeviceSwapFuture (TFuture< TUniquePtr< FDeviceSwapResult > > &&InFuture)

void ResetActiveDeviceSwapFuture ()

const FDeviceSwapResult * GetDeviceSwapResult () const

FDeviceSwapResult * GetDeviceSwapResult ()

- Protected Member Functions inherited from Audio::IAudioMixerPlatformInterface
AUDIOMIXERCORE_API uint32 MainAudioDeviceRun ()

virtual AUDIOMIXERCORE_API uint32 RunInternal ()

void AudioMixerPlatformLogOnce (const FString &LogDetails, const FString &FileName, int32 LineNumber, ELogVerbosity::Type InVerbosity=ELogVerbosity::Error)

AUDIOMIXERCORE_API void BeginGeneratingAudio ()

AUDIOMIXERCORE_API void StopGeneratingAudio ()

AUDIOMIXERCORE_API void ApplyMasterAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

AUDIOMIXERCORE_API void ApplyPrimaryAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)

template<typename BufferType >
void ApplyAttenuationInternal (TArrayView< BufferType > &InOutBuffer)

AUDIOMIXERCORE_API void StartRunningNullDevice ()

AUDIOMIXERCORE_API void StopRunningNullDevice ()

AUDIOMIXERCORE_API void CreateNullDeviceThread (const TFunction< void()> InCallback, float InBufferDuration, bool bShouldPauseOnStart)


Additional Inherited Members

- Public Types inherited from Audio::IAudioMixerDeviceChangedListener
enum class  EDisconnectReason {
  DeviceRemoval , ServerShutdown , FormatChanged , SessionLogoff ,
  SessionDisconnected , ExclusiveModeOverride
}

- Static Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API bool GetChannelTypeAtIndex (const int32 Index, EAudioMixerChannel::Type &OutType)

- Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
FAudioOutputStreamInfo AudioStreamInfo

FAudioMixerOpenStreamParams OpenStreamParams

Audio::FOutputBuffer OutputBuffer

bool bWarnedBufferUnderrun

TUniquePtr< FRunnableThread > AudioRenderThread

FEvent * AudioRenderEvent

FCriticalSection DeviceSwapCriticalSection

FThreadSafeBool bIsInDeviceSwap

FEvent * AudioFadeEvent

int32 NumOutputBuffers

float FadeVolume

FParam FadeParam

FString CurrentDeviceName

FString LastError

int32 CallCounterApplyAttenuationInternal { 0 }

int32 CallCounterReadNextBuffer { 0 }

FThreadSafeBool bPerformingFade

FThreadSafeBool bFadedOut

FThreadSafeBool bIsDeviceInitialized

FThreadSafeBool bMoveAudioStreamToNewAudioDevice

FThreadSafeBool bIsUsingNullDevice

FThreadSafeBool bIsGeneratingAudio

const int32 InstanceID { -1 }

- Static Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API FThreadSafeCounter NextInstanceID


Detailed Description

Audio mixer platform objects can subclass this in order to add device swap capabilities.

Constructor & Destructor Documentation

◆ FAudioMixerPlatformSwappable()

Audio::FAudioMixerPlatformSwappable::FAudioMixerPlatformSwappable ( )

◆ ~FAudioMixerPlatformSwappable()

virtual Audio::FAudioMixerPlatformSwappable::~FAudioMixerPlatformSwappable ( )
overridevirtualdefault

Member Function Documentation

◆ AllowDeviceSwap()

bool Audio::FAudioMixerPlatformSwappable::AllowDeviceSwap ( const bool  bInForceSwap)
virtual

Called to determine if the current device swap request should be allowed to proceed.

◆ CheckAudioDeviceChange()

bool Audio::FAudioMixerPlatformSwappable::CheckAudioDeviceChange ( )
overridevirtual

Check if audio device changed if applicable. Return true if audio device changed.

Reimplemented from Audio::IAudioMixerPlatformInterface.

Reimplemented in Audio::FMixerPlatformXAudio2.

◆ CheckThreadedDeviceSwap()

bool Audio::FAudioMixerPlatformSwappable::CheckThreadedDeviceSwap ( )
virtual

Called repeatedly to update an active, async device swap

Reimplemented in Audio::FAudioMixerWasapi, and Audio::FMixerPlatformXAudio2.

◆ EnqueueAsyncDeviceSwap()

virtual void Audio::FAudioMixerPlatformSwappable::EnqueueAsyncDeviceSwap ( )
pure virtual

Kicks of an async device swap task

Implemented in Audio::FAudioMixerWasapi, and Audio::FMixerPlatformXAudio2.

◆ GetDeviceSwapResult() [1/2]

FDeviceSwapResult * Audio::FAudioMixerPlatformSwappable::GetDeviceSwapResult ( )
inlineprotected

◆ GetDeviceSwapResult() [2/2]

const FDeviceSwapResult * Audio::FAudioMixerPlatformSwappable::GetDeviceSwapResult ( ) const
inlineprotected

The results produced from a device swap operation. The containing future retains memory ownership. Will be valid until PostDeviceSwap returns.

◆ GetOriginalAudioDeviceId()

FString Audio::FAudioMixerPlatformSwappable::GetOriginalAudioDeviceId ( ) const
inlineprotected

Used in OnDeviceAdded for determining if an added device is the same as the original device.

◆ InitializeDeviceSwapContext()

virtual bool Audio::FAudioMixerPlatformSwappable::InitializeDeviceSwapContext ( const FString &  InRequestedDeviceID,
const TCHAR *  InReason
)
pure virtual

Initializes a new device swap context with the given parameters

Implemented in Audio::FAudioMixerWasapi, and Audio::FMixerPlatformXAudio2.

◆ MoveAudioStreamToNewAudioDevice()

bool Audio::FAudioMixerPlatformSwappable::MoveAudioStreamToNewAudioDevice ( )
overridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

Reimplemented in Audio::FMixerPlatformXAudio2.

◆ PostDeviceSwap()

virtual bool Audio::FAudioMixerPlatformSwappable::PostDeviceSwap ( )
inlinevirtual

Called after a device swap completes, providing an opportunity for any needed cleanup

Reimplemented in Audio::FAudioMixerWasapi, and Audio::FMixerPlatformXAudio2.

◆ PreDeviceSwap()

virtual bool Audio::FAudioMixerPlatformSwappable::PreDeviceSwap ( )
inlinevirtual

Called at the beginning of a device swap to perform any needed initialization

Reimplemented in Audio::FAudioMixerWasapi, and Audio::FMixerPlatformXAudio2.

◆ RequestDeviceSwap()

bool Audio::FAudioMixerPlatformSwappable::RequestDeviceSwap ( const FString &  DeviceID,
const bool  bInForce,
const TCHAR *  InReason
)
overridevirtual

Sends a command to swap which output device is being used

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ ResetActiveDeviceSwapFuture()

void Audio::FAudioMixerPlatformSwappable::ResetActiveDeviceSwapFuture ( )
inlineprotected

◆ ResumePlaybackOnNewDevice()

void Audio::FAudioMixerPlatformSwappable::ResumePlaybackOnNewDevice ( )
overridevirtual

Resumes playback on new audio device after device change.

Reimplemented from Audio::IAudioMixerPlatformInterface.

◆ SetActiveDeviceSwapFuture()

void Audio::FAudioMixerPlatformSwappable::SetActiveDeviceSwapFuture ( TFuture< TUniquePtr< FDeviceSwapResult > > &&  InFuture)
inlineprotected

Future which holds result of device swap upon completion.

◆ SetOriginalAudioDeviceId()

void Audio::FAudioMixerPlatformSwappable::SetOriginalAudioDeviceId ( const FString &  InAudioDeviceId)
inlineprotected

◆ SynchronousDeviceSwap()

virtual void Audio::FAudioMixerPlatformSwappable::SynchronousDeviceSwap ( )
pure virtual

Performs a device swap synchronously in the current thread

Implemented in Audio::FAudioMixerWasapi, and Audio::FMixerPlatformXAudio2.

The documentation for this class was generated from the following files:
