Audio::FAudioMixerWasapi Class Reference

#include <AudioMixerWasapi.h>

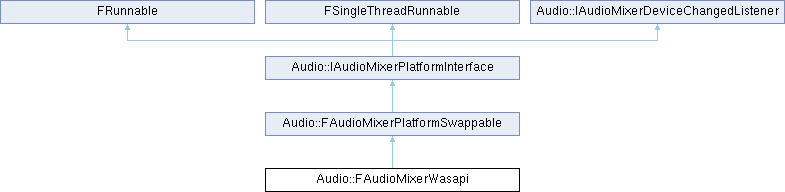

Inheritance diagram for Audio::FAudioMixerWasapi:

Public Member Functions
	FAudioMixerWasapi ()
virtual	~FAudioMixerWasapi () override
virtual FString	GetPlatformApi () const override
virtual bool	InitializeHardware () override
virtual bool	TeardownHardware () override
virtual bool	IsInitialized () const override
virtual int32	GetNumFrames (const int32 InNumRequestedFrames) override
virtual bool	GetNumOutputDevices (uint32 &OutNumOutputDevices) override
virtual bool	GetOutputDeviceInfo (const uint32 InDeviceIndex, FAudioPlatformDeviceInfo &OutInfo) override
virtual bool	GetDefaultOutputDeviceIndex (uint32 &OutDefaultDeviceIndex) const override
virtual bool	OpenAudioStream (const FAudioMixerOpenStreamParams &Params) override
virtual bool	CloseAudioStream () override
virtual bool	StartAudioStream () override
virtual bool	StopAudioStream () override
virtual FAudioPlatformDeviceInfo	GetPlatformDeviceInfo () const override
virtual void	SubmitBuffer (const uint8 *Buffer) override
virtual void	SubmitDirectOutBuffer (const int32 InDirectOutIndex, const FAlignedFloatBuffer &InBuffer) override
virtual FString	GetDefaultDeviceName () override
virtual FAudioPlatformSettings	GetPlatformSettings () const override
virtual IAudioPlatformDeviceInfoCache *	GetDeviceInfoCache () const override
virtual bool	IsDeviceInfoValid (const FAudioPlatformDeviceInfo &InDeviceInfo) const override
virtual bool	ShouldUseDeviceInfoCache () const override
virtual void	RegisterDeviceChangedListener () override
virtual void	UnregisterDeviceChangedListener () override
virtual void	OnDefaultCaptureDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId) override
virtual void	OnDefaultRenderDeviceChanged (const EAudioDeviceRole InAudioDeviceRole, const FString &DeviceId) override
virtual void	OnDeviceAdded (const FString &DeviceId, bool bIsRenderDevice) override
virtual void	OnDeviceRemoved (const FString &DeviceId, bool bIsRenderDevice) override
virtual void	OnDeviceStateChanged (const FString &DeviceId, const EAudioDeviceState InState, bool bIsRenderDevice) override
virtual void	OnFormatChanged (const FString &InDeviceId, const FFormatChangedData &InFormat) override
virtual void	OnSessionDisconnect (Audio::IAudioMixerDeviceChangedListener::EDisconnectReason InReason) override
virtual FString	GetDeviceId () const override
virtual bool	InitializeDeviceSwapContext (const FString &InRequestedDeviceID, const TCHAR *InReason) override
virtual bool	CheckThreadedDeviceSwap () override
virtual bool	PreDeviceSwap () override
virtual void	EnqueueAsyncDeviceSwap () override
virtual void	SynchronousDeviceSwap () override
virtual bool	PostDeviceSwap () override
Public Member Functions inherited from Audio::FAudioMixerPlatformSwappable
UE_API	FAudioMixerPlatformSwappable ()
virtual	~FAudioMixerPlatformSwappable () override=default
virtual UE_API bool	RequestDeviceSwap (const FString &DeviceID, const bool bInForce, const TCHAR *InReason) override
virtual UE_API bool	CheckAudioDeviceChange () override
virtual UE_API bool	MoveAudioStreamToNewAudioDevice () override
virtual UE_API void	ResumePlaybackOnNewDevice () override
virtual UE_API bool	AllowDeviceSwap (const bool bInForceSwap)
Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
virtual AUDIOMIXERCORE_API	~IAudioMixerPlatformInterface ()
virtual FString	GetCurrentDeviceName () const
virtual AUDIOMIXERCORE_API int32	GetIndexForDevice (const FString &InDeviceName)
virtual bool	MoveAudioStreamToNewAudioDevice (const FString &InNewDeviceId)
virtual bool	DisablePCMAudioCaching () const
virtual bool	SupportsHardwareDecompression () const
virtual bool	IsNonRealtime () const
virtual void	SuspendContext ()
virtual void	ResumeContext ()
virtual void	OnHardwareUpdate ()
AUDIOMIXERCORE_API uint32	Run () override
virtual class FSingleThreadRunnable *	GetSingleThreadInterface () override
virtual AUDIOMIXERCORE_API void	Tick () override
AUDIOMIXERCORE_API	IAudioMixerPlatformInterface ()
AUDIOMIXERCORE_API void	ReadNextBuffer ()
virtual AUDIOMIXERCORE_API void	FadeIn ()
virtual AUDIOMIXERCORE_API void	FadeOut ()
FString	GetLastError () const
AUDIOMIXERCORE_API void	PostInitializeHardware ()
bool	GetIsListeningForDeviceEvents () const
void	SetIsListeningForDeviceEvents (bool bInListeningForDeviceEvents)
Public Member Functions inherited from FRunnable
virtual bool	Init ()
virtual void	Stop ()
virtual void	Exit ()
virtual	~FRunnable ()
Public Member Functions inherited from FSingleThreadRunnable
virtual	~FSingleThreadRunnable ()
Public Member Functions inherited from Audio::IAudioMixerDeviceChangedListener
virtual	~IAudioMixerDeviceChangedListener ()=default

Protected Member Functions
bool	InitDeviceSwapContextInternal (const FString &InRequestedDeviceID, const TCHAR *InReason, const TOptional< FAudioPlatformDeviceInfo > &InDeviceInfo)
Protected Member Functions inherited from Audio::FAudioMixerPlatformSwappable
FString	GetOriginalAudioDeviceId () const
void	SetOriginalAudioDeviceId (const FString &InAudioDeviceId)
void	SetActiveDeviceSwapFuture (TFuture< TUniquePtr< FDeviceSwapResult > > &&InFuture)
void	ResetActiveDeviceSwapFuture ()
const FDeviceSwapResult *	GetDeviceSwapResult () const
FDeviceSwapResult *	GetDeviceSwapResult ()
Protected Member Functions inherited from Audio::IAudioMixerPlatformInterface
AUDIOMIXERCORE_API uint32	MainAudioDeviceRun ()
virtual AUDIOMIXERCORE_API uint32	RunInternal ()
void	AudioMixerPlatformLogOnce (const FString &LogDetails, const FString &FileName, int32 LineNumber, ELogVerbosity::Type InVerbosity=ELogVerbosity::Error)
AUDIOMIXERCORE_API void	BeginGeneratingAudio ()
AUDIOMIXERCORE_API void	StopGeneratingAudio ()
AUDIOMIXERCORE_API void	ApplyMasterAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)
AUDIOMIXERCORE_API void	ApplyPrimaryAttenuation (TArrayView< const uint8 > &InOutPoppedAudio)
template<typename BufferType >
void	ApplyAttenuationInternal (TArrayView< BufferType > &InOutBuffer)
AUDIOMIXERCORE_API void	StartRunningNullDevice ()
AUDIOMIXERCORE_API void	StopRunningNullDevice ()
AUDIOMIXERCORE_API void	CreateNullDeviceThread (const TFunction< void()> InCallback, float InBufferDuration, bool bShouldPauseOnStart)

Additional Inherited Members
Public Types inherited from Audio::IAudioMixerDeviceChangedListener
enum class	EDisconnectReason {   DeviceRemoval , ServerShutdown , FormatChanged , SessionLogoff ,   SessionDisconnected , ExclusiveModeOverride }
Static Public Member Functions inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API bool	GetChannelTypeAtIndex (const int32 Index, EAudioMixerChannel::Type &OutType)
Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
FAudioOutputStreamInfo	AudioStreamInfo
FAudioMixerOpenStreamParams	OpenStreamParams
Audio::FOutputBuffer	OutputBuffer
bool	bWarnedBufferUnderrun
TUniquePtr< FRunnableThread >	AudioRenderThread
FEvent *	AudioRenderEvent
FCriticalSection	DeviceSwapCriticalSection
FThreadSafeBool	bIsInDeviceSwap
FEvent *	AudioFadeEvent
int32	NumOutputBuffers
float	FadeVolume
FParam	FadeParam
FString	CurrentDeviceName
FString	LastError
int32	CallCounterApplyAttenuationInternal { 0 }
int32	CallCounterReadNextBuffer { 0 }
FThreadSafeBool	bPerformingFade
FThreadSafeBool	bFadedOut
FThreadSafeBool	bIsDeviceInitialized
FThreadSafeBool	bMoveAudioStreamToNewAudioDevice
FThreadSafeBool	bIsUsingNullDevice
FThreadSafeBool	bIsGeneratingAudio
const int32	InstanceID { -1 }
Static Protected Attributes inherited from Audio::IAudioMixerPlatformInterface
static AUDIOMIXERCORE_API FThreadSafeCounter	NextInstanceID

Detailed Description

FAudioMixerWasapi - Wasapi audio backend for Windows and Xbox

Constructor & Destructor Documentation

FAudioMixerWasapi()

Audio::FAudioMixerWasapi::FAudioMixerWasapi

(

)

~FAudioMixerWasapi()

Audio::FAudioMixerWasapi::~FAudioMixerWasapi ( )

overridevirtual

Member Function Documentation

CheckThreadedDeviceSwap()

bool Audio::FAudioMixerWasapi::CheckThreadedDeviceSwap ( )

overridevirtual

Called repeatedly to update an active, async device swap

Reimplemented from Audio::FAudioMixerPlatformSwappable.

CloseAudioStream()

bool Audio::FAudioMixerWasapi::CloseAudioStream ( )

overridevirtual

Closes the audio stream (if it's open).

Implements Audio::IAudioMixerPlatformInterface.

EnqueueAsyncDeviceSwap()

void Audio::FAudioMixerWasapi::EnqueueAsyncDeviceSwap ( )

overridevirtual

Kicks of an async device swap task

Implements Audio::FAudioMixerPlatformSwappable.

GetDefaultDeviceName()

FString Audio::FAudioMixerWasapi::GetDefaultDeviceName ( )

overridevirtual

Return any optional device name defined in platform configuratio.

Implements Audio::IAudioMixerPlatformInterface.

GetDefaultOutputDeviceIndex()

bool Audio::FAudioMixerWasapi::GetDefaultOutputDeviceIndex ( uint32 &  OutDefaultDeviceIndex ) const

overridevirtual

Returns the default device index.

Reimplemented from Audio::IAudioMixerPlatformInterface.

GetDeviceId()

FString Audio::FAudioMixerWasapi::GetDeviceId ( ) const

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

GetDeviceInfoCache()

IAudioPlatformDeviceInfoCache * Audio::FAudioMixerWasapi::GetDeviceInfoCache ( ) const

overridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

GetNumFrames()

int32 Audio::FAudioMixerWasapi::GetNumFrames ( const int32  InNumReqestedFrames )

overridevirtual

Allows platforms to filter the requested number of frames to render. Some platforms only support specific frame counts.

Reimplemented from Audio::IAudioMixerPlatformInterface.

GetNumOutputDevices()

bool Audio::FAudioMixerWasapi::GetNumOutputDevices ( uint32 &  OutNumOutputDevices )

overridevirtual

Returns the number of output devices.

Reimplemented from Audio::IAudioMixerPlatformInterface.

GetOutputDeviceInfo()

bool Audio::FAudioMixerWasapi::GetOutputDeviceInfo ( const uint32  InDeviceIndex, FAudioPlatformDeviceInfo &  OutInfo  )

overridevirtual

Gets the device information of the given device index.

Implements Audio::IAudioMixerPlatformInterface.

GetPlatformApi()

virtual FString Audio::FAudioMixerWasapi::GetPlatformApi ( ) const

inlineoverridevirtual

Returns the platform API name.

Implements Audio::IAudioMixerPlatformInterface.

GetPlatformDeviceInfo()

FAudioPlatformDeviceInfo Audio::FAudioMixerWasapi::GetPlatformDeviceInfo ( ) const

overridevirtual

Returns the platform device info of the currently open audio stream.

Implements Audio::IAudioMixerPlatformInterface.

GetPlatformSettings()

FAudioPlatformSettings Audio::FAudioMixerWasapi::GetPlatformSettings ( ) const

overridevirtual

Gets the platform specific audio settings.

Implements Audio::IAudioMixerPlatformInterface.

InitDeviceSwapContextInternal()

bool Audio::FAudioMixerWasapi::InitDeviceSwapContextInternal ( const FString &  InRequestedDeviceID, const TCHAR *  InReason, const TOptional< FAudioPlatformDeviceInfo > &  InDeviceInfo  )

protected

Can be used by subclasses to initialize a device swap context by supplying a specific FAudioPlatformDeviceInfo rather than looking it up via the requested device Id.

InitializeDeviceSwapContext()

bool Audio::FAudioMixerWasapi::InitializeDeviceSwapContext ( const FString &  InRequestedDeviceID, const TCHAR *  InReason  )

overridevirtual

Initializes a new device swap context with the given parameters

Implements Audio::FAudioMixerPlatformSwappable.

InitializeHardware()

bool Audio::FAudioMixerWasapi::InitializeHardware ( )

overridevirtual

Initialize the hardware.

Implements Audio::IAudioMixerPlatformInterface.

IsDeviceInfoValid()

bool Audio::FAudioMixerWasapi::IsDeviceInfoValid ( const FAudioPlatformDeviceInfo &  InDeviceInfo ) const

overridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

IsInitialized()

bool Audio::FAudioMixerWasapi::IsInitialized ( ) const

overridevirtual

Is the hardware initialized.

Implements Audio::IAudioMixerPlatformInterface.

OnDefaultCaptureDeviceChanged()

void Audio::FAudioMixerWasapi::OnDefaultCaptureDeviceChanged ( const EAudioDeviceRole  InAudioDeviceRole, const FString &  DeviceId  )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

OnDefaultRenderDeviceChanged()

void Audio::FAudioMixerWasapi::OnDefaultRenderDeviceChanged ( const EAudioDeviceRole  InAudioDeviceRole, const FString &  DeviceId  )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

OnDeviceAdded()

void Audio::FAudioMixerWasapi::OnDeviceAdded ( const FString &  DeviceId, bool  bIsRenderDevice  )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

OnDeviceRemoved()

void Audio::FAudioMixerWasapi::OnDeviceRemoved ( const FString &  DeviceId, bool  bIsRenderDevice  )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

OnDeviceStateChanged()

void Audio::FAudioMixerWasapi::OnDeviceStateChanged ( const FString &  DeviceId, const EAudioDeviceState  InState, bool  bIsRenderDevice  )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

OnFormatChanged()

void Audio::FAudioMixerWasapi::OnFormatChanged ( const FString &  InDeviceId, const FFormatChangedData &  InFormat  )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

OnSessionDisconnect()

void Audio::FAudioMixerWasapi::OnSessionDisconnect ( Audio::IAudioMixerDeviceChangedListener::EDisconnectReason  InReason )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

OpenAudioStream()

bool Audio::FAudioMixerWasapi::OpenAudioStream ( const FAudioMixerOpenStreamParams &  Params )

overridevirtual

Opens up a new audio stream with the given parameters.

Implements Audio::IAudioMixerPlatformInterface.

PostDeviceSwap()

bool Audio::FAudioMixerWasapi::PostDeviceSwap ( )

overridevirtual

Called after a device swap completes, providing an opportunity for any needed cleanup

Reimplemented from Audio::FAudioMixerPlatformSwappable.

PreDeviceSwap()

bool Audio::FAudioMixerWasapi::PreDeviceSwap ( )

overridevirtual

Called at the beginning of a device swap to perform any needed initialization

Reimplemented from Audio::FAudioMixerPlatformSwappable.

RegisterDeviceChangedListener()

void Audio::FAudioMixerWasapi::RegisterDeviceChangedListener ( )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

ShouldUseDeviceInfoCache()

virtual bool Audio::FAudioMixerWasapi::ShouldUseDeviceInfoCache ( ) const

inlineoverridevirtual

Reimplemented from Audio::IAudioMixerPlatformInterface.

StartAudioStream()

bool Audio::FAudioMixerWasapi::StartAudioStream ( )

overridevirtual

Starts the audio stream processing and generating audio.

Implements Audio::IAudioMixerPlatformInterface.

StopAudioStream()

bool Audio::FAudioMixerWasapi::StopAudioStream ( )

overridevirtual

Stops the audio stream (but keeps the audio stream open).

Implements Audio::IAudioMixerPlatformInterface.

SubmitBuffer()

void Audio::FAudioMixerWasapi::SubmitBuffer ( const uint8 *  Buffer )

overridevirtual

Submit the given buffer to the platform's output audio device.

Reimplemented from Audio::IAudioMixerPlatformInterface.

SubmitDirectOutBuffer()

void Audio::FAudioMixerWasapi::SubmitDirectOutBuffer ( const int32  InDirectOutIndex, const FAlignedFloatBuffer &  InBuffer  )

overridevirtual

Submit a buffer that is to be output directly through a discreet device channel.

Reimplemented from Audio::IAudioMixerPlatformInterface.

SynchronousDeviceSwap()

void Audio::FAudioMixerWasapi::SynchronousDeviceSwap ( )

overridevirtual

Performs a device swap synchronously in the current thread

Implements Audio::FAudioMixerPlatformSwappable.

TeardownHardware()

bool Audio::FAudioMixerWasapi::TeardownHardware ( )

overridevirtual

Teardown the hardware.

Implements Audio::IAudioMixerPlatformInterface.

UnregisterDeviceChangedListener()

void Audio::FAudioMixerWasapi::UnregisterDeviceChangedListener ( )

overridevirtual

Reimplemented from Audio::IAudioMixerDeviceChangedListener.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Windows/AudioMixerWasapi/Private/AudioMixerWasapi.h
• Engine/Source/Runtime/Windows/AudioMixerWasapi/Private/AudioMixerWasapi.cpp
• Engine/Source/Runtime/Windows/AudioMixerWasapi/Private/AudioMixerWasapiDeviceListener.cpp
