Chaos::ISimulationModuleBase Class Reference

#include <SimulationModuleBase.h>

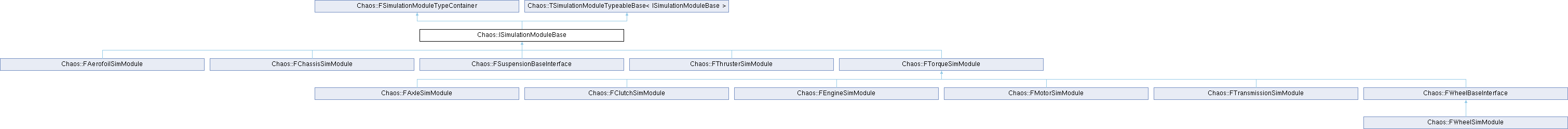

Inheritance diagram for Chaos::ISimulationModuleBase:

Public Member Functions
	DEFINE_CHAOSSIMTYPENAME (ISimulationModuleBase)
	ISimulationModuleBase ()
virtual	~ISimulationModuleBase ()
int	GetGuid () const
void	SetGuid (int GuidIn)
virtual const FString	GetDebugName () const =0
virtual bool	IsBehaviourType (eSimModuleTypeFlags InType) const =0
virtual bool	IsEnabled () const
void	SetStateFlags (eSimModuleState StateFlagsIn)
virtual void	OnConstruction_External (const Chaos::FPhysicsObjectHandle &PhysicsObject)
virtual void	OnTermination_External ()
virtual void	Simulate (IPhysicsProxyBase *Proxy, Chaos::FPBDRigidParticleHandle *ParticleHandle, float DeltaTime, const FAllInputs &Inputs, FSimModuleTree &VehicleModuleSystem)
virtual void	OnContactModification (Chaos::FCollisionContactModifier &Modifier, IPhysicsProxyBase *Proxy)
virtual void	Simulate (float DeltaTime, const FAllInputs &Inputs, FSimModuleTree &VehicleModuleSystem)
virtual void	Animate ()
void	SetAnimationEnabled (bool bInEnabled)
bool	IsAnimationEnabled ()
UE_API void	SetAnimationData (const FName &BoneNameIn, const FVector &AnimationOffsetIn, int AnimationSetupIndexIn)
const FSimModuleAnimationData &	GetAnimationData () const
const FVector &	GetAnimationOffset () const
const FName &	GetBoneName () const
int	GetAnimationSetupIndex ()
virtual void	DrawDebugInfo ()
virtual UE_API bool	GetDebugString (FString &StringOut) const
void	SetTransformIndex (int TransformIndexIn)
const int	GetTransformIndex () const
void	SetParticleIndex (FUniqueIdx ParticleIndexIn)
const FUniqueIdx	GetParticleIndex () const
void	SetTreeIndex (int TreeIndexIn)
int	GetTreeIndex () const
void	SetSimModuleTree (FSimModuleTree *SimModuleTreeIn)
UE_API void	AddLocalForceAtPosition (const FVector &Force, const FVector &Position, bool bAllowSubstepping=true, bool bIsLocalForce=false, bool bLevelSlope=false, const FColor &DebugColorIn=FColor::Blue)
UE_API void	AddForceAtCOMPosition (const FVector &Force, const FVector &OffsetFromCOM=FVector::ZeroVector, bool bAllowSubstepping=true, bool bLevelSlope=false, const FColor &DebugColorIn=FColor::Blue)
UE_API void	AddLocalForce (const FVector &Force, bool bAllowSubstepping=true, bool bIsLocalForce=false, bool bLevelSlope=false, const FColor &DebugColorIn=FColor::Blue)
UE_API void	AddLocalTorque (const FVector &Torque, bool bAllowSubstepping=true, bool bAccelChangeIn=true, const FColor &DebugColorIn=FColor::Magenta)
void	SetClustered (bool IsClusteredIn)
bool	IsClustered () const
void	SetClusteredTransform (const FTransform &TransformIn)
const FTransform &	GetClusteredTransform () const
void	SetInitialParticleTransform (const FTransform &TransformIn)
const FTransform &	GetInitialParticleTransform () const
void	SetComponentTransform (const FTransform &TransformIn)
const FTransform &	GetComponentTransform () const
void	SetIntactTransform (const FTransform &TransformIn)
const FTransform &	GetIntactTransform () const
UE_API const FTransform &	GetParentRelativeTransform () const
void	SetLocalLinearVelocity (const FVector &VelocityIn)
const FVector &	GetLocalLinearVelocity () const
void	SetLocalAngularVelocity (const FVector &VelocityIn)
const FVector &	GetLocalAngularVelocity () const
UE_API ISimulationModuleBase *	GetParent ()
UE_API ISimulationModuleBase *	GetFirstChild ()
UE_API FVehicleBlackboard *	GetSimBlackboard ()
const FVector &	GetAppliedForce ()
virtual TSharedPtr< FModuleNetData >	GenerateNetData (const int32 NodeArrayIndex) const =0
virtual FSimOutputData *	GenerateOutputData () const
UE_API Chaos::FPBDRigidClusteredParticleHandle *	GetClusterParticle (Chaos::FClusterUnionPhysicsProxy *Proxy)
UE_API Chaos::FPBDRigidParticleHandle *	GetParticleFromUniqueIndex (int32 ParticleUniqueIdx, TArray< Chaos::FPBDRigidParticleHandle * > &Particles)
Public Member Functions inherited from Chaos::FSimulationModuleTypeContainer
void	AddType (FName InType)
bool	IsSimType (FName InType) const
FName	GetSimType () const
template<typename U >
bool	IsSimType () const
template<typename U >
U *	Cast ()
template<typename U >
const U *	Cast () const
Public Member Functions inherited from Chaos::TSimulationModuleTypeableBase< ISimulationModuleBase >
	TSimulationModuleTypeableBase ()

Public Attributes
bool	IsInitialized = false
Public Attributes inherited from Chaos::FSimulationModuleTypeContainer
TSet< FName >	MyTypes
FName	MostRecentAdd = NAME_None

Static Public Attributes
static const int	INVALID_IDX = -1

Protected Attributes
FSimModuleTree *	SimModuleTree
int	SimTreeIndex
eSimModuleState	StateFlags
int	TransformIndex
FUniqueIdx	ParticleIdx
FTransform	InitialParticleTransform
FTransform	RelativeOffsetTransform
FTransform	ComponentTransform
FTransform	ClusteredCOMRelativeTransform
FTransform	IntactCOMRelativeTransform
FVector	LocalLinearVelocity
FVector	LocalAngularVelocity
bool	bClustered
bool	bAnimationEnabled
FVector	AnimationOffset
FSimModuleAnimationData	AnimationData
FVector	AppliedForce
int	Guid
FPBDRigidClusteredParticleHandle *	CachedParticle

Additional Inherited Members
Static Public Member Functions inherited from Chaos::FSimulationModuleTypeContainer
template<typename U >
static FName	GetStaticSimType ()
Static Public Member Functions inherited from Chaos::TSimulationModuleTypeableBase< ISimulationModuleBase >
static FName	StaticSimTypeBase ()

Detailed Description

Interface base class for all simulation module building blocks

Constructor & Destructor Documentation

ISimulationModuleBase()

Chaos::ISimulationModuleBase::ISimulationModuleBase ( )

inline

~ISimulationModuleBase()

virtual Chaos::ISimulationModuleBase::~ISimulationModuleBase ( )

inlinevirtual

Member Function Documentation

AddForceAtCOMPosition()

void Chaos::ISimulationModuleBase::AddForceAtCOMPosition	(	const FVector &	Force,
		const FVector &	OffsetFromCOM = FVector::ZeroVector,
		bool	bAllowSubstepping = true,
		bool	bLevelSlope = false,
		const FColor &	DebugColorIn = FColor::Blue
	)

AddLocalForce()

void Chaos::ISimulationModuleBase::AddLocalForce	(	const FVector &	Force,
		bool	bAllowSubstepping = true,
		bool	bIsLocalForce = false,
		bool	bLevelSlope = false,
		const FColor &	DebugColorIn = FColor::Blue
	)

Force application function, handles deferred force application and applying the force at the collect location based on whether the GC cluster is intact or fractured Note: forces are applied in local coordinates of the module

AddLocalForceAtPosition()

void Chaos::ISimulationModuleBase::AddLocalForceAtPosition	(	const FVector &	Force,
		const FVector &	Position,
		bool	bAllowSubstepping = true,
		bool	bIsLocalForce = false,
		bool	bLevelSlope = false,
		const FColor &	DebugColorIn = FColor::Blue
	)

Force application function, handles deferred force application and applying the force at the collect location based on whether the GC cluster is intact or fractured Note: forces are applied in local coordinates of the module

AddLocalTorque()

void Chaos::ISimulationModuleBase::AddLocalTorque	(	const FVector &	Torque,
		bool	bAllowSubstepping = true,
		bool	bAccelChangeIn = true,
		const FColor &	DebugColorIn = FColor::Magenta
	)

Torque application function Note: forces are applied in local coordinates of the module

Animate()

virtual void Chaos::ISimulationModuleBase::Animate ( )

inlinevirtual

Animate/modify the childToParent transforms, to say rotate a wheel, or rudder, etc

Reimplemented in Chaos::FAerofoilSimModule, Chaos::FThrusterSimModule, and Chaos::FWheelSimModule.

DEFINE_CHAOSSIMTYPENAME()

Chaos::ISimulationModuleBase::DEFINE_CHAOSSIMTYPENAME

(

ISimulationModuleBase

)

DrawDebugInfo()

virtual void Chaos::ISimulationModuleBase::DrawDebugInfo ( )

inlinevirtual

Option to draw debug for this module requires CVar p.Chaos.DebugDraw.Enabled 1

GenerateNetData()

virtual TSharedPtr< FModuleNetData > Chaos::ISimulationModuleBase::GenerateNetData ( const int32  NodeArrayIndex ) const

pure virtual

Implemented in Chaos::FAerofoilSimModule, Chaos::FChassisSimModule, Chaos::FThrusterSimModule, Chaos::FClutchSimModule, Chaos::FEngineSimModule, Chaos::FTransmissionSimModule, and Chaos::FWheelSimModule.

GenerateOutputData()

virtual FSimOutputData * Chaos::ISimulationModuleBase::GenerateOutputData ( ) const

inlinevirtual

Reimplemented in Chaos::FAerofoilSimModule, Chaos::FEngineSimModule, Chaos::FTransmissionSimModule, and Chaos::FWheelSimModule.

GetAnimationData()

const FSimModuleAnimationData & Chaos::ISimulationModuleBase::GetAnimationData ( ) const

inline

GetAnimationOffset()

const FVector & Chaos::ISimulationModuleBase::GetAnimationOffset ( ) const

inline

GetAnimationSetupIndex()

int Chaos::ISimulationModuleBase::GetAnimationSetupIndex ( )

inline

GetAppliedForce()

const FVector & Chaos::ISimulationModuleBase::GetAppliedForce ( )

inline

GetBoneName()

const FName & Chaos::ISimulationModuleBase::GetBoneName ( ) const

inline

GetClusteredTransform()

const FTransform & Chaos::ISimulationModuleBase::GetClusteredTransform ( ) const

inline

GetClusterParticle()

FPBDRigidClusteredParticleHandle * Chaos::ISimulationModuleBase::GetClusterParticle

(

Chaos::FClusterUnionPhysicsProxy *

Proxy

)

GetComponentTransform()

const FTransform & Chaos::ISimulationModuleBase::GetComponentTransform ( ) const

inline

GetDebugName()

virtual const FString Chaos::ISimulationModuleBase::GetDebugName ( ) const

pure virtual

Get the friendly name for this module, primarily for logging & debugging module tree

Implemented in Chaos::FAerofoilSimModule, Chaos::FAxleSimModule, Chaos::FChassisSimModule, Chaos::FClutchSimModule, Chaos::FEngineSimModule, Chaos::FMotorSimModule, Chaos::FThrusterSimModule, Chaos::FTransmissionSimModule, and Chaos::FWheelSimModule.

GetDebugString()

bool Chaos::ISimulationModuleBase::GetDebugString ( FString &  StringOut ) const

virtual

Option to return debug text for drawing on the HUD in the Game Thread

Reimplemented in Chaos::FClutchSimModule, Chaos::FEngineSimModule, Chaos::FTransmissionSimModule, and Chaos::FWheelSimModule.

GetFirstChild()

ISimulationModuleBase * Chaos::ISimulationModuleBase::GetFirstChild

(

)

GetGuid()

int Chaos::ISimulationModuleBase::GetGuid ( ) const

inline

GetInitialParticleTransform()

const FTransform & Chaos::ISimulationModuleBase::GetInitialParticleTransform ( ) const

inline

GetIntactTransform()

const FTransform & Chaos::ISimulationModuleBase::GetIntactTransform ( ) const

inline

GetLocalAngularVelocity()

const FVector & Chaos::ISimulationModuleBase::GetLocalAngularVelocity ( ) const

inline

GetLocalLinearVelocity()

const FVector & Chaos::ISimulationModuleBase::GetLocalLinearVelocity ( ) const

inline

GetParent()

ISimulationModuleBase * Chaos::ISimulationModuleBase::GetParent

(

)

GetParentRelativeTransform()

const FTransform & Chaos::ISimulationModuleBase::GetParentRelativeTransform

(

)

const

The modules transform relative to the simulating body will depend on whether the GC is intact (get the transform relative to intact cluster) or fractured (transform relative to fractured part)

GetParticleFromUniqueIndex()

FPBDRigidParticleHandle * Chaos::ISimulationModuleBase::GetParticleFromUniqueIndex	(	int32	ParticleUniqueIdx,
		TArray< Chaos::FPBDRigidParticleHandle * > &	Particles
	)

GetParticleIndex()

const FUniqueIdx Chaos::ISimulationModuleBase::GetParticleIndex ( ) const

inline

GetSimBlackboard()

FVehicleBlackboard * Chaos::ISimulationModuleBase::GetSimBlackboard

(

)

GetTransformIndex()

const int Chaos::ISimulationModuleBase::GetTransformIndex ( ) const

inline

GetTreeIndex()

int Chaos::ISimulationModuleBase::GetTreeIndex ( ) const

inline

IsAnimationEnabled()

bool Chaos::ISimulationModuleBase::IsAnimationEnabled ( )

inline

IsBehaviourType()

virtual bool Chaos::ISimulationModuleBase::IsBehaviourType ( eSimModuleTypeFlags  InType ) const

pure virtual

Is Module of a specific behavioral data type

Implemented in Chaos::FTorqueSimModule, Chaos::FAerofoilSimModule, Chaos::FChassisSimModule, Chaos::FSuspensionBaseInterface, Chaos::FThrusterSimModule, Chaos::FTransmissionSimModule, and Chaos::FWheelSimModule.

IsClustered()

bool Chaos::ISimulationModuleBase::IsClustered ( ) const

inline

IsEnabled()

virtual bool Chaos::ISimulationModuleBase::IsEnabled ( ) const

inlinevirtual

Is Module active and simulating

OnConstruction_External()

virtual void Chaos::ISimulationModuleBase::OnConstruction_External ( const Chaos::FPhysicsObjectHandle &  PhysicsObject )

inlinevirtual

OnContactModification()

virtual void Chaos::ISimulationModuleBase::OnContactModification ( Chaos::FCollisionContactModifier &  Modifier, IPhysicsProxyBase *  Proxy  )

inlinevirtual

OnTermination_External()

virtual void Chaos::ISimulationModuleBase::OnTermination_External ( )

inlinevirtual

SetAnimationData()

void Chaos::ISimulationModuleBase::SetAnimationData	(	const FName &	BoneNameIn,
		const FVector &	AnimationOffsetIn,
		int	AnimationSetupIndexIn
	)

SetAnimationEnabled()

void Chaos::ISimulationModuleBase::SetAnimationEnabled ( bool  bInEnabled )

inline

SetClustered()

void Chaos::ISimulationModuleBase::SetClustered ( bool  IsClusteredIn )

inline

Let the module know if it is still clustered or not

SetClusteredTransform()

void Chaos::ISimulationModuleBase::SetClusteredTransform ( const FTransform &  TransformIn )

inline

Set the COM relative transform of module when it is clustered, so relative to parent COM

SetComponentTransform()

void Chaos::ISimulationModuleBase::SetComponentTransform ( const FTransform &  TransformIn )

inline

SetGuid()

void Chaos::ISimulationModuleBase::SetGuid ( int  GuidIn )

inline

SetInitialParticleTransform()

void Chaos::ISimulationModuleBase::SetInitialParticleTransform ( const FTransform &  TransformIn )

inline

SetIntactTransform()

void Chaos::ISimulationModuleBase::SetIntactTransform ( const FTransform &  TransformIn )

inline

Set the COM relative transform of module when it is broken off, so relative to itself

SetLocalAngularVelocity()

void Chaos::ISimulationModuleBase::SetLocalAngularVelocity ( const FVector &  VelocityIn )

inline

SetLocalLinearVelocity()

void Chaos::ISimulationModuleBase::SetLocalLinearVelocity ( const FVector &  VelocityIn )

inline

Update the module with its current velocity

SetParticleIndex()

void Chaos::ISimulationModuleBase::SetParticleIndex ( FUniqueIdx  ParticleIndexIn )

inline

The Particle unique index, should be valid on game and physics threads

SetSimModuleTree()

void Chaos::ISimulationModuleBase::SetSimModuleTree ( FSimModuleTree *  SimModuleTreeIn )

inline

Very useful to store the simulation tree pointer in which we are stored, then we can access other modules that we reference through an index

SetStateFlags()

void Chaos::ISimulationModuleBase::SetStateFlags ( eSimModuleState  StateFlagsIn )

inline

SetTransformIndex()

void Chaos::ISimulationModuleBase::SetTransformIndex ( int  TransformIndexIn )

inline

The transform index references the transform collection, mapping the simulation module to the geometry collection data

SetTreeIndex()

void Chaos::ISimulationModuleBase::SetTreeIndex ( int  TreeIndexIn )

inline

The modules own index in the simulation tree array

Simulate() [1/2]

virtual void Chaos::ISimulationModuleBase::Simulate ( float  DeltaTime, const FAllInputs &  Inputs, FSimModuleTree &  VehicleModuleSystem  )

inlinevirtual

The main Simulation function that is called from the physics async callback thread

Reimplemented in Chaos::FClutchSimModule, Chaos::FAerofoilSimModule, Chaos::FAxleSimModule, Chaos::FChassisSimModule, Chaos::FEngineSimModule, Chaos::FMotorSimModule, Chaos::FThrusterSimModule, Chaos::FTransmissionSimModule, and Chaos::FWheelSimModule.

Simulate() [2/2]

virtual void Chaos::ISimulationModuleBase::Simulate ( IPhysicsProxyBase *  Proxy, Chaos::FPBDRigidParticleHandle *  ParticleHandle, float  DeltaTime, const FAllInputs &  Inputs, FSimModuleTree &  VehicleModuleSystem  )

inlinevirtual

The main Simulation function that is called from the physics async callback thread

Member Data Documentation

AnimationData

FSimModuleAnimationData Chaos::ISimulationModuleBase::AnimationData

protected

AnimationOffset

FVector Chaos::ISimulationModuleBase::AnimationOffset

protected

AppliedForce

FVector Chaos::ISimulationModuleBase::AppliedForce

protected

bAnimationEnabled

bool Chaos::ISimulationModuleBase::bAnimationEnabled

protected

bClustered

bool Chaos::ISimulationModuleBase::bClustered

protected

CachedParticle

FPBDRigidClusteredParticleHandle* Chaos::ISimulationModuleBase::CachedParticle

protected

ClusteredCOMRelativeTransform

FTransform Chaos::ISimulationModuleBase::ClusteredCOMRelativeTransform

protected

ComponentTransform

FTransform Chaos::ISimulationModuleBase::ComponentTransform

protected

Guid

int Chaos::ISimulationModuleBase::Guid

protected

InitialParticleTransform

FTransform Chaos::ISimulationModuleBase::InitialParticleTransform

protected

IntactCOMRelativeTransform

FTransform Chaos::ISimulationModuleBase::IntactCOMRelativeTransform

protected

INVALID_IDX

const int Chaos::ISimulationModuleBase::INVALID_IDX = -1

static

IsInitialized

bool Chaos::ISimulationModuleBase::IsInitialized = false

LocalAngularVelocity

FVector Chaos::ISimulationModuleBase::LocalAngularVelocity

protected

LocalLinearVelocity

FVector Chaos::ISimulationModuleBase::LocalLinearVelocity

protected

ParticleIdx

FUniqueIdx Chaos::ISimulationModuleBase::ParticleIdx

protected

RelativeOffsetTransform

FTransform Chaos::ISimulationModuleBase::RelativeOffsetTransform

protected

SimModuleTree

FSimModuleTree* Chaos::ISimulationModuleBase::SimModuleTree

protected

SimTreeIndex

int Chaos::ISimulationModuleBase::SimTreeIndex

protected

StateFlags

eSimModuleState Chaos::ISimulationModuleBase::StateFlags

protected

TransformIndex

int Chaos::ISimulationModuleBase::TransformIndex

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Experimental/ChaosVehicles/ChaosVehiclesCore/Public/SimModule/SimulationModuleBase.h
• Engine/Source/Runtime/Experimental/ChaosVehicles/ChaosVehiclesCore/Private/SimModule/SimulationModuleBase.cpp
