#include <WheelModule.h>

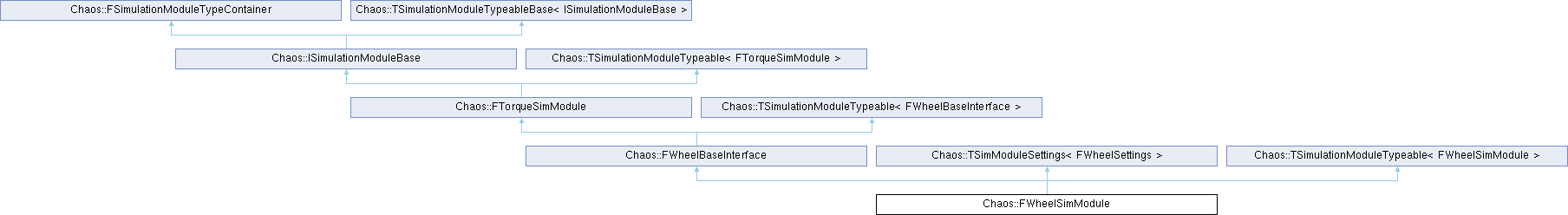

Inheritance diagram for Chaos::FWheelSimModule:

Public Member Functions
	DEFINE_CHAOSSIMTYPENAME (FWheelSimModule)

UE_API	FWheelSimModule (const FWheelSettings &Settings)

virtual TSharedPtr< FModuleNetData >	GenerateNetData (const int32 SimArrayIndex) const override

virtual FSimOutputData *	GenerateOutputData () const override

virtual const FString	GetDebugName () const

virtual UE_API bool	GetDebugString (FString &StringOut) const override

virtual UE_API void	Simulate (float DeltaTime, const FAllInputs &Inputs, FSimModuleTree &VehicleModuleSystem) override

virtual UE_API void	Animate () override

virtual bool	IsBehaviourType (eSimModuleTypeFlags InType) const override

virtual float	GetWheelRadius () const override

float	GetSteerAngleDegrees () const

FVector	GetForceFromFriction () const

void	SetLinearSpeed (float LinearMetersPerSecondIn)

float	GetLinearSpeed ()

float	GetEffectiveRadius () const

Public Member Functions inherited from Chaos::FWheelBaseInterface
	DEFINE_CHAOSSIMTYPENAME (FWheelBaseInterface)

	FWheelBaseInterface ()

void	SetSuspensionSimTreeIndex (int IndexIn)

int	GetSuspensionSimTreeIndex () const

void	SetSurfaceFriction (float FrictionIn)

void	SetForceIntoSurface (float ForceIntoSurfaceIn)

float	GetForceIntoSurface () const

float	GetSurfaceFriction () const

Public Member Functions inherited from Chaos::FTorqueSimModule
	DEFINE_CHAOSSIMTYPENAME (FTorqueSimModule)

	FTorqueSimModule ()

void	SetDriveTorque (float TorqueIn)

float	GetDriveTorque () const

void	SetLoadTorque (float TorqueIn)

float	GetLoadTorque () const

void	SetBrakingTorque (float TorqueIn)

float	GetBrakingTorque () const

void	SetAngularVelocity (float AngularVelocityIn)

float	GetAngularVelocity () const

void	AddAngularVelocity (float AngularVelocityIn)

void	SetAngularPosition (float AngularPositionIn)

float	GetAngularPosition () const

void	SetRPM (float InRPM)

float	GetRPM () const

UE_API void	TransmitTorque (const FSimModuleTree &BlockSystem, float PushedTorque, float BrakeTorque=0.f, float GearingRatio=1.0f, float ClutchSlip=1.0f)

UE_API void	IntegrateAngularVelocity (float DeltaTime, float Inertia, float MaxRotationVel=MAX_FLT)

Public Member Functions inherited from Chaos::ISimulationModuleBase
	DEFINE_CHAOSSIMTYPENAME (ISimulationModuleBase)

	ISimulationModuleBase ()

virtual	~ISimulationModuleBase ()

int	GetGuid () const

void	SetGuid (int GuidIn)

virtual bool	IsEnabled () const

void	SetStateFlags (eSimModuleState StateFlagsIn)

virtual void	OnConstruction_External (const Chaos::FPhysicsObjectHandle &PhysicsObject)

virtual void	OnTermination_External ()

virtual void	Simulate (IPhysicsProxyBase Proxy, Chaos::FPBDRigidParticleHandle ParticleHandle, float DeltaTime, const FAllInputs &Inputs, FSimModuleTree &VehicleModuleSystem)

virtual void	OnContactModification (Chaos::FCollisionContactModifier &Modifier, IPhysicsProxyBase *Proxy)

void	SetAnimationEnabled (bool bInEnabled)

bool	IsAnimationEnabled ()

UE_API void	SetAnimationData (const FName &BoneNameIn, const FVector &AnimationOffsetIn, int AnimationSetupIndexIn)

const FSimModuleAnimationData &	GetAnimationData () const

const FVector &	GetAnimationOffset () const

const FName &	GetBoneName () const

int	GetAnimationSetupIndex ()

virtual void	DrawDebugInfo ()

void	SetTransformIndex (int TransformIndexIn)

const int	GetTransformIndex () const

void	SetParticleIndex (FUniqueIdx ParticleIndexIn)

const FUniqueIdx	GetParticleIndex () const

void	SetTreeIndex (int TreeIndexIn)

int	GetTreeIndex () const

void	SetSimModuleTree (FSimModuleTree *SimModuleTreeIn)

UE_API void	AddLocalForceAtPosition (const FVector &Force, const FVector &Position, bool bAllowSubstepping=true, bool bIsLocalForce=false, bool bLevelSlope=false, const FColor &DebugColorIn=FColor::Blue)

UE_API void	AddForceAtCOMPosition (const FVector &Force, const FVector &OffsetFromCOM=FVector::ZeroVector, bool bAllowSubstepping=true, bool bLevelSlope=false, const FColor &DebugColorIn=FColor::Blue)

UE_API void	AddLocalForce (const FVector &Force, bool bAllowSubstepping=true, bool bIsLocalForce=false, bool bLevelSlope=false, const FColor &DebugColorIn=FColor::Blue)

UE_API void	AddLocalTorque (const FVector &Torque, bool bAllowSubstepping=true, bool bAccelChangeIn=true, const FColor &DebugColorIn=FColor::Magenta)

void	SetClustered (bool IsClusteredIn)

bool	IsClustered () const

void	SetClusteredTransform (const FTransform &TransformIn)

const FTransform &	GetClusteredTransform () const

void	SetInitialParticleTransform (const FTransform &TransformIn)

const FTransform &	GetInitialParticleTransform () const

void	SetComponentTransform (const FTransform &TransformIn)

const FTransform &	GetComponentTransform () const

void	SetIntactTransform (const FTransform &TransformIn)

const FTransform &	GetIntactTransform () const

UE_API const FTransform &	GetParentRelativeTransform () const

void	SetLocalLinearVelocity (const FVector &VelocityIn)

const FVector &	GetLocalLinearVelocity () const

void	SetLocalAngularVelocity (const FVector &VelocityIn)

const FVector &	GetLocalAngularVelocity () const

UE_API ISimulationModuleBase *	GetParent ()

UE_API ISimulationModuleBase *	GetFirstChild ()

UE_API FVehicleBlackboard *	GetSimBlackboard ()

const FVector &	GetAppliedForce ()

UE_API Chaos::FPBDRigidClusteredParticleHandle *	GetClusterParticle (Chaos::FClusterUnionPhysicsProxy *Proxy)

UE_API Chaos::FPBDRigidParticleHandle *	GetParticleFromUniqueIndex (int32 ParticleUniqueIdx, TArray< Chaos::FPBDRigidParticleHandle * > &Particles)

Public Member Functions inherited from Chaos::FSimulationModuleTypeContainer
void	AddType (FName InType)

bool	IsSimType (FName InType) const

FName	GetSimType () const

template<typename U >
bool	IsSimType () const

template<typename U >
U *	Cast ()

template<typename U >
const U *	Cast () const

Public Member Functions inherited from Chaos::TSimulationModuleTypeableBase< ISimulationModuleBase >
	TSimulationModuleTypeableBase ()

Public Member Functions inherited from Chaos::TSimModuleSettings< FWheelSettings >
	TSimModuleSettings (const FWheelSettings &SetupIn)

FORCEINLINE FWheelSettings &	AccessSetup ()

FORCEINLINE const FWheelSettings &	Setup () const

Additional Inherited Members
Static Public Member Functions inherited from Chaos::FTorqueSimModule
static FTorqueSimModule *	CastToTorqueInterface (ISimulationModuleBase *SimModule)

Static Public Member Functions inherited from Chaos::FSimulationModuleTypeContainer
template<typename U >
static FName	GetStaticSimType ()

Static Public Member Functions inherited from Chaos::TSimulationModuleTypeableBase< ISimulationModuleBase >
static FName	StaticSimTypeBase ()

Public Attributes inherited from Chaos::ISimulationModuleBase
bool	IsInitialized = false

Public Attributes inherited from Chaos::FSimulationModuleTypeContainer
TSet< FName >	MyTypes

FName	MostRecentAdd = NAME_None

Static Public Attributes inherited from Chaos::ISimulationModuleBase
static const int	INVALID_IDX = -1

Protected Attributes inherited from Chaos::FWheelBaseInterface
int	SuspensionSimTreeIndex

float	SurfaceFriction

float	ForceIntoSurface

Protected Attributes inherited from Chaos::FTorqueSimModule
float	DriveTorque

float	LoadTorque

float	BrakingTorque

float	AngularVelocity

float	AngularPosition

Protected Attributes inherited from Chaos::ISimulationModuleBase
FSimModuleTree *	SimModuleTree

int	SimTreeIndex

eSimModuleState	StateFlags

int	TransformIndex

FUniqueIdx	ParticleIdx

FTransform	InitialParticleTransform

FTransform	RelativeOffsetTransform

FTransform	ComponentTransform

FTransform	ClusteredCOMRelativeTransform

FTransform	IntactCOMRelativeTransform

FVector	LocalLinearVelocity

FVector	LocalAngularVelocity

bool	bClustered

bool	bAnimationEnabled

FVector	AnimationOffset

FSimModuleAnimationData	AnimationData

FVector	AppliedForce

int	Guid

FPBDRigidClusteredParticleHandle *	CachedParticle

Constructor & Destructor Documentation

◆ FWheelSimModule()

Chaos::FWheelSimModule::FWheelSimModule ( const FWheelSettings & Settings )

Member Function Documentation

◆ Animate()

void Chaos::FWheelSimModule::Animate ( )

overridevirtual

Animate/modify the childToParent transforms, to say rotate a wheel, or rudder, etc

Reimplemented from Chaos::ISimulationModuleBase.

◆ DEFINE_CHAOSSIMTYPENAME()

Chaos::FWheelSimModule::DEFINE_CHAOSSIMTYPENAME ( FWheelSimModule )

◆ GenerateNetData()

virtual TSharedPtr< FModuleNetData > Chaos::FWheelSimModule::GenerateNetData ( const int32 SimArrayIndex ) const

inlineoverridevirtual

Implements Chaos::ISimulationModuleBase.

◆ GenerateOutputData()

virtual FSimOutputData * Chaos::FWheelSimModule::GenerateOutputData ( ) const

inlineoverridevirtual

Reimplemented from Chaos::ISimulationModuleBase.

◆ GetDebugName()

virtual const FString Chaos::FWheelSimModule::GetDebugName ( ) const

inlinevirtual

Get the friendly name for this module, primarily for logging & debugging module tree

Implements Chaos::ISimulationModuleBase.

◆ GetDebugString()

bool Chaos::FWheelSimModule::GetDebugString ( FString & StringOut ) const

overridevirtual

Option to return debug text for drawing on the HUD in the Game Thread

Reimplemented from Chaos::ISimulationModuleBase.

◆ GetEffectiveRadius()

float Chaos::FWheelSimModule::GetEffectiveRadius ( ) const

inline

Get the radius of the wheel [cm]

◆ GetForceFromFriction()

FVector Chaos::FWheelSimModule::GetForceFromFriction ( ) const

inline

◆ GetLinearSpeed()

float Chaos::FWheelSimModule::GetLinearSpeed ( )

inline

get linear forwards speed from angluar velocity and wheel radius

◆ GetSteerAngleDegrees()

float Chaos::FWheelSimModule::GetSteerAngleDegrees ( ) const

inline

◆ GetWheelRadius()

virtual float Chaos::FWheelSimModule::GetWheelRadius ( ) const

inlineoverridevirtual

Implements Chaos::FWheelBaseInterface.

◆ IsBehaviourType()

virtual bool Chaos::FWheelSimModule::IsBehaviourType ( eSimModuleTypeFlags InType ) const

inlineoverridevirtual

Is Module of a specific type - used for casting

Reimplemented from Chaos::FTorqueSimModule.

◆ SetLinearSpeed()

void Chaos::FWheelSimModule::SetLinearSpeed ( float LinearMetersPerSecondIn )

inline

set wheel rotational speed to match the specified linear forwards speed

◆ Simulate()

void Chaos::FWheelSimModule::Simulate	(	float	DeltaTime,
		const FAllInputs &	Inputs,
		FSimModuleTree &	VehicleModuleSystem
	)

overridevirtual

The main Simulation function that is called from the physics async callback thread

Reimplemented from Chaos::ISimulationModuleBase.

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Experimental/ChaosVehicles/ChaosVehiclesCore/Public/SimModule/WheelModule.h
Engine/Source/Runtime/Experimental/ChaosVehicles/ChaosVehiclesCore/Private/SimModule/WheelModule.cpp
