FD3D12DescriptorCache Class Reference

#include <D3D12DescriptorCache.h>

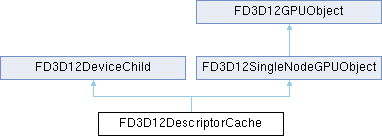

Inheritance diagram for FD3D12DescriptorCache:

Public Member Functions
	FD3D12DescriptorCache ()=delete
	FD3D12DescriptorCache (FD3D12CommandContext &Context, FRHIGPUMask Node)
	~FD3D12DescriptorCache ()
FD3D12OnlineHeap *	GetCurrentViewHeap () const
FD3D12OnlineHeap *	GetCurrentSamplerHeap () const
ID3D12DescriptorHeap *	GetLastSetViewHeap () const
bool	IsHeapSet (ID3D12DescriptorHeap *const pHeap) const
void	OpenCommandList ()
void	CloseCommandList ()
void	SetVertexBuffers (FD3D12VertexBufferCache &Cache)
void	SetRenderTargets (FD3D12RenderTargetView **RenderTargetViewArray, uint32 Count, FD3D12DepthStencilView *DepthStencilTarget)
D3D12_GPU_DESCRIPTOR_HANDLE	BuildUAVTable (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12UnorderedAccessViewCache &Cache, const UAVSlotMask &SlotsNeededMask, uint32 Count, uint32 &HeapSlot)
D3D12_GPU_DESCRIPTOR_HANDLE	BuildSamplerTable (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12SamplerStateCache &Cache, const SamplerSlotMask &SlotsNeededMask, uint32 Count, uint32 &HeapSlot)
D3D12_GPU_DESCRIPTOR_HANDLE	BuildSRVTable (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12ShaderResourceViewCache &Cache, const SRVSlotMask &SlotsNeededMask, uint32 Count, uint32 &HeapSlot)
void	SetUAVTable (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12UnorderedAccessViewCache &Cache, uint32 SlotsNeeded, const D3D12_GPU_DESCRIPTOR_HANDLE &BindDescriptor)
void	SetSamplerTable (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12SamplerStateCache &Cache, uint32 SlotsNeeded, const D3D12_GPU_DESCRIPTOR_HANDLE &BindDescriptor)
void	SetSRVTable (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12ShaderResourceViewCache &Cache, uint32 SlotsNeeded, const D3D12_GPU_DESCRIPTOR_HANDLE &BindDescriptor)
void	SetConstantBufferViews (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12ConstantBufferCache &Cache, CBVSlotMask SlotsNeededMask, uint32 Count, uint32 &HeapSlot)
void	SetRootConstantBuffers (EShaderFrequency ShaderStage, const FD3D12RootSignature *RootSignature, FD3D12ConstantBufferCache &Cache, CBVSlotMask SlotsNeededMask, FD3D12StateCache *StateCache)
void	PrepareBindlessViews (EShaderFrequency ShaderStage, TConstArrayView< FD3D12ShaderResourceView * > SRVs, TConstArrayView< FD3D12UnorderedAccessView * > UAVs)
bool	HeapRolledOver (ERHIDescriptorHeapType InHeapType)
void	HeapLoopedAround (ERHIDescriptorHeapType InHeapType)
void	Init (uint32 InNumLocalViewDescriptors, uint32 InNumSamplerDescriptors)
bool	SwitchToContextLocalViewHeap ()
bool	SwitchToContextLocalSamplerHeap ()
void	SwitchToGlobalSamplerHeap ()
void	SetExplicitDescriptorCache (FD3D12ExplicitDescriptorCache &ExplicitDescriptorCache)
void	UnsetExplicitDescriptorCache ()
bool	UsingGlobalSamplerHeap () const
FD3D12SamplerSet &	GetLocalSamplerSet ()
bool	SetDescriptorHeaps (ED3D12SetDescriptorHeapsFlags Flags)
constexpr bool	CouldUseBindless () const
constexpr bool	IsFullyBindless () const
Public Member Functions inherited from FD3D12DeviceChild
	FD3D12DeviceChild (FD3D12Device *InParent=nullptr)
FORCEINLINE FD3D12Device *	GetParentDevice () const
FD3D12Device *	GetParentDevice_Unsafe () const
Public Member Functions inherited from FD3D12SingleNodeGPUObject
	FD3D12SingleNodeGPUObject (FRHIGPUMask GPUMask)
SGPU_CONSTEXPR uint32	GetGPUIndex () const
Public Member Functions inherited from FD3D12GPUObject
	FD3D12GPUObject (FRHIGPUMask InGPUMask, FRHIGPUMask InVisibiltyMask)
SGPU_CONSTEXPR FRHIGPUMask	GetGPUMask () const
SGPU_CONSTEXPR FRHIGPUMask	GetVisibilityMask () const

Protected Attributes
FD3D12CommandContext &	Context
const FD3D12DefaultViews &	DefaultViews
Protected Attributes inherited from FD3D12DeviceChild
FD3D12Device *	Parent

Constructor & Destructor Documentation

FD3D12DescriptorCache() [1/2]

FD3D12DescriptorCache::FD3D12DescriptorCache ( )

delete

FD3D12DescriptorCache() [2/2]

FD3D12DescriptorCache::FD3D12DescriptorCache	(	FD3D12CommandContext &	Context,
		FRHIGPUMask	Node
	)

~FD3D12DescriptorCache()

FD3D12DescriptorCache::~FD3D12DescriptorCache

(

)

Member Function Documentation

BuildSamplerTable()

D3D12_GPU_DESCRIPTOR_HANDLE FD3D12DescriptorCache::BuildSamplerTable	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12SamplerStateCache &	Cache,
		const SamplerSlotMask &	SlotsNeededMask,
		uint32	Count,
		uint32 &	HeapSlot
	)

BuildSRVTable()

D3D12_GPU_DESCRIPTOR_HANDLE FD3D12DescriptorCache::BuildSRVTable	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12ShaderResourceViewCache &	Cache,
		const SRVSlotMask &	SlotsNeededMask,
		uint32	Count,
		uint32 &	HeapSlot
	)

BuildUAVTable()

D3D12_GPU_DESCRIPTOR_HANDLE FD3D12DescriptorCache::BuildUAVTable	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12UnorderedAccessViewCache &	Cache,
		const UAVSlotMask &	SlotsNeededMask,
		uint32	Count,
		uint32 &	HeapSlot
	)

CloseCommandList()

void FD3D12DescriptorCache::CloseCommandList

(

)

CouldUseBindless()

constexpr bool FD3D12DescriptorCache::CouldUseBindless ( ) const

inlineconstexpr

GetCurrentSamplerHeap()

FD3D12OnlineHeap * FD3D12DescriptorCache::GetCurrentSamplerHeap ( ) const

inline

GetCurrentViewHeap()

FD3D12OnlineHeap * FD3D12DescriptorCache::GetCurrentViewHeap ( ) const

inline

GetLastSetViewHeap()

ID3D12DescriptorHeap * FD3D12DescriptorCache::GetLastSetViewHeap ( ) const

inline

GetLocalSamplerSet()

FD3D12SamplerSet & FD3D12DescriptorCache::GetLocalSamplerSet ( )

inline

HeapLoopedAround()

void FD3D12DescriptorCache::HeapLoopedAround

(

ERHIDescriptorHeapType

InHeapType

)

HeapRolledOver()

bool FD3D12DescriptorCache::HeapRolledOver

(

ERHIDescriptorHeapType

InHeapType

)

Init()

void FD3D12DescriptorCache::Init	(	uint32	InNumLocalViewDescriptors,
		uint32	InNumSamplerDescriptors
	)

IsFullyBindless()

constexpr bool FD3D12DescriptorCache::IsFullyBindless ( ) const

inlineconstexpr

IsHeapSet()

bool FD3D12DescriptorCache::IsHeapSet ( ID3D12DescriptorHeap *const  pHeap ) const

inline

OpenCommandList()

void FD3D12DescriptorCache::OpenCommandList

(

)

PrepareBindlessViews()

void FD3D12DescriptorCache::PrepareBindlessViews	(	EShaderFrequency	ShaderStage,
		TConstArrayView< FD3D12ShaderResourceView * >	SRVs,
		TConstArrayView< FD3D12UnorderedAccessView * >	UAVs
	)

SetConstantBufferViews()

void FD3D12DescriptorCache::SetConstantBufferViews	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12ConstantBufferCache &	Cache,
		CBVSlotMask	SlotsNeededMask,
		uint32	Count,
		uint32 &	HeapSlot
	)

SetDescriptorHeaps()

bool FD3D12DescriptorCache::SetDescriptorHeaps

(

ED3D12SetDescriptorHeapsFlags

Flags

)

SetExplicitDescriptorCache()

void FD3D12DescriptorCache::SetExplicitDescriptorCache

(

FD3D12ExplicitDescriptorCache &

ExplicitDescriptorCache

)

SetRenderTargets()

void FD3D12DescriptorCache::SetRenderTargets	(	FD3D12RenderTargetView **	RenderTargetViewArray,
		uint32	Count,
		FD3D12DepthStencilView *	DepthStencilTarget
	)

SetRootConstantBuffers()

void FD3D12DescriptorCache::SetRootConstantBuffers	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12ConstantBufferCache &	Cache,
		CBVSlotMask	SlotsNeededMask,
		FD3D12StateCache *	StateCache
	)

SetSamplerTable()

void FD3D12DescriptorCache::SetSamplerTable	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12SamplerStateCache &	Cache,
		uint32	SlotsNeeded,
		const D3D12_GPU_DESCRIPTOR_HANDLE &	BindDescriptor
	)

SetSRVTable()

void FD3D12DescriptorCache::SetSRVTable	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12ShaderResourceViewCache &	Cache,
		uint32	SlotsNeeded,
		const D3D12_GPU_DESCRIPTOR_HANDLE &	BindDescriptor
	)

SetUAVTable()

void FD3D12DescriptorCache::SetUAVTable	(	EShaderFrequency	ShaderStage,
		const FD3D12RootSignature *	RootSignature,
		FD3D12UnorderedAccessViewCache &	Cache,
		uint32	SlotsNeeded,
		const D3D12_GPU_DESCRIPTOR_HANDLE &	BindDescriptor
	)

SetVertexBuffers()

void FD3D12DescriptorCache::SetVertexBuffers

(

FD3D12VertexBufferCache &

Cache

)

SwitchToContextLocalSamplerHeap()

bool FD3D12DescriptorCache::SwitchToContextLocalSamplerHeap

(

)

SwitchToContextLocalViewHeap()

bool FD3D12DescriptorCache::SwitchToContextLocalViewHeap

(

)

SwitchToGlobalSamplerHeap()

void FD3D12DescriptorCache::SwitchToGlobalSamplerHeap

(

)

UnsetExplicitDescriptorCache()

void FD3D12DescriptorCache::UnsetExplicitDescriptorCache

(

)

UsingGlobalSamplerHeap()

bool FD3D12DescriptorCache::UsingGlobalSamplerHeap ( ) const

inline

Member Data Documentation

Context

FD3D12CommandContext& FD3D12DescriptorCache::Context

protected

DefaultViews

const FD3D12DefaultViews& FD3D12DescriptorCache::DefaultViews

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/D3D12RHI/Private/D3D12DescriptorCache.h
• Engine/Source/Runtime/D3D12RHI/Private/D3D12DescriptorCache.cpp
