FMaterialShader Class Reference

#include <MaterialShader.h>

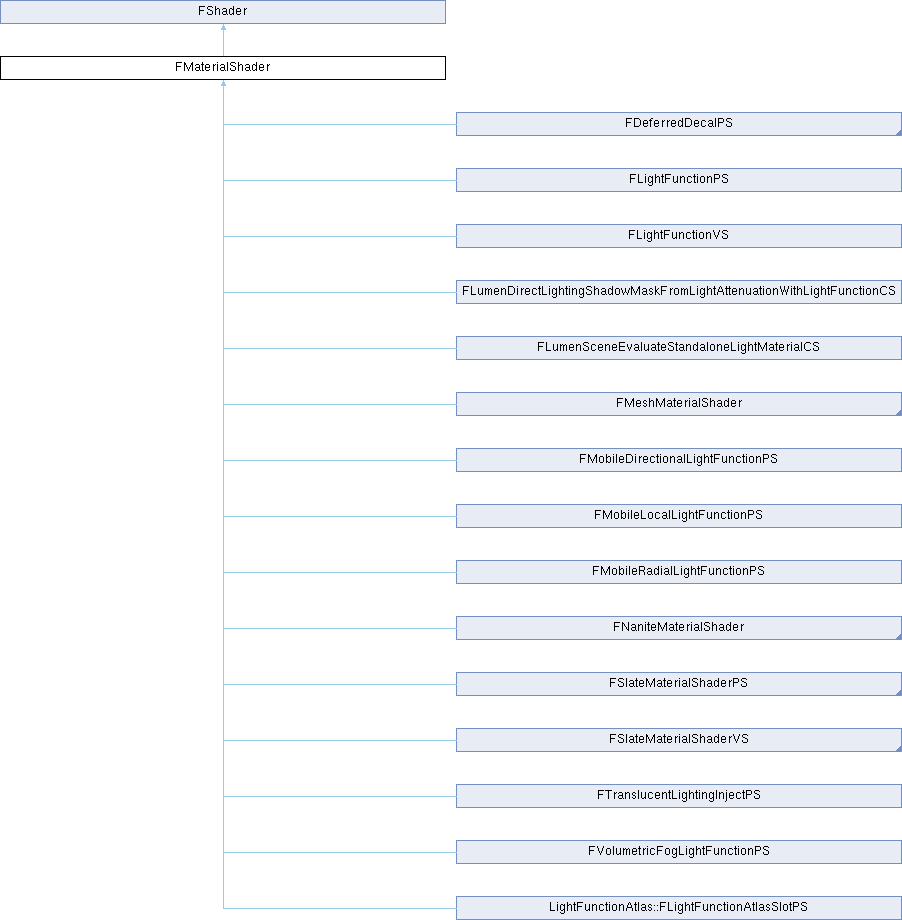

Inheritance diagram for FMaterialShader:

Public Types
using	FPermutationParameters = FMaterialShaderPermutationParameters
using	ShaderMetaType = FMaterialShaderType
Public Types inherited from FShader
using	FPermutationDomain = FShaderPermutationNone
using	FPermutationParameters = FShaderPermutationParameters
using	CompiledShaderInitializerType = FShaderCompiledShaderInitializerType
using	ShaderMetaType = FShaderType
using	ShaderStatKeyType = FMemoryImageName
using	FShaderStatisticMap = TMemoryImageMap< ShaderStatKeyType, FShaderStatVariant >

Public Member Functions
RENDERER_API	FMaterialShader ()
RENDERER_API	FMaterialShader (const FMaterialShaderType::CompiledShaderInitializerType &Initializer)
RENDERER_API FRHIUniformBuffer *	GetParameterCollectionBuffer (const FGuid &Id, const FSceneInterface *SceneInterface) const
RENDERER_API void	SetViewParameters (FRHIBatchedShaderParameters &BatchedParameters, const FSceneView &View, const TUniformBufferRef< FViewUniformShaderParameters > &ViewUniformBuffer)
template<typename ShaderRHIParamRef , typename TRHICommandList >
void	SetViewParameters (TRHICommandList &RHICmdList, const ShaderRHIParamRef ShaderRHI, const FSceneView &View, const TUniformBufferRef< FViewUniformShaderParameters > &ViewUniformBuffer)
RENDERER_API void	SetParameters (FRHIBatchedShaderParameters &BatchedParameters, const FMaterialRenderProxy *MaterialRenderProxy, const FMaterial &Material, const FSceneView &View)
RENDERER_API void	SetParameters (FRHIBatchedShaderParameters &BatchedParameters, const FMaterialRenderProxy *MaterialRenderProxy, const FMaterial &Material, const FSceneInterface *Scene)
template<typename TRHIShader , typename TRHICommandList >
void	SetParameters (TRHICommandList &RHICmdList, TRHIShader *ShaderRHI, const FMaterialRenderProxy *MaterialRenderProxy, const FMaterial &Material, const FSceneView &View)
RENDERER_API void	GetShaderBindings (const FSceneInterface *Scene, ERHIFeatureLevel::Type FeatureLevel, const FMaterialRenderProxy &MaterialRenderProxy, const FMaterial &Material, FMeshDrawSingleShaderBindings &ShaderBindings) const
Public Member Functions inherited from FShader
RENDERCORE_API	FShader ()
RENDERCORE_API	FShader (const CompiledShaderInitializerType &Initializer)
RENDERCORE_API	~FShader ()
RENDERCORE_API const FSHAHash &	GetHash () const
RENDERCORE_API const FSHAHash &	GetVertexFactoryHash () const
RENDERCORE_API const FSHAHash &	GetOutputHash () const
uint32	GetSortKey () const
RENDERCORE_API void	Finalize (const FShaderMapResourceCode *Code)
FShaderType *	GetType (const FShaderMapPointerTable &InPointerTable) const
FShaderType *	GetType (const FPointerTableBase *InPointerTable) const
FVertexFactoryType *	GetVertexFactoryType (const FShaderMapPointerTable &InPointerTable) const
FVertexFactoryType *	GetVertexFactoryType (const FPointerTableBase *InPointerTable) const
FShaderType *	GetTypeUnfrozen () const
int32	GetResourceIndex () const
EShaderPlatform	GetShaderPlatform () const
EShaderFrequency	GetFrequency () const
const FShaderTarget	GetTarget () const
bool	IsFrozen () const
uint32	GetNumInstructions () const
uint32	GetNumTextureSamplers () const
uint32	GetCodeSize () const
void	SetNumInstructions (uint32 Value)
template<typename UniformBufferStructType >
const TShaderUniformBufferParameter< UniformBufferStructType > &	GetUniformBufferParameter () const
const FShaderUniformBufferParameter &	GetUniformBufferParameter (const FShaderParametersMetadata *SearchStruct) const
const FShaderUniformBufferParameter &	GetUniformBufferParameter (const FHashedName SearchName) const
RENDERCORE_API const FShaderParametersMetadata *	FindAutomaticallyBoundUniformBufferStruct (int32 BaseIndex) const
RENDERCORE_API void	DumpDebugInfo (const FShaderMapPointerTable &InPtrTable)
	LAYOUT_FIELD (FShaderParameterBindings, Bindings)
	LAYOUT_FIELD (FShaderParameterMapInfo, ParameterMapInfo)

Static Public Attributes
static RENDERER_API FName	UniformBufferLayoutName

Protected Member Functions
	LAYOUT_FIELD_EDITORONLY (FDebugUniformExpressionSet, DebugUniformExpressionSet)
	LAYOUT_FIELD_EDITORONLY (FRHIUniformBufferLayoutInitializer, DebugUniformExpressionUBLayout)
	LAYOUT_FIELD_EDITORONLY (FMemoryImageString, DebugDescription)
Protected Member Functions inherited from FShader
	LAYOUT_FIELD (TMemoryImageArray< FHashedName >, UniformBufferParameterStructs)
	LAYOUT_FIELD (TMemoryImageArray< FShaderUniformBufferParameter >, UniformBufferParameters)
	LAYOUT_FIELD_EDITORONLY (FSHAHash, OutputHash)
	LAYOUT_FIELD_EDITORONLY (FSHAHash, VFSourceHash)
	LAYOUT_FIELD_EDITORONLY (FSHAHash, SourceHash)

Additional Inherited Members
Static Public Member Functions inherited from FShader
static void	ModifyCompilationEnvironment (const FShaderPermutationParameters &, FShaderCompilerEnvironment &)
static const FShaderBindingLayout *	GetShaderBindingLayout (const FShaderPermutationParameters &)
static bool	ShouldCompilePermutation (const FShaderPermutationParameters &)
static EShaderPermutationPrecacheRequest	ShouldPrecachePermutation (const FShaderPermutationParameters &Parameters)
static bool	ValidateCompiledResult (EShaderPlatform InPlatform, const FShaderParameterMap &InParameterMap, TArray< FString > &OutError)
static EShaderCompileJobPriority	GetOverrideJobPriority ()
static ERayTracingPayloadType	GetRayTracingPayloadType (const int32 PermutationId)
static const FShaderParametersMetadata *	GetRootParametersMetadata ()

Detailed Description

Base class of all shaders that need material parameters.

Member Typedef Documentation

FPermutationParameters

using FMaterialShader::FPermutationParameters = FMaterialShaderPermutationParameters

ShaderMetaType

using FMaterialShader::ShaderMetaType = FMaterialShaderType

Constructor & Destructor Documentation

FMaterialShader() [1/2]

FMaterialShader::FMaterialShader ( )

default

FMaterialShader() [2/2]

FMaterialShader::FMaterialShader

(

const FMaterialShaderType::CompiledShaderInitializerType &

Initializer

)

Member Function Documentation

GetParameterCollectionBuffer()

FRHIUniformBuffer * FMaterialShader::GetParameterCollectionBuffer	(	const FGuid &	Id,
		const FSceneInterface *	SceneInterface
	)		const

GetShaderBindings()

void FMaterialShader::GetShaderBindings	(	const FSceneInterface *	Scene,
		ERHIFeatureLevel::Type	FeatureLevel,
		const FMaterialRenderProxy &	MaterialRenderProxy,
		const FMaterial &	Material,
		FMeshDrawSingleShaderBindings &	ShaderBindings
	)		const

LAYOUT_FIELD_EDITORONLY() [1/3]

FMaterialShader::LAYOUT_FIELD_EDITORONLY ( FDebugUniformExpressionSet  , DebugUniformExpressionSet    )

protected

LAYOUT_FIELD_EDITORONLY() [2/3]

FMaterialShader::LAYOUT_FIELD_EDITORONLY ( FMemoryImageString  , DebugDescription    )

protected

LAYOUT_FIELD_EDITORONLY() [3/3]

FMaterialShader::LAYOUT_FIELD_EDITORONLY ( FRHIUniformBufferLayoutInitializer  , DebugUniformExpressionUBLayout    )

protected

SetParameters() [1/3]

void FMaterialShader::SetParameters	(	FRHIBatchedShaderParameters &	BatchedParameters,
		const FMaterialRenderProxy *	MaterialRenderProxy,
		const FMaterial &	Material,
		const FSceneInterface *	Scene
	)

Sets pixel parameters that are material specific but not FMeshBatch specific.

SetParameters() [2/3]

void FMaterialShader::SetParameters	(	FRHIBatchedShaderParameters &	BatchedParameters,
		const FMaterialRenderProxy *	MaterialRenderProxy,
		const FMaterial &	Material,
		const FSceneView &	View
	)

Sets pixel parameters that are material specific but not FMeshBatch specific.

SetParameters() [3/3]

template<typename TRHIShader , typename TRHICommandList >

void FMaterialShader::SetParameters ( TRHICommandList &  RHICmdList, TRHIShader *  ShaderRHI, const FMaterialRenderProxy *  MaterialRenderProxy, const FMaterial &  Material, const FSceneView &  View  )

inline

Sets pixel parameters that are material specific but not FMeshBatch specific.

SetViewParameters() [1/2]

void FMaterialShader::SetViewParameters	(	FRHIBatchedShaderParameters &	BatchedParameters,
		const FSceneView &	View,
		const TUniformBufferRef< FViewUniformShaderParameters > &	ViewUniformBuffer
	)

SetViewParameters() [2/2]

template<typename ShaderRHIParamRef , typename TRHICommandList >

void FMaterialShader::SetViewParameters ( TRHICommandList &  RHICmdList, const ShaderRHIParamRef  ShaderRHI, const FSceneView &  View, const TUniformBufferRef< FViewUniformShaderParameters > &  ViewUniformBuffer  )

inline

Member Data Documentation

UniformBufferLayoutName

FName FMaterialShader::UniformBufferLayoutName

static

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Renderer/Public/MaterialShader.h
• Engine/Source/Runtime/Renderer/Private/ShaderBaseClasses.cpp
