FOpenGLTexture Class Reference

#include <OpenGLResources.h>

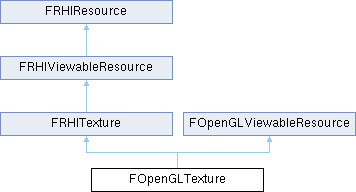

Inheritance diagram for FOpenGLTexture:

Public Types
enum	EAliasConstructorParam { AliasResource }

Public Member Functions
UE_API	FOpenGLTexture (FOpenGLTextureCreateDesc const &CreateDesc)
UE_API	FOpenGLTexture (FOpenGLTextureCreateDesc const &CreateDesc, GLuint Resource)
UE_API	FOpenGLTexture (FOpenGLTexture &Texture, const FString &Name, EAliasConstructorParam)
virtual UE_API	~FOpenGLTexture ()
UE_API void	Initialize (FRHICommandListBase &RHICmdList)
UE_API void	AliasResources (FOpenGLTexture &Texture)
GLuint	GetResource ()
GLuint &	GetResourceRef ()
GLuint	GetRawResourceName () const
const GLuint &	GetRawResourceNameRef () const
void	SetResource (GLuint InResource)
bool	IsEvicted () const
virtual void *	GetTextureBaseRHI () override final
UE_API void *	Lock (uint32 MipIndex, uint32 ArrayIndex, EResourceLockMode LockMode, uint32 &DestStride)
UE_API uint32	GetLockSize (uint32 MipIndex, EResourceLockMode LockMode, uint32 &DestStride)
UE_API void	Unlock (uint32 MipIndex, uint32 ArrayIndex)
virtual void *	GetNativeResource () const override
bool	GetAllocatedStorageForMip (uint32 MipIndex, uint32 FaceIndex) const
void	SetAllocatedStorageForMip (uint32 MipIndex, uint32 FaceIndex)
void	SetAllocatedStorage (bool bInAllocatedStorage)
UE_API void	CloneViaCopyImage (FOpenGLTexture *Src, uint32 InNumMips, int32 SrcOffset, int32 DstOffset)
UE_API void	Resolve (uint32 MipIndex, uint32 ArrayIndex)
UE_API void	RestoreEvictedGLResource (bool bAttemptToRetainMips)
UE_API bool	CanBeEvicted ()
UE_API void	TryEvictGLResource ()
UE_API void	RemoveEvictionData ()
uint32	GetEffectiveSizeZ () const
Public Member Functions inherited from FRHITexture
virtual const FRHITextureDesc &	GetDesc () const
virtual class FRHITextureReference *	GetTextureReference ()
virtual FRHIDescriptorHandle	GetDefaultBindlessHandle () const
virtual void *	GetNativeShaderResourceView () const
virtual void	GetWriteMaskProperties (void *&OutData, uint32 &OutSize)
FIntVector	GetSizeXYZ () const
FIntVector	GetMipDimensions (uint8 MipIndex) const
bool	IsMultisampled () const
bool	HasClearValue () const
FLinearColor	GetClearColor () const
void	GetDepthStencilClearValue (float &OutDepth, uint32 &OutStencil) const
float	GetDepthClearValue () const
uint32	GetStencilClearValue () const
void	SetLastRenderTime (float InLastRenderTime)
double	GetLastRenderTime () const
RHI_API void	SetName (FName InName)
FRHITexture *	GetTexture2D ()
FRHITexture *	GetTexture2DArray ()
FRHITexture *	GetTexture3D ()
FRHITexture *	GetTextureCube ()
uint32	GetSizeX () const
uint32	GetSizeY () const
FIntPoint	GetSizeXY () const
uint32	GetSizeZ () const
uint32	GetNumMips () const
EPixelFormat	GetFormat () const
ETextureCreateFlags	GetFlags () const
uint32	GetNumSamples () const
const FClearValueBinding	GetClearBinding () const
uint32	GetSize () const
Public Member Functions inherited from FRHIViewableResource
ERHIAccess	GetTrackedAccess_Unsafe () const
FName	GetName () const
Public Member Functions inherited from FRHIResource
RHI_API	FRHIResource (ERHIResourceType InResourceType)
uint32	AddRef () const
uint32	Release () const
uint32	GetRefCount () const
bool	IsValid () const
void	DisableLifetimeExtension ()
ERHIResourceType	GetType () const
FName	GetOwnerName () const
void	SetOwnerName (FName InOwnerName)
Public Member Functions inherited from FOpenGLViewableResource
	~FOpenGLViewableResource ()
bool	HasLinkedViews () const
void	UpdateLinkedViews ()

Public Attributes
GLenum const	Target = 0
GLenum const	Attachment = 0
TUniquePtr< FTextureEvictionParams >	EvictionParamsPtr
class FOpenGLSamplerState *	SamplerState = nullptr
TArray< TRefCountPtr< FOpenGLPixelBuffer > >	PixelBuffers
bool	bInStencilTextureMode = false
uint32 const	MemorySize
uint8 const	bIsPowerOfTwo: 1
uint8 const	bCanCreateAsEvicted: 1
uint8 const	bStreamable: 1
uint8 const	bCubemap: 1
uint8 const	bArrayTexture: 1
uint8 const	bDepthStencil: 1
uint8 const	bAlias: 1
uint8 const	bMultisampleRenderbuffer: 1

Additional Inherited Members
Protected Member Functions inherited from FRHITexture
	FRHITexture ()=delete
RHI_API	FRHITexture (const FRHITextureCreateDesc &CreateDesc)
RHI_API	FRHITexture (ERHIResourceType InResourceType)
Protected Member Functions inherited from FRHIViewableResource
	FRHIViewableResource (ERHIResourceType InResourceType, ERHIAccess InAccess, const TCHAR *InName, FName InOwnerName)
virtual void	SetTrackedAccessFromContext (FRHITrackedAccess InTrackedAccess)
void	TakeOwnership (FRHIViewableResource &Other)
void	ReleaseOwnership ()
Protected Member Functions inherited from FRHIResource
virtual RHI_API	~FRHIResource ()
Protected Attributes inherited from FRHIViewableResource
FName	Name

Member Enumeration Documentation

EAliasConstructorParam

enum FOpenGLTexture::EAliasConstructorParam

Enumerator
AliasResource

Constructor & Destructor Documentation

FOpenGLTexture() [1/3]

FOpenGLTexture::FOpenGLTexture ( FOpenGLTextureCreateDesc const &  CreateDesc )

explicit

FOpenGLTexture() [2/3]

FOpenGLTexture::FOpenGLTexture ( FOpenGLTextureCreateDesc const &  CreateDesc, GLuint  Resource  )

explicit

FOpenGLTexture() [3/3]

FOpenGLTexture::FOpenGLTexture ( FOpenGLTexture &  Texture, const FString &  Name, EAliasConstructorParam    )

explicit

~FOpenGLTexture()

FOpenGLTexture::~FOpenGLTexture ( )

virtual

Member Function Documentation

AliasResources()

void FOpenGLTexture::AliasResources

(

FOpenGLTexture &

Texture

)

CanBeEvicted()

bool FOpenGLTexture::CanBeEvicted

(

)

CloneViaCopyImage()

void FOpenGLTexture::CloneViaCopyImage	(	FOpenGLTexture *	Src,
		uint32	InNumMips,
		int32	SrcOffset,
		int32	DstOffset
	)

Clone texture from a source using CopyImageSubData

GetAllocatedStorageForMip()

bool FOpenGLTexture::GetAllocatedStorageForMip ( uint32  MipIndex, uint32  FaceIndex  ) const

inline

Accessors to mark whether or not we have allocated storage for each mip/face. For non-cubemaps FaceIndex should always be zero.

GetEffectiveSizeZ()

uint32 FOpenGLTexture::GetEffectiveSizeZ ( ) const

inline

GetLockSize()

uint32 FOpenGLTexture::GetLockSize	(	uint32	MipIndex,
		EResourceLockMode	LockMode,
		uint32 &	DestStride
	)

Returns the size of the memory block that is returned from Lock, threadsafe

GetNativeResource()

virtual void * FOpenGLTexture::GetNativeResource ( ) const

inlineoverridevirtual

FRHITexture override. See FRHITexture::GetNativeResource()

Reimplemented from FRHITexture.

GetRawResourceName()

GLuint FOpenGLTexture::GetRawResourceName ( ) const

inline

GetRawResourceNameRef()

const GLuint & FOpenGLTexture::GetRawResourceNameRef ( ) const

inline

GetResource()

GLuint FOpenGLTexture::GetResource ( )

inline

GetResourceRef()

GLuint & FOpenGLTexture::GetResourceRef ( )

inline

GetTextureBaseRHI()

virtual void * FOpenGLTexture::GetTextureBaseRHI ( )

inlinefinaloverridevirtual

Returns access to the platform-specific RHI texture baseclass. This is designed to provide the RHI with fast access to its base classes in the face of multiple inheritance.

Returns

The pointer to the platform-specific RHI texture baseclass or NULL if it not initialized or not supported for this RHI

Reimplemented from FRHITexture.

Initialize()

void FOpenGLTexture::Initialize

(

FRHICommandListBase &

RHICmdList

)

IsEvicted()

bool FOpenGLTexture::IsEvicted ( ) const

inline

Lock()

void * FOpenGLTexture::Lock	(	uint32	MipIndex,
		uint32	ArrayIndex,
		EResourceLockMode	LockMode,
		uint32 &	DestStride
	)

Locks one of the texture's mip-maps.

Returns

A pointer to the specified texture data.

RemoveEvictionData()

void FOpenGLTexture::RemoveEvictionData

(

)

Resolve()

UE_API void FOpenGLTexture::Resolve	(	uint32	MipIndex,
		uint32	ArrayIndex
	)

Resolved the specified face for a read Lock, for non-renderable, CPU readable surfaces this eliminates the readback inside Lock itself.

RestoreEvictedGLResource()

void FOpenGLTexture::RestoreEvictedGLResource

(

bool

bAttemptToRetainMips

)

SetAllocatedStorage()

void FOpenGLTexture::SetAllocatedStorage ( bool  bInAllocatedStorage )

inline

SetAllocatedStorageForMip()

void FOpenGLTexture::SetAllocatedStorageForMip ( uint32  MipIndex, uint32  FaceIndex  )

inline

SetResource()

void FOpenGLTexture::SetResource ( GLuint  InResource )

inline

TryEvictGLResource()

void FOpenGLTexture::TryEvictGLResource

(

)

Unlock()

void FOpenGLTexture::Unlock	(	uint32	MipIndex,
		uint32	ArrayIndex
	)

Unlocks a previously locked mip-map.

Member Data Documentation

Attachment

GLenum const FOpenGLTexture::Attachment = 0

The OpenGL attachment point. This should always be GL_COLOR_ATTACHMENT0 in case of color buffer, but the actual texture may be attached on other color attachments.

bAlias

uint8 const FOpenGLTexture::bAlias

bArrayTexture

uint8 const FOpenGLTexture::bArrayTexture

bCanCreateAsEvicted

uint8 const FOpenGLTexture::bCanCreateAsEvicted

bCubemap

uint8 const FOpenGLTexture::bCubemap

bDepthStencil

uint8 const FOpenGLTexture::bDepthStencil

bInStencilTextureMode

bool FOpenGLTexture::bInStencilTextureMode = false

bIsPowerOfTwo

uint8 const FOpenGLTexture::bIsPowerOfTwo

bMultisampleRenderbuffer

uint8 const FOpenGLTexture::bMultisampleRenderbuffer

bStreamable

uint8 const FOpenGLTexture::bStreamable

EvictionParamsPtr

TUniquePtr<FTextureEvictionParams> FOpenGLTexture::EvictionParamsPtr

MemorySize

uint32 const FOpenGLTexture::MemorySize

PixelBuffers

TArray<TRefCountPtr<FOpenGLPixelBuffer> > FOpenGLTexture::PixelBuffers

SamplerState

class FOpenGLSamplerState* FOpenGLTexture::SamplerState = nullptr

Target

GLenum const FOpenGLTexture::Target = 0

The OpenGL texture target.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/OpenGLDrv/Private/OpenGLResources.h
• Engine/Source/Runtime/OpenGLDrv/Private/OpenGLTexture.cpp
