UDocumentation UE5.7 10.02.2026 (Source)
API documentation for Unreal Engine 5.7
Public Member Functions | Protected Attributes | List of all members
FVirtualTexture2DResource Class Reference

#include <TextureResource.h>

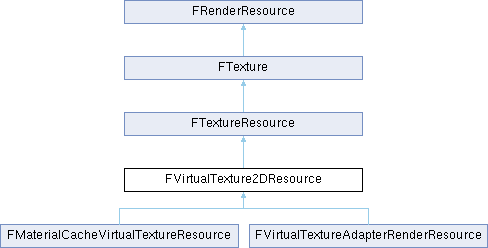

+ Inheritance diagram for FVirtualTexture2DResource:

Public Member Functions

ENGINE_API FVirtualTexture2DResource ()

ENGINE_API FVirtualTexture2DResource (const UTexture2D *InOwner, struct FVirtualTextureBuiltData *InVTData, int32 FirstMipToUse)

virtual ENGINE_API ~FVirtualTexture2DResource ()

virtual ENGINE_API void InitRHI (FRHICommandListBase &RHICmdList) override

virtual ENGINE_API void ReleaseRHI () override

virtual FVirtualTexture2DResource * GetVirtualTexture2DResource ()

virtual const FVirtualTexture2DResource * GetVirtualTexture2DResource () const

virtual ENGINE_API uint32 GetSizeX () const override

virtual ENGINE_API uint32 GetSizeY () const override

const FVirtualTextureProducerHandle & GetProducerHandle () const

class IAllocatedVirtualTexture * GetAllocatedVT () const

ENGINE_API class IAllocatedVirtualTexture * AcquireAllocatedVT ()

ENGINE_API void ReleaseAllocatedVT ()

virtual ENGINE_API EPixelFormat GetFormat (uint32 LayerIndex) const

virtual ENGINE_API FIntPoint GetSizeInBlocks () const

virtual ENGINE_API uint32 GetNumTilesX () const

virtual ENGINE_API uint32 GetNumTilesY () const

virtual ENGINE_API uint32 GetNumMips () const

virtual ENGINE_API uint32 GetNumLayers () const

virtual ENGINE_API uint32 GetTileSize () const

virtual ENGINE_API uint32 GetBorderSize () const

uint32 GetAllocatedvAddress () const

virtual ENGINE_API FIntPoint GetPhysicalTextureSize (uint32 LayerIndex) const

- Public Member Functions inherited from FTextureResource
 FTextureResource ()

virtual ~FTextureResource ()

virtual bool IsProxy () const

virtual FTexture2DResource * GetTexture2DResource ()

virtual FTexture3DResource * GetTexture3DResource ()

virtual FTexture2DArrayResource * GetTexture2DArrayResource ()

virtual FStreamableTextureResource * GetStreamableTextureResource ()

virtual const FTexture2DResource * GetTexture2DResource () const

virtual const FTexture3DResource * GetTexture3DResource () const

virtual const FTexture2DArrayResource * GetTexture2DArrayResource () const

virtual const FStreamableTextureResource * GetStreamableTextureResource () const

int32 GetCurrentMipCount () const

bool IsTextureRHIPartiallyResident () const

FRHITexture * GetTexture2DRHI () const

FRHITexture * GetTexture3DRHI () const

FRHITexture * GetTexture2DArrayRHI () const

void SetTextureReference (FRHITextureReference *TextureReference)

FRHITextureReference * GetTextureReference () const

- Public Member Functions inherited from FTexture
RENDERCORE_API FTexture ()

virtual RENDERCORE_API ~FTexture ()

RENDERCORE_API FTexture (const FTexture &)

RENDERCORE_API FTexture (FTexture &&)

RENDERCORE_API FTexture & operator= (const FTexture &Other)

RENDERCORE_API FTexture & operator= (FTexture &&Other)

const FTextureRHIRef & GetTextureRHI ()

virtual RENDERCORE_API uint32 GetSizeZ () const

virtual RENDERCORE_API FString GetFriendlyName () const override

- Public Member Functions inherited from FRenderResource
RENDERCORE_API FRenderResource ()

RENDERCORE_API FRenderResource (ERHIFeatureLevel::Type InFeatureLevel)

RENDERCORE_API FRenderResource (const FRenderResource &)

RENDERCORE_API FRenderResource (FRenderResource &&)

RENDERCORE_API FRenderResource & operator= (const FRenderResource &Other)

RENDERCORE_API FRenderResource & operator= (FRenderResource &&Other)

virtual RENDERCORE_API ~FRenderResource ()

virtual RENDERCORE_API void InitResource (FRHICommandListBase &RHICmdList)

virtual RENDERCORE_API void ReleaseResource ()

RENDERCORE_API void UpdateRHI (FRHICommandListBase &RHICmdList)

bool IsInitialized () const

int32 GetListIndex () const

EInitPhase GetInitPhase () const

void SetOwnerName (FName InOwnerName)

FName GetOwnerName () const

void SetResourceName (FName InResourceName)

FName GetResourceName () const


Protected Attributes

FName TextureName

FName PackageName

uint32 FullNameHash = 0

TEnumAsByte< ESamplerFilter > Filter = SF_Point

TEnumAsByte< ESamplerAddressMode > AddressU = AM_Wrap

TEnumAsByte< ESamplerAddressMode > AddressV = AM_Wrap

ETextureCreateFlags TexCreateFlags = ETextureCreateFlags::None

bool bSinglePhysicalSpace = false

bool bRequiresSinglePhysicalPool = false

EVTProducerPriority VirtualTextureStreamingPriority

int32 FirstMipToUse = 0

struct FVirtualTextureBuiltData * VTData = nullptr

class IAllocatedVirtualTexture * AllocatedVT = nullptr

FVirtualTextureProducerHandle ProducerHandle

- Protected Attributes inherited from FTextureResource
FTextureReferenceRHIRef TextureReferenceRHI


Additional Inherited Members

- Public Types inherited from FRenderResource
enum class  EInitPhase : uint8 { Pre , Default , MAX }

- Static Public Member Functions inherited from FRenderResource
static RENDERCORE_API void ReleaseRHIForAllResources ()

static RENDERCORE_API void InitPreRHIResources ()

static RENDERCORE_API void ChangeFeatureLevel (ERHIFeatureLevel::Type NewFeatureLevel)

static RENDERCORE_API FName SetScopeName (FName Name)

- Public Attributes inherited from FTexture
FTextureRHIRef TextureRHI

FSamplerStateRHIRef SamplerStateRHI

FSamplerStateRHIRef DeferredPassSamplerStateRHI

double LastRenderTime = -FLT_MAX

FMipBiasFade MipBiasFade

bool bGreyScaleFormat = false

bool bIgnoreGammaConversions = false

bool bSRGB = false

- Public Attributes inherited from FRenderResource
ERenderResourceState ResourceState = ERenderResourceState::Default

- Protected Member Functions inherited from FRenderResource
void SetFeatureLevel (const FStaticFeatureLevel InFeatureLevel)

const FStaticFeatureLevel GetFeatureLevel () const

bool HasValidFeatureLevel () const

template<typename T >
FBufferRHIRef CreateRHIBuffer (FRHICommandListBase &RHICmdList, T &InOutResourceObject, uint32 ResourceCount, EBufferUsageFlags InBufferUsageFlags, const TCHAR *InDebugName)

void SetInitPhase (EInitPhase InInitPhase)

- Static Protected Member Functions inherited from FTexture
static RENDERCORE_API FRHISamplerState * GetOrCreateSamplerState (const FSamplerStateInitializerRHI &Initializer)

- Static Protected Member Functions inherited from FRenderResource
static RENDERCORE_API FRHICommandListBase & GetImmediateCommandList ()


Constructor & Destructor Documentation

◆ FVirtualTexture2DResource() [1/2]

FVirtualTexture2DResource::FVirtualTexture2DResource ( )

◆ FVirtualTexture2DResource() [2/2]

FVirtualTexture2DResource::FVirtualTexture2DResource ( const UTexture2D *  InOwner,
struct FVirtualTextureBuiltData *  InVTData,
int32  FirstMipToUse
)

◆ ~FVirtualTexture2DResource()

FVirtualTexture2DResource::~FVirtualTexture2DResource ( )
virtual

Member Function Documentation

◆ AcquireAllocatedVT()

class IAllocatedVirtualTexture * FVirtualTexture2DResource::AcquireAllocatedVT ( )

◆ GetAllocatedvAddress()

uint32 FVirtualTexture2DResource::GetAllocatedvAddress ( ) const

◆ GetAllocatedVT()

class IAllocatedVirtualTexture * FVirtualTexture2DResource::GetAllocatedVT ( ) const
inline

FVirtualTexture2DResource may have an AllocatedVT, which represents a page table allocation for the virtual texture. VTs used by materials generally don't need their own allocation, since the material has its own page table allocation for each VT stack. VTs used as lightmaps need their own allocation. Also VTs open in texture editor will have a temporary allocation. GetAllocatedVT() will return the current allocation if one exists. AcquireAllocatedVT() will make a new allocation if needed, and return it. ReleaseAllocatedVT() will free any current allocation.

◆ GetBorderSize()

uint32 FVirtualTexture2DResource::GetBorderSize ( ) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetFormat()

EPixelFormat FVirtualTexture2DResource::GetFormat ( uint32  LayerIndex) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetNumLayers()

uint32 FVirtualTexture2DResource::GetNumLayers ( ) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetNumMips()

uint32 FVirtualTexture2DResource::GetNumMips ( ) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetNumTilesX()

uint32 FVirtualTexture2DResource::GetNumTilesX ( ) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetNumTilesY()

uint32 FVirtualTexture2DResource::GetNumTilesY ( ) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetPhysicalTextureSize()

FIntPoint FVirtualTexture2DResource::GetPhysicalTextureSize ( uint32  LayerIndex) const
virtual

◆ GetProducerHandle()

const FVirtualTextureProducerHandle & FVirtualTexture2DResource::GetProducerHandle ( ) const
inline

◆ GetSizeInBlocks()

FIntPoint FVirtualTexture2DResource::GetSizeInBlocks ( ) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetSizeX()

uint32 FVirtualTexture2DResource::GetSizeX ( ) const
overridevirtual

Returns the width of the texture in pixels.

Reimplemented from FTexture.

◆ GetSizeY()

uint32 FVirtualTexture2DResource::GetSizeY ( ) const
overridevirtual

Returns the height of the texture in pixels.

Reimplemented from FTexture.

◆ GetTileSize()

uint32 FVirtualTexture2DResource::GetTileSize ( ) const
virtual

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ GetVirtualTexture2DResource() [1/2]

virtual FVirtualTexture2DResource * FVirtualTexture2DResource::GetVirtualTexture2DResource ( )
inlinevirtual

Reimplemented from FTextureResource.

◆ GetVirtualTexture2DResource() [2/2]

virtual const FVirtualTexture2DResource * FVirtualTexture2DResource::GetVirtualTexture2DResource ( ) const
inlinevirtual

Reimplemented from FTextureResource.

◆ InitRHI()

void FVirtualTexture2DResource::InitRHI ( FRHICommandListBase &  RHICmdList)
overridevirtual

Initializes the RHI resources used by this resource. Called when entering the state where both the resource and the RHI have been initialized. This is only called by the rendering thread.

Reimplemented from FRenderResource.

Reimplemented in FMaterialCacheVirtualTextureResource, and FVirtualTextureAdapterRenderResource.

◆ ReleaseAllocatedVT()

void FVirtualTexture2DResource::ReleaseAllocatedVT ( )

◆ ReleaseRHI()

void FVirtualTexture2DResource::ReleaseRHI ( )
overridevirtual

Releases the RHI resources used by this resource. Called when leaving the state where both the resource and the RHI have been initialized. This is only called by the rendering thread.

Reimplemented from FTexture.

Member Data Documentation

◆ AddressU

TEnumAsByte<ESamplerAddressMode> FVirtualTexture2DResource::AddressU = AM_Wrap
protected

◆ AddressV

TEnumAsByte<ESamplerAddressMode> FVirtualTexture2DResource::AddressV = AM_Wrap
protected

◆ AllocatedVT

class IAllocatedVirtualTexture* FVirtualTexture2DResource::AllocatedVT = nullptr
protected

Local allocated VT objects used for editor views etc.

◆ bRequiresSinglePhysicalPool

bool FVirtualTexture2DResource::bRequiresSinglePhysicalPool = false
protected

◆ bSinglePhysicalSpace

bool FVirtualTexture2DResource::bSinglePhysicalSpace = false
protected

Cached owner settings

◆ Filter

TEnumAsByte<ESamplerFilter> FVirtualTexture2DResource::Filter = SF_Point
protected

Cached sampler config

◆ FirstMipToUse

int32 FVirtualTexture2DResource::FirstMipToUse = 0
protected

Mip offset

◆ FullNameHash

uint32 FVirtualTexture2DResource::FullNameHash = 0
protected

A hash of the texture asset name

◆ PackageName

FName FVirtualTexture2DResource::PackageName
protected

The FName of the texture package for stats

◆ ProducerHandle

FVirtualTextureProducerHandle FVirtualTexture2DResource::ProducerHandle
protected

◆ TexCreateFlags

ETextureCreateFlags FVirtualTexture2DResource::TexCreateFlags = ETextureCreateFlags::None
protected

Cached flags for texture creation.

◆ TextureName

FName FVirtualTexture2DResource::TextureName
protected

The FName of the texture asset

◆ VirtualTextureStreamingPriority

EVTProducerPriority FVirtualTexture2DResource::VirtualTextureStreamingPriority
protected

◆ VTData

struct FVirtualTextureBuiltData* FVirtualTexture2DResource::VTData = nullptr
protected

Built data owned by texture asset

The documentation for this class was generated from the following files:
