#include <BlockedDenseGrid3.h>

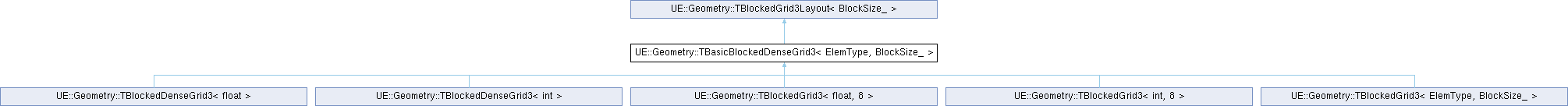

Inheritance diagram for UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >:

Classes
struct	FBlock3

Public Types
typedef TBlockedGrid3Layout< BlockSize_ >	BlockedGrid3LayoutType

typedef TBlockData3< ElemType, BlockSize_ >	BlockData3Type

Public Types inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
typedef TBlockData3Layout< BlockSize_ >	FBlockData3Layout

Public Member Functions
	TBasicBlockedDenseGrid3 ()

	TBasicBlockedDenseGrid3 (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)

void	Resize (int32 DimI, int32 DimJ, int32 DimK)

void	Reset ()

void	Reset (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)

ElemType	GetValue (int32 I, int32 J, int32 K) const

ElemType	GetValue (const FVector3i &CellIJK) const

void	SetValue (int32 I, int32 J, int32 K, ElemType NewValue)

void	SetValue (const FVector3i &CellIJK, ElemType NewValue)

template<typename ProcessFunc >
void	ProcessValue (int32 I, int32 J, int32 K, ProcessFunc Func)

template<typename ProcessFunc >
void	ProcessValue (const FVector3i &CellIJK, ProcessFunc Func)

template<typename OtherElemType >
bool	PreAllocateFromSourceGrid (const TBasicBlockedDenseGrid3< OtherElemType, BlockSize > &SourceGrid)

int32	GetNumBlocks () const

Public Member Functions inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
	TBlockedGrid3Layout ()

	TBlockedGrid3Layout (int32 DimI, int32 DimJ, int32 DimK)

	TBlockedGrid3Layout (FVector3i Dims)

void	Resize (int32 DimI, int32 DimJ, int32 DimK)

const FVector3i &	GetDimensions () const

const FVector3i &	GetBlockDimensions () const

FAxisAlignedBox3i	Bounds () const

FAxisAlignedBox3i	BoundsInclusive () const

int64	Size () const

bool	IsValidIJK (const FVector3i &IJK) const

bool	IsValidBlockIJK (const FVector3i &BlockIJK)

int32	IJKtoBlockIndex (const FVector3i &IJK) const

void	GetBlockAndLocalIndex (const FVector3i &IJK, int32 &BlockIndexOut, int32 &LocalIndexOut) const

void	GetBlockAndLocalIndex (int32 I, int32 J, int32 K, int32 &BlockIndexOut, int32 &LocalIndexOut) const

FVector3i	BlockIndexToBlockIJK (const int32 BlockIndex) const

int32	BlockIJKToBlockIndex (const FVector3i &BlockIJK) const

Static Public Attributes
static constexpr int32	BlockSize = BlockSize_

static constexpr int32	BlockElemCount = BlockSize * BlockSize * BlockSize

Static Public Attributes inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
static constexpr int32	BlockSize = BlockSize_

static constexpr int32	BlockElemCount = BlockSize * BlockSize * BlockSize

Protected Member Functions
FBlock3 &	GetBlock (int32 Index)

const FBlock3 &	GetBlock (int32 Index) const

bool	IsBlockAllocated (const FBlock3 &Block) const

bool	IsBlockAllocated (const int32 BlockIndex) const

BlockData3Type &	TouchBlockData (const int32 BlockIndex)

template<typename FuncType >
void	WriteValue (const int32 &BlockIndex, const int32 &LocalIndex, FuncType Func)

template<typename FuncType >
void	WriteValue (int32 I, int32 J, int32 K, FuncType Func)

template<typename FuncType >
void	WriteValueWithLock (const int32 &BlockIndex, const int32 &LocalIndex, FuncType Func, FCriticalSection *CriticalSection)

ElemType	ReadValue (const int32 &BlockIndex, const int32 &LocalIndex) const

ElemType	ReadValue (int32 I, int32 J, int32 K) const

ElemType	ReadValueWithLock (const int32 &BlockIndex, const int32 &LocalIndex, FCriticalSection *CriticalSection)

template<typename OtherGridType >
bool	AllocateTopologyUnionImpl (const OtherGridType &OtherGrid)

Protected Attributes
ElemType	DefaultValue = (ElemType)0

TArray< FBlock3 >	Blocks

Protected Attributes inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
FVector3i	BlockDimensions

FVector3i	Dimensions

Friends
template<class OtherElemType , int32 OtherBlockSize>
class	TBasicBlockedDenseGrid3

Detailed Description

template<typename ElemType, int32 BlockSize_>
class UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >

TBasicBlockedDenseGrid3 represents a 3D blocked uniform grid.

The grid is allocated in BlockSize^3 blocks on-demand (BlockSize is a compile-time constant) allowing very large grids to be used without having to pre-allocate all the memory, eg for sparse/narrow-band use cases.

Block-level default values are returned when querying a grid cell in an unallocated block.

For multi-threaded applications consider using the derived classes TBlockedDenseGrid3 which manages internal locks, or TBlockedGrid3 with your own lock provider.

Member Typedef Documentation

◆ BlockData3Type

template<typename ElemType , int32 BlockSize_>

typedef TBlockData3<ElemType, BlockSize_> UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::BlockData3Type

◆ BlockedGrid3LayoutType

template<typename ElemType , int32 BlockSize_>

typedef TBlockedGrid3Layout<BlockSize_> UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::BlockedGrid3LayoutType

Constructor & Destructor Documentation

◆ TBasicBlockedDenseGrid3() [1/2]

template<typename ElemType , int32 BlockSize_>

UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::TBasicBlockedDenseGrid3 ( )

inline

Create empty grid

◆ TBasicBlockedDenseGrid3() [2/2]

template<typename ElemType , int32 BlockSize_>

UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::TBasicBlockedDenseGrid3	(	int32	DimI,
		int32	DimJ,
		int32	DimK,
		ElemType	InitialValue
	)

inline

Create grid with specified domain.

Member Function Documentation

◆ AllocateTopologyUnionImpl()

template<typename ElemType , int32 BlockSize_>

template<typename OtherGridType >

bool UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::AllocateTopologyUnionImpl ( const OtherGridType & OtherGrid )

inlineprotected

◆ GetBlock() [1/2]

template<typename ElemType , int32 BlockSize_>

FBlock3 & UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::GetBlock ( int32 Index )

inlineprotected

◆ GetBlock() [2/2]

template<typename ElemType , int32 BlockSize_>

const FBlock3 & UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::GetBlock ( int32 Index ) const

inlineprotected

◆ GetNumBlocks()

template<typename ElemType , int32 BlockSize_>

int32 UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::GetNumBlocks ( ) const

inline

Returns: the total number of block units form the spatial decomposition of the grid. Note these block may not all be allocated

◆ GetValue() [1/2]

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::GetValue ( const FVector3i & CellIJK ) const

inline

Returns: the grid value at CellIJK. Note this is safe to call from multiple read threads (but not if simultaneously writing!)

◆ GetValue() [2/2]

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::GetValue	(	int32	I,
		int32	J,
		int32	K
	)		const

inline

Returns: the grid value at (I,J,K)

◆ IsBlockAllocated() [1/2]

template<typename ElemType , int32 BlockSize_>

bool UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::IsBlockAllocated ( const FBlock3 & Block ) const

inlineprotected

Returns: true if Block has an allocated block data buffer

◆ IsBlockAllocated() [2/2]

template<typename ElemType , int32 BlockSize_>

bool UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::IsBlockAllocated ( const int32 BlockIndex ) const

inlineprotected

Returns: true if the specified Block has an allocated block data buffer

◆ PreAllocateFromSourceGrid()

template<typename ElemType , int32 BlockSize_>

template<typename OtherElemType >

bool UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::PreAllocateFromSourceGrid ( const TBasicBlockedDenseGrid3< OtherElemType, BlockSize > & SourceGrid )

inline

Pre-allocate the grid blocks that also exist in SourceGrid of the same dimensions. This is useful in grid-processing algorithms where parallel grid operations can be done without locking if the blocks are already allocated.

Returns: false on failure (e.g. different sized grids), otherwise true.

◆ ProcessValue() [1/2]

template<typename ElemType , int32 BlockSize_>

template<typename ProcessFunc >

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::ProcessValue	(	const FVector3i &	CellIJK,
		ProcessFunc	Func
	)

inline

Call an external lambda with a reference to the grid value at CellIJK. Called as Func(ElemType&), so the caller can both read and write the grid cell

Note: if doing pure reads prefer the GetValue() methods because the ProcessValue method will allocate the underlying data block.

◆ ProcessValue() [2/2]

template<typename ElemType , int32 BlockSize_>

template<typename ProcessFunc >

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::ProcessValue	(	int32	I,
		int32	J,
		int32	K,
		ProcessFunc	Func
	)

inline

Call an external lambda with a reference to the grid value at (I,J,K). Called as Func(ElemType&), so the caller can both read and write the grid cell.

Note: if doing pure reads prefer the GetValue() methods because the ProcessValue method will allocate the underlying data block.

◆ ReadValue() [1/2]

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::ReadValue	(	const int32 &	BlockIndex,
		const int32 &	LocalIndex
	)		const

inlineprotected

◆ ReadValue() [2/2]

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::ReadValue	(	int32	I,
		int32	J,
		int32	K
	)		const

inlineprotected

◆ ReadValueWithLock()

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::ReadValueWithLock	(	const int32 &	BlockIndex,
		const int32 &	LocalIndex,
		FCriticalSection *	CriticalSection
	)

inlineprotected

◆ Reset() [1/2]

template<typename ElemType , int32 BlockSize_>

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::Reset ( )

inline

Discard all allocated blocks but retain grid dimensions. This also resets the block-level default values.

◆ Reset() [2/2]

template<typename ElemType , int32 BlockSize_>

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::Reset	(	int32	DimI,
		int32	DimJ,
		int32	DimK,
		ElemType	InitialValue
	)

inline

Reconfigure the grid to have the target dimensions and default value. This clears all the existing grid memory, and resets default values to the specified InitialValue.

◆ Resize()

template<typename ElemType , int32 BlockSize_>

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::Resize	(	int32	DimI,
		int32	DimJ,
		int32	DimK
	)

inline

Reconfigure the grid to have the target dimensions. This clears all the existing grid memory and resets the block-level default value.

◆ SetValue() [1/2]

template<typename ElemType , int32 BlockSize_>

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::SetValue	(	const FVector3i &	CellIJK,
		ElemType	NewValue
	)

inline

Set the grid value at CellIJK

◆ SetValue() [2/2]

template<typename ElemType , int32 BlockSize_>

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::SetValue	(	int32	I,
		int32	J,
		int32	K,
		ElemType	NewValue
	)

inline

Set the grid value at (I,J,K)

◆ TouchBlockData()

template<typename ElemType , int32 BlockSize_>

BlockData3Type & UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::TouchBlockData ( const int32 BlockIndex )

inlineprotected

return a reference to the block data buffer associated with the specified block, allocating if needed

◆ WriteValue() [1/2]

template<typename ElemType , int32 BlockSize_>

template<typename FuncType >

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::WriteValue	(	const int32 &	BlockIndex,
		const int32 &	LocalIndex,
		FuncType	Func
	)

inlineprotected

◆ WriteValue() [2/2]

template<typename ElemType , int32 BlockSize_>

template<typename FuncType >

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::WriteValue	(	int32	I,
		int32	J,
		int32	K,
		FuncType	Func
	)

inlineprotected

◆ WriteValueWithLock()

template<typename ElemType , int32 BlockSize_>

template<typename FuncType >

void UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::WriteValueWithLock	(	const int32 &	BlockIndex,
		const int32 &	LocalIndex,
		FuncType	Func,
		FCriticalSection *	CriticalSection
	)

inlineprotected

Friends And Related Symbol Documentation

◆ TBasicBlockedDenseGrid3

template<typename ElemType , int32 BlockSize_>

template<class OtherElemType , int32 OtherBlockSize>

friend class TBasicBlockedDenseGrid3

friend

Member Data Documentation

◆ BlockElemCount

template<typename ElemType , int32 BlockSize_>

constexpr int32 UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::BlockElemCount = BlockSize * BlockSize * BlockSize

staticconstexpr

◆ Blocks

template<typename ElemType , int32 BlockSize_>

TArray<FBlock3> UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::Blocks

protected

◆ BlockSize

template<typename ElemType , int32 BlockSize_>

constexpr int32 UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::BlockSize = BlockSize_

staticconstexpr

◆ DefaultValue

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::DefaultValue = (ElemType)0

protected

The value to use to initialize new blocks

The documentation for this class was generated from the following file:

Engine/Source/Runtime/GeometryCore/Public/Spatial/BlockedDenseGrid3.h

Classes

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ BlockData3Type

◆ BlockedGrid3LayoutType

Constructor & Destructor Documentation

◆ TBasicBlockedDenseGrid3() [1/2]

◆ TBasicBlockedDenseGrid3() [2/2]

Member Function Documentation

◆ AllocateTopologyUnionImpl()

◆ GetBlock() [1/2]

◆ GetBlock() [2/2]

◆ GetNumBlocks()

◆ GetValue() [1/2]

◆ GetValue() [2/2]

◆ IsBlockAllocated() [1/2]

◆ IsBlockAllocated() [2/2]

◆ PreAllocateFromSourceGrid()

◆ ProcessValue() [1/2]

◆ ProcessValue() [2/2]

◆ ReadValue() [1/2]

◆ ReadValue() [2/2]

◆ ReadValueWithLock()

◆ Reset() [1/2]

◆ Reset() [2/2]

◆ Resize()

◆ SetValue() [1/2]

◆ SetValue() [2/2]

◆ TouchBlockData()

◆ WriteValue() [1/2]

◆ WriteValue() [2/2]

◆ WriteValueWithLock()

Friends And Related Symbol Documentation

◆ TBasicBlockedDenseGrid3

Member Data Documentation

◆ BlockElemCount

◆ Blocks

◆ BlockSize

◆ DefaultValue
