UE::Geometry::TBlockedDenseGrid3< ElemType > Class Template Reference

#include <BlockedDenseGrid3.h>

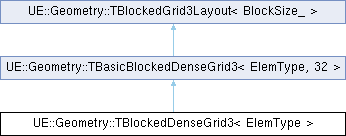

Inheritance diagram for UE::Geometry::TBlockedDenseGrid3< ElemType >:

Public Types
typedef TBasicBlockedDenseGrid3< ElemType, BlockSize >	BlockedDenseGridType
typedef TBlockedGrid3Layout< BlockSize >	BlockedGrid3LayoutType
typedef TBlockData3< ElemType, BlockSize >	BlockData3Type
Public Types inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, 32 >
typedef TBlockedGrid3Layout< BlockSize_ >	BlockedGrid3LayoutType
typedef TBlockData3< ElemType, BlockSize_ >	BlockData3Type
Public Types inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
typedef TBlockData3Layout< BlockSize_ >	FBlockData3Layout

Public Member Functions
	TBlockedDenseGrid3 ()
	TBlockedDenseGrid3 (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)
void	Resize (int32 DimI, int32 DimJ, int32 DimK)
void	Reset ()
void	Reset (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)
bool	IsValidIndex (FVector3i CellIJK) const
ElemType	GetValueThreadSafe (int32 I, int32 J, int32 K)
ElemType	GetValueThreadSafe (const FVector3i &CellIJK)
void	SetValueThreadSafe (int32 I, int32 J, int32 K, ElemType NewValue)
void	SetValueThreadSafe (const FVector3i &CellIJK, ElemType NewValue)
template<typename ProcessFunc >
void	ProcessValueThreadSafe (int32 I, int32 J, int32 K, ProcessFunc Func)
template<typename ProcessFunc >
void	ProcessValueThreadSafe (const FVector3i &CellIJK, ProcessFunc Func)
FVector3i	ToIndex (int64 LinearIndex) const
int64	ToLinear (int32 X, int32 Y, int32 Z) const
int64	ToLinear (const FVector3i &IJK) const
Public Member Functions inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, 32 >
	TBasicBlockedDenseGrid3 ()
	TBasicBlockedDenseGrid3 (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)
void	Resize (int32 DimI, int32 DimJ, int32 DimK)
void	Reset ()
void	Reset (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)
ElemType	GetValue (int32 I, int32 J, int32 K) const
ElemType	GetValue (const FVector3i &CellIJK) const
void	SetValue (int32 I, int32 J, int32 K, ElemType NewValue)
void	SetValue (const FVector3i &CellIJK, ElemType NewValue)
void	ProcessValue (int32 I, int32 J, int32 K, ProcessFunc Func)
void	ProcessValue (const FVector3i &CellIJK, ProcessFunc Func)
bool	PreAllocateFromSourceGrid (const TBasicBlockedDenseGrid3< OtherElemType, BlockSize > &SourceGrid)
int32	GetNumBlocks () const
Public Member Functions inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
	TBlockedGrid3Layout ()
	TBlockedGrid3Layout (int32 DimI, int32 DimJ, int32 DimK)
	TBlockedGrid3Layout (FVector3i Dims)
void	Resize (int32 DimI, int32 DimJ, int32 DimK)
const FVector3i &	GetDimensions () const
const FVector3i &	GetBlockDimensions () const
FAxisAlignedBox3i	Bounds () const
FAxisAlignedBox3i	BoundsInclusive () const
int64	Size () const
bool	IsValidIJK (const FVector3i &IJK) const
bool	IsValidBlockIJK (const FVector3i &BlockIJK)
int32	IJKtoBlockIndex (const FVector3i &IJK) const
void	GetBlockAndLocalIndex (const FVector3i &IJK, int32 &BlockIndexOut, int32 &LocalIndexOut) const
void	GetBlockAndLocalIndex (int32 I, int32 J, int32 K, int32 &BlockIndexOut, int32 &LocalIndexOut) const
FVector3i	BlockIndexToBlockIJK (const int32 BlockIndex) const
int32	BlockIJKToBlockIndex (const FVector3i &BlockIJK) const

Static Public Attributes
static constexpr int32	BlockSize = 32
static constexpr int32	BlockElemCount = BlockSize * BlockSize * BlockSize
Static Public Attributes inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, 32 >
static constexpr int32	BlockSize
static constexpr int32	BlockElemCount
Static Public Attributes inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
static constexpr int32	BlockSize = BlockSize_
static constexpr int32	BlockElemCount = BlockSize * BlockSize * BlockSize

Protected Member Functions
FCriticalSection *	GetBlockLock (int32 Index)
template<typename FuncType >
void	WriteValueThreadSafe (int32 I, int32 J, int32 K, FuncType Func)
ElemType	ReadValueThreadSafe (int32 I, int32 J, int32 K)
Protected Member Functions inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, 32 >
FBlock3 &	GetBlock (int32 Index)
const FBlock3 &	GetBlock (int32 Index) const
bool	IsBlockAllocated (const FBlock3 &Block) const
bool	IsBlockAllocated (const int32 BlockIndex) const
BlockData3Type &	TouchBlockData (const int32 BlockIndex)
void	WriteValue (const int32 &BlockIndex, const int32 &LocalIndex, FuncType Func)
void	WriteValue (int32 I, int32 J, int32 K, FuncType Func)
void	WriteValueWithLock (const int32 &BlockIndex, const int32 &LocalIndex, FuncType Func, FCriticalSection *CriticalSection)
ElemType	ReadValue (const int32 &BlockIndex, const int32 &LocalIndex) const
ElemType	ReadValue (int32 I, int32 J, int32 K) const
ElemType	ReadValueWithLock (const int32 &BlockIndex, const int32 &LocalIndex, FCriticalSection *CriticalSection)
bool	AllocateTopologyUnionImpl (const OtherGridType &OtherGrid)

Protected Attributes
TArray< FCriticalSection >	BlockLocks
Protected Attributes inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, 32 >
ElemType	DefaultValue
TArray< FBlock3 >	Blocks
Protected Attributes inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
FVector3i	BlockDimensions
FVector3i	Dimensions

Detailed Description

template<typename ElemType>
class UE::Geometry::TBlockedDenseGrid3< ElemType >

TBlockedDenseGrid adds thread-safe access functions to the 3D blocked uniform grid, TBasicBlockedDenseGrid3. Blocked grid is extended by adding internally owned locks for each data block.

The grid is allocated in BlockSize^3 blocks on-demand (BlockSize is a compile-time constant) allowing very large grids to be used without having to pre-allocate all the memory, eg for sparse/narrow-band use cases.

For multi-threaded applications where memory is a premium, consider using TBlockedGrid3 (above) as it gives better control over the individual blocks and allows the caller to manage the lifetime of any locks used.

Member Typedef Documentation

BlockData3Type

template<typename ElemType >

typedef TBlockData3<ElemType, BlockSize> UE::Geometry::TBlockedDenseGrid3< ElemType >::BlockData3Type

BlockedDenseGridType

template<typename ElemType >

typedef TBasicBlockedDenseGrid3<ElemType, BlockSize> UE::Geometry::TBlockedDenseGrid3< ElemType >::BlockedDenseGridType

BlockedGrid3LayoutType

template<typename ElemType >

typedef TBlockedGrid3Layout<BlockSize> UE::Geometry::TBlockedDenseGrid3< ElemType >::BlockedGrid3LayoutType

Constructor & Destructor Documentation

TBlockedDenseGrid3() [1/2]

template<typename ElemType >

UE::Geometry::TBlockedDenseGrid3< ElemType >::TBlockedDenseGrid3 ( )

inline

Create empty grid

TBlockedDenseGrid3() [2/2]

template<typename ElemType >

UE::Geometry::TBlockedDenseGrid3< ElemType >::TBlockedDenseGrid3 ( int32  DimI, int32  DimJ, int32  DimK, ElemType  InitialValue  )

inline

Create grid with specified domain.

Member Function Documentation

GetBlockLock()

template<typename ElemType >

FCriticalSection * UE::Geometry::TBlockedDenseGrid3< ElemType >::GetBlockLock ( int32  Index )

inlineprotected

GetValueThreadSafe() [1/2]

template<typename ElemType >

ElemType UE::Geometry::TBlockedDenseGrid3< ElemType >::GetValueThreadSafe ( const FVector3i &  CellIJK )

inline

Returns

the grid value at CellIJK, with internal locking, so it is safe to call this from multiple read & write threads

GetValueThreadSafe() [2/2]

template<typename ElemType >

ElemType UE::Geometry::TBlockedDenseGrid3< ElemType >::GetValueThreadSafe ( int32  I, int32  J, int32  K  )

inline

Returns

the grid value at (I,J,K), with internal locking, so it is safe to call this from multiple read & write threads

IsValidIndex()

template<typename ElemType >

bool UE::Geometry::TBlockedDenseGrid3< ElemType >::IsValidIndex ( FVector3i  CellIJK ) const

inline

Returns

true if the specified cell IJK is contained within the grid bounds.

ProcessValueThreadSafe() [1/2]

template<typename ElemType >

template<typename ProcessFunc >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::ProcessValueThreadSafe ( const FVector3i &  CellIJK, ProcessFunc  Func  )

inline

Call an external lambda with a reference to the grid value at CellIJK. Called as Func(ElemType&), so the caller can both read and write the grid cell

ProcessValueThreadSafe() [2/2]

template<typename ElemType >

template<typename ProcessFunc >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::ProcessValueThreadSafe ( int32  I, int32  J, int32  K, ProcessFunc  Func  )

inline

Call an external lambda with a reference to the grid value at (I,J,K). Called as Func(ElemType&), so the caller can both read and write the grid cell

note: if doing pure reads prefer the GetValue() methods because the ProcessValueThreadSafe method will allocate the underlying data block.

ReadValueThreadSafe()

template<typename ElemType >

ElemType UE::Geometry::TBlockedDenseGrid3< ElemType >::ReadValueThreadSafe ( int32  I, int32  J, int32  K  )

inlineprotected

Reset() [1/2]

template<typename ElemType >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::Reset ( )

inline

Discard all allocated blocks but retain grid dimensions

Reset() [2/2]

template<typename ElemType >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::Reset ( int32  DimI, int32  DimJ, int32  DimK, ElemType  InitialValue  )

inline

Reconfigure the grid to have the target dimensions and default value. This clears all the existing grid memory.

Resize()

template<typename ElemType >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::Resize ( int32  DimI, int32  DimJ, int32  DimK  )

inline

Reconfigure the grid to have the target dimensions. This clears all the existing grid memory and resets the block-level default value.

SetValueThreadSafe() [1/2]

template<typename ElemType >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::SetValueThreadSafe ( const FVector3i &  CellIJK, ElemType  NewValue  )

inline

Set the grid value at CellIJK, with internal locking, so it is safe to call this from multiple read & write threads

SetValueThreadSafe() [2/2]

template<typename ElemType >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::SetValueThreadSafe ( int32  I, int32  J, int32  K, ElemType  NewValue  )

inline

Set the grid value at (I,J,K), with internal locking, so it is safe to call this from multiple read & write threads

ToIndex()

template<typename ElemType >

FVector3i UE::Geometry::TBlockedDenseGrid3< ElemType >::ToIndex ( int64  LinearIndex ) const

inline

Convert a grid cell id to CellIJK coordinates

ToLinear() [1/2]

template<typename ElemType >

int64 UE::Geometry::TBlockedDenseGrid3< ElemType >::ToLinear ( const FVector3i &  IJK ) const

inline

Convert grid CellIJK coordinates to a linear ID, note this id is independent of the actual internal data storage.

ToLinear() [2/2]

template<typename ElemType >

int64 UE::Geometry::TBlockedDenseGrid3< ElemType >::ToLinear ( int32  X, int32  Y, int32  Z  ) const

inline

Convert grid CellIJK coordinates to a linear ID, note this id is independent of the actual internal data storage.

WriteValueThreadSafe()

template<typename ElemType >

template<typename FuncType >

void UE::Geometry::TBlockedDenseGrid3< ElemType >::WriteValueThreadSafe ( int32  I, int32  J, int32  K, FuncType  Func  )

inlineprotected

Member Data Documentation

BlockElemCount

template<typename ElemType >

constexpr int32 UE::Geometry::TBlockedDenseGrid3< ElemType >::BlockElemCount = BlockSize * BlockSize * BlockSize

staticconstexpr

BlockLocks

template<typename ElemType >

TArray<FCriticalSection> UE::Geometry::TBlockedDenseGrid3< ElemType >::BlockLocks

protected

BlockSize

template<typename ElemType >

constexpr int32 UE::Geometry::TBlockedDenseGrid3< ElemType >::BlockSize = 32

staticconstexpr

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/GeometryCore/Public/Spatial/BlockedDenseGrid3.h
