#include <BlockedDenseGrid3.h>

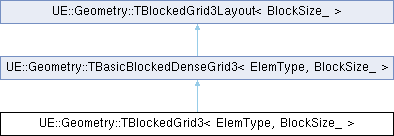

Inheritance diagram for UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >:

Public Types
typedef TBasicBlockedDenseGrid3< ElemType, BlockSize_ >	BlockedDenseGridType

typedef TBlockedGrid3Layout< BlockSize_ >	BlockedGrid3LayoutType

typedef TBlockData3< ElemType, BlockSize_ >	BlockData3Type

Public Types inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >
typedef TBlockedGrid3Layout< BlockSize_ >	BlockedGrid3LayoutType

typedef TBlockData3< ElemType, BlockSize_ >	BlockData3Type

Public Types inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
typedef TBlockData3Layout< BlockSize_ >	FBlockData3Layout

Public Member Functions
	TBlockedGrid3 ()

	TBlockedGrid3 (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)

template<typename CriticalSectionProviderType >
void	SetValueWithLock (int32 I, int32 J, int32 K, ElemType NewValue, CriticalSectionProviderType &CriticalSectionProvider)

template<typename CriticalSectionProviderType >
void	SetValueWithLock (const FVector3i &CellIJK, ElemType NewValue, CriticalSectionProviderType CriticalSectionProvider)

template<typename ProcessFunc , typename CriticalSectionProviderType >
void	ProcessValueWithLock (int32 I, int32 J, int32 K, ProcessFunc Func, CriticalSectionProviderType CriticalSectionProvider)

template<typename ProcessFunc , typename CriticalSectionProviderType >
void	ProcessValueWithLock (const FVector3i &CellIJK, ProcessFunc Func, CriticalSectionProviderType CriticalSectionProvider)

int32	GetNumBlocks () const

TArray< const BlockData3Type * >	GetAllocatedConstBlocks () const

TArray< BlockData3Type * >	GetAllocatedBlocks ()

TArray< const BlockData3Type * >	GetAllocatedBlocks () const

bool	IsBlockAllocated (const FVector3i &BlockIJK) const

BlockData3Type &	TouchBlockData (const FVector3i &BlockIJK)

TUniquePtr< BlockData3Type > &	GetBlockData (const FVector3i &BlockIJK)

const TUniquePtr< BlockData3Type > &	GetBlockData (const FVector3i &BlockIJK) const

TUniquePtr< BlockData3Type > &	GetBlockData (int32 BlockIndex)

const TUniquePtr< BlockData3Type > &	GetBlockData (int32 BlockIndex) const

ElemType	GetBlockDefaultValue (const FVector3i &BlockIJK) const

void	SetBlockDefaultValue (const FVector3i &BlockIJK, const ElemType &Value, bool bPruneBlock=true)

template<typename ProcessFunc >
void	ProcessBlockDefaultValue (const FVector3i &BlockIJK, ProcessFunc Func, bool bPruneBlock=true)

Public Member Functions inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >
	TBasicBlockedDenseGrid3 ()

	TBasicBlockedDenseGrid3 (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)

void	Resize (int32 DimI, int32 DimJ, int32 DimK)

void	Reset ()

void	Reset (int32 DimI, int32 DimJ, int32 DimK, ElemType InitialValue)

ElemType	GetValue (int32 I, int32 J, int32 K) const

ElemType	GetValue (const FVector3i &CellIJK) const

void	SetValue (int32 I, int32 J, int32 K, ElemType NewValue)

void	SetValue (const FVector3i &CellIJK, ElemType NewValue)

template<typename ProcessFunc >
void	ProcessValue (int32 I, int32 J, int32 K, ProcessFunc Func)

template<typename ProcessFunc >
void	ProcessValue (const FVector3i &CellIJK, ProcessFunc Func)

template<typename OtherElemType >
bool	PreAllocateFromSourceGrid (const TBasicBlockedDenseGrid3< OtherElemType, BlockSize > &SourceGrid)

int32	GetNumBlocks () const

Public Member Functions inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
	TBlockedGrid3Layout ()

	TBlockedGrid3Layout (int32 DimI, int32 DimJ, int32 DimK)

	TBlockedGrid3Layout (FVector3i Dims)

void	Resize (int32 DimI, int32 DimJ, int32 DimK)

const FVector3i &	GetDimensions () const

const FVector3i &	GetBlockDimensions () const

FAxisAlignedBox3i	Bounds () const

FAxisAlignedBox3i	BoundsInclusive () const

int64	Size () const

bool	IsValidIJK (const FVector3i &IJK) const

bool	IsValidBlockIJK (const FVector3i &BlockIJK)

int32	IJKtoBlockIndex (const FVector3i &IJK) const

void	GetBlockAndLocalIndex (const FVector3i &IJK, int32 &BlockIndexOut, int32 &LocalIndexOut) const

void	GetBlockAndLocalIndex (int32 I, int32 J, int32 K, int32 &BlockIndexOut, int32 &LocalIndexOut) const

FVector3i	BlockIndexToBlockIJK (const int32 BlockIndex) const

int32	BlockIJKToBlockIndex (const FVector3i &BlockIJK) const

Static Public Attributes
static constexpr int32	BlockSize = BlockSize_

static constexpr int32	BlockElemCount = BlockSize * BlockSize * BlockSize

Static Public Attributes inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >
static constexpr int32	BlockSize = BlockSize_

static constexpr int32	BlockElemCount = BlockSize * BlockSize * BlockSize

Static Public Attributes inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
static constexpr int32	BlockSize = BlockSize_

static constexpr int32	BlockElemCount = BlockSize * BlockSize * BlockSize

Protected Types
typedef TBasicBlockedDenseGrid3< ElemType, BlockSize_ >::FBlock3	FBlock3

Protected Member Functions
template<typename FuncType >
void	WriteBlockDefaultValue (const int32 BlockIndex, FuncType Func, bool bDeallocateBock=true)

template<typename FuncType >
void	WriteBlockDefaultValue (const FVector3i &BlockIJK, FuncType Func, bool bDeallocateBock=true)

template<typename FuncType >
void	WriteBlockDefaultValueWithLock (const int32 BlockIndex, FuncType Func, FCriticalSection *CriticalSection, bool bDeallocateBock=true)

ElemType	ReadBlockDefaultValue (const int32 &BlockIndex) const

ElemType	ReadBlockDefaultValue (const FVector3i &BlockIJK) const

Protected Member Functions inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >
FBlock3 &	GetBlock (int32 Index)

const FBlock3 &	GetBlock (int32 Index) const

bool	IsBlockAllocated (const FBlock3 &Block) const

bool	IsBlockAllocated (const int32 BlockIndex) const

BlockData3Type &	TouchBlockData (const int32 BlockIndex)

template<typename FuncType >
void	WriteValue (const int32 &BlockIndex, const int32 &LocalIndex, FuncType Func)

template<typename FuncType >
void	WriteValue (int32 I, int32 J, int32 K, FuncType Func)

template<typename FuncType >
void	WriteValueWithLock (const int32 &BlockIndex, const int32 &LocalIndex, FuncType Func, FCriticalSection *CriticalSection)

ElemType	ReadValue (const int32 &BlockIndex, const int32 &LocalIndex) const

ElemType	ReadValue (int32 I, int32 J, int32 K) const

ElemType	ReadValueWithLock (const int32 &BlockIndex, const int32 &LocalIndex, FCriticalSection *CriticalSection)

template<typename OtherGridType >
bool	AllocateTopologyUnionImpl (const OtherGridType &OtherGrid)

Additional Inherited Members
Protected Attributes inherited from UE::Geometry::TBasicBlockedDenseGrid3< ElemType, BlockSize_ >
ElemType	DefaultValue = (ElemType)0

TArray< FBlock3 >	Blocks

Protected Attributes inherited from UE::Geometry::TBlockedGrid3Layout< BlockSize_ >
FVector3i	BlockDimensions

FVector3i	Dimensions

Detailed Description

template<typename ElemType, int32 BlockSize_>
class UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >

TBlockedGrid3 represents a 3D uniform grid.

The grid is allocated in BlockSize^3 blocks on-demand (BlockSize is a compile-time constant) allowing very large grids to be used without having to pre-allocate all the memory, eg for sparse/narrow-band use cases.

Block-level default values are returned when querying a grid cell in an unallocated block.,

Block-level access is provided to facilitate parallel algorithms. Additionally, 'Set' methods are provided that utilize critical sections provided by the caller.

Member Typedef Documentation

◆ BlockData3Type

template<typename ElemType , int32 BlockSize_>

typedef TBlockData3<ElemType, BlockSize_> UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::BlockData3Type

◆ BlockedDenseGridType

template<typename ElemType , int32 BlockSize_>

typedef TBasicBlockedDenseGrid3<ElemType, BlockSize_> UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::BlockedDenseGridType

◆ BlockedGrid3LayoutType

template<typename ElemType , int32 BlockSize_>

typedef TBlockedGrid3Layout<BlockSize_> UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::BlockedGrid3LayoutType

◆ FBlock3

template<typename ElemType , int32 BlockSize_>

typedef TBasicBlockedDenseGrid3<ElemType,BlockSize_>::FBlock3 UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::FBlock3

protected

Constructor & Destructor Documentation

◆ TBlockedGrid3() [1/2]

template<typename ElemType , int32 BlockSize_>

UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::TBlockedGrid3 ( )

inline

Create empty grid

◆ TBlockedGrid3() [2/2]

template<typename ElemType , int32 BlockSize_>

UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::TBlockedGrid3	(	int32	DimI,
		int32	DimJ,
		int32	DimK,
		ElemType	InitialValue
	)

inline

Create grid with specified domain.

Member Function Documentation

◆ GetAllocatedBlocks() [1/2]

template<typename ElemType , int32 BlockSize_>

TArray< BlockData3Type * > UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetAllocatedBlocks ( )

inline

Returns: array of pointers to the allocated blocks. Note: the grid owns the blocks, so the calling code should not delete them.

◆ GetAllocatedBlocks() [2/2]

template<typename ElemType , int32 BlockSize_>

TArray< const BlockData3Type * > UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetAllocatedBlocks ( ) const

inline

Returns: array of pointers to the allocated blocks. Note: the grid owns the blocks, so the calling code should not delete them.

◆ GetAllocatedConstBlocks()

template<typename ElemType , int32 BlockSize_>

TArray< const BlockData3Type * > UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetAllocatedConstBlocks ( ) const

inline

Returns: array of pointers to the allocated blocks. Note: the grid owns the blocks, so the calling code should not delete them.

◆ GetBlockData() [1/4]

template<typename ElemType , int32 BlockSize_>

TUniquePtr< BlockData3Type > & UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetBlockData ( const FVector3i & BlockIJK )

inline

Returns: reference to a unique pointer that points to a block that may or may not be allocated

Parameters

BlockIJK - the lattice address of the block in terms of block units ( e.g. the location in a grid of blocks).

◆ GetBlockData() [2/4]

template<typename ElemType , int32 BlockSize_>

const TUniquePtr< BlockData3Type > & UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetBlockData ( const FVector3i & BlockIJK ) const

inline

Returns: reference to a unique pointer that points to a block that may or may not be allocated

Parameters

BlockIJK - the lattice address of the block in terms of block units ( e.g. the location in a grid of blocks).

◆ GetBlockData() [3/4]

template<typename ElemType , int32 BlockSize_>

TUniquePtr< BlockData3Type > & UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetBlockData ( int32 BlockIndex )

inline

Returns: reference to a unique pointer that points to a block that may or may not be allocated

Parameters

BlockIndex - the index of the block in an internal linearization of the blocks. Note: BlockIJK and BlockIndex can be converted by means of BlockIJKToBlockIndex() and BlockIndexToBlockIJK()

◆ GetBlockData() [4/4]

template<typename ElemType , int32 BlockSize_>

const TUniquePtr< BlockData3Type > & UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetBlockData ( int32 BlockIndex ) const

inline

Returns: reference to a unique pointer that points to a block that may or may not be allocated

Parameters

BlockIndex - the index of the block in an internal linearization of the blocks. Note: BlockIJK and BlockIndex can be converted by means of BlockIJKToBlockIndex() and BlockIndexToBlockIJK()

◆ GetBlockDefaultValue()

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetBlockDefaultValue ( const FVector3i & BlockIJK ) const

inline

Returns: the default value for the specified block.

Parameters

BlockIJK - the lattice address of the block in terms of block units ( e.g. the location in a grid of blocks).

◆ GetNumBlocks()

template<typename ElemType , int32 BlockSize_>

int32 UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::GetNumBlocks ( ) const

inline

Returns: the total number of block units that covers the spatial dimensions of the grid.

◆ IsBlockAllocated()

template<typename ElemType , int32 BlockSize_>

bool UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::IsBlockAllocated ( const FVector3i & BlockIJK ) const

inline

Returns: true if the specified block has been allocated.

Parameters

BlockIJK - the lattice address of the block in terms of block units ( e.g. the location in a grid of blocks).

◆ ProcessBlockDefaultValue()

template<typename ElemType , int32 BlockSize_>

template<typename ProcessFunc >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::ProcessBlockDefaultValue	(	const FVector3i &	BlockIJK,
		ProcessFunc	Func,
		bool	bPruneBlock = `true`
	)

inline

Update the default value for the specified block using a functor

Parameters

BlockIJK	- the lattice address of the block in terms of block units ( e.g. the location in a grid of blocks).
Func	- Func(ElemType& value){..} is called on the default value.
bPruneBlock	- if true, any internal block allocation will be freed and the resulting deallocated block will just hold a single default value. if false, the allocation of the block will no change.

◆ ProcessValueWithLock() [1/2]

template<typename ElemType , int32 BlockSize_>

template<typename ProcessFunc , typename CriticalSectionProviderType >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::ProcessValueWithLock	(	const FVector3i &	CellIJK,
		ProcessFunc	Func,
		CriticalSectionProviderType	CriticalSectionProvider
	)

inline

Call an external lambda with a reference to the grid value at CellIJK. Called as Func(ElemType&), so the caller can both read and write the grid cell

note: if doing pure reads prefer the GetValue() methods because the ProcessValue method will allocate the underlying data block.

◆ ProcessValueWithLock() [2/2]

template<typename ElemType , int32 BlockSize_>

template<typename ProcessFunc , typename CriticalSectionProviderType >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::ProcessValueWithLock	(	int32	I,
		int32	J,
		int32	K,
		ProcessFunc	Func,
		CriticalSectionProviderType	CriticalSectionProvider
	)

inline

Call an external lambda with a reference to the grid value at (I,J,K). Called as Func(ElemType&), so the caller can both read and write the grid cell

note: if doing pure reads prefer the GetValue() methods because the ProcessValue method will allocate the underlying data block.

◆ ReadBlockDefaultValue() [1/2]

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::ReadBlockDefaultValue ( const FVector3i & BlockIJK ) const

inlineprotected

◆ ReadBlockDefaultValue() [2/2]

template<typename ElemType , int32 BlockSize_>

ElemType UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::ReadBlockDefaultValue ( const int32 & BlockIndex ) const

inlineprotected

◆ SetBlockDefaultValue()

template<typename ElemType , int32 BlockSize_>

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::SetBlockDefaultValue	(	const FVector3i &	BlockIJK,
		const ElemType &	Value,
		bool	bPruneBlock = `true`
	)

inline

Update the default value for the specified block.

Parameters

BlockIJK	- the lattice address of the block in terms of block units ( e.g. the location in a grid of blocks).
Value	- the new default value for this block
bPruneBlock	- if true, any internal block allocation will be freed and the resulting deallocated block will just hold a single default value. if false, the allocation of the block will no change.

◆ SetValueWithLock() [1/2]

template<typename ElemType , int32 BlockSize_>

template<typename CriticalSectionProviderType >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::SetValueWithLock	(	const FVector3i &	CellIJK,
		ElemType	NewValue,
		CriticalSectionProviderType	CriticalSectionProvider
	)

inline

Set the grid value at CellIJK, with user supplied locking in the form of a function of the form

FCriticalSection& CriticalSectionProvider(id)

that provides a critical section for each block id.

◆ SetValueWithLock() [2/2]

template<typename ElemType , int32 BlockSize_>

template<typename CriticalSectionProviderType >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::SetValueWithLock	(	int32	I,
		int32	J,
		int32	K,
		ElemType	NewValue,
		CriticalSectionProviderType &	CriticalSectionProvider
	)

inline

Set the grid value at (I,J,K), with user supplied locking in the form of a function of the form

FCriticalSection& CriticalSectionProvider(id)

that provides a critical section for each block id.

◆ TouchBlockData()

template<typename ElemType , int32 BlockSize_>

BlockData3Type & UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::TouchBlockData ( const FVector3i & BlockIJK )

inline

Returns: a references to the specified block, this will allocate the block if it doesn't already exists.

Parameters

BlockIJK - the lattice address of the block in terms of block units ( e.g. the location in a grid of blocks).

◆ WriteBlockDefaultValue() [1/2]

template<typename ElemType , int32 BlockSize_>

template<typename FuncType >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::WriteBlockDefaultValue	(	const FVector3i &	BlockIJK,
		FuncType	Func,
		bool	bDeallocateBock = `true`
	)

inlineprotected

◆ WriteBlockDefaultValue() [2/2]

template<typename ElemType , int32 BlockSize_>

template<typename FuncType >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::WriteBlockDefaultValue	(	const int32	BlockIndex,
		FuncType	Func,
		bool	bDeallocateBock = `true`
	)

inlineprotected

◆ WriteBlockDefaultValueWithLock()

template<typename ElemType , int32 BlockSize_>

template<typename FuncType >

void UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::WriteBlockDefaultValueWithLock	(	const int32	BlockIndex,
		FuncType	Func,
		FCriticalSection *	CriticalSection,
		bool	bDeallocateBock = `true`
	)

inlineprotected

Member Data Documentation

◆ BlockElemCount

template<typename ElemType , int32 BlockSize_>

constexpr int32 UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::BlockElemCount = BlockSize * BlockSize * BlockSize

staticconstexpr

◆ BlockSize

template<typename ElemType , int32 BlockSize_>

constexpr int32 UE::Geometry::TBlockedGrid3< ElemType, BlockSize_ >::BlockSize = BlockSize_

staticconstexpr

The documentation for this class was generated from the following file:

Engine/Source/Runtime/GeometryCore/Public/Spatial/BlockedDenseGrid3.h

Public Types

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BlockData3Type

◆ BlockedDenseGridType

◆ BlockedGrid3LayoutType

◆ FBlock3

Constructor & Destructor Documentation

◆ TBlockedGrid3() [1/2]

◆ TBlockedGrid3() [2/2]

Member Function Documentation

◆ GetAllocatedBlocks() [1/2]

◆ GetAllocatedBlocks() [2/2]

◆ GetAllocatedConstBlocks()

◆ GetBlockData() [1/4]

◆ GetBlockData() [2/4]

◆ GetBlockData() [3/4]

◆ GetBlockData() [4/4]

◆ GetBlockDefaultValue()

◆ GetNumBlocks()

◆ IsBlockAllocated()

◆ ProcessBlockDefaultValue()

◆ ProcessValueWithLock() [1/2]

◆ ProcessValueWithLock() [2/2]

◆ ReadBlockDefaultValue() [1/2]

◆ ReadBlockDefaultValue() [2/2]

◆ SetBlockDefaultValue()

◆ SetValueWithLock() [1/2]

◆ SetValueWithLock() [2/2]

◆ TouchBlockData()

◆ WriteBlockDefaultValue() [1/2]

◆ WriteBlockDefaultValue() [2/2]

◆ WriteBlockDefaultValueWithLock()

Member Data Documentation

◆ BlockElemCount

◆ BlockSize
