FAnimNode_BlendSpaceGraphBase Struct Reference

#include <AnimNode_BlendSpaceGraphBase.h>

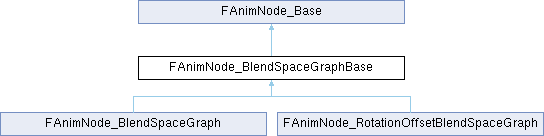

Inheritance diagram for FAnimNode_BlendSpaceGraphBase:

Public Member Functions
const UBlendSpace *	GetBlendSpace () const
FVector	GetPosition () const
FVector	GetFilteredPosition () const
ANIMGRAPHRUNTIME_API void	SnapToPosition (const FVector &NewPosition)
Public Member Functions inherited from FAnimNode_Base
virtual ENGINE_API void	EvaluateComponentSpace_AnyThread (FComponentSpacePoseContext &Output)
virtual bool	CanUpdateInWorkerThread () const
virtual bool	HasPreUpdate () const
virtual void	PreUpdate (const UAnimInstance *InAnimInstance)
virtual bool	NeedsDynamicReset () const
virtual ENGINE_API void	ResetDynamics (ETeleportType InTeleportType)
virtual void	PostCompile (const class USkeleton *InSkeleton)
virtual bool	NeedsOnInitializeAnimInstance () const
virtual	~FAnimNode_Base ()
virtual void	ResetDynamics ()
virtual bool	WantsSkippedUpdates () const
virtual void	OnUpdatesSkipped (TArrayView< const FAnimationUpdateContext * > SkippedUpdateContexts)
virtual void	OverrideAsset (class UAnimationAsset *NewAsset)
ENGINE_API const FExposedValueHandler &	GetEvaluateGraphExposedInputs () const
void	SetExposedValueHandler (const FExposedValueHandler *Handler)
int32	GetNodeIndex () const
const IAnimClassInterface *	GetAnimClassInterface () const

Protected Member Functions
ANIMGRAPHRUNTIME_API void	UpdateInternal (const FAnimationUpdateContext &Context)
virtual ANIMGRAPHRUNTIME_API void	Initialize_AnyThread (const FAnimationInitializeContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	CacheBones_AnyThread (const FAnimationCacheBonesContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	Update_AnyThread (const FAnimationUpdateContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	Evaluate_AnyThread (FPoseContext &Output) override
virtual ANIMGRAPHRUNTIME_API void	GatherDebugData (FNodeDebugData &DebugData) override
Protected Member Functions inherited from FAnimNode_Base
template<typename DataType >
const DataType &	GetData (UE::Anim::FNodeDataId InId, const UObject *InObject=nullptr) const
template<typename DataType >
DataType *	GetInstanceDataPtr (UE::Anim::FNodeDataId InId, UObject *InObject=nullptr)
ENGINE_API bool	IsLODEnabled (FAnimInstanceProxy *AnimInstanceProxy)
virtual int32	GetLODThreshold () const
virtual ENGINE_API void	OnInitializeAnimInstance (const FAnimInstanceProxy *InProxy, const UAnimInstance *InAnimInstance)

Protected Attributes
float	X = 0.0f
float	Y = 0.0f
FName	GroupName = NAME_None
TEnumAsByte< EAnimGroupRole::Type >	GroupRole = EAnimGroupRole::CanBeLeader
TObjectPtr< const UBlendSpace >	BlendSpace = nullptr
TArray< FPoseLink >	SamplePoseLinks
FBlendFilter	BlendFilter
TArray< FBlendSampleData >	BlendSampleDataCache
int32	CachedTriangulationIndex = -1

Friends
class	UAnimGraphNode_BlendSpaceGraphBase

Member Function Documentation

CacheBones_AnyThread()

void FAnimNode_BlendSpaceGraphBase::CacheBones_AnyThread ( const FAnimationCacheBonesContext &  Context )

overrideprotectedvirtual

Called to cache any bones that this node needs to track (e.g. in a FBoneReference). This is usually called at startup when LOD switches occur. This can be called on any thread.

Parameters

Context

Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

Evaluate_AnyThread()

void FAnimNode_BlendSpaceGraphBase::Evaluate_AnyThread ( FPoseContext &  Output )

overrideprotectedvirtual

Called to evaluate local-space bones transforms according to the weights set up in Update(). You should implement either Evaluate or EvaluateComponentSpace, but not both of these. This can be called on any thread.

Parameters

Output

Output structure to write pose or curve data to. Also provides access to relevant data as a context.

Reimplemented from FAnimNode_Base.

GatherDebugData()

void FAnimNode_BlendSpaceGraphBase::GatherDebugData ( FNodeDebugData &  DebugData )

overrideprotectedvirtual

Called to gather on-screen debug data. This is called on the game thread.

Parameters

DebugData

Debug data structure used to output any relevant data

Reimplemented from FAnimNode_Base.

GetBlendSpace()

const UBlendSpace * FAnimNode_BlendSpaceGraphBase::GetBlendSpace ( ) const

inline

GetFilteredPosition()

FVector FAnimNode_BlendSpaceGraphBase::GetFilteredPosition ( ) const

inline

GetPosition()

FVector FAnimNode_BlendSpaceGraphBase::GetPosition ( ) const

inline

Initialize_AnyThread()

void FAnimNode_BlendSpaceGraphBase::Initialize_AnyThread ( const FAnimationInitializeContext &  Context )

overrideprotectedvirtual

Called when the node first runs. If the node is inside a state machine or cached pose branch then this can be called multiple times. This can be called on any thread.

Parameters

Context

Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

SnapToPosition()

void FAnimNode_BlendSpaceGraphBase::SnapToPosition

(

const FVector &

NewPosition

)

Update_AnyThread()

void FAnimNode_BlendSpaceGraphBase::Update_AnyThread ( const FAnimationUpdateContext &  Context )

overrideprotectedvirtual

Called to update the state of the graph relative to this node. Generally this should configure any weights (etc.) that could affect the poses that will need to be evaluated. This function is what usually executes EvaluateGraphExposedInputs. This can be called on any thread.

Parameters

Context

Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

UpdateInternal()

void FAnimNode_BlendSpaceGraphBase::UpdateInternal ( const FAnimationUpdateContext &  Context )

protected

Friends And Related Symbol Documentation

UAnimGraphNode_BlendSpaceGraphBase

friend class UAnimGraphNode_BlendSpaceGraphBase

friend

Member Data Documentation

BlendFilter

FBlendFilter FAnimNode_BlendSpaceGraphBase::BlendFilter

protected

BlendSampleDataCache

TArray<FBlendSampleData> FAnimNode_BlendSpaceGraphBase::BlendSampleDataCache

protected

BlendSpace

TObjectPtr<const UBlendSpace> FAnimNode_BlendSpaceGraphBase::BlendSpace = nullptr

protected

CachedTriangulationIndex

int32 FAnimNode_BlendSpaceGraphBase::CachedTriangulationIndex = -1

protected

Previous position in the triangulation/segmentation

GroupName

FName FAnimNode_BlendSpaceGraphBase::GroupName = NAME_None

protected

GroupRole

TEnumAsByte<EAnimGroupRole::Type> FAnimNode_BlendSpaceGraphBase::GroupRole = EAnimGroupRole::CanBeLeader

protected

SamplePoseLinks

TArray<FPoseLink> FAnimNode_BlendSpaceGraphBase::SamplePoseLinks

protected

X

float FAnimNode_BlendSpaceGraphBase::X = 0.0f

protected

Y

float FAnimNode_BlendSpaceGraphBase::Y = 0.0f

protected

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/AnimGraphRuntime/Public/AnimNodes/AnimNode_BlendSpaceGraphBase.h
• Engine/Source/Runtime/AnimGraphRuntime/Private/AnimNodes/AnimNode_BlendSpaceGraphBase.cpp
