#include <MetaNavMeshPath.h>

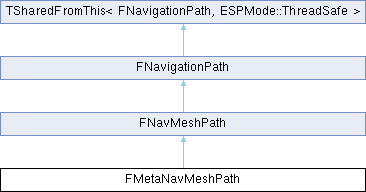

Inheritance diagram for FMetaNavMeshPath:

Public Types
typedef FNavMeshPath	Super

Public Types inherited from FNavMeshPath
typedef FNavigationPath	Super

Public Member Functions
AIMODULE_API	FMetaNavMeshPath ()

AIMODULE_API	FMetaNavMeshPath (const TArray< FMetaPathWayPoint > &InWaypoints, const ANavigationData &NavData)

AIMODULE_API	FMetaNavMeshPath (const TArray< FMetaPathWayPoint > &InWaypoints, const AController &Owner)

AIMODULE_API	FMetaNavMeshPath (const TArray< FVector > &InWaypoints, const ANavigationData &NavData)

AIMODULE_API	FMetaNavMeshPath (const TArray< FVector > &InWaypoints, const AController &Owner)

virtual AIMODULE_API void	Initialize (const FVector &AgentLocation)

virtual AIMODULE_API bool	ConditionalMoveToNextSection (const FVector &AgentLocation, EMetaPathUpdateReason Reason)

AIMODULE_API bool	ForceMoveToNextSection (const FVector &AgentLocation)

virtual AIMODULE_API bool	UpdatePath (const FVector &AgentLocation)

virtual AIMODULE_API void	CopyFrom (const FMetaNavMeshPath &Other)

bool	IsLastSection () const

int32	GetTargetWaypointIndex () const

int32	GetNumWaypoints () const

const TArray< FMetaPathWayPoint > &	GetWaypointArray () const

AActor *	GetMetaPathGoal () const

AIMODULE_API bool	SetWaypoints (const TArray< FMetaPathWayPoint > &InWaypoints)

AIMODULE_API bool	SetWaypoints (const TArray< FVector > &InWaypoints)

float	GetWaypointSwitchRadius () const

void	SetWaypointSwitchRadius (float InSwitchRadius)

virtual AIMODULE_API FVector::FReal	GetLengthFromPosition (FVector SegmentStart, uint32 NextPathPointIndex) const override

virtual AIMODULE_API FVector::FReal	GetCostFromIndex (int32 PathPointIndex) const override

virtual AIMODULE_API void	DebugDraw (const ANavigationData NavData, const FColor PathColor, UCanvas Canvas, const bool bPersistent, const float LifeTime, const uint32 NextPathPointIndex=0) const override

Public Member Functions inherited from FNavMeshPath
NAVIGATIONSYSTEM_API	FNavMeshPath ()

NAVIGATIONSYSTEM_API	~FNavMeshPath ()

NAVIGATIONSYSTEM_API	FNavMeshPath (const FNavMeshPath &)

NAVIGATIONSYSTEM_API	FNavMeshPath (FNavMeshPath &&Other)

NAVIGATIONSYSTEM_API FNavMeshPath &	operator= (const FNavMeshPath &Other)

NAVIGATIONSYSTEM_API FNavMeshPath &	operator= (FNavMeshPath &&Other)

void	SetWantsStringPulling (const bool bNewWantsStringPulling)

bool	WantsStringPulling () const

bool	IsStringPulled () const

NAVIGATIONSYSTEM_API void	PerformStringPulling (const FVector &StartLoc, const FVector &EndLoc)

void	SetWantsPathCorridor (const bool bNewWantsPathCorridor)

bool	WantsPathCorridor () const

const TArray< FNavigationPortalEdge > &	GetPathCorridorEdges () const

void	SetPathCorridorEdges (const TArray< FNavigationPortalEdge > &InPathCorridorEdges)

void	OnPathCorridorUpdated ()

NAVIGATIONSYSTEM_API bool	ContainsWithSameEnd (const FNavMeshPath *Other) const

NAVIGATIONSYSTEM_API void	OffsetFromCorners (FVector::FReal Distance)

NAVIGATIONSYSTEM_API void	ApplyFlags (int32 NavDataFlags)

virtual NAVIGATIONSYSTEM_API void	ResetForRepath () override

NAVIGATIONSYSTEM_API bool	GetNodeFlags (int32 NodeIdx, FNavMeshNodeFlags &Flags) const

virtual FVector::FReal	GetCostFromNode (NavNodeRef PathNode) const override

FVector::FReal	GetTotalPathLength () const

int32	GetNodeRefIndex (const NavNodeRef NodeRef) const

virtual bool	ContainsNode (NavNodeRef NodeRef) const override

virtual bool	ContainsCustomLink (FNavLinkId UniqueLinkId) const override

virtual bool	ContainsAnyCustomLink () const override

NAVIGATIONSYSTEM_API bool	IsPathSegmentANavLink (const int32 PathSegmentStartIndex) const

virtual NAVIGATIONSYSTEM_API bool	DoesIntersectBox (const FBox &Box, uint32 StartingIndex=0, int32 IntersectingSegmentIndex=NULL, FVector AgentExtent=NULL) const override

virtual NAVIGATIONSYSTEM_API bool	DoesIntersectBox (const FBox &Box, const FVector &AgentLocation, uint32 StartingIndex=0, int32 IntersectingSegmentIndex=NULL, FVector AgentExtent=NULL) const override

virtual NAVIGATIONSYSTEM_API FVector	GetSegmentDirection (uint32 SegmentEndIndex) const override

NAVIGATIONSYSTEM_API void	Invert ()

Public Member Functions inherited from FNavigationPath
	DECLARE_MULTICAST_DELEGATE_TwoParams (FPathObserverDelegate, FNavigationPath *, ENavPathEvent::Type)

NAVIGATIONSYSTEM_API	FNavigationPath ()

NAVIGATIONSYSTEM_API	FNavigationPath (const TArray< FVector > &Points, AActor *Base=NULL)

virtual NAVIGATIONSYSTEM_API	~FNavigationPath ()

PRAGMA_DISABLE_DEPRECATION_WARNINGS	FNavigationPath (const FNavigationPath &)=default

FNavigationPath &	operator= (const FNavigationPath &Other)=default

PRAGMA_ENABLE_DEPRECATION_WARNINGS bool	IsValid () const

bool	IsUpToDate () const

bool	IsReady () const

bool	IsPartial () const

bool	DidSearchReachedLimit () const

bool	IsErrorStartLocationNonNavigable () const

bool	IsErrorEndLocationNonNavigable () const

bool	IsWaitingForRepath () const

void	SetManualRepathWaiting (const bool bInWaitingForRepath)

bool	ShouldUpdateStartPointOnRepath () const

bool	ShouldUpdateEndPointOnRepath () const

FVector	GetDestinationLocation () const

FPathObserverDelegate &	GetObserver ()

FDelegateHandle	AddObserver (FPathObserverDelegate::FDelegate NewObserver)

void	RemoveObserver (FDelegateHandle HandleOfObserverToRemove)

void	MarkReady ()

void	SetNavigationDataUsed (const ANavigationData *const NewData)

ANavigationData *	GetNavigationDataUsed () const

void	SetQuerier (const UObject *InQuerier)

const UObject *	GetQuerier () const

void	SetQueryData (const FPathFindingQueryData &QueryData)

FPathFindingQueryData	GetQueryData () const

void	SetIsPartial (const bool bPartial)

void	SetSearchReachedLimit (const bool bLimited)

void	SetErrorStartLocationNonNavigable (const bool bErrorNonNavigable)

void	SetErrorEndLocationNonNavigable (const bool bErrorNonNavigable)

void	SetFilter (FSharedConstNavQueryFilter InFilter)

FSharedConstNavQueryFilter	GetFilter () const

AActor *	GetBaseActor () const

FVector	GetStartLocation () const

FVector	GetEndLocation () const

void	DoneUpdating (ENavPathUpdateType::Type UpdateType)

double	GetTimeStamp () const

void	SetTimeStamp (double TimeStamp)

NAVIGATIONSYSTEM_API void	Invalidate ()

NAVIGATIONSYSTEM_API void	RePathFailed ()

NAVIGATIONSYSTEM_API void	RemoveOverlappingPoints (const FVector &Tolerance)

virtual bool	ContainsCustomLink (uint32 UniqueLinkId) const final

FVector::FReal	GetCost () const

FVector::FReal	GetLength () const

const TArray< FNavPathPoint > &	GetPathPoints () const

TArray< FNavPathPoint > &	GetPathPoints ()

NAVIGATIONSYSTEM_API FBasedPosition	GetPathPointLocation (uint32 Index) const

template<typename PathClass >
const PathClass *	CastPath () const

template<typename PathClass >
PathClass *	CastPath ()

NAVIGATIONSYSTEM_API void	SetGoalActorObservation (const AActor &ActorToObserve, float TetherDistance)

void	SetGoalActorTetherDistance (const float NewTetherDistace)

NAVIGATIONSYSTEM_API void	DisableGoalActorObservation ()

NAVIGATIONSYSTEM_API void	SetSourceActor (const AActor &InSourceActor)

const AActor *	GetSourceActor () const

const INavAgentInterface *	GetSourceActorAsNavAgent () const

FVector	GetLastRepathGoalLocation () const

NAVIGATIONSYSTEM_API void	UpdateLastRepathGoalLocation ()

double	GetLastUpdateTime () const

float	GetGoalActorTetherDistance () const

void	EnableRecalculationOnInvalidation (bool bShouldAutoUpdate)

bool	WillRecalculateOnInvalidation () const

void	SetIgnoreInvalidation (bool bShouldIgnore)

bool	GetIgnoreInvalidation () const

NAVIGATIONSYSTEM_API EPathObservationResult::Type	TickPathObservation ()

NAVIGATIONSYSTEM_API FVector	GetGoalLocation () const

NAVIGATIONSYSTEM_API FVector	GetPathFindingStartLocation () const

const AActor *	GetGoalActor () const

const INavAgentInterface *	GetGoalActorAsNavAgent () const

Public Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
TSharedRef< FNavigationPath, Mode >	AsShared ()

TSharedRef< FNavigationPath const, Mode >	AsShared () const

TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< FNavigationPath, Mode >	AsWeak ()

TWeakPtr< FNavigationPath const, Mode >	AsWeak () const

TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const

void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const InSharedPtr, OtherType InObject) const

void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const InSharedRef, OtherType InObject) const

UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Static Public Attributes
static AIMODULE_API const FNavPathType	Type

Static Public Attributes inherited from FNavMeshPath
static NAVIGATIONSYSTEM_API const FNavPathType	Type

Protected Member Functions
AIMODULE_API bool	MoveToNextSection (const FVector &AgentLocation)

Protected Member Functions inherited from FNavMeshPath
NAVIGATIONSYSTEM_API FVector::FReal	GetStringPulledLength (const int32 StartingPoint) const

NAVIGATIONSYSTEM_API FVector::FReal	GetPathCorridorLength (const int32 StartingEdge) const

NAVIGATIONSYSTEM_API const TArray< FNavigationPortalEdge > &	GeneratePathCorridorEdges () const

Protected Member Functions inherited from FNavigationPath
virtual void	OnPathUpdated (ENavPathUpdateType::Type UpdateType)

Protected Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
	TSharedFromThis ()

	TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)

	~TSharedFromThis ()

Protected Attributes
TArray< FMetaPathWayPoint >	Waypoints

FVector::FReal	ApproximateLength

float	WaypointSwitchRadius

int32	TargetWaypointIdx

TWeakObjectPtr< AActor >	PathGoal

float	PathGoalTetherDistance

Protected Attributes inherited from FNavMeshPath
uint32	bStringPulled: 1

uint32	bWantsStringPulling: 1

uint32	bWantsPathCorridor: 1

Protected Attributes inherited from FNavigationPath
TArray< FNavPathPoint >	PathPoints

TWeakObjectPtr< AActor >	Base

FSharedConstNavQueryFilter	Filter

FNavPathType	PathType

FPathObserverDelegate	ObserverDelegate

uint32	bUpToDate: 1

uint32	bIsReady: 1

uint32	bIsPartial: 1

uint32	bReachedSearchLimit: 1

uint32	bErrorStartLocationNonNavigable: 1 = false

uint32	bErrorEndLocationNonNavigable: 1 = false

uint32	bDoAutoUpdateOnInvalidation: 1

uint32	bIgnoreInvalidation: 1

uint32	bUpdateStartPointOnRepath: 1

uint32	bUpdateEndPointOnRepath: 1

uint32	bWaitingForRepath: 1

uint32	bUseOnPathUpdatedNotify: 1

uint32	bObservingGoalActor: 1

TWeakObjectPtr< ANavigationData >	NavigationDataUsed

FPathFindingQueryData	PathFindingQueryData

double	LastUpdateTimeStamp

Additional Inherited Members
Static Public Member Functions inherited from FNavigationPath
static bool	GetPathPoint (const FNavigationPath *Path, uint32 PathVertIdx, FNavPathPoint &PathPoint)

Public Attributes inherited from FNavMeshPath
TArray< NavNodeRef >	PathCorridor

TArray< FVector::FReal >	PathCorridorCost

TArray< uint32 >	CustomLinkIds

TArray< FNavLinkId >	CustomNavLinkIds

uint32	bDynamic: 1

Public Attributes inherited from FNavigationPath
TArray< NavNodeRef >	ShortcutNodeRefs

Static Protected Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Static Protected Attributes inherited from FNavigationPath
static NAVIGATIONSYSTEM_API const FNavPathType	Type

Detailed Description

FMetaNavMeshPath allows creating hierarchical or guided navmesh paths

Waypoints array defines list of locations that will be used to create actual FNavMeshPath data during path following. On path following start and upon reaching waypoint, path will request update from owning navmesh with following parameters:

start location set to agent location
end location set to target waypoint (or goal actor for last one)
goal actor set only for last section

Since path updates itself for moving agent it really shouldn't be reused by others.

Member Typedef Documentation

◆ Super

typedef FNavMeshPath FMetaNavMeshPath::Super

Constructor & Destructor Documentation

◆ FMetaNavMeshPath() [1/5]

FMetaNavMeshPath::FMetaNavMeshPath ( )

◆ FMetaNavMeshPath() [2/5]

FMetaNavMeshPath::FMetaNavMeshPath	(	const TArray< FMetaPathWayPoint > &	InWaypoints,
		const ANavigationData &	NavData
	)

◆ FMetaNavMeshPath() [3/5]

FMetaNavMeshPath::FMetaNavMeshPath	(	const TArray< FMetaPathWayPoint > &	InWaypoints,
		const AController &	Owner
	)

◆ FMetaNavMeshPath() [4/5]

FMetaNavMeshPath::FMetaNavMeshPath	(	const TArray< FVector > &	InWaypoints,
		const ANavigationData &	NavData
	)

◆ FMetaNavMeshPath() [5/5]

FMetaNavMeshPath::FMetaNavMeshPath	(	const TArray< FVector > &	InWaypoints,
		const AController &	Owner
	)

Member Function Documentation

◆ ConditionalMoveToNextSection()

bool FMetaNavMeshPath::ConditionalMoveToNextSection	(	const FVector &	AgentLocation,
		EMetaPathUpdateReason	Reason
	)

virtual

try switching to next waypoint, depends on WaypointSwitchRadius

◆ CopyFrom()

void FMetaNavMeshPath::CopyFrom ( const FMetaNavMeshPath & Other )

virtual

copy properties of other meta path

◆ DebugDraw()

void FMetaNavMeshPath::DebugDraw	(	const ANavigationData *	NavData,
		const FColor	PathColor,
		UCanvas *	Canvas,
		const bool	bPersistent,
		const float	LifeTime,
		const uint32	NextPathPointIndex = `0`
	)		const

overridevirtual

Reimplemented from FNavMeshPath.

◆ ForceMoveToNextSection()

bool FMetaNavMeshPath::ForceMoveToNextSection ( const FVector & AgentLocation )

force switching to next waypoint

◆ GetCostFromIndex()

FVector::FReal FMetaNavMeshPath::GetCostFromIndex ( int32 PathPointIndex ) const

overridevirtual

returns approximate cost of path, ignores parameter

Reimplemented from FNavMeshPath.

◆ GetLengthFromPosition()

FVector::FReal FMetaNavMeshPath::GetLengthFromPosition	(	FVector	SegmentStart,
		uint32	NextPathPointIndex
	)		const

overridevirtual

returns approximate length of path, ignores parameters

Reimplemented from FNavigationPath.

◆ GetMetaPathGoal()

AActor * FMetaNavMeshPath::GetMetaPathGoal ( ) const

inline

returns cached path goal

◆ GetNumWaypoints()

int32 FMetaNavMeshPath::GetNumWaypoints ( ) const

inline

returns number of waypoints

◆ GetTargetWaypointIndex()

int32 FMetaNavMeshPath::GetTargetWaypointIndex ( ) const

inline

returns index of current target waypoint

◆ GetWaypointArray()

const TArray< FMetaPathWayPoint > & FMetaNavMeshPath::GetWaypointArray ( ) const

inline

returns waypoint array

◆ GetWaypointSwitchRadius()

float FMetaNavMeshPath::GetWaypointSwitchRadius ( ) const

inline

returns radius for switching to next waypoint during path following

◆ Initialize()

void FMetaNavMeshPath::Initialize ( const FVector & AgentLocation )

virtual

initialize path for path following

◆ IsLastSection()

bool FMetaNavMeshPath::IsLastSection ( ) const

inline

returns true if path at last waypoint

◆ MoveToNextSection()

bool FMetaNavMeshPath::MoveToNextSection ( const FVector & AgentLocation )

protected

switch to next waypoint

◆ SetWaypoints() [1/2]

bool FMetaNavMeshPath::SetWaypoints ( const TArray< FMetaPathWayPoint > & InWaypoints )

tries to set waypoints, fails when path is ready being followed

◆ SetWaypoints() [2/2]

bool FMetaNavMeshPath::SetWaypoints ( const TArray< FVector > & InWaypoints )

tries to set waypoints, fails when path is ready being followed

◆ SetWaypointSwitchRadius()

void FMetaNavMeshPath::SetWaypointSwitchRadius ( float InSwitchRadius )

inline

sets radius for switching to next waypoint during path following

◆ UpdatePath()

bool FMetaNavMeshPath::UpdatePath ( const FVector & AgentLocation )

virtual

updates underlying navmesh path for current target waypoint

Member Data Documentation

◆ ApproximateLength

FVector::FReal FMetaNavMeshPath::ApproximateLength

protected

sum of 3D distance along waypoints, used for approximating length of path

◆ PathGoal

TWeakObjectPtr<AActor> FMetaNavMeshPath::PathGoal

protected

stored goal actor

◆ PathGoalTetherDistance

float FMetaNavMeshPath::PathGoalTetherDistance

protected

stored goal actor's tether distance

◆ TargetWaypointIdx

int32 FMetaNavMeshPath::TargetWaypointIdx

protected

current target of path following

◆ Type

AIMODULE_API const FNavPathType FMetaNavMeshPath::Type

static

◆ Waypoints

TArray<FMetaPathWayPoint> FMetaNavMeshPath::Waypoints

protected

list of waypoints, including start and end of path

◆ WaypointSwitchRadius

float FMetaNavMeshPath::WaypointSwitchRadius

protected

update navmesh path when this close to target waypoint

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/AIModule/Classes/Navigation/MetaNavMeshPath.h
Engine/Source/Runtime/AIModule/Private/Navigation/MetaNavMeshPath.cpp

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Super

Constructor & Destructor Documentation

◆ FMetaNavMeshPath() [1/5]

◆ FMetaNavMeshPath() [2/5]

◆ FMetaNavMeshPath() [3/5]

◆ FMetaNavMeshPath() [4/5]

◆ FMetaNavMeshPath() [5/5]

Member Function Documentation

◆ ConditionalMoveToNextSection()

◆ CopyFrom()

◆ DebugDraw()

◆ ForceMoveToNextSection()

◆ GetCostFromIndex()

◆ GetLengthFromPosition()

◆ GetMetaPathGoal()

◆ GetNumWaypoints()

◆ GetTargetWaypointIndex()

◆ GetWaypointArray()

◆ GetWaypointSwitchRadius()

◆ Initialize()

◆ IsLastSection()

◆ MoveToNextSection()

◆ SetWaypoints() [1/2]

◆ SetWaypoints() [2/2]

◆ SetWaypointSwitchRadius()

◆ UpdatePath()

Member Data Documentation

◆ ApproximateLength

◆ PathGoal

◆ PathGoalTetherDistance

◆ TargetWaypointIdx

◆ Type

◆ Waypoints

◆ WaypointSwitchRadius
