#include <NavMeshPath.h>

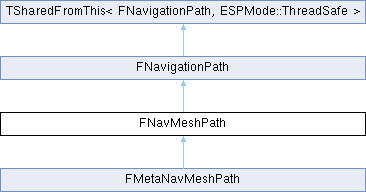

Inheritance diagram for FNavMeshPath:

Public Types
typedef FNavigationPath	Super

Public Member Functions
NAVIGATIONSYSTEM_API	FNavMeshPath ()

NAVIGATIONSYSTEM_API	~FNavMeshPath ()

NAVIGATIONSYSTEM_API	FNavMeshPath (const FNavMeshPath &)

NAVIGATIONSYSTEM_API	FNavMeshPath (FNavMeshPath &&Other)

NAVIGATIONSYSTEM_API FNavMeshPath &	operator= (const FNavMeshPath &Other)

NAVIGATIONSYSTEM_API FNavMeshPath &	operator= (FNavMeshPath &&Other)

void	SetWantsStringPulling (const bool bNewWantsStringPulling)

bool	WantsStringPulling () const

bool	IsStringPulled () const

NAVIGATIONSYSTEM_API void	PerformStringPulling (const FVector &StartLoc, const FVector &EndLoc)

void	SetWantsPathCorridor (const bool bNewWantsPathCorridor)

bool	WantsPathCorridor () const

const TArray< FNavigationPortalEdge > &	GetPathCorridorEdges () const

void	SetPathCorridorEdges (const TArray< FNavigationPortalEdge > &InPathCorridorEdges)

void	OnPathCorridorUpdated ()

virtual NAVIGATIONSYSTEM_API void	DebugDraw (const ANavigationData NavData, const FColor PathColor, UCanvas Canvas, const bool bPersistent, const float LifeTime, const uint32 NextPathPointIndex=0) const override

NAVIGATIONSYSTEM_API bool	ContainsWithSameEnd (const FNavMeshPath *Other) const

NAVIGATIONSYSTEM_API void	OffsetFromCorners (FVector::FReal Distance)

NAVIGATIONSYSTEM_API void	ApplyFlags (int32 NavDataFlags)

virtual NAVIGATIONSYSTEM_API void	ResetForRepath () override

NAVIGATIONSYSTEM_API bool	GetNodeFlags (int32 NodeIdx, FNavMeshNodeFlags &Flags) const

virtual FVector::FReal	GetCostFromNode (NavNodeRef PathNode) const override

virtual FVector::FReal	GetCostFromIndex (int32 PathPointIndex) const override

FVector::FReal	GetTotalPathLength () const

int32	GetNodeRefIndex (const NavNodeRef NodeRef) const

virtual bool	ContainsNode (NavNodeRef NodeRef) const override

virtual bool	ContainsCustomLink (FNavLinkId UniqueLinkId) const override

virtual bool	ContainsAnyCustomLink () const override

NAVIGATIONSYSTEM_API bool	IsPathSegmentANavLink (const int32 PathSegmentStartIndex) const

virtual NAVIGATIONSYSTEM_API bool	DoesIntersectBox (const FBox &Box, uint32 StartingIndex=0, int32 IntersectingSegmentIndex=NULL, FVector AgentExtent=NULL) const override

virtual NAVIGATIONSYSTEM_API bool	DoesIntersectBox (const FBox &Box, const FVector &AgentLocation, uint32 StartingIndex=0, int32 IntersectingSegmentIndex=NULL, FVector AgentExtent=NULL) const override

virtual NAVIGATIONSYSTEM_API FVector	GetSegmentDirection (uint32 SegmentEndIndex) const override

NAVIGATIONSYSTEM_API void	Invert ()

Public Member Functions inherited from FNavigationPath
	DECLARE_MULTICAST_DELEGATE_TwoParams (FPathObserverDelegate, FNavigationPath *, ENavPathEvent::Type)

NAVIGATIONSYSTEM_API	FNavigationPath ()

NAVIGATIONSYSTEM_API	FNavigationPath (const TArray< FVector > &Points, AActor *Base=NULL)

virtual NAVIGATIONSYSTEM_API	~FNavigationPath ()

PRAGMA_DISABLE_DEPRECATION_WARNINGS	FNavigationPath (const FNavigationPath &)=default

FNavigationPath &	operator= (const FNavigationPath &Other)=default

PRAGMA_ENABLE_DEPRECATION_WARNINGS bool	IsValid () const

bool	IsUpToDate () const

bool	IsReady () const

bool	IsPartial () const

bool	DidSearchReachedLimit () const

bool	IsErrorStartLocationNonNavigable () const

bool	IsErrorEndLocationNonNavigable () const

bool	IsWaitingForRepath () const

void	SetManualRepathWaiting (const bool bInWaitingForRepath)

bool	ShouldUpdateStartPointOnRepath () const

bool	ShouldUpdateEndPointOnRepath () const

FVector	GetDestinationLocation () const

FPathObserverDelegate &	GetObserver ()

FDelegateHandle	AddObserver (FPathObserverDelegate::FDelegate NewObserver)

void	RemoveObserver (FDelegateHandle HandleOfObserverToRemove)

void	MarkReady ()

void	SetNavigationDataUsed (const ANavigationData *const NewData)

ANavigationData *	GetNavigationDataUsed () const

void	SetQuerier (const UObject *InQuerier)

const UObject *	GetQuerier () const

void	SetQueryData (const FPathFindingQueryData &QueryData)

FPathFindingQueryData	GetQueryData () const

void	SetIsPartial (const bool bPartial)

void	SetSearchReachedLimit (const bool bLimited)

void	SetErrorStartLocationNonNavigable (const bool bErrorNonNavigable)

void	SetErrorEndLocationNonNavigable (const bool bErrorNonNavigable)

void	SetFilter (FSharedConstNavQueryFilter InFilter)

FSharedConstNavQueryFilter	GetFilter () const

AActor *	GetBaseActor () const

FVector	GetStartLocation () const

FVector	GetEndLocation () const

void	DoneUpdating (ENavPathUpdateType::Type UpdateType)

double	GetTimeStamp () const

void	SetTimeStamp (double TimeStamp)

NAVIGATIONSYSTEM_API void	Invalidate ()

NAVIGATIONSYSTEM_API void	RePathFailed ()

NAVIGATIONSYSTEM_API void	RemoveOverlappingPoints (const FVector &Tolerance)

virtual bool	ContainsCustomLink (uint32 UniqueLinkId) const final

FVector::FReal	GetCost () const

virtual NAVIGATIONSYSTEM_API FVector::FReal	GetLengthFromPosition (FVector SegmentStart, uint32 NextPathPointIndex) const

FVector::FReal	GetLength () const

const TArray< FNavPathPoint > &	GetPathPoints () const

TArray< FNavPathPoint > &	GetPathPoints ()

NAVIGATIONSYSTEM_API FBasedPosition	GetPathPointLocation (uint32 Index) const

template<typename PathClass >
const PathClass *	CastPath () const

template<typename PathClass >
PathClass *	CastPath ()

NAVIGATIONSYSTEM_API void	SetGoalActorObservation (const AActor &ActorToObserve, float TetherDistance)

void	SetGoalActorTetherDistance (const float NewTetherDistace)

NAVIGATIONSYSTEM_API void	DisableGoalActorObservation ()

NAVIGATIONSYSTEM_API void	SetSourceActor (const AActor &InSourceActor)

const AActor *	GetSourceActor () const

const INavAgentInterface *	GetSourceActorAsNavAgent () const

FVector	GetLastRepathGoalLocation () const

NAVIGATIONSYSTEM_API void	UpdateLastRepathGoalLocation ()

double	GetLastUpdateTime () const

float	GetGoalActorTetherDistance () const

void	EnableRecalculationOnInvalidation (bool bShouldAutoUpdate)

bool	WillRecalculateOnInvalidation () const

void	SetIgnoreInvalidation (bool bShouldIgnore)

bool	GetIgnoreInvalidation () const

NAVIGATIONSYSTEM_API EPathObservationResult::Type	TickPathObservation ()

NAVIGATIONSYSTEM_API FVector	GetGoalLocation () const

NAVIGATIONSYSTEM_API FVector	GetPathFindingStartLocation () const

const AActor *	GetGoalActor () const

const INavAgentInterface *	GetGoalActorAsNavAgent () const

Public Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
TSharedRef< FNavigationPath, Mode >	AsShared ()

TSharedRef< FNavigationPath const, Mode >	AsShared () const

TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< FNavigationPath, Mode >	AsWeak ()

TWeakPtr< FNavigationPath const, Mode >	AsWeak () const

TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const

void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const InSharedPtr, OtherType InObject) const

void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const InSharedRef, OtherType InObject) const

UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Public Attributes
TArray< NavNodeRef >	PathCorridor

TArray< FVector::FReal >	PathCorridorCost

TArray< uint32 >	CustomLinkIds

TArray< FNavLinkId >	CustomNavLinkIds

uint32	bDynamic: 1

Public Attributes inherited from FNavigationPath
TArray< NavNodeRef >	ShortcutNodeRefs

Static Public Attributes
static NAVIGATIONSYSTEM_API const FNavPathType	Type

Protected Member Functions
NAVIGATIONSYSTEM_API FVector::FReal	GetStringPulledLength (const int32 StartingPoint) const

NAVIGATIONSYSTEM_API FVector::FReal	GetPathCorridorLength (const int32 StartingEdge) const

NAVIGATIONSYSTEM_API const TArray< FNavigationPortalEdge > &	GeneratePathCorridorEdges () const

Protected Member Functions inherited from FNavigationPath
virtual void	OnPathUpdated (ENavPathUpdateType::Type UpdateType)

Protected Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
	TSharedFromThis ()

	TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)

	~TSharedFromThis ()

Protected Attributes
uint32	bStringPulled: 1

uint32	bWantsStringPulling: 1

uint32	bWantsPathCorridor: 1

Protected Attributes inherited from FNavigationPath
TArray< FNavPathPoint >	PathPoints

TWeakObjectPtr< AActor >	Base

FSharedConstNavQueryFilter	Filter

FNavPathType	PathType

FPathObserverDelegate	ObserverDelegate

uint32	bUpToDate: 1

uint32	bIsReady: 1

uint32	bIsPartial: 1

uint32	bReachedSearchLimit: 1

uint32	bErrorStartLocationNonNavigable: 1 = false

uint32	bErrorEndLocationNonNavigable: 1 = false

uint32	bDoAutoUpdateOnInvalidation: 1

uint32	bIgnoreInvalidation: 1

uint32	bUpdateStartPointOnRepath: 1

uint32	bUpdateEndPointOnRepath: 1

uint32	bWaitingForRepath: 1

uint32	bUseOnPathUpdatedNotify: 1

uint32	bObservingGoalActor: 1

TWeakObjectPtr< ANavigationData >	NavigationDataUsed

FPathFindingQueryData	PathFindingQueryData

double	LastUpdateTimeStamp

Additional Inherited Members
Static Public Member Functions inherited from FNavigationPath
static bool	GetPathPoint (const FNavigationPath *Path, uint32 PathVertIdx, FNavPathPoint &PathPoint)

Static Protected Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Static Protected Attributes inherited from FNavigationPath
static NAVIGATIONSYSTEM_API const FNavPathType	Type

Member Typedef Documentation

◆ Super

typedef FNavigationPath FNavMeshPath::Super

Constructor & Destructor Documentation

◆ FNavMeshPath() [1/3]

FNavMeshPath::FNavMeshPath ( )

◆ ~FNavMeshPath()

PRAGMA_DISABLE_DEPRECATION_WARNINGS FNavMeshPath::~FNavMeshPath ( )

default

◆ FNavMeshPath() [2/3]

FNavMeshPath::FNavMeshPath ( const FNavMeshPath & )

default

◆ FNavMeshPath() [3/3]

FNavMeshPath::FNavMeshPath ( FNavMeshPath && Other )

default

Member Function Documentation

◆ ApplyFlags()

void FNavMeshPath::ApplyFlags ( int32 NavDataFlags )

◆ ContainsAnyCustomLink()

virtual bool FNavMeshPath::ContainsAnyCustomLink ( ) const

inlineoverridevirtual

check if path contains any custom nav link

Reimplemented from FNavigationPath.

◆ ContainsCustomLink()

virtual bool FNavMeshPath::ContainsCustomLink ( FNavLinkId UniqueLinkId ) const

inlineoverridevirtual

Reimplemented from FNavigationPath.

◆ ContainsNode()

virtual bool FNavMeshPath::ContainsNode ( NavNodeRef NodeRef ) const

inlineoverridevirtual

check if path (all polys in corridor) contains given node

Reimplemented from FNavigationPath.

◆ ContainsWithSameEnd()

bool FNavMeshPath::ContainsWithSameEnd ( const FNavMeshPath * Other ) const

◆ DebugDraw()

void FNavMeshPath::DebugDraw	(	const ANavigationData *	NavData,
		const FColor	PathColor,
		UCanvas *	Canvas,
		const bool	bPersistent,
		const float	LifeTime,
		const uint32	NextPathPointIndex = `0`
	)		const

overridevirtual

Reimplemented from FNavigationPath.

Reimplemented in FMetaNavMeshPath.

◆ DoesIntersectBox() [1/2]

bool FNavMeshPath::DoesIntersectBox	(	const FBox &	Box,
		const FVector &	AgentLocation,
		uint32	StartingIndex = `0`,
		int32 *	IntersectingSegmentIndex = `NULL`,
		FVector *	AgentExtent = `NULL`
	)		const

overridevirtual

checks if given path, starting from StartingIndex, intersects with given AABB box. This version uses AgentLocation as beginning of the path with segment between AgentLocation and path's StartingIndex-th node treated as first path segment to check

Reimplemented from FNavigationPath.

◆ DoesIntersectBox() [2/2]

bool FNavMeshPath::DoesIntersectBox	(	const FBox &	Box,
		uint32	StartingIndex = `0`,
		int32 *	IntersectingSegmentIndex = `NULL`,
		FVector *	AgentExtent = `NULL`
	)		const

overridevirtual

checks if given path, starting from StartingIndex, intersects with given AABB box

Reimplemented from FNavigationPath.

◆ GeneratePathCorridorEdges()

const TArray< FNavigationPortalEdge > & FNavMeshPath::GeneratePathCorridorEdges ( ) const

protected

it's only const to be callable in const environment. It's not supposed to be called directly externally anyway, just as part of retrieving corridor on demand or generating it in internal processes. It fills a mutable array.

◆ GetCostFromIndex()

virtual FVector::FReal FNavMeshPath::GetCostFromIndex ( int32 PathPointIndex ) const

inlineoverridevirtual

get cost of path, starting from given point

Reimplemented from FNavigationPath.

Reimplemented in FMetaNavMeshPath.

◆ GetCostFromNode()

virtual FVector::FReal FNavMeshPath::GetCostFromNode ( NavNodeRef PathNode ) const

inlineoverridevirtual

get cost of path, starting from next poly in corridor

Reimplemented from FNavigationPath.

◆ GetNodeFlags()

bool FNavMeshPath::GetNodeFlags	(	int32	NodeIdx,
		FNavMeshNodeFlags &	Flags
	)		const

get flags of path point or corridor poly (depends on bStringPulled flag)

◆ GetNodeRefIndex()

int32 FNavMeshPath::GetNodeRefIndex ( const NavNodeRef NodeRef ) const

inline

◆ GetPathCorridorEdges()

const TArray< FNavigationPortalEdge > & FNavMeshPath::GetPathCorridorEdges ( ) const

inline

◆ GetPathCorridorLength()

FVector::FReal FNavMeshPath::GetPathCorridorLength ( const int32 StartingEdge ) const

protected

calculates estimated length of path expressed as sequence of navmesh edges. It basically sums up distances between every subsequent nav edge pair edge middles. Internal use only

◆ GetSegmentDirection()

FVector FNavMeshPath::GetSegmentDirection ( uint32 SegmentEndIndex ) const

overridevirtual

retrieves normalized direction vector to given path segment. If path is not string pulled navigation corridor is being used

Reimplemented from FNavigationPath.

◆ GetStringPulledLength()

FVector::FReal FNavMeshPath::GetStringPulledLength ( const int32 StartingPoint ) const

protected

calculates total length of string pulled path. Does not generate string pulled path if it's not already generated (see bWantsStringPulling and bStrigPulled) Internal use only

◆ GetTotalPathLength()

FVector::FReal FNavMeshPath::GetTotalPathLength ( ) const

inline

◆ Invert()

void FNavMeshPath::Invert ( )

◆ IsPathSegmentANavLink()

bool FNavMeshPath::IsPathSegmentANavLink ( const int32 PathSegmentStartIndex ) const

◆ IsStringPulled()

bool FNavMeshPath::IsStringPulled ( ) const

inline

◆ OffsetFromCorners()

void FNavMeshPath::OffsetFromCorners ( FVector::FReal Distance )

add new point only if we don't see our next location otherwise use last visible point

◆ OnPathCorridorUpdated()

void FNavMeshPath::OnPathCorridorUpdated ( )

inline

◆ operator=() [1/2]

FNavMeshPath & FNavMeshPath::operator= ( const FNavMeshPath & Other )

default

◆ operator=() [2/2]

FNavMeshPath & FNavMeshPath::operator= ( FNavMeshPath && Other )

default

◆ PerformStringPulling()

void FNavMeshPath::PerformStringPulling	(	const FVector &	StartLoc,
		const FVector &	EndLoc
	)

find string pulled path from PathCorridor

◆ ResetForRepath()

PRAGMA_ENABLE_DEPRECATION_WARNINGS void FNavMeshPath::ResetForRepath ( )

overridevirtual

Resets all variables describing generated path before attempting new pathfinding call. This function will NOT reset setup variables like goal actor, filter, observer, etc

Reimplemented from FNavigationPath.

◆ SetPathCorridorEdges()

void FNavMeshPath::SetPathCorridorEdges ( const TArray< FNavigationPortalEdge > & InPathCorridorEdges )

inline

◆ SetWantsPathCorridor()

void FNavMeshPath::SetWantsPathCorridor ( const bool bNewWantsPathCorridor )

inline

◆ SetWantsStringPulling()

void FNavMeshPath::SetWantsStringPulling ( const bool bNewWantsStringPulling )

inline

◆ WantsPathCorridor()

bool FNavMeshPath::WantsPathCorridor ( ) const

inline

◆ WantsStringPulling()

bool FNavMeshPath::WantsStringPulling ( ) const

inline

Member Data Documentation

◆ bDynamic

uint32 FNavMeshPath::bDynamic

is this path generated on dynamic navmesh (i.e. one attached to moving surface)

◆ bStringPulled

uint32 FNavMeshPath::bStringPulled

protected

does this path contain string pulled path? If true then NumPathVerts > 0 and OutPathVerts contains valid data. If false there's only navigation corridor data available.

◆ bWantsPathCorridor

uint32 FNavMeshPath::bWantsPathCorridor

protected

If set to true path instance will contain path corridor generated as a part pathfinding call (i.e. without the need to generate it with GeneratePathCorridorEdges

◆ bWantsStringPulling

uint32 FNavMeshPath::bWantsStringPulling

protected

If set to true path instance will contain a string pulled version. Otherwise only navigation corridor will be available. Defaults to true

◆ CustomLinkIds

TArray<uint32> FNavMeshPath::CustomLinkIds

set of unique link Ids

◆ CustomNavLinkIds

TArray<FNavLinkId> FNavMeshPath::CustomNavLinkIds

◆ PathCorridor

TArray<NavNodeRef> FNavMeshPath::PathCorridor

sequence of navigation mesh poly ids representing an obstacle-free navigation corridor

◆ PathCorridorCost

TArray<FVector::FReal> FNavMeshPath::PathCorridorCost

for every poly in PathCorridor stores traversal cost from previous navpoly

◆ Type

const FNavPathType FNavMeshPath::Type

static

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/NavigationSystem/Public/NavMesh/NavMeshPath.h
Engine/Source/Runtime/AIModule/Private/Navigation/MetaNavMeshPath.cpp
Engine/Source/Runtime/NavigationSystem/Private/NavMesh/NavMeshPath.cpp

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Typedef Documentation

◆ Super

Constructor & Destructor Documentation

◆ FNavMeshPath() [1/3]

◆ ~FNavMeshPath()

◆ FNavMeshPath() [2/3]

◆ FNavMeshPath() [3/3]

Member Function Documentation

◆ ApplyFlags()

◆ ContainsAnyCustomLink()

◆ ContainsCustomLink()

◆ ContainsNode()

◆ ContainsWithSameEnd()

◆ DebugDraw()

◆ DoesIntersectBox() [1/2]

◆ DoesIntersectBox() [2/2]

◆ GeneratePathCorridorEdges()

◆ GetCostFromIndex()

◆ GetCostFromNode()

◆ GetNodeFlags()

◆ GetNodeRefIndex()

◆ GetPathCorridorEdges()

◆ GetPathCorridorLength()

◆ GetSegmentDirection()

◆ GetStringPulledLength()

◆ GetTotalPathLength()

◆ Invert()

◆ IsPathSegmentANavLink()

◆ IsStringPulled()

◆ OffsetFromCorners()

◆ OnPathCorridorUpdated()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ PerformStringPulling()

◆ ResetForRepath()

◆ SetPathCorridorEdges()

◆ SetWantsPathCorridor()

◆ SetWantsStringPulling()

◆ WantsPathCorridor()

◆ WantsStringPulling()

Member Data Documentation

◆ bDynamic

◆ bStringPulled

◆ bWantsPathCorridor

◆ bWantsStringPulling

◆ CustomLinkIds

◆ CustomNavLinkIds

◆ PathCorridor

◆ PathCorridorCost

◆ Type
