FNavigationPath Struct Reference

#include <NavigationData.h>

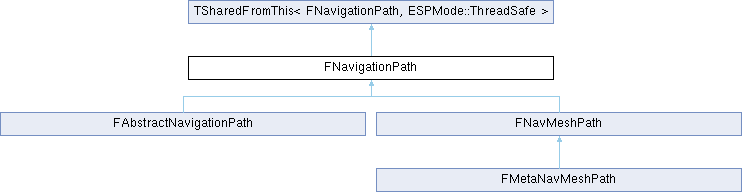

Inheritance diagram for FNavigationPath:

Public Member Functions
	DECLARE_MULTICAST_DELEGATE_TwoParams (FPathObserverDelegate, FNavigationPath *, ENavPathEvent::Type)
NAVIGATIONSYSTEM_API	FNavigationPath ()
NAVIGATIONSYSTEM_API	FNavigationPath (const TArray< FVector > &Points, AActor *Base=NULL)
virtual NAVIGATIONSYSTEM_API	~FNavigationPath ()
PRAGMA_DISABLE_DEPRECATION_WARNINGS	FNavigationPath (const FNavigationPath &)=default
FNavigationPath &	operator= (const FNavigationPath &Other)=default
PRAGMA_ENABLE_DEPRECATION_WARNINGS bool	IsValid () const
bool	IsUpToDate () const
bool	IsReady () const
bool	IsPartial () const
bool	DidSearchReachedLimit () const
bool	IsErrorStartLocationNonNavigable () const
bool	IsErrorEndLocationNonNavigable () const
bool	IsWaitingForRepath () const
void	SetManualRepathWaiting (const bool bInWaitingForRepath)
bool	ShouldUpdateStartPointOnRepath () const
bool	ShouldUpdateEndPointOnRepath () const
FVector	GetDestinationLocation () const
FPathObserverDelegate &	GetObserver ()
FDelegateHandle	AddObserver (FPathObserverDelegate::FDelegate NewObserver)
void	RemoveObserver (FDelegateHandle HandleOfObserverToRemove)
void	MarkReady ()
void	SetNavigationDataUsed (const ANavigationData *const NewData)
ANavigationData *	GetNavigationDataUsed () const
void	SetQuerier (const UObject *InQuerier)
const UObject *	GetQuerier () const
void	SetQueryData (const FPathFindingQueryData &QueryData)
FPathFindingQueryData	GetQueryData () const
void	SetIsPartial (const bool bPartial)
void	SetSearchReachedLimit (const bool bLimited)
void	SetErrorStartLocationNonNavigable (const bool bErrorNonNavigable)
void	SetErrorEndLocationNonNavigable (const bool bErrorNonNavigable)
void	SetFilter (FSharedConstNavQueryFilter InFilter)
FSharedConstNavQueryFilter	GetFilter () const
AActor *	GetBaseActor () const
FVector	GetStartLocation () const
FVector	GetEndLocation () const
void	DoneUpdating (ENavPathUpdateType::Type UpdateType)
double	GetTimeStamp () const
void	SetTimeStamp (double TimeStamp)
NAVIGATIONSYSTEM_API void	Invalidate ()
NAVIGATIONSYSTEM_API void	RePathFailed ()
virtual NAVIGATIONSYSTEM_API void	ResetForRepath ()
NAVIGATIONSYSTEM_API void	RemoveOverlappingPoints (const FVector &Tolerance)
virtual NAVIGATIONSYSTEM_API void	DebugDraw (const ANavigationData *NavData, const FColor PathColor, class UCanvas *Canvas, const bool bPersistent, const float LifeTime, const uint32 NextPathPointIndex=0) const
virtual bool	ContainsCustomLink (uint32 UniqueLinkId) const final
virtual NAVIGATIONSYSTEM_API bool	ContainsCustomLink (FNavLinkId UniqueLinkId) const
virtual NAVIGATIONSYSTEM_API bool	ContainsAnyCustomLink () const
virtual NAVIGATIONSYSTEM_API bool	ContainsNode (NavNodeRef NodeRef) const
virtual FVector::FReal	GetCostFromIndex (int32 PathPointIndex) const
virtual FVector::FReal	GetCostFromNode (NavNodeRef PathNode) const
FVector::FReal	GetCost () const
virtual NAVIGATIONSYSTEM_API FVector::FReal	GetLengthFromPosition (FVector SegmentStart, uint32 NextPathPointIndex) const
FVector::FReal	GetLength () const
const TArray< FNavPathPoint > &	GetPathPoints () const
TArray< FNavPathPoint > &	GetPathPoints ()
NAVIGATIONSYSTEM_API FBasedPosition	GetPathPointLocation (uint32 Index) const
virtual NAVIGATIONSYSTEM_API bool	DoesIntersectBox (const FBox &Box, uint32 StartingIndex=0, int32 *IntersectingSegmentIndex=NULL, FVector *AgentExtent=NULL) const
virtual NAVIGATIONSYSTEM_API bool	DoesIntersectBox (const FBox &Box, const FVector &AgentLocation, uint32 StartingIndex=0, int32 *IntersectingSegmentIndex=NULL, FVector *AgentExtent=NULL) const
virtual NAVIGATIONSYSTEM_API FVector	GetSegmentDirection (uint32 SegmentEndIndex) const
template<typename PathClass >
const PathClass *	CastPath () const
template<typename PathClass >
PathClass *	CastPath ()
NAVIGATIONSYSTEM_API void	SetGoalActorObservation (const AActor &ActorToObserve, float TetherDistance)
void	SetGoalActorTetherDistance (const float NewTetherDistace)
NAVIGATIONSYSTEM_API void	DisableGoalActorObservation ()
NAVIGATIONSYSTEM_API void	SetSourceActor (const AActor &InSourceActor)
const AActor *	GetSourceActor () const
const INavAgentInterface *	GetSourceActorAsNavAgent () const
FVector	GetLastRepathGoalLocation () const
NAVIGATIONSYSTEM_API void	UpdateLastRepathGoalLocation ()
double	GetLastUpdateTime () const
float	GetGoalActorTetherDistance () const
void	EnableRecalculationOnInvalidation (bool bShouldAutoUpdate)
bool	WillRecalculateOnInvalidation () const
void	SetIgnoreInvalidation (bool bShouldIgnore)
bool	GetIgnoreInvalidation () const
NAVIGATIONSYSTEM_API EPathObservationResult::Type	TickPathObservation ()
NAVIGATIONSYSTEM_API FVector	GetGoalLocation () const
NAVIGATIONSYSTEM_API FVector	GetPathFindingStartLocation () const
const AActor *	GetGoalActor () const
const INavAgentInterface *	GetGoalActorAsNavAgent () const
Public Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
TSharedRef< FNavigationPath, Mode >	AsShared ()
TSharedRef< FNavigationPath const, Mode >	AsShared () const
TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const
TWeakPtr< FNavigationPath, Mode >	AsWeak ()
TWeakPtr< FNavigationPath const, Mode >	AsWeak () const
TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const
void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const
void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const
UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Static Public Member Functions
static bool	GetPathPoint (const FNavigationPath *Path, uint32 PathVertIdx, FNavPathPoint &PathPoint)

Public Attributes
TArray< NavNodeRef >	ShortcutNodeRefs

Protected Member Functions
virtual void	OnPathUpdated (ENavPathUpdateType::Type UpdateType)
Protected Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
	TSharedFromThis ()
	TSharedFromThis (TSharedFromThis const &)
UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)
	~TSharedFromThis ()

Protected Attributes
TArray< FNavPathPoint >	PathPoints
TWeakObjectPtr< AActor >	Base
FSharedConstNavQueryFilter	Filter
FNavPathType	PathType
FPathObserverDelegate	ObserverDelegate
uint32	bUpToDate: 1
uint32	bIsReady: 1
uint32	bIsPartial: 1
uint32	bReachedSearchLimit: 1
uint32	bErrorStartLocationNonNavigable: 1 = false
uint32	bErrorEndLocationNonNavigable: 1 = false
uint32	bDoAutoUpdateOnInvalidation: 1
uint32	bIgnoreInvalidation: 1
uint32	bUpdateStartPointOnRepath: 1
uint32	bUpdateEndPointOnRepath: 1
uint32	bWaitingForRepath: 1
uint32	bUseOnPathUpdatedNotify: 1
uint32	bObservingGoalActor: 1
TWeakObjectPtr< ANavigationData >	NavigationDataUsed
FPathFindingQueryData	PathFindingQueryData
double	LastUpdateTimeStamp

Static Protected Attributes
static NAVIGATIONSYSTEM_API const FNavPathType	Type

Additional Inherited Members
Static Protected Member Functions inherited from TSharedFromThis< FNavigationPath, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)
static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Constructor & Destructor Documentation

FNavigationPath() [1/3]

FNavigationPath::FNavigationPath

(

)

FNavigationPath() [2/3]

FNavigationPath::FNavigationPath	(	const TArray< FVector > &	Points,
		AActor *	Base = NULL
	)

~FNavigationPath()

FNavigationPath::~FNavigationPath ( )

virtualdefault

FNavigationPath() [3/3]

PRAGMA_DISABLE_DEPRECATION_WARNINGS FNavigationPath::FNavigationPath ( const FNavigationPath &  )

default

Member Function Documentation

AddObserver()

FDelegateHandle FNavigationPath::AddObserver ( FPathObserverDelegate::FDelegate  NewObserver )

inline

CastPath() [1/2]

template<typename PathClass >

PathClass * FNavigationPath::CastPath ( )

inline

CastPath() [2/2]

template<typename PathClass >

const PathClass * FNavigationPath::CastPath ( ) const

inline

type safe casts

ContainsAnyCustomLink()

bool FNavigationPath::ContainsAnyCustomLink ( ) const

virtual

check if path contains any custom nav link

Reimplemented in FNavMeshPath.

ContainsCustomLink() [1/2]

bool FNavigationPath::ContainsCustomLink ( FNavLinkId  UniqueLinkId ) const

virtual

Reimplemented in FNavMeshPath.

ContainsCustomLink() [2/2]

virtual bool FNavigationPath::ContainsCustomLink ( uint32  UniqueLinkId ) const

inlinefinalvirtual

check if path contains specific custom nav link

ContainsNode()

bool FNavigationPath::ContainsNode ( NavNodeRef  NodeRef ) const

virtual

check if path contains given node

Reimplemented in FNavMeshPath.

DebugDraw()

void FNavigationPath::DebugDraw ( const ANavigationData *  NavData, const FColor  PathColor, class UCanvas *  Canvas, const bool  bPersistent, const float  LifeTime, const uint32  NextPathPointIndex = 0  ) const

virtual

Reimplemented in FMetaNavMeshPath, and FNavMeshPath.

DECLARE_MULTICAST_DELEGATE_TwoParams()

FNavigationPath::DECLARE_MULTICAST_DELEGATE_TwoParams	(	FPathObserverDelegate	,
		FNavigationPath *	,
		ENavPathEvent::Type
	)

DidSearchReachedLimit()

bool FNavigationPath::DidSearchReachedLimit ( ) const

inline

DisableGoalActorObservation()

void FNavigationPath::DisableGoalActorObservation

(

)

turns goal actor location's observation

DoesIntersectBox() [1/2]

bool FNavigationPath::DoesIntersectBox ( const FBox &  Box, const FVector &  AgentLocation, uint32  StartingIndex = 0, int32 *  IntersectingSegmentIndex = NULL, FVector *  AgentExtent = NULL  ) const

virtual

checks if given path, starting from StartingIndex, intersects with given AABB box. This version uses AgentLocation as beginning of the path with segment between AgentLocation and path's StartingIndex-th node treated as first path segment to check

Reimplemented in FNavMeshPath.

DoesIntersectBox() [2/2]

bool FNavigationPath::DoesIntersectBox ( const FBox &  Box, uint32  StartingIndex = 0, int32 *  IntersectingSegmentIndex = NULL, FVector *  AgentExtent = NULL  ) const

virtual

checks if given path, starting from StartingIndex, intersects with given AABB box

Reimplemented in FNavMeshPath.

DoneUpdating()

void FNavigationPath::DoneUpdating ( ENavPathUpdateType::Type  UpdateType )

inline

EnableRecalculationOnInvalidation()

void FNavigationPath::EnableRecalculationOnInvalidation ( bool  bShouldAutoUpdate )

inline

if enabled path will request recalculation if it gets invalidated due to a change to underlying navigation

GetBaseActor()

AActor * FNavigationPath::GetBaseActor ( ) const

inline

GetCost()

FVector::FReal FNavigationPath::GetCost ( ) const

inline

GetCostFromIndex()

virtual FVector::FReal FNavigationPath::GetCostFromIndex ( int32  PathPointIndex ) const

inlinevirtual

get cost of path, starting from given point

Reimplemented in FMetaNavMeshPath, and FNavMeshPath.

GetCostFromNode()

virtual FVector::FReal FNavigationPath::GetCostFromNode ( NavNodeRef  PathNode ) const

inlinevirtual

get cost of path, starting from given node

Reimplemented in FNavMeshPath.

GetDestinationLocation()

FVector FNavigationPath::GetDestinationLocation ( ) const

inline

GetEndLocation()

FVector FNavigationPath::GetEndLocation ( ) const

inline

GetFilter()

FSharedConstNavQueryFilter FNavigationPath::GetFilter ( ) const

inline

GetGoalActor()

const AActor * FNavigationPath::GetGoalActor ( ) const

inline

GetGoalActorAsNavAgent()

const INavAgentInterface * FNavigationPath::GetGoalActorAsNavAgent ( ) const

inline

GetGoalActorTetherDistance()

float FNavigationPath::GetGoalActorTetherDistance ( ) const

inline

GetGoalLocation()

FVector FNavigationPath::GetGoalLocation

(

)

const

If GoalActor is set it retrieved its navigation location, if not retrieved last path point location

GetIgnoreInvalidation()

bool FNavigationPath::GetIgnoreInvalidation ( ) const

inline

GetLastRepathGoalLocation()

FVector FNavigationPath::GetLastRepathGoalLocation ( ) const

inline

GetLastUpdateTime()

double FNavigationPath::GetLastUpdateTime ( ) const

inline

GetLength()

FVector::FReal FNavigationPath::GetLength ( ) const

inline

GetLengthFromPosition()

FVector::FReal FNavigationPath::GetLengthFromPosition ( FVector  SegmentStart, uint32  NextPathPointIndex  ) const

virtual

calculates total length of segments from NextPathPoint to the end of path, plus distance from CurrentPosition to NextPathPoint

Reimplemented in FMetaNavMeshPath.

GetNavigationDataUsed()

ANavigationData * FNavigationPath::GetNavigationDataUsed ( ) const

inline

GetObserver()

FPathObserverDelegate & FNavigationPath::GetObserver ( )

inline

GetPathFindingStartLocation()

FVector FNavigationPath::GetPathFindingStartLocation

(

)

const

retrieved location to start path finding from (in case of path recalculation)

GetPathPoint()

static bool FNavigationPath::GetPathPoint ( const FNavigationPath *  Path, uint32  PathVertIdx, FNavPathPoint &  PathPoint  )

inlinestatic

GetPathPointLocation()

FBasedPosition FNavigationPath::GetPathPointLocation

(

uint32

Index

)

const

get based position of path point

GetPathPoints() [1/2]

TArray< FNavPathPoint > & FNavigationPath::GetPathPoints ( )

inline

GetPathPoints() [2/2]

const TArray< FNavPathPoint > & FNavigationPath::GetPathPoints ( ) const

inline

GetQuerier()

const UObject * FNavigationPath::GetQuerier ( ) const

inline

GetQueryData()

FPathFindingQueryData FNavigationPath::GetQueryData ( ) const

inline

GetSegmentDirection()

FVector FNavigationPath::GetSegmentDirection ( uint32  SegmentEndIndex ) const

virtual

retrieves normalized direction vector to given path segment for '0'-th segment returns same as for 1st segment

Reimplemented in FNavMeshPath.

GetSourceActor()

const AActor * FNavigationPath::GetSourceActor ( ) const

inline

GetSourceActorAsNavAgent()

const INavAgentInterface * FNavigationPath::GetSourceActorAsNavAgent ( ) const

inline

GetStartLocation()

FVector FNavigationPath::GetStartLocation ( ) const

inline

GetTimeStamp()

double FNavigationPath::GetTimeStamp ( ) const

inline

Invalidate()

void FNavigationPath::Invalidate

(

)

IsErrorEndLocationNonNavigable()

bool FNavigationPath::IsErrorEndLocationNonNavigable ( ) const

inline

IsErrorStartLocationNonNavigable()

bool FNavigationPath::IsErrorStartLocationNonNavigable ( ) const

inline

IsPartial()

bool FNavigationPath::IsPartial ( ) const

inline

IsReady()

bool FNavigationPath::IsReady ( ) const

inline

IsUpToDate()

bool FNavigationPath::IsUpToDate ( ) const

inline

IsValid()

PRAGMA_ENABLE_DEPRECATION_WARNINGS bool FNavigationPath::IsValid ( ) const

inline

IsWaitingForRepath()

bool FNavigationPath::IsWaitingForRepath ( ) const

inline

MarkReady()

void FNavigationPath::MarkReady ( )

inline

OnPathUpdated()

virtual void FNavigationPath::OnPathUpdated ( ENavPathUpdateType::Type  UpdateType )

inlineprotectedvirtual

optional notify called when path finishes update, before broadcasting to observes - requires bUseOnPathUpdatedNotify flag set

operator=()

FNavigationPath & FNavigationPath::operator= ( const FNavigationPath &  Other )

default

RemoveObserver()

void FNavigationPath::RemoveObserver ( FDelegateHandle  HandleOfObserverToRemove )

inline

RemoveOverlappingPoints()

void FNavigationPath::RemoveOverlappingPoints

(

const FVector &

Tolerance

)

Remove points that are at the same location.

RePathFailed()

void FNavigationPath::RePathFailed

(

)

ResetForRepath()

void FNavigationPath::ResetForRepath ( )

virtual

Resets all variables describing generated path before attempting new pathfinding call. This function will NOT reset setup variables like goal actor, filter, observer, etc

Reimplemented in FNavMeshPath.

SetErrorEndLocationNonNavigable()

void FNavigationPath::SetErrorEndLocationNonNavigable ( const bool  bErrorNonNavigable )

inline

SetErrorStartLocationNonNavigable()

void FNavigationPath::SetErrorStartLocationNonNavigable ( const bool  bErrorNonNavigable )

inline

SetFilter()

void FNavigationPath::SetFilter ( FSharedConstNavQueryFilter  InFilter )

inline

SetGoalActorObservation()

void FNavigationPath::SetGoalActorObservation	(	const AActor &	ActorToObserve,
		float	TetherDistance
	)

enables path observing specified AActor's location and update itself if actor changes location

SetGoalActorTetherDistance()

void FNavigationPath::SetGoalActorTetherDistance ( const float  NewTetherDistace )

inline

Modifies distance to the GoalActor at which we'll update the path

SetIgnoreInvalidation()

void FNavigationPath::SetIgnoreInvalidation ( bool  bShouldIgnore )

inline

if ignoring, path will stay bUpToDate after being invalidated due to a change to underlying navigation (observer and auto repath will NOT be triggered!)

SetIsPartial()

void FNavigationPath::SetIsPartial ( const bool  bPartial )

inline

SetManualRepathWaiting()

void FNavigationPath::SetManualRepathWaiting ( const bool  bInWaitingForRepath )

inline

SetNavigationDataUsed()

void FNavigationPath::SetNavigationDataUsed ( const ANavigationData *const  NewData )

inline

SetQuerier()

void FNavigationPath::SetQuerier ( const UObject *  InQuerier )

inline

SetQueryData()

void FNavigationPath::SetQueryData ( const FPathFindingQueryData &  QueryData )

inline

SetSearchReachedLimit()

void FNavigationPath::SetSearchReachedLimit ( const bool  bLimited )

inline

SetSourceActor()

void FNavigationPath::SetSourceActor

(

const AActor &

InSourceActor

)

set's up the path to use SourceActor's location in case of recalculation

SetTimeStamp()

void FNavigationPath::SetTimeStamp ( double  TimeStamp )

inline

ShouldUpdateEndPointOnRepath()

bool FNavigationPath::ShouldUpdateEndPointOnRepath ( ) const

inline

ShouldUpdateStartPointOnRepath()

bool FNavigationPath::ShouldUpdateStartPointOnRepath ( ) const

inline

TickPathObservation()

EPathObservationResult::Type FNavigationPath::TickPathObservation

(

)

UpdateLastRepathGoalLocation()

void FNavigationPath::UpdateLastRepathGoalLocation

(

)

WillRecalculateOnInvalidation()

bool FNavigationPath::WillRecalculateOnInvalidation ( ) const

inline

Member Data Documentation

Base

TWeakObjectPtr<AActor> FNavigationPath::Base

protected

base actor, if exist path points locations will be relative to it

bDoAutoUpdateOnInvalidation

uint32 FNavigationPath::bDoAutoUpdateOnInvalidation

protected

if true path will request re-pathing if it gets invalidated due to underlying navigation changed

bErrorEndLocationNonNavigable

uint32 FNavigationPath::bErrorEndLocationNonNavigable

protected

"true" when the end location could not be projected on the navigation data

bErrorStartLocationNonNavigable

uint32 FNavigationPath::bErrorStartLocationNonNavigable

protected

"true" when the start location could not be projected on the navigation data

bIgnoreInvalidation

uint32 FNavigationPath::bIgnoreInvalidation

protected

if true path will keep bUpToDate value after getting invalidated due to underlying navigation changed (observer and auto repath will NOT be triggered!) it's NOT safe to use if path relies on navigation data references (e.g. poly corridor)

bIsPartial

uint32 FNavigationPath::bIsPartial

protected

"true" when path is only partially generated, when goal is unreachable and path represent best guess

bIsReady

uint32 FNavigationPath::bIsReady

protected

when false it means path instance has been created, but not filled with data yet

bObservingGoalActor

uint32 FNavigationPath::bObservingGoalActor

protected

indicates whether at any point GoalActor was a valid Actor. Used as an optimization in FNavigationPath::TickPathObservation

bReachedSearchLimit

uint32 FNavigationPath::bReachedSearchLimit

protected

set to true when path finding algorithm reached a technical limit (like limit of A* nodes). This generally means path cannot be trusted to lead to requested destination although it might lead closer to destination.

bUpdateEndPointOnRepath

uint32 FNavigationPath::bUpdateEndPointOnRepath

protected

if true path will use GetGoalLocation() for updating QueryData before repath

bUpdateStartPointOnRepath

uint32 FNavigationPath::bUpdateStartPointOnRepath

protected

if true path will use GetPathFindingStartLocation() for updating QueryData before repath

bUpToDate

uint32 FNavigationPath::bUpToDate

protected

"true" until navigation data used to generate this path has been changed/invalidated

bUseOnPathUpdatedNotify

uint32 FNavigationPath::bUseOnPathUpdatedNotify

protected

if true path will call OnPathUpdated notify

bWaitingForRepath

uint32 FNavigationPath::bWaitingForRepath

protected

set when path is waiting for recalc from navigation data

Filter

FSharedConstNavQueryFilter FNavigationPath::Filter

protected

LastUpdateTimeStamp

double FNavigationPath::LastUpdateTimeStamp

protected

gets set during path creation and on subsequent path's updates

NavigationDataUsed

TWeakObjectPtr<ANavigationData> FNavigationPath::NavigationDataUsed

protected

navigation data used to generate this path

ObserverDelegate

FPathObserverDelegate FNavigationPath::ObserverDelegate

protected

A delegate that will be called when path becomes invalid

PathFindingQueryData

FPathFindingQueryData FNavigationPath::PathFindingQueryData

protected

essential part of query used to generate this path

PathPoints

TArray<FNavPathPoint> FNavigationPath::PathPoints

protected

IMPORTANT: path is assumed to be valid if it contains MORE than ONE point point 0 is path's starting point - if it's the only point on the path then there's no path per se

PathType

FNavPathType FNavigationPath::PathType

protected

ShortcutNodeRefs

TArray<NavNodeRef> FNavigationPath::ShortcutNodeRefs

additional node refs used during path following shortcuts

Type

const FNavPathType FNavigationPath::Type

staticprotected

type of path

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/NavigationSystem/Public/NavigationData.h
• Engine/Source/Runtime/NavigationSystem/Private/NavigationData.cpp
• Engine/Source/Runtime/NavigationSystem/Private/NavigationPath.cpp
