#include <SkeletalRenderGPUSkin.h>

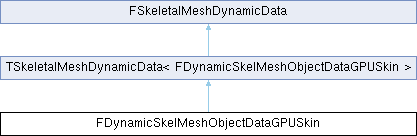

Inheritance diagram for FDynamicSkelMeshObjectDataGPUSkin:

Public Member Functions
void	InitDynamicSkelMeshObjectDataGPUSkin (const FSkinnedMeshSceneProxyDynamicData &InDynamicData, const FPrimitiveSceneProxy SceneProxy, const USkinnedAsset InSkinnedAsset, FSkeletalMeshRenderData InSkeletalMeshRenderData, FSkeletalMeshObjectGPUSkin InMeshObject, int32 InLODIndex, const FMorphTargetWeightMap &InActiveMorphTargets, const TArray< float > &InMorphTargetWeights, EPreviousBoneTransformUpdateMode PreviousBoneTransformUpdateMode, const FExternalMorphWeightData &InExternalMorphWeightData)

TConstArrayView< FMatrix44f >	GetPreviousReferenceToLocal (EGPUSkinCacheEntryMode Mode) const

TConstArrayView< FMatrix44f >	GetReferenceToLocal (EGPUSkinCacheEntryMode Mode) const

int32	GetLODIndex (EGPUSkinCacheEntryMode Mode) const

void	BuildBoneTransforms (FDynamicSkelMeshObjectDataGPUSkin *PreviousDynamicData)

bool	ActiveMorphTargetsEqual (const FMorphTargetWeightMap &InCompareActiveMorphTargets, const TArray< float > &CompareMorphTargetWeights) const

bool	IsRequiredUpdate () const

void	GetResourceSizeEx (FResourceSizeEx &CumulativeResourceSize)

Public Member Functions inherited from FSkeletalMeshDynamicData
virtual	~FSkeletalMeshDynamicData ()=default

Static Public Member Functions
static bool	IsMorphUpdateNeeded (const FDynamicSkelMeshObjectDataGPUSkin Previous, const FDynamicSkelMeshObjectDataGPUSkin Current)

Static Public Member Functions inherited from TSkeletalMeshDynamicData< FDynamicSkelMeshObjectDataGPUSkin >
static void	TrimPool ()

static FDynamicSkelMeshObjectDataGPUSkin *	Acquire (int32 LODIndex)

static void	Release (FDynamicSkelMeshObjectDataGPUSkin *DynamicData)

Public Attributes
TArray< FMatrix44f >	ReferenceToLocal

TArray< FMatrix44f >	ReferenceToLocalForRayTracing

TArray< FMatrix44f >	PreviousReferenceToLocal

TArray< FMatrix44f >	PreviousReferenceToLocalForRayTracing

TArray< FTransform >	MeshComponentSpaceTransforms

uint32	BoneTransformFrameNumber

uint32	RevisionNumber

uint32	PreviousRevisionNumber

EPreviousBoneTransformUpdateMode	PreviousBoneTransformUpdateMode

int32	LODIndex

FMorphTargetWeightMap	ActiveMorphTargets

TArray< float >	MorphTargetWeights

TArray< int32 >	SectionIdsUseByActiveMorphTargets

TArray< int32 >	SectionIdsUseByActiveMorphTargetsForRayTracing

int32	NumWeightedActiveMorphTargets

FExternalMorphWeightData	ExternalMorphWeightData

FExternalMorphSets	ExternalMorphSets

TMap< int32, FClothSimulData >	ClothingSimData

FMatrix	ClothObjectLocalToWorld

FMatrix	LocalToWorld

float	ClothBlendWeight

ESkeletalMeshGPUSkinTechnique	GPUSkinTechnique

uint8	bRecreating: 1

Friends
class	TSkeletalMeshDynamicDataPool< FDynamicSkelMeshObjectDataGPUSkin >

Additional Inherited Members
Protected Member Functions inherited from TSkeletalMeshDynamicData< FDynamicSkelMeshObjectDataGPUSkin >
	TSkeletalMeshDynamicData ()=default

void	Reset ()

Detailed Description

Stores the updated matrices needed to skin the verts. Created by the game thread and sent to the rendering thread as an update

Member Function Documentation

◆ ActiveMorphTargetsEqual()

bool FDynamicSkelMeshObjectDataGPUSkin::ActiveMorphTargetsEqual	(	const FMorphTargetWeightMap &	InCompareActiveMorphTargets,
		const TArray< float > &	CompareMorphTargetWeights
	)		const

Compare the given set of active morph targets with the current list to check if different

Parameters

CompareActiveMorphTargets	- array of morphs to compare
MorphTargetWeights	- array of morphs weights to compare

Returns: true if both sets of active morphs are equal

◆ BuildBoneTransforms()

void FDynamicSkelMeshObjectDataGPUSkin::BuildBoneTransforms ( FDynamicSkelMeshObjectDataGPUSkin * PreviousDynamicData )

◆ GetLODIndex()

int32 FDynamicSkelMeshObjectDataGPUSkin::GetLODIndex ( EGPUSkinCacheEntryMode Mode ) const

◆ GetPreviousReferenceToLocal()

TConstArrayView< FMatrix44f > FDynamicSkelMeshObjectDataGPUSkin::GetPreviousReferenceToLocal ( EGPUSkinCacheEntryMode Mode ) const

◆ GetReferenceToLocal()

TConstArrayView< FMatrix44f > FDynamicSkelMeshObjectDataGPUSkin::GetReferenceToLocal ( EGPUSkinCacheEntryMode Mode ) const

◆ GetResourceSizeEx()

void FDynamicSkelMeshObjectDataGPUSkin::GetResourceSizeEx ( FResourceSizeEx & CumulativeResourceSize )

inline

Returns the size of memory allocated by render data

◆ InitDynamicSkelMeshObjectDataGPUSkin()

void FDynamicSkelMeshObjectDataGPUSkin::InitDynamicSkelMeshObjectDataGPUSkin	(	const FSkinnedMeshSceneProxyDynamicData &	InDynamicData,
		const FPrimitiveSceneProxy *	SceneProxy,
		const USkinnedAsset *	InSkinnedAsset,
		FSkeletalMeshRenderData *	InSkeletalMeshRenderData,
		FSkeletalMeshObjectGPUSkin *	InMeshObject,
		int32	InLODIndex,
		const FMorphTargetWeightMap &	InActiveMorphTargets,
		const TArray< float > &	InMorphTargetWeights,
		EPreviousBoneTransformUpdateMode	PreviousBoneTransformUpdateMode,
		const FExternalMorphWeightData &	InExternalMorphWeightData
	)

Constructor Updates the ReferenceToLocal matrices using the new dynamic data.

Parameters

InSkelMeshComponent	- parent skel mesh component
InLODIndex	- each lod has its own bone map
InActiveMorphTargets	- morph targets active for the mesh
InMorphTargetWeights	- All morph target weights for the mesh

◆ IsMorphUpdateNeeded()

bool FDynamicSkelMeshObjectDataGPUSkin::IsMorphUpdateNeeded	(	const FDynamicSkelMeshObjectDataGPUSkin *	Previous,
		const FDynamicSkelMeshObjectDataGPUSkin *	Current
	)

static

◆ IsRequiredUpdate()

bool FDynamicSkelMeshObjectDataGPUSkin::IsRequiredUpdate ( ) const

inline

Friends And Related Symbol Documentation

◆ TSkeletalMeshDynamicDataPool< FDynamicSkelMeshObjectDataGPUSkin >

friend class TSkeletalMeshDynamicDataPool< FDynamicSkelMeshObjectDataGPUSkin >

friend

Member Data Documentation

◆ ActiveMorphTargets

FMorphTargetWeightMap FDynamicSkelMeshObjectDataGPUSkin::ActiveMorphTargets

current morph targets active on this mesh

◆ BoneTransformFrameNumber

uint32 FDynamicSkelMeshObjectDataGPUSkin::BoneTransformFrameNumber

◆ bRecreating

uint8 FDynamicSkelMeshObjectDataGPUSkin::bRecreating

◆ ClothBlendWeight

float FDynamicSkelMeshObjectDataGPUSkin::ClothBlendWeight

a weight factor to blend between simulated positions and skinned positions

◆ ClothingSimData

TMap<int32, FClothSimulData> FDynamicSkelMeshObjectDataGPUSkin::ClothingSimData

data for updating cloth section

◆ ClothObjectLocalToWorld

FMatrix FDynamicSkelMeshObjectDataGPUSkin::ClothObjectLocalToWorld

store transform of the cloth object

◆ ExternalMorphSets

FExternalMorphSets FDynamicSkelMeshObjectDataGPUSkin::ExternalMorphSets

The external morph target sets for this specific LOD.

◆ ExternalMorphWeightData

FExternalMorphWeightData FDynamicSkelMeshObjectDataGPUSkin::ExternalMorphWeightData

The dynamic data for each external morph target set. This dynamic data contains things such as the weights for each set of external morph targets.

◆ GPUSkinTechnique

ESkeletalMeshGPUSkinTechnique FDynamicSkelMeshObjectDataGPUSkin::GPUSkinTechnique

The skinning technique to use for this mesh LOD.

◆ LocalToWorld

FMatrix FDynamicSkelMeshObjectDataGPUSkin::LocalToWorld

store transform of the object

◆ LODIndex

int32 FDynamicSkelMeshObjectDataGPUSkin::LODIndex

currently LOD for bones being updated

◆ MeshComponentSpaceTransforms

TArray<FTransform> FDynamicSkelMeshObjectDataGPUSkin::MeshComponentSpaceTransforms

component space bone transforms

◆ MorphTargetWeights

TArray<float> FDynamicSkelMeshObjectDataGPUSkin::MorphTargetWeights

All morph target weights on this mesh

◆ NumWeightedActiveMorphTargets

int32 FDynamicSkelMeshObjectDataGPUSkin::NumWeightedActiveMorphTargets

number of active morph targets with weights > 0

◆ PreviousBoneTransformUpdateMode

EPreviousBoneTransformUpdateMode FDynamicSkelMeshObjectDataGPUSkin::PreviousBoneTransformUpdateMode

◆ PreviousReferenceToLocal

TArray<FMatrix44f> FDynamicSkelMeshObjectDataGPUSkin::PreviousReferenceToLocal

Previous ref pose to local space transform

◆ PreviousReferenceToLocalForRayTracing

TArray<FMatrix44f> FDynamicSkelMeshObjectDataGPUSkin::PreviousReferenceToLocalForRayTracing

◆ PreviousRevisionNumber

uint32 FDynamicSkelMeshObjectDataGPUSkin::PreviousRevisionNumber

◆ ReferenceToLocal

TArray<FMatrix44f> FDynamicSkelMeshObjectDataGPUSkin::ReferenceToLocal

ref pose to local space transforms

◆ ReferenceToLocalForRayTracing

TArray<FMatrix44f> FDynamicSkelMeshObjectDataGPUSkin::ReferenceToLocalForRayTracing

◆ RevisionNumber

uint32 FDynamicSkelMeshObjectDataGPUSkin::RevisionNumber

◆ SectionIdsUseByActiveMorphTargets

TArray<int32> FDynamicSkelMeshObjectDataGPUSkin::SectionIdsUseByActiveMorphTargets

All section ID impacted by active morph target on this mesh

◆ SectionIdsUseByActiveMorphTargetsForRayTracing

TArray<int32> FDynamicSkelMeshObjectDataGPUSkin::SectionIdsUseByActiveMorphTargetsForRayTracing

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Engine/Private/SkeletalRenderGPUSkin.h
Engine/Source/Runtime/Engine/Private/SkeletalRenderGPUSkin.cpp
