#include <FXSystem.h>

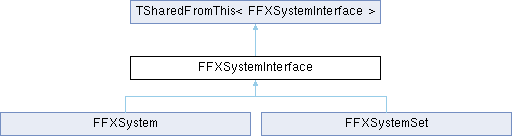

Inheritance diagram for FFXSystemInterface:

Public Member Functions
virtual FFXSystemInterface *	GetInterface (const FName &InName)

virtual void	OnMarkPendingKill ()

virtual void	DestroyGPUSimulation ()

virtual void	Tick (UWorld *World, float DeltaSeconds)=0

virtual void	DrawDebug (FCanvas *Canvas)=0

virtual bool	ShouldDebugDraw_RenderThread () const

virtual void	DrawDebug_RenderThread (FRDGBuilder &GraphBuilder, const FSceneView &View, const struct FScreenPassRenderTarget &Output)

void	DrawDebug_RenderThread (FRDGBuilder &GraphBuilder, const FViewInfo &View, const struct FScreenPassRenderTarget &Output)

virtual void	DrawSceneDebug_RenderThread (FRDGBuilder &GraphBuilder, const FSceneView &View, FRDGTextureRef SceneColor, FRDGTextureRef SceneDepth)

void	DrawSceneDebug_RenderThread (FRDGBuilder &GraphBuilder, const FViewInfo &View, FRDGTextureRef SceneColor, FRDGTextureRef SceneDepth)

virtual void	AddVectorField (UVectorFieldComponent *VectorFieldComponent)=0

virtual void	RemoveVectorField (UVectorFieldComponent *VectorFieldComponent)=0

virtual void	UpdateVectorField (UVectorFieldComponent *VectorFieldComponent)=0

virtual void	PreInitViews (FRDGBuilder &GraphBuilder, bool bAllowGPUParticleUpdate, const TArrayView< const FSceneViewFamily * > &ViewFamilies, const FSceneViewFamily *CurrentFamily)=0

virtual void	PostInitViews (FRDGBuilder &GraphBuilder, TConstStridedView< FSceneView > Views, bool bAllowGPUParticleUpdate)=0

void	PostInitViews (FRDGBuilder &GraphBuilder, TConstArrayView< FViewInfo > Views, bool bAllowGPUParticleUpdate)

virtual bool	UsesGlobalDistanceField () const =0

virtual bool	UsesDepthBuffer () const =0

virtual bool	RequiresEarlyViewUniformBuffer () const =0

virtual bool	RequiresRayTracingScene () const =0

virtual void	PreRender (FRDGBuilder &GraphBuilder, TConstStridedView< FSceneView > Views, FSceneUniformBuffer &SceneUniformBuffer, bool bAllowGPUParticleUpdate)=0

void	PreRender (FRDGBuilder &GraphBuilder, TConstArrayView< FViewInfo > Views, bool bAllowGPUParticleUpdate)

virtual void	PostRenderOpaque (FRDGBuilder &GraphBuilder, TConstStridedView< FSceneView > Views, FSceneUniformBuffer &SceneUniformBuffer, bool bAllowGPUParticleUpdate)=0

void	PostRenderOpaque (FRDGBuilder &GraphBuilder, TConstArrayView< FViewInfo > Views, bool bAllowGPUParticleUpdate)

bool	IsPendingKill () const

virtual FGPUSortManager *	GetGPUSortManager () const =0

virtual void	SetSceneTexturesUniformBuffer (const TUniformBufferRef< FSceneTextureUniformParameters > &InSceneTexturesUniformParams)

FSceneInterface *	GetSceneInterface () const

void	SetSceneInterface (FSceneInterface *InSceneInterface)

FScene *	GetScene () const

void	SetScene (FScene *InScene)

Public Member Functions inherited from TSharedFromThis< FFXSystemInterface >
TSharedRef< FFXSystemInterface, Mode >	AsShared ()

TSharedRef< FFXSystemInterface const, Mode >	AsShared () const

TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< FFXSystemInterface, Mode >	AsWeak ()

TWeakPtr< FFXSystemInterface const, Mode >	AsWeak () const

TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const

void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const InSharedPtr, OtherType InObject) const

void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const InSharedRef, OtherType InObject) const

UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Static Public Member Functions
static ENGINE_API FFXSystemInterface *	Create (ERHIFeatureLevel::Type InFeatureLevel, FSceneInterface *Scene)

static ENGINE_API void	MarkPendingKill (FFXSystemInterface *FXSystem)

static ENGINE_API void	QueueDestroyGPUSimulation (FFXSystemInterface *FXSystem)

static ENGINE_API void	RegisterCustomFXSystem (const FName &InterfaceName, const FCreateCustomFXSystemDelegate &InCreateDelegate)

static ENGINE_API void	UnregisterCustomFXSystem (const FName &InterfaceName)

static ENGINE_API void	Destroy (FFXSystemInterface *FXSystem)

Protected Member Functions
virtual void	OnDestroy () final

virtual	~FFXSystemInterface ()

Protected Member Functions inherited from TSharedFromThis< FFXSystemInterface >
	TSharedFromThis ()

	TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)

	~TSharedFromThis ()

Friends
class	FFXSystemSet

Additional Inherited Members
Static Protected Member Functions inherited from TSharedFromThis< FFXSystemInterface >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Detailed Description

The interface to an effects system.

Constructor & Destructor Documentation

◆ ~FFXSystemInterface()

virtual FFXSystemInterface::~FFXSystemInterface ( )

inlineprotectedvirtual

By making the destructor protected, an instance must be destroyed via FFXSystemInterface::Destroy.

Member Function Documentation

◆ AddVectorField()

virtual void FFXSystemInterface::AddVectorField ( UVectorFieldComponent * VectorFieldComponent )

pure virtual

Add a vector field to the FX system.

Parameters

VectorFieldComponent The vector field component to add.

Implemented in FFXSystem, and FFXSystemSet.

◆ Create()

FFXSystemInterface * FFXSystemInterface::Create	(	ERHIFeatureLevel::Type	InFeatureLevel,
		FSceneInterface *	Scene
	)

static

Create an effects system instance.

◆ Destroy()

void FFXSystemInterface::Destroy ( FFXSystemInterface * FXSystem )

static

◆ DestroyGPUSimulation()

virtual void FFXSystemInterface::DestroyGPUSimulation ( )

inlinevirtual

Gamethread callback when destroy gets called, allows to clean up references.

Reimplemented in FFXSystemSet.

◆ DrawDebug()

virtual void FFXSystemInterface::DrawDebug ( FCanvas * Canvas )

pure virtual

Draw desired debug information related to the effects system.

Parameters

Canvas The canvas on which to draw.

Implemented in FFXSystem, and FFXSystemSet.

◆ DrawDebug_RenderThread() [1/2]

virtual void FFXSystemInterface::DrawDebug_RenderThread	(	FRDGBuilder &	GraphBuilder,
		const FSceneView &	View,
		const struct FScreenPassRenderTarget &	Output
	)

inlinevirtual

Draw desired debug information related to the effects system on the render thread. This is called at the end of the rendering when

Parameters

GraphBuilder	Render Graph Builder to use
View	The view we are rendering for
Output	The output buffer information

Reimplemented in FFXSystemSet.

◆ DrawDebug_RenderThread() [2/2]

void FFXSystemInterface::DrawDebug_RenderThread	(	FRDGBuilder &	GraphBuilder,
		const FViewInfo &	View,
		const struct FScreenPassRenderTarget &	Output
	)

inline

◆ DrawSceneDebug_RenderThread() [1/2]

virtual void FFXSystemInterface::DrawSceneDebug_RenderThread	(	FRDGBuilder &	GraphBuilder,
		const FSceneView &	View,
		FRDGTextureRef	SceneColor,
		FRDGTextureRef	SceneDepth
	)

inlinevirtual

Call to handle debug drawing to the scene (i.e. where depth is available)

Reimplemented in FFXSystemSet.

◆ DrawSceneDebug_RenderThread() [2/2]

void FFXSystemInterface::DrawSceneDebug_RenderThread	(	FRDGBuilder &	GraphBuilder,
		const FViewInfo &	View,
		FRDGTextureRef	SceneColor,
		FRDGTextureRef	SceneDepth
	)

inline

◆ GetGPUSortManager()

virtual FGPUSortManager * FFXSystemInterface::GetGPUSortManager ( ) const

pure virtual

Get the shared SortManager, used in the rendering loop to call FGPUSortManager::OnPreRender() and FGPUSortManager::OnPostRenderOpaque()

Implemented in FFXSystem, and FFXSystemSet.

◆ GetInterface()

virtual FFXSystemInterface * FFXSystemInterface::GetInterface ( const FName & InName )

inlinevirtual

Return the interface bound to the given name.

Reimplemented in FFXSystem, and FFXSystemSet.

◆ GetScene()

FScene * FFXSystemInterface::GetScene ( ) const

inline

◆ GetSceneInterface()

FSceneInterface * FFXSystemInterface::GetSceneInterface ( ) const

inline

◆ IsPendingKill()

bool FFXSystemInterface::IsPendingKill ( ) const

inline

◆ MarkPendingKill()

void FFXSystemInterface::MarkPendingKill ( FFXSystemInterface * FXSystem )

static

Notify the effect system instance that it should release resources in preperation for destruction. Once the interface is marked pending kill using the interface is undefined, as the scene (for example) may be invalid. The destruction of the instance will happen later on the render thread, and may be much later due to shared references to the interface.

◆ OnDestroy()

virtual void FFXSystemInterface::OnDestroy ( )

inlinefinalprotectedvirtual

◆ OnMarkPendingKill()

virtual void FFXSystemInterface::OnMarkPendingKill ( )

inlinevirtual

Gamethread callback when MarkPendingKill is called, allows to clean up references. Once marked pending kill the interface can release resources and is in an undefined state.

Reimplemented in FFXSystem, and FFXSystemSet.

◆ PostInitViews() [1/2]

void FFXSystemInterface::PostInitViews	(	FRDGBuilder &	GraphBuilder,
		TConstArrayView< FViewInfo >	Views,
		bool	bAllowGPUParticleUpdate
	)

inline

◆ PostInitViews() [2/2]

virtual void FFXSystemInterface::PostInitViews	(	FRDGBuilder &	GraphBuilder,
		TConstStridedView< FSceneView >	Views,
		bool	bAllowGPUParticleUpdate
	)

pure virtual

Implemented in FFXSystem, and FFXSystemSet.

◆ PostRenderOpaque() [1/2]

void FFXSystemInterface::PostRenderOpaque	(	FRDGBuilder &	GraphBuilder,
		TConstArrayView< FViewInfo >	Views,
		bool	bAllowGPUParticleUpdate
	)

inline

◆ PostRenderOpaque() [2/2]

virtual void FFXSystemInterface::PostRenderOpaque	(	FRDGBuilder &	GraphBuilder,
		TConstStridedView< FSceneView >	Views,
		FSceneUniformBuffer &	SceneUniformBuffer,
		bool	bAllowGPUParticleUpdate
	)

pure virtual

Notification from the renderer that opaque primitives have rendered.

Implemented in FFXSystemSet, and FFXSystem.

◆ PreInitViews()

virtual void FFXSystemInterface::PreInitViews	(	FRDGBuilder &	GraphBuilder,
		bool	bAllowGPUParticleUpdate,
		const TArrayView< const FSceneViewFamily * > &	ViewFamilies,
		const FSceneViewFamily *	CurrentFamily
	)

pure virtual

Notification from the renderer that it is about to perform visibility checks on FX belonging to this system.

Implemented in FFXSystem, and FFXSystemSet.

◆ PreRender() [1/2]

void FFXSystemInterface::PreRender	(	FRDGBuilder &	GraphBuilder,
		TConstArrayView< FViewInfo >	Views,
		bool	bAllowGPUParticleUpdate
	)

inline

◆ PreRender() [2/2]

virtual void FFXSystemInterface::PreRender	(	FRDGBuilder &	GraphBuilder,
		TConstStridedView< FSceneView >	Views,
		FSceneUniformBuffer &	SceneUniformBuffer,
		bool	bAllowGPUParticleUpdate
	)

pure virtual

Notification from the renderer that it is about to draw FX belonging to this system.

Implemented in FFXSystemSet, and FFXSystem.

◆ QueueDestroyGPUSimulation()

void FFXSystemInterface::QueueDestroyGPUSimulation ( FFXSystemInterface * FXSystem )

static

Queue Destroy the gpu simulation on the render thread

◆ RegisterCustomFXSystem()

void FFXSystemInterface::RegisterCustomFXSystem	(	const FName &	InterfaceName,
		const FCreateCustomFXSystemDelegate &	InCreateDelegate
	)

static

Register a custom FX system implementation.

◆ RemoveVectorField()

virtual void FFXSystemInterface::RemoveVectorField ( UVectorFieldComponent * VectorFieldComponent )

pure virtual

Remove a vector field from the FX system.

Parameters

VectorFieldComponent The vector field component to remove.

Implemented in FFXSystem, and FFXSystemSet.

◆ RequiresEarlyViewUniformBuffer()

virtual bool FFXSystemInterface::RequiresEarlyViewUniformBuffer ( ) const

pure virtual

Implemented in FFXSystem, and FFXSystemSet.

◆ RequiresRayTracingScene()

virtual bool FFXSystemInterface::RequiresRayTracingScene ( ) const

pure virtual

Implemented in FFXSystem, and FFXSystemSet.

◆ SetScene()

void FFXSystemInterface::SetScene ( FScene * InScene )

inline

◆ SetSceneInterface()

void FFXSystemInterface::SetSceneInterface ( FSceneInterface * InSceneInterface )

inline

◆ SetSceneTexturesUniformBuffer()

virtual void FFXSystemInterface::SetSceneTexturesUniformBuffer ( const TUniformBufferRef< FSceneTextureUniformParameters > & InSceneTexturesUniformParams )

inlinevirtual

Reimplemented in FFXSystem, and FFXSystemSet.

◆ ShouldDebugDraw_RenderThread()

virtual bool FFXSystemInterface::ShouldDebugDraw_RenderThread ( ) const

inlinevirtual

Does the FX system require DrawDebug_RenderThread to be called at all? There is cost to enabling this so only return true when we have something to present.

Reimplemented in FFXSystemSet.

◆ Tick()

virtual void FFXSystemInterface::Tick	(	UWorld *	World,
		float	DeltaSeconds
	)

pure virtual

Tick the effects system.

Parameters

DeltaSeconds The number of seconds by which to step simulations forward.

Implemented in FFXSystem, and FFXSystemSet.

◆ UnregisterCustomFXSystem()

void FFXSystemInterface::UnregisterCustomFXSystem ( const FName & InterfaceName )

static

Unregister a custom FX system implementation.

◆ UpdateVectorField()

virtual void FFXSystemInterface::UpdateVectorField ( UVectorFieldComponent * VectorFieldComponent )

pure virtual

Update a vector field registered with the FX system.

Parameters

VectorFieldComponent The vector field component to update.

Implemented in FFXSystem, and FFXSystemSet.

◆ UsesDepthBuffer()

virtual bool FFXSystemInterface::UsesDepthBuffer ( ) const

pure virtual

Implemented in FFXSystem, and FFXSystemSet.

◆ UsesGlobalDistanceField()

virtual bool FFXSystemInterface::UsesGlobalDistanceField ( ) const

pure virtual

Implemented in FFXSystem, and FFXSystemSet.

Friends And Related Symbol Documentation

◆ FFXSystemSet

friend class FFXSystemSet

friend

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Engine/Public/FXSystem.h
Engine/Source/Runtime/Engine/Private/Particles/FXSystem.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~FFXSystemInterface()

Member Function Documentation

◆ AddVectorField()

◆ Create()

◆ Destroy()

◆ DestroyGPUSimulation()

◆ DrawDebug()

◆ DrawDebug_RenderThread() [1/2]

◆ DrawDebug_RenderThread() [2/2]

◆ DrawSceneDebug_RenderThread() [1/2]

◆ DrawSceneDebug_RenderThread() [2/2]

◆ GetGPUSortManager()

◆ GetInterface()

◆ GetScene()

◆ GetSceneInterface()

◆ IsPendingKill()

◆ MarkPendingKill()

◆ OnDestroy()

◆ OnMarkPendingKill()

◆ PostInitViews() [1/2]

◆ PostInitViews() [2/2]

◆ PostRenderOpaque() [1/2]

◆ PostRenderOpaque() [2/2]

◆ PreInitViews()

◆ PreRender() [1/2]

◆ PreRender() [2/2]

◆ QueueDestroyGPUSimulation()

◆ RegisterCustomFXSystem()

◆ RemoveVectorField()

◆ RequiresEarlyViewUniformBuffer()

◆ RequiresRayTracingScene()

◆ SetScene()

◆ SetSceneInterface()

◆ SetSceneTexturesUniformBuffer()

◆ ShouldDebugDraw_RenderThread()

◆ Tick()

◆ UnregisterCustomFXSystem()

◆ UpdateVectorField()

◆ UsesDepthBuffer()

◆ UsesGlobalDistanceField()

Friends And Related Symbol Documentation

◆ FFXSystemSet
