#include <MobileBasePassRendering.h>

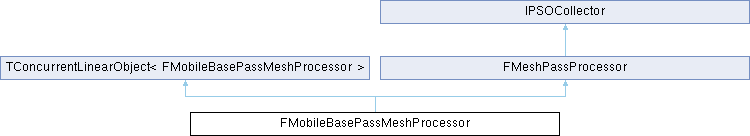

Inheritance diagram for FMobileBasePassMeshProcessor:

Public Types
enum class	EFlags { None = 0 , CanUseDepthStencil = (1 << 0) , CanReceiveCSM = (1 << 1) , ForcePassDrawRenderState = (1 << 2) , DoNotCache = (1 << 3) }

Public Member Functions
	FMobileBasePassMeshProcessor (EMeshPass::Type InMeshPassType, const FScene InScene, const FSceneView InViewIfDynamicMeshCommand, const FMeshPassProcessorRenderState &InDrawRenderState, FMeshPassDrawListContext *InDrawListContext, EFlags Flags, ETranslucencyPass::Type InTranslucencyPassType=ETranslucencyPass::TPT_MAX)

virtual void	AddMeshBatch (const FMeshBatch &RESTRICT MeshBatch, uint64 BatchElementMask, const FPrimitiveSceneProxy *RESTRICT PrimitiveSceneProxy, int32 StaticMeshId=-1) override final

virtual void	CollectPSOInitializers (const FSceneTexturesConfig &SceneTexturesConfig, const FMaterial &Material, const FPSOPrecacheVertexFactoryData &VertexFactoryData, const FPSOPrecacheParams &PreCacheParams, TArray< FPSOPrecacheData > &PSOInitializers) override

void	CollectPSOInitializersForLMPolicy (const FPSOPrecacheVertexFactoryData &VertexFactoryData, const FMeshPassProcessorRenderState &RESTRICT DrawRenderState, const FGraphicsPipelineRenderTargetsInfo &RESTRICT RenderTargetsInfo, const FMaterial &RESTRICT MaterialResource, EMobileLocalLightSetting LocalLightSetting, const ELightMapPolicyType LightMapPolicyType, ERasterizerFillMode MeshFillMode, ERasterizerCullMode MeshCullMode, EPrimitiveType PrimitiveType, TArray< FPSOPrecacheData > &PSOInitializers)

Public Member Functions inherited from FMeshPassProcessor
	FMeshPassProcessor (const FScene InScene, ERHIFeatureLevel::Type InFeatureLevel, const FSceneView InViewIfDynamicMeshCommand, FMeshPassDrawListContext *InDrawListContext)

RENDERER_API	FMeshPassProcessor (EMeshPass::Type InMeshPassType, const FScene InScene, ERHIFeatureLevel::Type InFeatureLevel, const FSceneView InViewIfDynamicMeshCommand, FMeshPassDrawListContext *InDrawListContext)

RENDERER_API	FMeshPassProcessor (const TCHAR InMeshPassName, const FScene InScene, ERHIFeatureLevel::Type InFeatureLevel, const FSceneView InViewIfDynamicMeshCommand, FMeshPassDrawListContext InDrawListContext)

virtual	~FMeshPassProcessor ()

void	SetDrawListContext (FMeshPassDrawListContext *InDrawListContext)

template<typename PassShadersType , typename ShaderElementDataType >
void	BuildMeshDrawCommands (const FMeshBatch &RESTRICT MeshBatch, uint64 BatchElementMask, const FPrimitiveSceneProxy *RESTRICT PrimitiveSceneProxy, const FMaterialRenderProxy &RESTRICT MaterialRenderProxy, const FMaterial &RESTRICT MaterialResource, const FMeshPassProcessorRenderState &RESTRICT DrawRenderState, const PassShadersType &PassShaders, ERasterizerFillMode MeshFillMode, ERasterizerCullMode MeshCullMode, FMeshDrawCommandSortKey SortKey, EMeshPassFeatures MeshPassFeatures, const ShaderElementDataType &ShaderElementData)

template<typename PassShadersType >
void	AddGraphicsPipelineStateInitializer (const FPSOPrecacheVertexFactoryData &VertexFactoryData, const FMaterial &RESTRICT MaterialResource, const FMeshPassProcessorRenderState &RESTRICT DrawRenderState, const FGraphicsPipelineRenderTargetsInfo &RESTRICT RenderTargetsInfo, const PassShadersType &PassShaders, ERasterizerFillMode MeshFillMode, ERasterizerCullMode MeshCullMode, EPrimitiveType PrimitiveType, EMeshPassFeatures MeshPassFeatures, bool bRequired, TArray< FPSOPrecacheData > &PSOInitializers)

Public Member Functions inherited from IPSOCollector
	IPSOCollector (int32 InPSOCollectorIndex)

virtual	~IPSOCollector ()

void	CollectPSOInitializers (const FSceneTexturesConfig &SceneTexturesConfig, const FMaterial &Material, const FVertexFactoryType *VertexFactoryType, const FPSOPrecacheParams &PreCacheParams, TArray< FPSOPrecacheData > &PSOInitializers)

Public Attributes
FMeshPassProcessorRenderState	PassDrawRenderState

Public Attributes inherited from FMeshPassProcessor
EMeshPass::Type	MeshPassType

const FScene *RESTRICT	Scene

ERHIFeatureLevel::Type	FeatureLevel

const FSceneView *	ViewIfDynamicMeshCommand

FMeshPassDrawListContext *	DrawListContext

Public Attributes inherited from IPSOCollector
int32	PSOCollectorIndex = INDEX_NONE

Additional Inherited Members
Static Public Member Functions inherited from TConcurrentLinearObject< ObjectType, BlockAllocationTag >
static void *	operator new (size_t Size)

static void *	operator new (size_t Size, void *Object)

static void *	operator new[] (size_t Size)

static void *	operator new (size_t Size, std::align_val_t Align)

static void *	operator new[] (size_t Size, std::align_val_t Align)

static UE_FORCEINLINE_HINT void	operator delete (void *Ptr)

static UE_FORCEINLINE_HINT void	operator delete[] (void *Ptr)

Static Public Member Functions inherited from FMeshPassProcessor
static FORCEINLINE_DEBUGGABLE ERasterizerCullMode	InverseCullMode (ERasterizerCullMode CullMode)

static RENDERER_API FMeshDrawingPolicyOverrideSettings	ComputeMeshOverrideSettings (const FPSOPrecacheParams &PrecachePSOParams)

static RENDERER_API FMeshDrawingPolicyOverrideSettings	ComputeMeshOverrideSettings (const FMeshBatch &Mesh)

static RENDERER_API ERasterizerFillMode	ComputeMeshFillMode (const FMaterial &InMaterialResource, const FMeshDrawingPolicyOverrideSettings &InOverrideSettings)

static RENDERER_API ERasterizerCullMode	ComputeMeshCullMode (const FMaterial &InMaterialResource, const FMeshDrawingPolicyOverrideSettings &InOverrideSettings)

template<typename PassShadersType >
static void	AddGraphicsPipelineStateInitializer (const FPSOPrecacheVertexFactoryData &VertexFactoryData, const FMaterial &RESTRICT MaterialResource, const FMeshPassProcessorRenderState &RESTRICT DrawRenderState, const FGraphicsPipelineRenderTargetsInfo &RESTRICT RenderTargetsInfo, const PassShadersType &PassShaders, ERasterizerFillMode MeshFillMode, ERasterizerCullMode MeshCullMode, EPrimitiveType PrimitiveType, EMeshPassFeatures MeshPassFeatures, ESubpassHint SubpassHint, uint8 SubpassIndex, bool bRequired, int32 PSOCollectorIndex, TArray< FPSOPrecacheData > &PSOInitializers)

Protected Member Functions inherited from FMeshPassProcessor
RENDERER_API FMeshDrawCommandPrimitiveIdInfo	GetDrawCommandPrimitiveId (const FPrimitiveSceneInfo *RESTRICT PrimitiveSceneInfo, const FMeshBatchElement &BatchElement) const

RENDERER_API bool	ShouldSkipMeshDrawCommand (const FMeshBatch &RESTRICT MeshBatch, const FPrimitiveSceneProxy *RESTRICT PrimitiveSceneProxy) const

RENDERER_API bool	PipelineVariableRateShadingEnabled () const

RENDERER_API bool	HardwareVariableRateShadingSupportedByScene () const

Member Enumeration Documentation

◆ EFlags

enum class FMobileBasePassMeshProcessor::EFlags

strong

Enumerator
None
CanUseDepthStencil
CanReceiveCSM
ForcePassDrawRenderState
DoNotCache

Constructor & Destructor Documentation

◆ FMobileBasePassMeshProcessor()

FMobileBasePassMeshProcessor::FMobileBasePassMeshProcessor	(	EMeshPass::Type	InMeshPassType,
		const FScene *	InScene,
		const FSceneView *	InViewIfDynamicMeshCommand,
		const FMeshPassProcessorRenderState &	InDrawRenderState,
		FMeshPassDrawListContext *	InDrawListContext,
		EFlags	Flags,
		ETranslucencyPass::Type	InTranslucencyPassType = `ETranslucencyPass::TPT_MAX`
	)

Member Function Documentation

◆ AddMeshBatch()

void FMobileBasePassMeshProcessor::AddMeshBatch	(	const FMeshBatch &RESTRICT	MeshBatch,
		uint64	BatchElementMask,
		const FPrimitiveSceneProxy *RESTRICT	PrimitiveSceneProxy,
		int32	StaticMeshId = `-1`
	)

finaloverridevirtual

Implements FMeshPassProcessor.

◆ CollectPSOInitializers()

void FMobileBasePassMeshProcessor::CollectPSOInitializers	(	const FSceneTexturesConfig &	SceneTexturesConfig,
		const FMaterial &	Material,
		const FPSOPrecacheVertexFactoryData &	VertexFactoryData,
		const FPSOPrecacheParams &	PreCacheParams,
		TArray< FPSOPrecacheData > &	PSOInitializers
	)

overridevirtual

Reimplemented from FMeshPassProcessor.

◆ CollectPSOInitializersForLMPolicy()

void FMobileBasePassMeshProcessor::CollectPSOInitializersForLMPolicy	(	const FPSOPrecacheVertexFactoryData &	VertexFactoryData,
		const FMeshPassProcessorRenderState &RESTRICT	DrawRenderState,
		const FGraphicsPipelineRenderTargetsInfo &RESTRICT	RenderTargetsInfo,
		const FMaterial &RESTRICT	MaterialResource,
		EMobileLocalLightSetting	LocalLightSetting,
		const ELightMapPolicyType	LightMapPolicyType,
		ERasterizerFillMode	MeshFillMode,
		ERasterizerCullMode	MeshCullMode,
		EPrimitiveType	PrimitiveType,
		TArray< FPSOPrecacheData > &	PSOInitializers
	)

Member Data Documentation

◆ PassDrawRenderState

FMeshPassProcessorRenderState FMobileBasePassMeshProcessor::PassDrawRenderState

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Renderer/Private/MobileBasePassRendering.h
Engine/Source/Runtime/Renderer/Private/MobileBasePass.cpp
