#include <AnimNode_BlendSpacePlayer.h>

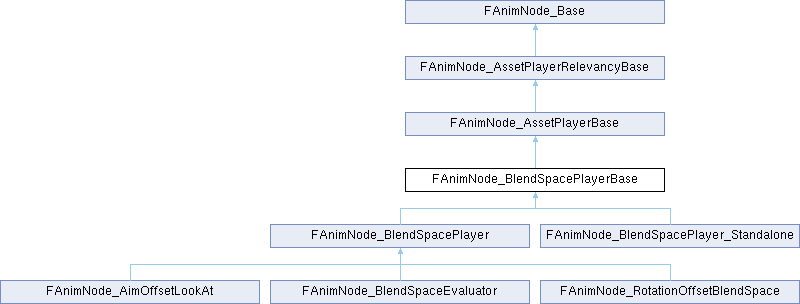

Inheritance diagram for FAnimNode_BlendSpacePlayerBase:

Public Member Functions
virtual ANIMGRAPHRUNTIME_API float	GetCurrentAssetTime () const override

virtual ANIMGRAPHRUNTIME_API float	GetCurrentAssetTimePlayRateAdjusted () const override

virtual ANIMGRAPHRUNTIME_API float	GetCurrentAssetLength () const override

virtual ANIMGRAPHRUNTIME_API UAnimationAsset *	GetAnimAsset () const override

virtual ANIMGRAPHRUNTIME_API void	Initialize_AnyThread (const FAnimationInitializeContext &Context) override

virtual ANIMGRAPHRUNTIME_API void	CacheBones_AnyThread (const FAnimationCacheBonesContext &Context) override

virtual ANIMGRAPHRUNTIME_API void	UpdateAssetPlayer (const FAnimationUpdateContext &Context) override

virtual ANIMGRAPHRUNTIME_API void	Evaluate_AnyThread (FPoseContext &Output) override

virtual ANIMGRAPHRUNTIME_API void	GatherDebugData (FNodeDebugData &DebugData) override

ANIMGRAPHRUNTIME_API float	GetTimeFromEnd (float CurrentTime) const

FVector	GetFilteredPosition () const

ANIMGRAPHRUNTIME_API void	SnapToPosition (const FVector &NewPosition)

virtual bool	GetLoop () const final

virtual bool	ShouldTeleportToTime () const

virtual bool	IsEvaluator () const

Public Member Functions inherited from FAnimNode_AssetPlayerBase
	FAnimNode_AssetPlayerBase ()=default

virtual ENGINE_API void	Update_AnyThread (const FAnimationUpdateContext &Context) final override

ENGINE_API void	CreateTickRecordForNode (const FAnimationUpdateContext &Context, UAnimSequenceBase *Sequence, bool bLooping, float PlayRate, bool bIsEvaluator)

virtual FName	GetGroupName () const

virtual EAnimGroupRole::Type	GetGroupRole () const

virtual EAnimSyncMethod	GetGroupMethod () const

virtual bool	GetOverridePositionWhenJoiningSyncGroupAsLeader () const

virtual bool	SetGroupName (FName InGroupName)

virtual bool	SetGroupRole (EAnimGroupRole::Type InRole)

virtual bool	SetGroupMethod (EAnimSyncMethod InMethod)

virtual bool	SetOverridePositionWhenJoiningSyncGroupAsLeader (bool InOverridePositionWhenJoiningSyncGroupAsLeader)

virtual ENGINE_API float	GetAccumulatedTime () const override

virtual ENGINE_API void	SetAccumulatedTime (float NewTime) override

virtual ENGINE_API float	GetCachedBlendWeight () const override

virtual ENGINE_API void	ClearCachedBlendWeight () override

virtual ENGINE_API const FDeltaTimeRecord *	GetDeltaTimeRecord () const override

Public Member Functions inherited from FAnimNode_AssetPlayerRelevancyBase
virtual ENGINE_API bool	IsLooping () const

virtual ENGINE_API bool	GetIgnoreForRelevancyTest () const

virtual ENGINE_API bool	SetIgnoreForRelevancyTest (bool bInIgnoreForRelevancyTest)

Public Member Functions inherited from FAnimNode_Base
virtual ENGINE_API void	EvaluateComponentSpace_AnyThread (FComponentSpacePoseContext &Output)

virtual bool	CanUpdateInWorkerThread () const

virtual bool	HasPreUpdate () const

virtual void	PreUpdate (const UAnimInstance *InAnimInstance)

virtual bool	NeedsDynamicReset () const

virtual ENGINE_API void	ResetDynamics (ETeleportType InTeleportType)

virtual void	PostCompile (const class USkeleton *InSkeleton)

virtual bool	NeedsOnInitializeAnimInstance () const

virtual	~FAnimNode_Base ()

virtual void	ResetDynamics ()

virtual bool	WantsSkippedUpdates () const

virtual void	OnUpdatesSkipped (TArrayView< const FAnimationUpdateContext * > SkippedUpdateContexts)

virtual void	OverrideAsset (class UAnimationAsset *NewAsset)

ENGINE_API const FExposedValueHandler &	GetEvaluateGraphExposedInputs () const

void	SetExposedValueHandler (const FExposedValueHandler *Handler)

int32	GetNodeIndex () const

const IAnimClassInterface *	GetAnimClassInterface () const

Public Attributes
virtual UBlendSpace *	GetBlendSpace () const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual FVector	GetPosition () const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual float	GetStartPosition () const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual float	GetPlayRate () const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual bool	ShouldResetPlayTimeWhenBlendSpaceChanges () const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual bool	SetResetPlayTimeWhenBlendSpaceChanges (bool bReset) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual bool	SetBlendSpace (UBlendSpace *InBlendSpace) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual bool	SetPosition (FVector InPosition) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual bool	SetPlayRate (float InPlayRate) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

virtual bool	SetLoop (bool bInLoop) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

Protected Member Functions
ANIMGRAPHRUNTIME_API void	UpdateInternal (const FAnimationUpdateContext &Context)

Protected Member Functions inherited from FAnimNode_AssetPlayerBase
ENGINE_API UE::Anim::FAnimSyncParams	GetSyncParams (bool bRequestedInertialization) const

Protected Member Functions inherited from FAnimNode_Base
template<typename DataType >
const DataType &	GetData (UE::Anim::FNodeDataId InId, const UObject *InObject=nullptr) const

template<typename DataType >
DataType *	GetInstanceDataPtr (UE::Anim::FNodeDataId InId, UObject *InObject=nullptr)

ENGINE_API bool	IsLODEnabled (FAnimInstanceProxy *AnimInstanceProxy)

virtual int32	GetLODThreshold () const

virtual ENGINE_API void	OnInitializeAnimInstance (const FAnimInstanceProxy InProxy, const UAnimInstance InAnimInstance)

Protected Attributes
FBlendFilter	BlendFilter

TArray< FBlendSampleData >	BlendSampleDataCache

int32	CachedTriangulationIndex = -1

TObjectPtr< UBlendSpace >	PreviousBlendSpace = nullptr

Protected Attributes inherited from FAnimNode_AssetPlayerBase
FMarkerTickRecord	MarkerTickRecord

float	BlendWeight = 0.0f

float	InternalTimeAccumulator = 0.0f

FDeltaTimeRecord	DeltaTimeRecord

bool	bHasBeenFullWeight = false

Member Function Documentation

◆ CacheBones_AnyThread()

void FAnimNode_BlendSpacePlayerBase::CacheBones_AnyThread ( const FAnimationCacheBonesContext & Context )

overridevirtual

Called to cache any bones that this node needs to track (e.g. in a FBoneReference). This is usually called at startup when LOD switches occur. This can be called on any thread.

Parameters

Context Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

Reimplemented in FAnimNode_AimOffsetLookAt, and FAnimNode_RotationOffsetBlendSpace.

◆ Evaluate_AnyThread()

void FAnimNode_BlendSpacePlayerBase::Evaluate_AnyThread ( FPoseContext & Output )

overridevirtual

Called to evaluate local-space bones transforms according to the weights set up in Update(). You should implement either Evaluate or EvaluateComponentSpace, but not both of these. This can be called on any thread.

Parameters

Output Output structure to write pose or curve data to. Also provides access to relevant data as a context.

Reimplemented from FAnimNode_Base.

Reimplemented in FAnimNode_AimOffsetLookAt, and FAnimNode_RotationOffsetBlendSpace.

◆ GatherDebugData()

void FAnimNode_BlendSpacePlayerBase::GatherDebugData ( FNodeDebugData & DebugData )

overridevirtual

Called to gather on-screen debug data. This is called on the game thread.

Parameters

DebugData Debug data structure used to output any relevant data

Reimplemented from FAnimNode_Base.

Reimplemented in FAnimNode_AimOffsetLookAt, FAnimNode_BlendSpaceEvaluator, and FAnimNode_RotationOffsetBlendSpace.

◆ GetAnimAsset()

UAnimationAsset * FAnimNode_BlendSpacePlayerBase::GetAnimAsset ( ) const

overridevirtual

Get the animation asset associated with the node, derived classes should implement this

Reimplemented from FAnimNode_AssetPlayerRelevancyBase.

◆ GetCurrentAssetLength()

float FAnimNode_BlendSpacePlayerBase::GetCurrentAssetLength ( ) const

overridevirtual

Reimplemented from FAnimNode_AssetPlayerRelevancyBase.

◆ GetCurrentAssetTime()

float FAnimNode_BlendSpacePlayerBase::GetCurrentAssetTime ( ) const

overridevirtual

Reimplemented from FAnimNode_AssetPlayerRelevancyBase.

◆ GetCurrentAssetTimePlayRateAdjusted()

float FAnimNode_BlendSpacePlayerBase::GetCurrentAssetTimePlayRateAdjusted ( ) const

overridevirtual

Reimplemented from FAnimNode_AssetPlayerBase.

◆ GetFilteredPosition()

FVector FAnimNode_BlendSpacePlayerBase::GetFilteredPosition ( ) const

inline

◆ GetLoop()

virtual bool FAnimNode_BlendSpacePlayerBase::GetLoop ( ) const

inlinefinalvirtual

◆ GetTimeFromEnd()

float FAnimNode_BlendSpacePlayerBase::GetTimeFromEnd ( float CurrentTime ) const

◆ Initialize_AnyThread()

void FAnimNode_BlendSpacePlayerBase::Initialize_AnyThread ( const FAnimationInitializeContext & Context )

overridevirtual

Initialize function for setup purposes

Reimplemented from FAnimNode_AssetPlayerBase.

Reimplemented in FAnimNode_AimOffsetLookAt, and FAnimNode_RotationOffsetBlendSpace.

◆ IsEvaluator()

virtual bool FAnimNode_BlendSpacePlayerBase::IsEvaluator ( ) const

inlinevirtual

Reimplemented in FAnimNode_BlendSpaceEvaluator.

◆ ShouldTeleportToTime()

virtual bool FAnimNode_BlendSpacePlayerBase::ShouldTeleportToTime ( ) const

inlinevirtual

Reimplemented in FAnimNode_BlendSpaceEvaluator.

◆ SnapToPosition()

void FAnimNode_BlendSpacePlayerBase::SnapToPosition ( const FVector & NewPosition )

◆ UpdateAssetPlayer()

void FAnimNode_BlendSpacePlayerBase::UpdateAssetPlayer ( const FAnimationUpdateContext & Context )

overridevirtual

Update method for the asset player, to be implemented by derived classes

Reimplemented from FAnimNode_AssetPlayerBase.

Reimplemented in FAnimNode_AimOffsetLookAt, FAnimNode_BlendSpaceEvaluator, and FAnimNode_RotationOffsetBlendSpace.

◆ UpdateInternal()

void FAnimNode_BlendSpacePlayerBase::UpdateInternal ( const FAnimationUpdateContext & Context )

protected

Member Data Documentation

◆ BlendFilter

FBlendFilter FAnimNode_BlendSpacePlayerBase::BlendFilter

protected

◆ BlendSampleDataCache

TArray<FBlendSampleData> FAnimNode_BlendSpacePlayerBase::BlendSampleDataCache

protected

◆ CachedTriangulationIndex

int32 FAnimNode_BlendSpacePlayerBase::CachedTriangulationIndex = -1

protected

Previous position in the triangulation/segmentation

◆ GetBlendSpace

virtual UBlendSpace* FAnimNode_BlendSpacePlayerBase::GetBlendSpace() const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ GetPlayRate

virtual float FAnimNode_BlendSpacePlayerBase::GetPlayRate() const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ GetPosition

virtual FVector FAnimNode_BlendSpacePlayerBase::GetPosition() const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ GetStartPosition

virtual float FAnimNode_BlendSpacePlayerBase::GetStartPosition() const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ PreviousBlendSpace

TObjectPtr<UBlendSpace> FAnimNode_BlendSpacePlayerBase::PreviousBlendSpace = nullptr

protected

◆ SetBlendSpace

virtual bool FAnimNode_BlendSpacePlayerBase::SetBlendSpace(UBlendSpace *InBlendSpace) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ SetLoop

virtual bool FAnimNode_BlendSpacePlayerBase::SetLoop(bool bInLoop) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ SetPlayRate

virtual bool FAnimNode_BlendSpacePlayerBase::SetPlayRate(float InPlayRate) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ SetPosition

virtual bool FAnimNode_BlendSpacePlayerBase::SetPosition(FVector InPosition) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ SetResetPlayTimeWhenBlendSpaceChanges

virtual bool FAnimNode_BlendSpacePlayerBase::SetResetPlayTimeWhenBlendSpaceChanges(bool bReset) PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

◆ ShouldResetPlayTimeWhenBlendSpaceChanges

virtual bool FAnimNode_BlendSpacePlayerBase::ShouldResetPlayTimeWhenBlendSpaceChanges() const PURE_VIRTUAL(FAnimNode_BlendSpacePlayerBase

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/AnimGraphRuntime/Public/AnimNodes/AnimNode_BlendSpacePlayer.h
Engine/Source/Runtime/AnimGraphRuntime/Private/AnimNodes/AnimNode_BlendSpacePlayer.cpp
