FAnimNode_SequenceEvaluatorBase Struct Reference

#include <AnimNode_SequenceEvaluator.h>

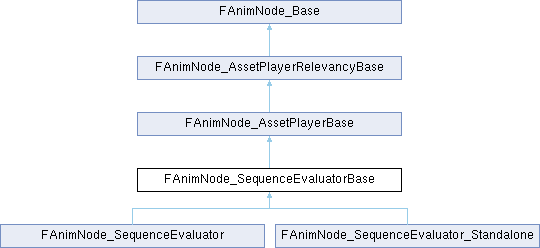

Inheritance diagram for FAnimNode_SequenceEvaluatorBase:

Public Member Functions
virtual ANIMGRAPHRUNTIME_API float	GetCurrentAssetTime () const override
virtual ANIMGRAPHRUNTIME_API float	GetCurrentAssetLength () const override
virtual ANIMGRAPHRUNTIME_API void	Initialize_AnyThread (const FAnimationInitializeContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	CacheBones_AnyThread (const FAnimationCacheBonesContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	UpdateAssetPlayer (const FAnimationUpdateContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	Evaluate_AnyThread (FPoseContext &Output) override
virtual ANIMGRAPHRUNTIME_API void	GatherDebugData (FNodeDebugData &DebugData) override
virtual float	GetAccumulatedTime () const override
virtual void	SetAccumulatedTime (float NewTime) override
virtual UAnimationAsset *	GetAnimAsset () const override
void	SetExplicitPreviousTime (float PreviousTime)
virtual ANIMGRAPHRUNTIME_API float	GetEffectiveDeltaTime (float ExplicitTime, float PrevExplicitTime) const
virtual bool	SetSequence (UAnimSequenceBase *InSequence)
virtual bool	SetExplicitTime (float InTime)
virtual void	SetTeleportToExplicitTime (bool bInTeleport)
virtual void	SetReinitializationBehavior (TEnumAsByte< ESequenceEvalReinit::Type > InBehavior)
virtual UAnimSequenceBase *	GetSequence () const
virtual float	GetExplicitTime () const
virtual bool	GetShouldLoop () const final
virtual bool	SetShouldLoop (bool bInShouldLoop)
virtual bool	GetTeleportToExplicitTime () const
virtual TEnumAsByte< ESequenceEvalReinit::Type >	GetReinitializationBehavior () const
virtual float	GetStartPosition () const
ANIMGRAPHRUNTIME_API void	PostExposedInputsUpdateAssetPlayer (const FAnimationUpdateContext &Context)
Public Member Functions inherited from FAnimNode_AssetPlayerBase
	FAnimNode_AssetPlayerBase ()=default
virtual ENGINE_API void	Update_AnyThread (const FAnimationUpdateContext &Context) final override
ENGINE_API void	CreateTickRecordForNode (const FAnimationUpdateContext &Context, UAnimSequenceBase *Sequence, bool bLooping, float PlayRate, bool bIsEvaluator)
virtual FName	GetGroupName () const
virtual EAnimGroupRole::Type	GetGroupRole () const
virtual EAnimSyncMethod	GetGroupMethod () const
virtual bool	GetOverridePositionWhenJoiningSyncGroupAsLeader () const
virtual bool	SetGroupName (FName InGroupName)
virtual bool	SetGroupRole (EAnimGroupRole::Type InRole)
virtual bool	SetGroupMethod (EAnimSyncMethod InMethod)
virtual bool	SetOverridePositionWhenJoiningSyncGroupAsLeader (bool InOverridePositionWhenJoiningSyncGroupAsLeader)
virtual ENGINE_API float	GetCachedBlendWeight () const override
virtual ENGINE_API void	ClearCachedBlendWeight () override
virtual ENGINE_API float	GetCurrentAssetTimePlayRateAdjusted () const override
virtual ENGINE_API const FDeltaTimeRecord *	GetDeltaTimeRecord () const override
Public Member Functions inherited from FAnimNode_AssetPlayerRelevancyBase
virtual ENGINE_API bool	IsLooping () const
virtual ENGINE_API bool	GetIgnoreForRelevancyTest () const
virtual ENGINE_API bool	SetIgnoreForRelevancyTest (bool bInIgnoreForRelevancyTest)
Public Member Functions inherited from FAnimNode_Base
virtual ENGINE_API void	EvaluateComponentSpace_AnyThread (FComponentSpacePoseContext &Output)
virtual bool	CanUpdateInWorkerThread () const
virtual bool	HasPreUpdate () const
virtual void	PreUpdate (const UAnimInstance *InAnimInstance)
virtual bool	NeedsDynamicReset () const
virtual ENGINE_API void	ResetDynamics (ETeleportType InTeleportType)
virtual void	PostCompile (const class USkeleton *InSkeleton)
virtual bool	NeedsOnInitializeAnimInstance () const
virtual	~FAnimNode_Base ()
virtual void	ResetDynamics ()
virtual bool	WantsSkippedUpdates () const
virtual void	OnUpdatesSkipped (TArrayView< const FAnimationUpdateContext * > SkippedUpdateContexts)
virtual void	OverrideAsset (class UAnimationAsset *NewAsset)
ENGINE_API const FExposedValueHandler &	GetEvaluateGraphExposedInputs () const
void	SetExposedValueHandler (const FExposedValueHandler *Handler)
int32	GetNodeIndex () const
const IAnimClassInterface *	GetAnimClassInterface () const

Additional Inherited Members
Protected Member Functions inherited from FAnimNode_AssetPlayerBase
ENGINE_API UE::Anim::FAnimSyncParams	GetSyncParams (bool bRequestedInertialization) const
Protected Member Functions inherited from FAnimNode_Base
template<typename DataType >
const DataType &	GetData (UE::Anim::FNodeDataId InId, const UObject *InObject=nullptr) const
template<typename DataType >
DataType *	GetInstanceDataPtr (UE::Anim::FNodeDataId InId, UObject *InObject=nullptr)
ENGINE_API bool	IsLODEnabled (FAnimInstanceProxy *AnimInstanceProxy)
virtual int32	GetLODThreshold () const
virtual ENGINE_API void	OnInitializeAnimInstance (const FAnimInstanceProxy *InProxy, const UAnimInstance *InAnimInstance)
Protected Attributes inherited from FAnimNode_AssetPlayerBase
FMarkerTickRecord	MarkerTickRecord
float	BlendWeight = 0.0f
float	InternalTimeAccumulator = 0.0f
FDeltaTimeRecord	DeltaTimeRecord
bool	bHasBeenFullWeight = false

Member Function Documentation

CacheBones_AnyThread()

void FAnimNode_SequenceEvaluatorBase::CacheBones_AnyThread ( const FAnimationCacheBonesContext &  Context )

overridevirtual

Called to cache any bones that this node needs to track (e.g. in a FBoneReference). This is usually called at startup when LOD switches occur. This can be called on any thread.

Parameters

Context

Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

Evaluate_AnyThread()

void FAnimNode_SequenceEvaluatorBase::Evaluate_AnyThread ( FPoseContext &  Output )

overridevirtual

Called to evaluate local-space bones transforms according to the weights set up in Update(). You should implement either Evaluate or EvaluateComponentSpace, but not both of these. This can be called on any thread.

Parameters

Output

Output structure to write pose or curve data to. Also provides access to relevant data as a context.

Reimplemented from FAnimNode_Base.

GatherDebugData()

void FAnimNode_SequenceEvaluatorBase::GatherDebugData ( FNodeDebugData &  DebugData )

overridevirtual

Called to gather on-screen debug data. This is called on the game thread.

Parameters

DebugData

Debug data structure used to output any relevant data

Reimplemented from FAnimNode_Base.

GetAccumulatedTime()

virtual float FAnimNode_SequenceEvaluatorBase::GetAccumulatedTime ( ) const

inlineoverridevirtual

Get the currently referenced time within the asset player node

Reimplemented from FAnimNode_AssetPlayerBase.

GetAnimAsset()

virtual UAnimationAsset * FAnimNode_SequenceEvaluatorBase::GetAnimAsset ( ) const

inlineoverridevirtual

Get the animation asset associated with the node, derived classes should implement this

Reimplemented from FAnimNode_AssetPlayerRelevancyBase.

GetCurrentAssetLength()

float FAnimNode_SequenceEvaluatorBase::GetCurrentAssetLength ( ) const

overridevirtual

Reimplemented from FAnimNode_AssetPlayerRelevancyBase.

GetCurrentAssetTime()

float FAnimNode_SequenceEvaluatorBase::GetCurrentAssetTime ( ) const

overridevirtual

Reimplemented from FAnimNode_AssetPlayerRelevancyBase.

GetEffectiveDeltaTime()

float FAnimNode_SequenceEvaluatorBase::GetEffectiveDeltaTime ( float  ExplicitTime, float  PrevExplicitTime  ) const

virtual

GetExplicitTime()

virtual float FAnimNode_SequenceEvaluatorBase::GetExplicitTime ( ) const

inlinevirtual

Reimplemented in FAnimNode_SequenceEvaluator, and FAnimNode_SequenceEvaluator_Standalone.

GetReinitializationBehavior()

virtual TEnumAsByte< ESequenceEvalReinit::Type > FAnimNode_SequenceEvaluatorBase::GetReinitializationBehavior ( ) const

inlinevirtual

What to do when SequenceEvaluator is reinitialized

Reimplemented in FAnimNode_SequenceEvaluator, and FAnimNode_SequenceEvaluator_Standalone.

GetSequence()

virtual UAnimSequenceBase * FAnimNode_SequenceEvaluatorBase::GetSequence ( ) const

inlinevirtual

Reimplemented in FAnimNode_SequenceEvaluator, and FAnimNode_SequenceEvaluator_Standalone.

GetShouldLoop()

virtual bool FAnimNode_SequenceEvaluatorBase::GetShouldLoop ( ) const

inlinefinalvirtual

This only works if bTeleportToExplicitTime is false OR this node is set to use SyncGroup

GetStartPosition()

virtual float FAnimNode_SequenceEvaluatorBase::GetStartPosition ( ) const

inlinevirtual

Reimplemented in FAnimNode_SequenceEvaluator, and FAnimNode_SequenceEvaluator_Standalone.

GetTeleportToExplicitTime()

virtual bool FAnimNode_SequenceEvaluatorBase::GetTeleportToExplicitTime ( ) const

inlinevirtual

If true, teleport to explicit time, does NOT advance time (does not trigger notifies, does not extract Root Motion, etc.) If false, will advance time (will trigger notifies, extract root motion if applicable, etc.) Note: using a sync group forces advancing time regardless of what this option is set to.

Reimplemented in FAnimNode_SequenceEvaluator, and FAnimNode_SequenceEvaluator_Standalone.

Initialize_AnyThread()

void FAnimNode_SequenceEvaluatorBase::Initialize_AnyThread ( const FAnimationInitializeContext &  Context )

overridevirtual

Initialize function for setup purposes

Reimplemented from FAnimNode_AssetPlayerBase.

PostExposedInputsUpdateAssetPlayer()

void FAnimNode_SequenceEvaluatorBase::PostExposedInputsUpdateAssetPlayer

(

const FAnimationUpdateContext &

Context

)

SetAccumulatedTime()

virtual void FAnimNode_SequenceEvaluatorBase::SetAccumulatedTime ( float  NewTime )

inlineoverridevirtual

Override the currently accumulated time

Reimplemented from FAnimNode_AssetPlayerBase.

SetExplicitPreviousTime()

void FAnimNode_SequenceEvaluatorBase::SetExplicitPreviousTime ( float  PreviousTime )

inline

SetExplicitTime()

virtual bool FAnimNode_SequenceEvaluatorBase::SetExplicitTime ( float  InTime )

inlinevirtual

Reimplemented in FAnimNode_SequenceEvaluator, and FAnimNode_SequenceEvaluator_Standalone.

SetReinitializationBehavior()

virtual void FAnimNode_SequenceEvaluatorBase::SetReinitializationBehavior ( TEnumAsByte< ESequenceEvalReinit::Type >  InBehavior )

inlinevirtual

Set what to do when SequenceEvaluator is reinitialized

Reimplemented in FAnimNode_SequenceEvaluator_Standalone.

SetSequence()

virtual bool FAnimNode_SequenceEvaluatorBase::SetSequence ( UAnimSequenceBase *  InSequence )

inlinevirtual

Reimplemented in FAnimNode_SequenceEvaluator, and FAnimNode_SequenceEvaluator_Standalone.

SetShouldLoop()

virtual bool FAnimNode_SequenceEvaluatorBase::SetShouldLoop ( bool  bInShouldLoop )

inlinevirtual

Reimplemented in FAnimNode_SequenceEvaluator.

SetTeleportToExplicitTime()

virtual void FAnimNode_SequenceEvaluatorBase::SetTeleportToExplicitTime ( bool  bInTeleport )

inlinevirtual

Reimplemented in FAnimNode_SequenceEvaluator_Standalone.

UpdateAssetPlayer()

void FAnimNode_SequenceEvaluatorBase::UpdateAssetPlayer ( const FAnimationUpdateContext &  Context )

overridevirtual

Update method for the asset player, to be implemented by derived classes

Reimplemented from FAnimNode_AssetPlayerBase.

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/AnimGraphRuntime/Public/AnimNodes/AnimNode_SequenceEvaluator.h
• Engine/Source/Runtime/AnimGraphRuntime/Private/AnimNodes/AnimNode_SequenceEvaluator.cpp
