#include <ContentStreaming.h>

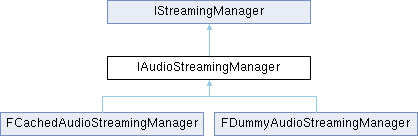

Inheritance diagram for IAudioStreamingManager:

Public Member Functions
virtual void	AddForceInlineSoundWave (const FSoundWaveProxyPtr &SoundWave)

virtual void	RemoveForceInlineSoundWave (const FSoundWaveProxyPtr &SoundWave)

virtual bool	RequestChunk (const FSoundWaveProxyPtr &SoundWave, uint32 ChunkIndex, TFunction< void(EAudioChunkLoadResult)> OnLoadCompleted=LoadCompletedDefault, ENamedThreads::Type ThreadToCallOnLoadCompletedOn=ENamedThreads::AnyThread, bool bForImmediatePlayback=false)=0

virtual FAudioChunkHandle	GetLoadedChunk (const FSoundWaveProxyPtr &SoundWave, uint32 ChunkIndex, bool bBlockForLoad=false, bool bForImmediatePlayback=false) const =0

virtual uint64	TrimMemory (uint64 NumBytesToFree)=0

virtual int32	RenderStatAudioStreaming (UWorld World, FViewport Viewport, FCanvas Canvas, int32 X, int32 Y, const FVector ViewLocation, const FRotator *ViewRotation)=0

virtual FString	GenerateMemoryReport ()=0

virtual void	SetProfilingMode (bool bEnabled)=0

virtual void	HandleStarvation (const FSoundWaveProxyPtr &SoundWave, const uint32 ChunkIndex, const uint32 InBytesProduced, const uint32 InBytesExpected)

Public Member Functions inherited from IStreamingManager
	IStreamingManager ()

virtual	~IStreamingManager ()

virtual ENGINE_API void	Tick (float DeltaTime, bool bProcessEverything=false)

virtual void	UpdateResourceStreaming (float DeltaTime, bool bProcessEverything=false)=0

virtual ENGINE_API int32	StreamAllResources (float TimeLimit=0.0f)

virtual int32	BlockTillAllRequestsFinished (float TimeLimit=0.0f, bool bLogResults=false)=0

virtual void	CancelForcedResources ()=0

virtual void	NotifyLevelChange ()=0

void	RemoveStreamingViews (ERemoveStreamingViews RemovalType)

ENGINE_API void	AddViewInformation (const FVector &ViewOrigin, float ScreenSize, float FOVScreenSize, float BoostFactor=1.0f, bool bOverrideLocation=false, float Duration=0.0f, TWeakObjectPtr< AActor > InActorToBoost=NULL, TWeakObjectPtr< UWorld > InWorld=NULL)

ENGINE_API void	AddViewLocation (const FVector &Location, float BoostFactor=1.0f, bool bOverrideLocation=false, float Duration=0.0f)

virtual void	SetDisregardWorldResourcesForFrames (int32 NumFrames)=0

virtual bool	Exec (UWorld InWorld, const TCHAR Cmd, FOutputDevice &Ar)

virtual void	AddLevel (class ULevel *Level)=0

virtual void	RemoveLevel (class ULevel *Level)=0

virtual void	NotifyLevelOffset (class ULevel *Level, const FVector &Offset)=0

virtual void	NotifyActorDestroyed (AActor *Actor)

virtual void	NotifyPrimitiveDetached (const UPrimitiveComponent *Primitive)

virtual void	NotifyPrimitiveUpdated (const UPrimitiveComponent *Primitive)

virtual void	NotifyPrimitiveUpdated_Concurrent (const UPrimitiveComponent *Primitive)

int32	GetNumViews () const

const FStreamingViewInfo &	GetViewInformation (int32 ViewIndex) const

virtual int32	GetNumWantingResources () const

virtual int32	GetNumWantingResourcesID () const

virtual void	PropagateLightingScenarioChange ()

Static Public Attributes
static constexpr auto	LoadCompletedDefault = [](EAudioChunkLoadResult) {}

Protected Member Functions
virtual void	AddReferenceToChunk (const FAudioChunkHandle &InHandle)=0

virtual void	RemoveReferenceToChunk (const FAudioChunkHandle &InHandle)=0

virtual void	AddMemoryCountedFeature (const FAudioStreamCacheMemoryHandle &Feature)

virtual void	RemoveMemoryCountedFeature (const FAudioStreamCacheMemoryHandle &Feature)

Protected Member Functions inherited from IStreamingManager
void	SetupViewInfos (float DeltaTime)

Static Protected Member Functions
static FAudioChunkHandle	BuildChunkHandle (const uint8 *InData, uint32 NumBytes, const FSoundWaveProxyPtr &InSoundWave, const FName &SoundWaveName, uint32 InChunkIndex, uint64 CacheLookupID)

Static Protected Member Functions inherited from IStreamingManager
static void	AddViewInfoToArray (TArray< FStreamingViewInfo > &ViewInfos, const FVector &ViewOrigin, float ScreenSize, float FOVScreenSize, float BoostFactor, bool bOverrideLocation, float Duration, TWeakObjectPtr< AActor > InActorToBoost, TWeakObjectPtr< UWorld > InWorld)

static void	RemoveViewInfoFromArray (TArray< FStreamingViewInfo > &ViewInfos, const FVector &ViewOrigin)

Protected Attributes
friend	FAudioChunkHandle

friend	FAudioStreamCacheMemoryHandle

Protected Attributes inherited from IStreamingManager
int32	NumWantingResources

int32	NumWantingResourcesCounter

Additional Inherited Members
Static Public Member Functions inherited from IStreamingManager
static ENGINE_API struct FStreamingManagerCollection &	Get ()

static ENGINE_API struct FStreamingManagerCollection *	Get_Concurrent ()

static ENGINE_API void	Shutdown ()

static ENGINE_API bool	HasShutdown ()

Static Protected Attributes inherited from IStreamingManager
static ENGINE_API TArray< FStreamingViewInfo >	CurrentViewInfos

static TArray< FStreamingViewInfo >	PendingViewInfos

static TArray< FStreamingViewInfo >	LastingViewInfos

static TArray< FSecondaryLocation >	SecondaryLocations

static bool	bPendingRemoveViews = false

Detailed Description

Interface to add functions specifically related to audio streaming

Member Function Documentation

◆ AddForceInlineSoundWave()

virtual void IAudioStreamingManager::AddForceInlineSoundWave ( const FSoundWaveProxyPtr & SoundWave )

inlinevirtual

Adds the memory usage of the force inline sound to the streaming cache budget

Reimplemented in FCachedAudioStreamingManager.

◆ AddMemoryCountedFeature()

virtual void IAudioStreamingManager::AddMemoryCountedFeature ( const FAudioStreamCacheMemoryHandle & Feature )

inlineprotectedvirtual

This can be used to increase the memory count for external features. Called by FAudioStreamCacheMemoryHandle. The pattern for changing the amount of memory of an already added feature is to first remove and then add again with the new number

Reimplemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ AddReferenceToChunk()

virtual void IAudioStreamingManager::AddReferenceToChunk ( const FAudioChunkHandle & InHandle )

protectedpure virtual

This can be used to increment reference counted handles to audio chunks. Called by the copy constructor of FAudioChunkHandle.

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ BuildChunkHandle()

FAudioChunkHandle IAudioStreamingManager::BuildChunkHandle	(	const uint8 *	InData,
		uint32	NumBytes,
		const FSoundWaveProxyPtr &	InSoundWave,
		const FName &	SoundWaveName,
		uint32	InChunkIndex,
		uint64	CacheLookupID
	)

staticprotected

This can be called by implementers of IAudioStreamingManager to construct an FAudioChunkHandle using an otherwise inaccessible constructor.

◆ GenerateMemoryReport()

virtual FString IAudioStreamingManager::GenerateMemoryReport ( )

pure virtual

Generate a memory report as a formatted string for this streaming manager.

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ GetLoadedChunk()

virtual FAudioChunkHandle IAudioStreamingManager::GetLoadedChunk	(	const FSoundWaveProxyPtr &	SoundWave,
		uint32	ChunkIndex,
		bool	bBlockForLoad = `false`,
		bool	bForImmediatePlayback = `false`
	)		const

pure virtual

Gets a pointer to a chunk of audio data

Parameters

SoundWave	SoundWave we want a chunk from
ChunkIndex	Index of the chunk we want
bBlockForLoad	if true, will block this thread until we finish loading this chunk.
bForImmediatePlayback	if true, will optionally reprioritize this chunk's load request. See au.streamcaching.PlaybackRequestPriority.

Returns: a handle to the loaded chunk. Can return a default constructed FAudioChunkHandle if the chunk is not loaded yet.

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ HandleStarvation()

virtual void IAudioStreamingManager::HandleStarvation	(	const FSoundWaveProxyPtr &	SoundWave,
		const uint32	ChunkIndex,
		const uint32	InBytesProduced,
		const uint32	InBytesExpected
	)

inlinevirtual

In the event that the decoder playing back the chunks is in a starvation state due to an outstanding chunk load, handle that here.

Reimplemented in FCachedAudioStreamingManager.

◆ RemoveForceInlineSoundWave()

virtual void IAudioStreamingManager::RemoveForceInlineSoundWave ( const FSoundWaveProxyPtr & SoundWave )

inlinevirtual

Removes the memory usage of the force inline sound from the streaming cache budget

Reimplemented in FCachedAudioStreamingManager.

◆ RemoveMemoryCountedFeature()

virtual void IAudioStreamingManager::RemoveMemoryCountedFeature ( const FAudioStreamCacheMemoryHandle & Feature )

inlineprotectedvirtual

This can be used to decrease the memory count for external features. Called by FAudioStreamCacheMemoryHandle.

Reimplemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ RemoveReferenceToChunk()

virtual void IAudioStreamingManager::RemoveReferenceToChunk ( const FAudioChunkHandle & InHandle )

protectedpure virtual

This can be used to decrement reference counted handles to audio chunks. Called by the destructor of FAudioChunkHandle.

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ RenderStatAudioStreaming()

virtual int32 IAudioStreamingManager::RenderStatAudioStreaming	(	UWorld *	World,
		FViewport *	Viewport,
		FCanvas *	Canvas,
		int32	X,
		int32	Y,
		const FVector *	ViewLocation,
		const FRotator *	ViewRotation
	)

pure virtual

Used for rendering debug info:

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ RequestChunk()

virtual bool IAudioStreamingManager::RequestChunk	(	const FSoundWaveProxyPtr &	SoundWave,
		uint32	ChunkIndex,
		TFunction< void(EAudioChunkLoadResult)>	OnLoadCompleted = `LoadCompletedDefault`,
		ENamedThreads::Type	ThreadToCallOnLoadCompletedOn = `ENamedThreads::AnyThread`,
		bool	bForImmediatePlayback = `false`
	)

pure virtual

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ SetProfilingMode()

virtual void IAudioStreamingManager::SetProfilingMode ( bool bEnabled )

pure virtual

Whether to toggle a performance intensive profiling mode the streaming manager.

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

◆ TrimMemory()

virtual uint64 IAudioStreamingManager::TrimMemory ( uint64 NumBytesToFree )

pure virtual

This will start evicting elements from the cache until either hit our target of bytes or run out of chunks we can free.

Parameters

NumBytesToFree The amount of memory we would like to free, in bytes.

Returns: the amount of bytes we managed to free.

Implemented in FCachedAudioStreamingManager, and FDummyAudioStreamingManager.

Member Data Documentation

◆ FAudioChunkHandle

friend IAudioStreamingManager::FAudioChunkHandle

protected

◆ FAudioStreamCacheMemoryHandle

friend IAudioStreamingManager::FAudioStreamCacheMemoryHandle

protected

◆ LoadCompletedDefault

constexpr auto IAudioStreamingManager::LoadCompletedDefault = [](EAudioChunkLoadResult) {}

staticconstexpr

Manually prepare a chunk to start playing back. This should only be used when the Load On Demand feature is enabled, and returns false on failure.

Parameters

SoundWave	SoundWave we would like to request a chunk of.
ChunkIndex	the index of that soundwave we'd like to request a chunk of.
OnLoadCompleted	optional callback when the load completes.
ThreadToCallOnLoadCompleteOn.	Optional specifier for which thread OnLoadCompleted should be called on.
bForImmediatePlaybac	if true, this will optionally reprioritize this chunk's load request.

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/Engine/Public/ContentStreaming.h
Engine/Source/Runtime/Engine/Private/ContentStreaming.cpp
