D3D12 specific implementation of the FRHIPoolAllocator. More...

#include <D3D12PoolAllocator.h>

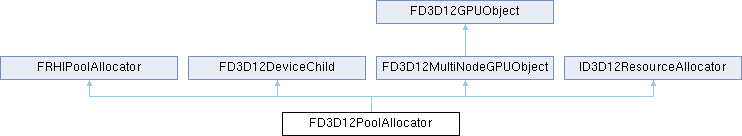

Inheritance diagram for FD3D12PoolAllocator:

Classes
struct	FrameFencedAllocationData

Public Member Functions
	FD3D12PoolAllocator (FD3D12Device *ParentDevice, FRHIGPUMask VisibleNodes, const FD3D12ResourceInitConfig &InInitConfig, const FString &InName, EResourceAllocationStrategy InAllocationStrategy, uint64 InDefaultPoolSize, uint32 InPoolAlignment, uint32 InMaxAllocationSize, FRHIMemoryPool::EFreeListOrder InFreeListOrder, bool bInDefragEnabled, HeapId InTraceParentHeapId)

	~FD3D12PoolAllocator ()

bool	SupportsAllocation (D3D12_HEAP_TYPE InHeapType, D3D12_RESOURCE_FLAGS InResourceFlags, EBufferUsageFlags InBufferUsage, ED3D12ResourceStateMode InResourceStateMode, uint32 Alignment) const

void	AllocDefaultResource (D3D12_HEAP_TYPE InHeapType, const FD3D12ResourceDesc &InDesc, EBufferUsageFlags InBufferUsage, ED3D12ResourceStateMode InResourceStateMode, ED3D12Access InCreateD3D12Access, uint32 InAlignment, const TCHAR *InName, FD3D12ResourceLocation &ResourceLocation)

virtual void	DeallocateResource (FD3D12ResourceLocation &ResourceLocation, bool bDefragFree=false)

virtual void	AllocateResource (uint32 GPUIndex, D3D12_HEAP_TYPE InHeapType, const FD3D12ResourceDesc &InDesc, uint64 InSize, uint32 InAllocationAlignment, ED3D12Access InInitialD3D12Access, ED3D12ResourceStateMode InResourceStateMode, ED3D12Access InDefaultD3D12Access, const D3D12_CLEAR_VALUE InClearValue, const TCHAR InName, FD3D12ResourceLocation &ResourceLocation) override

void	CleanUpAllocations (uint64 InFrameLag, bool bForceFree=false)

void	FlushPendingCopyOps (FD3D12CommandContext &InCommandContext)

void	TransferOwnership (FD3D12ResourceLocation &InSource, FD3D12ResourceLocation &InDest)

bool	IsOwner (FD3D12ResourceLocation &ResourceLocation) const

EResourceAllocationStrategy	GetAllocationStrategy () const

FD3D12Resource *	GetBackingResource (FD3D12ResourceLocation &InResourceLocation) const

FD3D12HeapAndOffset	GetBackingHeapAndAllocationOffsetInBytes (FD3D12ResourceLocation &InResourceLocation) const

FD3D12HeapAndOffset	GetBackingHeapAndAllocationOffsetInBytes (const FRHIPoolAllocationData &InAllocationData) const

uint64	GetPendingDeleteRequestSize () const

Public Member Functions inherited from FRHIPoolAllocator
RHICORE_API	FRHIPoolAllocator (uint64 InDefaultPoolSize, uint32 InPoolAlignment, uint32 InMaxAllocationSize, FRHIMemoryPool::EFreeListOrder InFreeListOrder, bool InDefragEnabled)

virtual RHICORE_API	~FRHIPoolAllocator ()

RHICORE_API void	Initialize ()

RHICORE_API void	Destroy ()

RHICORE_API void	Defrag (FRHIContextArray const &Contexts, uint32 InMaxCopySize, uint32 &CurrentCopySize)

RHICORE_API void	UpdateMemoryStats (uint32 &IOMemoryAllocated, uint32 &IOMemoryUsed, uint32 &IOMemoryFree, uint32 &IOMemoryEndFree, uint32 &IOAlignmentWaste, uint32 &IOAllocatedPageCount, uint32 &IOFullPageCount)

Public Member Functions inherited from FD3D12DeviceChild
	FD3D12DeviceChild (FD3D12Device *InParent=nullptr)

FORCEINLINE FD3D12Device *	GetParentDevice () const

FD3D12Device *	GetParentDevice_Unsafe () const

Public Member Functions inherited from FD3D12MultiNodeGPUObject
	FD3D12MultiNodeGPUObject (FRHIGPUMask NodeMask, FRHIGPUMask VisibiltyMask)

Public Member Functions inherited from FD3D12GPUObject
	FD3D12GPUObject (FRHIGPUMask InGPUMask, FRHIGPUMask InVisibiltyMask)

SGPU_CONSTEXPR FRHIGPUMask	GetGPUMask () const

SGPU_CONSTEXPR FRHIGPUMask	GetVisibilityMask () const

Public Member Functions inherited from ID3D12ResourceAllocator
void	AllocateTexture (uint32 GPUIndex, D3D12_HEAP_TYPE InHeapType, const FD3D12ResourceDesc &InDesc, EPixelFormat InUEFormat, ED3D12Access InInitialD3D12Access, ED3D12ResourceStateMode InResourceStateMode, ED3D12Access InDefaultD3D12Access, const D3D12_CLEAR_VALUE InClearValue, const TCHAR InName, FD3D12ResourceLocation &ResourceLocation)

Static Public Member Functions
static FD3D12ResourceInitConfig	GetResourceAllocatorInitConfig (D3D12_HEAP_TYPE InHeapType, D3D12_RESOURCE_FLAGS InResourceFlags, EBufferUsageFlags InBufferUsage)

static EResourceAllocationStrategy	GetResourceAllocationStrategy (D3D12_RESOURCE_FLAGS InResourceFlags, ED3D12ResourceStateMode InResourceStateMode, uint32 Alignment)

Protected Types
enum class	EAllocationType { Allocate , DefragFree , Free }

Protected Member Functions
virtual FRHIMemoryPool *	CreateNewPool (int16 InPoolIndex, uint32 InMinimumAllocationSize, ERHIPoolResourceTypes InAllocationResourceType) override

virtual bool	HandleDefragRequest (FRHIContextArray const &Contexts, FRHIPoolAllocationData *InSourceBlock, FRHIPoolAllocationData &InTmpTargetBlock) override

virtual FD3D12Resource *	CreatePlacedResource (const FRHIPoolAllocationData &InAllocationData, const FD3D12ResourceDesc &InDesc, ED3D12Access InInitialD3D12Access, ED3D12ResourceStateMode InResourceStateMode, ED3D12Access InDefaultD3D12Access, const D3D12_CLEAR_VALUE InClearValue, const TCHAR InName)

virtual void	UpdateAllocationTracking (FD3D12ResourceLocation &InAllocation, EAllocationType InAllocationType)

Protected Member Functions inherited from FRHIPoolAllocator
RHICORE_API bool	TryAllocateInternal (uint32 InSizeInBytes, uint32 InAllocationAlignment, ERHIPoolResourceTypes InAllocationResourceType, FRHIPoolAllocationData &AllocationData)

RHICORE_API void	DeallocateInternal (FRHIPoolAllocationData &AllocationData)

RHICORE_API void	SortPools ()

Protected Attributes
const FD3D12ResourceInitConfig	InitConfig

const FString	Name

EResourceAllocationStrategy	AllocationStrategy

TArray< FrameFencedAllocationData >	FrameFencedOperations

uint64	PendingDeleteRequestSize = 0

TArray< FD3D12VRAMCopyOperation >	PendingCopyOps

TArray< FRHIPoolAllocationData * >	AllocationDataPool

Protected Attributes inherited from FRHIPoolAllocator
const uint64	DefaultPoolSize

const uint32	PoolAlignment

const uint64	MaxAllocationSize

const FRHIMemoryPool::EFreeListOrder	FreeListOrder

const bool	bDefragEnabled

FCriticalSection	CS

TArray< FRHIMemoryPool * >	Pools

int32	LastDefragPoolIndex

TArray< uint32 >	PoolAllocationOrder

uint32	TotalAllocatedBlocks

Protected Attributes inherited from FD3D12DeviceChild
FD3D12Device *	Parent

Detailed Description

D3D12 specific implementation of the FRHIPoolAllocator.

Member Enumeration Documentation

◆ EAllocationType

enum class FD3D12PoolAllocator::EAllocationType

strongprotected

Enumerator
Allocate
DefragFree
Free

Constructor & Destructor Documentation

◆ FD3D12PoolAllocator()

FD3D12PoolAllocator::FD3D12PoolAllocator	(	FD3D12Device *	ParentDevice,
		FRHIGPUMask	VisibleNodes,
		const FD3D12ResourceInitConfig &	InInitConfig,
		const FString &	InName,
		EResourceAllocationStrategy	InAllocationStrategy,
		uint64	InDefaultPoolSize,
		uint32	InPoolAlignment,
		uint32	InMaxAllocationSize,
		FRHIMemoryPool::EFreeListOrder	InFreeListOrder,
		bool	bInDefragEnabled,
		HeapId	InTraceParentHeapId
	)

◆ ~FD3D12PoolAllocator()

FD3D12PoolAllocator::~FD3D12PoolAllocator ( )

Member Function Documentation

◆ AllocateResource()

void FD3D12PoolAllocator::AllocateResource	(	uint32	GPUIndex,
		D3D12_HEAP_TYPE	InHeapType,
		const FD3D12ResourceDesc &	InDesc,
		uint64	InSize,
		uint32	InAllocationAlignment,
		ED3D12Access	InInitialD3D12Access,
		ED3D12ResourceStateMode	InResourceStateMode,
		ED3D12Access	InDefaultD3D12Access,
		const D3D12_CLEAR_VALUE *	InClearValue,
		const TCHAR *	InName,
		FD3D12ResourceLocation &	ResourceLocation
	)

overridevirtual

Implements ID3D12ResourceAllocator.

◆ AllocDefaultResource()

void FD3D12PoolAllocator::AllocDefaultResource	(	D3D12_HEAP_TYPE	InHeapType,
		const FD3D12ResourceDesc &	InDesc,
		EBufferUsageFlags	InBufferUsage,
		ED3D12ResourceStateMode	InResourceStateMode,
		ED3D12Access	InCreateD3D12Access,
		uint32	InAlignment,
		const TCHAR *	InName,
		FD3D12ResourceLocation &	ResourceLocation
	)

◆ CleanUpAllocations()

void FD3D12PoolAllocator::CleanUpAllocations	(	uint64	InFrameLag,
		bool	bForceFree = `false`
	)

◆ CreateNewPool()

FRHIMemoryPool * FD3D12PoolAllocator::CreateNewPool	(	int16	InPoolIndex,
		uint32	InMinimumAllocationSize,
		ERHIPoolResourceTypes	InAllocationResourceType
	)

overrideprotectedvirtual

Implements FRHIPoolAllocator.

◆ CreatePlacedResource()

FD3D12Resource * FD3D12PoolAllocator::CreatePlacedResource	(	const FRHIPoolAllocationData &	InAllocationData,
		const FD3D12ResourceDesc &	InDesc,
		ED3D12Access	InInitialD3D12Access,
		ED3D12ResourceStateMode	InResourceStateMode,
		ED3D12Access	InDefaultD3D12Access,
		const D3D12_CLEAR_VALUE *	InClearValue,
		const TCHAR *	InName
	)

protectedvirtual

◆ DeallocateResource()

void FD3D12PoolAllocator::DeallocateResource	(	FD3D12ResourceLocation &	ResourceLocation,
		bool	bDefragFree = `false`
	)

virtual

◆ FlushPendingCopyOps()

void FD3D12PoolAllocator::FlushPendingCopyOps ( FD3D12CommandContext & InCommandContext )

◆ GetAllocationStrategy()

EResourceAllocationStrategy FD3D12PoolAllocator::GetAllocationStrategy ( ) const

inline

◆ GetBackingHeapAndAllocationOffsetInBytes() [1/2]

FD3D12HeapAndOffset FD3D12PoolAllocator::GetBackingHeapAndAllocationOffsetInBytes ( const FRHIPoolAllocationData & InAllocationData ) const

◆ GetBackingHeapAndAllocationOffsetInBytes() [2/2]

FD3D12HeapAndOffset FD3D12PoolAllocator::GetBackingHeapAndAllocationOffsetInBytes ( FD3D12ResourceLocation & InResourceLocation ) const

◆ GetBackingResource()

FD3D12Resource * FD3D12PoolAllocator::GetBackingResource ( FD3D12ResourceLocation & InResourceLocation ) const

◆ GetPendingDeleteRequestSize()

uint64 FD3D12PoolAllocator::GetPendingDeleteRequestSize ( ) const

inline

◆ GetResourceAllocationStrategy()

EResourceAllocationStrategy FD3D12PoolAllocator::GetResourceAllocationStrategy	(	D3D12_RESOURCE_FLAGS	InResourceFlags,
		ED3D12ResourceStateMode	InResourceStateMode,
		uint32	Alignment
	)

static

◆ GetResourceAllocatorInitConfig()

FD3D12ResourceInitConfig FD3D12PoolAllocator::GetResourceAllocatorInitConfig	(	D3D12_HEAP_TYPE	InHeapType,
		D3D12_RESOURCE_FLAGS	InResourceFlags,
		EBufferUsageFlags	InBufferUsage
	)

static

◆ HandleDefragRequest()

bool FD3D12PoolAllocator::HandleDefragRequest	(	FRHIContextArray const &	Contexts,
		FRHIPoolAllocationData *	InSourceBlock,
		FRHIPoolAllocationData &	InTmpTargetBlock
	)

overrideprotectedvirtual

Implements FRHIPoolAllocator.

◆ IsOwner()

bool FD3D12PoolAllocator::IsOwner ( FD3D12ResourceLocation & ResourceLocation ) const

inline

◆ SupportsAllocation()

bool FD3D12PoolAllocator::SupportsAllocation	(	D3D12_HEAP_TYPE	InHeapType,
		D3D12_RESOURCE_FLAGS	InResourceFlags,
		EBufferUsageFlags	InBufferUsage,
		ED3D12ResourceStateMode	InResourceStateMode,
		uint32	Alignment
	)		const

◆ TransferOwnership()

void FD3D12PoolAllocator::TransferOwnership	(	FD3D12ResourceLocation &	InSource,
		FD3D12ResourceLocation &	InDest
	)

◆ UpdateAllocationTracking()

void FD3D12PoolAllocator::UpdateAllocationTracking	(	FD3D12ResourceLocation &	InAllocation,
		EAllocationType	InAllocationType
	)

protectedvirtual

Member Data Documentation

◆ AllocationDataPool

TArray<FRHIPoolAllocationData*> FD3D12PoolAllocator::AllocationDataPool

protected

◆ AllocationStrategy

EResourceAllocationStrategy FD3D12PoolAllocator::AllocationStrategy

protected

◆ FrameFencedOperations

TArray<FrameFencedAllocationData> FD3D12PoolAllocator::FrameFencedOperations

protected

◆ InitConfig

const FD3D12ResourceInitConfig FD3D12PoolAllocator::InitConfig

protected

◆ Name

const FString FD3D12PoolAllocator::Name

protected

◆ PendingCopyOps

TArray<FD3D12VRAMCopyOperation> FD3D12PoolAllocator::PendingCopyOps

protected

◆ PendingDeleteRequestSize

uint64 FD3D12PoolAllocator::PendingDeleteRequestSize = 0

protected

The documentation for this class was generated from the following files:

Engine/Source/Runtime/D3D12RHI/Private/D3D12PoolAllocator.h
Engine/Source/Runtime/D3D12RHI/Private/D3D12PoolAllocator.cpp
