FMediaTextureResource Class Reference

#include <MediaTextureResource.h>

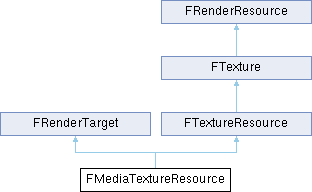

Inheritance diagram for FMediaTextureResource:

Classes
struct	FRenderParams

Public Member Functions
MEDIAASSETS_API	FMediaTextureResource (UMediaTexture &InOwner, FIntPoint &InOwnerDim, SIZE_T &InOwnerSize, FLinearColor InClearColor, FGuid InTextureGuid, bool bEnableGenMips, uint8 InNumMips, UE::Color::EColorSpace OverrideColorSpaceType)
virtual	~FMediaTextureResource ()
void	Render (const FRenderParams &Params)
void	FlushPendingData ()
void	SetJustInTimeRenderParams (const FRenderParams &InJustInTimeRenderParams)
void	ResetJustInTimeRenderParams ()
void	JustInTimeRender ()
virtual FIntPoint	GetSizeXY () const override
virtual FString	GetFriendlyName () const override
virtual uint32	GetSizeX () const override
virtual uint32	GetSizeY () const override
virtual void	InitRHI (FRHICommandListBase &RHICmdList) override
virtual void	ReleaseRHI () override
Public Member Functions inherited from FRenderTarget
ENGINE_API	FRenderTarget ()
virtual ENGINE_API	~FRenderTarget ()
virtual ENGINE_API const FTextureRHIRef &	GetRenderTargetTexture () const
virtual ENGINE_API FUnorderedAccessViewRHIRef	GetRenderTargetUAV () const
virtual ENGINE_API FRDGTextureRef	GetRenderTargetTexture (FRDGBuilder &GraphBuilder) const
virtual ENGINE_API const FTextureRHIRef &	GetShaderResourceTexture () const
virtual ENGINE_API float	GetDisplayGamma () const
virtual EDisplayColorGamut	GetDisplayColorGamut () const
virtual EDisplayOutputFormat	GetDisplayOutputFormat () const
virtual bool	GetSceneHDREnabled () const
virtual void	ProcessToggleFreezeCommand ()
virtual bool	HasToggleFreezeCommand ()
virtual ENGINE_API bool	ReadPixels (TArray< FColor > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))
ENGINE_API bool	ReadPixelsPtr (FColor *OutImageBytes, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))
ENGINE_API bool	ReadFloat16Pixels (TArray< FFloat16Color > &OutImageData, ECubeFace CubeFace)
virtual ENGINE_API bool	ReadFloat16Pixels (TArray< FFloat16Color > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))
virtual ENGINE_API bool	ReadLinearColorPixels (TArray< FLinearColor > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_MinMax, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))
ENGINE_API bool	ReadLinearColorPixelsPtr (FLinearColor *OutImageBytes, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_MinMax, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))
virtual FRHIGPUMask	GetGPUMask (FRHICommandListImmediate &RHICmdList) const
Public Member Functions inherited from FTextureResource
	FTextureResource ()
virtual	~FTextureResource ()
virtual bool	IsProxy () const
virtual FTexture2DResource *	GetTexture2DResource ()
virtual FTexture3DResource *	GetTexture3DResource ()
virtual FTexture2DArrayResource *	GetTexture2DArrayResource ()
virtual FStreamableTextureResource *	GetStreamableTextureResource ()
virtual FVirtualTexture2DResource *	GetVirtualTexture2DResource ()
virtual const FTexture2DResource *	GetTexture2DResource () const
virtual const FTexture3DResource *	GetTexture3DResource () const
virtual const FTexture2DArrayResource *	GetTexture2DArrayResource () const
virtual const FStreamableTextureResource *	GetStreamableTextureResource () const
virtual const FVirtualTexture2DResource *	GetVirtualTexture2DResource () const
int32	GetCurrentMipCount () const
bool	IsTextureRHIPartiallyResident () const
FRHITexture *	GetTexture2DRHI () const
FRHITexture *	GetTexture3DRHI () const
FRHITexture *	GetTexture2DArrayRHI () const
void	SetTextureReference (FRHITextureReference *TextureReference)
FRHITextureReference *	GetTextureReference () const
Public Member Functions inherited from FTexture
RENDERCORE_API	FTexture ()
virtual RENDERCORE_API	~FTexture ()
RENDERCORE_API	FTexture (const FTexture &)
RENDERCORE_API	FTexture (FTexture &&)
RENDERCORE_API FTexture &	operator= (const FTexture &Other)
RENDERCORE_API FTexture &	operator= (FTexture &&Other)
const FTextureRHIRef &	GetTextureRHI ()
virtual RENDERCORE_API uint32	GetSizeZ () const
Public Member Functions inherited from FRenderResource
RENDERCORE_API	FRenderResource ()
RENDERCORE_API	FRenderResource (ERHIFeatureLevel::Type InFeatureLevel)
RENDERCORE_API	FRenderResource (const FRenderResource &)
RENDERCORE_API	FRenderResource (FRenderResource &&)
RENDERCORE_API FRenderResource &	operator= (const FRenderResource &Other)
RENDERCORE_API FRenderResource &	operator= (FRenderResource &&Other)
virtual RENDERCORE_API	~FRenderResource ()
virtual RENDERCORE_API void	InitResource (FRHICommandListBase &RHICmdList)
virtual RENDERCORE_API void	ReleaseResource ()
RENDERCORE_API void	UpdateRHI (FRHICommandListBase &RHICmdList)
bool	IsInitialized () const
int32	GetListIndex () const
EInitPhase	GetInitPhase () const
void	SetOwnerName (FName InOwnerName)
FName	GetOwnerName () const
void	SetResourceName (FName InResourceName)
FName	GetResourceName () const

Protected Member Functions
void	ClearTexture (FRHICommandListImmediate &RHICmdList, const FLinearColor &ClearColor, bool SrgbOutput)
void	ConvertSample (FRHICommandListImmediate &RHICmdList, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &Sample, const FLinearColor &ClearColor, uint8 InTargetNumMips)
void	ConvertTextureToOutput (FRHICommandListImmediate &RHICmdList, FRHITexture *InputTexture, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &Sample)
void	CopySample (FRHICommandListImmediate &RHICmdList, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &Sample, const FLinearColor &ClearColor, uint8 InTargetNumMips, const FGuid &TextureGUID)
void	UpdateResourceSize ()
void	UpdateTextureReference (FRHICommandListImmediate &RHICmdList, FRHITexture *NewTexture)
void	CreateIntermediateRenderTarget (FRHICommandListImmediate &RHICmdList, const FIntPoint &InDim, EPixelFormat InPixelFormat, bool bInSRGB, const FLinearColor &InClearColor, uint8 InNumMips, bool bNeedsUAVSupport)
void	CacheNextAvailableSampleTime (const TSharedPtr< FMediaTextureSampleSource, ESPMode::ThreadSafe > &InSampleQueue) const
void	SetupSampler ()
void	CopyFromExternalTexture (FRHICommandListImmediate &RHICmdList, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &Sample, const FGuid &TextureGUID)
bool	RequiresConversion (const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &Sample, uint8 InTargetNumMips) const
bool	RequiresConversion (const FTextureRHIRef &SampleTexture, const FIntPoint &OutputDim, uint8 InTargetNumMips) const
void	GetColorSpaceConversionMatrixForSample (const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > Sample, FMatrix44f &ColorSpaceMtx)
Protected Member Functions inherited from FRenderResource
void	SetFeatureLevel (const FStaticFeatureLevel InFeatureLevel)
const FStaticFeatureLevel	GetFeatureLevel () const
bool	HasValidFeatureLevel () const
template<typename T >
FBufferRHIRef	CreateRHIBuffer (FRHICommandListBase &RHICmdList, T &InOutResourceObject, uint32 ResourceCount, EBufferUsageFlags InBufferUsageFlags, const TCHAR *InDebugName)
void	SetInitPhase (EInitPhase InInitPhase)

Additional Inherited Members
Public Types inherited from FRenderResource
enum class	EInitPhase : uint8 { Pre , Default , MAX }
Static Public Member Functions inherited from FRenderTarget
static float	GetEngineDisplayGamma ()
Static Public Member Functions inherited from FRenderResource
static RENDERCORE_API void	ReleaseRHIForAllResources ()
static RENDERCORE_API void	InitPreRHIResources ()
static RENDERCORE_API void	ChangeFeatureLevel (ERHIFeatureLevel::Type NewFeatureLevel)
static RENDERCORE_API FName	SetScopeName (FName Name)
Public Attributes inherited from FTexture
FTextureRHIRef	TextureRHI
FSamplerStateRHIRef	SamplerStateRHI
FSamplerStateRHIRef	DeferredPassSamplerStateRHI
double	LastRenderTime = -FLT_MAX
FMipBiasFade	MipBiasFade
bool	bGreyScaleFormat = false
bool	bIgnoreGammaConversions = false
bool	bSRGB = false
Public Attributes inherited from FRenderResource
ERenderResourceState	ResourceState = ERenderResourceState::Default
Static Protected Member Functions inherited from FTexture
static RENDERCORE_API FRHISamplerState *	GetOrCreateSamplerState (const FSamplerStateInitializerRHI &Initializer)
Static Protected Member Functions inherited from FRenderResource
static RENDERCORE_API FRHICommandListBase &	GetImmediateCommandList ()
Protected Attributes inherited from FRenderTarget
FTextureRHIRef	RenderTargetTextureRHI
Protected Attributes inherited from FTextureResource
FTextureReferenceRHIRef	TextureReferenceRHI

Detailed Description

Texture resource type for media textures.

Constructor & Destructor Documentation

FMediaTextureResource()

FMediaTextureResource::FMediaTextureResource	(	UMediaTexture &	InOwner,
		FIntPoint &	InOwnerDim,
		SIZE_T &	InOwnerSize,
		FLinearColor	InClearColor,
		FGuid	InTextureGuid,
		bool	bEnableGenMips,
		uint8	InNumMips,
		UE::Color::EColorSpace	OverrideColorSpaceType
	)

Creates and initializes a new instance.

Parameters

InOwner	The Movie texture object to create a resource for (must not be nullptr).
InOwnerDim	Reference to the width and height of the texture that owns this resource (will be updated by resource).
InOwnerSize	Reference to the size in bytes of the texture that owns this resource (will be updated by resource).
InClearColor	The initial clear color.
InTextureGuid	The initial external texture GUID.
bEnableGenMips	If true mips generation will be enabled (possibly optimizing for NumMips == 1 case)
InNumMips	The initial number of mips to be generated for the output texture

~FMediaTextureResource()

virtual FMediaTextureResource::~FMediaTextureResource ( )

inlinevirtual

Virtual destructor.

Member Function Documentation

CacheNextAvailableSampleTime()

void FMediaTextureResource::CacheNextAvailableSampleTime ( const TSharedPtr< FMediaTextureSampleSource, ESPMode::ThreadSafe > &  InSampleQueue ) const

protected

Caches next available sample from queue in MediaTexture owner to keep single consumer access

Parameters

InSampleQueue

SampleQueue to query sample information from

ClearTexture()

void FMediaTextureResource::ClearTexture ( FRHICommandListImmediate &  RHICmdList, const FLinearColor &  ClearColor, bool  SrgbOutput  )

protected

Clear the texture using the given clear color.

Parameters

ClearColor	The clear color to use.
SrgbOutput	Whether the output texture is in sRGB color space.

ConvertSample()

void FMediaTextureResource::ConvertSample ( FRHICommandListImmediate &  RHICmdList, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &  Sample, const FLinearColor &  ClearColor, uint8  InTargetNumMips  )

protected

Render the given texture sample by converting it on the GPU.

Parameters

Sample	The texture sample to convert.
ClearColor	The clear color to use for the output texture.
Number	of mips

See also

CopySample

ConvertTextureToOutput()

void FMediaTextureResource::ConvertTextureToOutput ( FRHICommandListImmediate &  RHICmdList, FRHITexture *  InputTexture, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &  Sample  )

protected

CopyFromExternalTexture()

void FMediaTextureResource::CopyFromExternalTexture ( FRHICommandListImmediate &  RHICmdList, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &  Sample, const FGuid &  TextureGUID  )

protected

Copy to local buffer from external texture

CopySample()

void FMediaTextureResource::CopySample ( FRHICommandListImmediate &  RHICmdList, const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &  Sample, const FLinearColor &  ClearColor, uint8  InTargetNumMips, const FGuid &  TextureGUID  )

protected

Render the given texture sample by using it as or copying it to the render target.

Parameters

Sample	The texture sample to copy.
ClearColor	The clear color to use for the output texture.
SrgbOutput	Whether the output texture is in sRGB color space.
Number	of mips

See also

ConvertSample

CreateIntermediateRenderTarget()

void FMediaTextureResource::CreateIntermediateRenderTarget ( FRHICommandListImmediate &  RHICmdList, const FIntPoint &  InDim, EPixelFormat  InPixelFormat, bool  bInSRGB, const FLinearColor &  InClearColor, uint8  InNumMips, bool  bNeedsUAVSupport  )

protected

Create/update intermediate render target as needed. If no color conversion is needed, the RT will be used as the output.

FlushPendingData()

void FMediaTextureResource::FlushPendingData

(

)

Flush out any pending data like texture samples waiting for retirement etc.

Note

this call can stall for noticable amounts of time under certain circumstances

GetColorSpaceConversionMatrixForSample()

void FMediaTextureResource::GetColorSpaceConversionMatrixForSample ( const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe >  Sample, FMatrix44f &  ColorSpaceMtx  )

protected

Compute CS conversion martix based on sample's data

GetFriendlyName()

FString FMediaTextureResource::GetFriendlyName ( ) const

overridevirtual

Returns

The resource's friendly name. Typically a UObject name.

Reimplemented from FTexture.

GetSizeX()

uint32 FMediaTextureResource::GetSizeX ( ) const

overridevirtual

Returns the width of the texture in pixels.

Reimplemented from FTexture.

GetSizeXY()

FIntPoint FMediaTextureResource::GetSizeXY ( ) const

overridevirtual

Implements FRenderTarget.

GetSizeY()

uint32 FMediaTextureResource::GetSizeY ( ) const

overridevirtual

Returns the height of the texture in pixels.

Reimplemented from FTexture.

InitRHI()

void FMediaTextureResource::InitRHI ( FRHICommandListBase &  RHICmdList )

overridevirtual

Initializes the RHI resources used by this resource. Called when entering the state where both the resource and the RHI have been initialized. This is only called by the rendering thread.

Reimplemented from FRenderResource.

JustInTimeRender()

void FMediaTextureResource::JustInTimeRender

(

)

Render the texture using the cached FRenderParams. Call from render thread only.

ReleaseRHI()

void FMediaTextureResource::ReleaseRHI ( )

overridevirtual

Releases the RHI resources used by this resource. Called when leaving the state where both the resource and the RHI have been initialized. This is only called by the rendering thread.

Reimplemented from FTexture.

Render()

void FMediaTextureResource::Render

(

const FRenderParams &

Params

)

Render the texture resource.

This method is called on the render thread by the MediaTexture that owns this texture resource to clear or redraw the resource using the given parameters.

Parameters

Params

Render parameters.

RequiresConversion() [1/2]

bool FMediaTextureResource::RequiresConversion ( const FTextureRHIRef &  SampleTexture, const FIntPoint &  OutputDim, uint8  InTargetNumMips  ) const

protected

RequiresConversion() [2/2]

bool FMediaTextureResource::RequiresConversion ( const TSharedPtr< IMediaTextureSample, ESPMode::ThreadSafe > &  Sample, uint8  InTargetNumMips  ) const

protected

ResetJustInTimeRenderParams()

void FMediaTextureResource::ResetJustInTimeRenderParams

(

)

Clears the just in time render params, in which case calling JustInTimeRender() would have no effect

SetJustInTimeRenderParams()

void FMediaTextureResource::SetJustInTimeRenderParams

(

const FRenderParams &

InJustInTimeRenderParams

)

Sets the just in time render parameters for later use when JustInTimeRender() gets called

SetupSampler()

void FMediaTextureResource::SetupSampler ( )

protected

Setup sampler state from owner's settings as needed

UpdateResourceSize()

void FMediaTextureResource::UpdateResourceSize ( )

protected

Calculates the current resource size and notifies the owner texture.

UpdateTextureReference()

void FMediaTextureResource::UpdateTextureReference ( FRHICommandListImmediate &  RHICmdList, FRHITexture *  NewTexture  )

protected

Set the owner's texture reference to the given texture.

Parameters

NewTexture

The texture to set.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/MediaAssets/Private/Misc/MediaTextureResource.h
• Engine/Source/Runtime/MediaAssets/Private/Misc/MediaTextureResource.cpp
