ISceneViewExtension Class Reference

#include <SceneViewExtension.h>

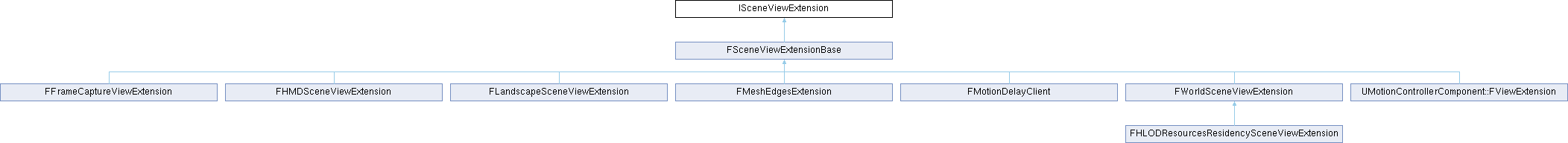

Inheritance diagram for ISceneViewExtension:

Public Types
enum class	EPostProcessingPass : uint32 {   BeforeDOF , AfterDOF , TranslucencyAfterDOF , SSRInput ,   ReplacingTonemapper , MotionBlur , Tonemap , FXAA ,   SMAA , VisualizeDepthOfField , MAX }

Public Member Functions
virtual void	SetupViewFamily (FSceneViewFamily &InViewFamily)
virtual void	SetupView (FSceneViewFamily &InViewFamily, FSceneView &InView)
virtual void	SetupViewPoint (APlayerController *Player, FMinimalViewInfo &InViewInfo)
virtual void	SetupViewProjectionMatrix (FSceneViewProjectionData &InOutProjectionData)
virtual void	BeginRenderViewFamily (FSceneViewFamily &InViewFamily)
virtual void	PostCreateSceneRenderer (const FSceneViewFamily &InViewFamily, ISceneRenderer *Renderer)
virtual void	PreRenderViewFamily_RenderThread (FRDGBuilder &GraphBuilder, FSceneViewFamily &InViewFamily)
virtual void	PreRenderView_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView)
virtual void	PreInitViews_RenderThread (FRDGBuilder &GraphBuilder)
virtual void	PreRenderBasePass_RenderThread (FRDGBuilder &GraphBuilder, bool bDepthBufferIsPopulated)
virtual void	PostRenderBasePassDeferred_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView, const FRenderTargetBindingSlots &RenderTargets, TRDGUniformBufferRef< FSceneTextureUniformParameters > SceneTextures)
virtual void	PostRenderBasePassMobile_RenderThread (FRHICommandList &RHICmdList, FSceneView &InView)
virtual void	PostTLASBuild_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView)
virtual void	PrePostProcessPass_RenderThread (FRDGBuilder &GraphBuilder, const FSceneView &InView, const FPostProcessingInputs &Inputs)
virtual void	PrePostProcessPassMobile_RenderThread (FRDGBuilder &GraphBuilder, const FSceneView &InView, const FMobilePostProcessingInputs &Inputs)
virtual void	SubscribeToPostProcessingPass (EPostProcessingPass Pass, const FSceneView &InView, FPostProcessingPassDelegateArray &InOutPassCallbacks, bool bIsPassEnabled)
virtual void	PostRenderViewFamily_RenderThread (FRDGBuilder &GraphBuilder, FSceneViewFamily &InViewFamily)
virtual void	PostRenderView_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView)
virtual int32	GetPriority () const
virtual bool	IsActiveThisFrame (const FSceneViewExtensionContext &Context) const
virtual ESceneViewExtensionFlags	GetFlags () const
virtual void	SubscribeToPostProcessingPass (EPostProcessingPass Pass, FPostProcessingPassDelegateArray &InOutPassCallbacks, bool bIsPassEnabled)
	Deprecated APIs - These are no longer called and must be converted to restore functionality.

Protected Member Functions
virtual bool	IsActiveThisFrame_Internal (const FSceneViewExtensionContext &Context) const

Member Enumeration Documentation

EPostProcessingPass

enum class ISceneViewExtension::EPostProcessingPass : uint32

strong

Enumerator
BeforeDOF
AfterDOF
TranslucencyAfterDOF
SSRInput
ReplacingTonemapper
MotionBlur
Tonemap
FXAA
SMAA
VisualizeDepthOfField
MAX

Member Function Documentation

BeginRenderViewFamily()

virtual void ISceneViewExtension::BeginRenderViewFamily ( FSceneViewFamily &  InViewFamily )

inlinevirtual

Called on game thread when view family is about to be rendered.

Reimplemented in FFrameCaptureViewExtension, FHLODResourcesResidencySceneViewExtension, UMotionControllerComponent::FViewExtension, FMotionDelayClient, and FLandscapeSceneViewExtension.

GetFlags()

virtual ESceneViewExtensionFlags ISceneViewExtension::GetFlags ( ) const

inlinevirtual

Query any flags to communicate state or execution requirements externally.

GetPriority()

virtual int32 ISceneViewExtension::GetPriority ( ) const

inlinevirtual

Called to determine view extensions priority in relation to other view extensions, higher comes first

Reimplemented in UMotionControllerComponent::FViewExtension, and FMotionDelayClient.

IsActiveThisFrame()

virtual bool ISceneViewExtension::IsActiveThisFrame ( const FSceneViewExtensionContext &  Context ) const

inlinevirtual

Returning false disables the extension for the current frame in the given context. This will be queried each frame to determine if the extension wants to run.

Reimplemented in FSceneViewExtensionBase.

IsActiveThisFrame_Internal()

virtual bool ISceneViewExtension::IsActiveThisFrame_Internal ( const FSceneViewExtensionContext &  Context ) const

inlineprotectedvirtual

Called if no IsActive functors returned a definitive answer to whether this extension should be active this frame.

Reimplemented in FFrameCaptureViewExtension, UMotionControllerComponent::FViewExtension, FWorldSceneViewExtension, FHMDSceneViewExtension, and FMotionDelayClient.

PostCreateSceneRenderer()

virtual void ISceneViewExtension::PostCreateSceneRenderer ( const FSceneViewFamily &  InViewFamily, ISceneRenderer *  Renderer  )

inlinevirtual

Called on game thread after the scene renderers have been created

Reimplemented in FMeshEdgesExtension.

PostRenderBasePassDeferred_RenderThread()

virtual void ISceneViewExtension::PostRenderBasePassDeferred_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneView &  InView, const FRenderTargetBindingSlots &  RenderTargets, TRDGUniformBufferRef< FSceneTextureUniformParameters >  SceneTextures  )

inlinevirtual

Called right after Base Pass rendering finished when using the deferred renderer.

PostRenderBasePassMobile_RenderThread()

virtual void ISceneViewExtension::PostRenderBasePassMobile_RenderThread ( FRHICommandList &  RHICmdList, FSceneView &  InView  )

inlinevirtual

Called right after Base Pass rendering finished when using the mobile renderer.

PostRenderView_RenderThread()

virtual void ISceneViewExtension::PostRenderView_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneView &  InView  )

inlinevirtual

Allows to render content after the 3D content scene, useful for debugging

PostRenderViewFamily_RenderThread()

virtual void ISceneViewExtension::PostRenderViewFamily_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneViewFamily &  InViewFamily  )

inlinevirtual

Allows to render content after the 3D content scene, useful for debugging

Reimplemented in FMotionDelayClient.

PostTLASBuild_RenderThread()

virtual void ISceneViewExtension::PostTLASBuild_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneView &  InView  )

inlinevirtual

Called after all the TLAS has been built.

PreInitViews_RenderThread()

virtual void ISceneViewExtension::PreInitViews_RenderThread ( FRDGBuilder &  GraphBuilder )

inlinevirtual

Called on render thread prior to initializing views.

Reimplemented in FLandscapeSceneViewExtension.

PrePostProcessPass_RenderThread()

virtual void ISceneViewExtension::PrePostProcessPass_RenderThread ( FRDGBuilder &  GraphBuilder, const FSceneView &  InView, const FPostProcessingInputs &  Inputs  )

inlinevirtual

Called right before Post Processing rendering begins

PrePostProcessPassMobile_RenderThread()

virtual void ISceneViewExtension::PrePostProcessPassMobile_RenderThread ( FRDGBuilder &  GraphBuilder, const FSceneView &  InView, const FMobilePostProcessingInputs &  Inputs  )

inlinevirtual

Called right before Post Processing rendering begins for the mobile renderer

PreRenderBasePass_RenderThread()

virtual void ISceneViewExtension::PreRenderBasePass_RenderThread ( FRDGBuilder &  GraphBuilder, bool  bDepthBufferIsPopulated  )

inlinevirtual

Called on render thread right before Base Pass rendering. bDepthBufferIsPopulated is true if anything has been rendered to the depth buffer. This does not need to be a full depth prepass.

PreRenderView_RenderThread()

virtual void ISceneViewExtension::PreRenderView_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneView &  InView  )

inlinevirtual

Called on render thread at the start of rendering, for each view, after PreRenderViewFamily_RenderThread call.

Reimplemented in FFrameCaptureViewExtension, and FLandscapeSceneViewExtension.

PreRenderViewFamily_RenderThread()

virtual void ISceneViewExtension::PreRenderViewFamily_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneViewFamily &  InViewFamily  )

inlinevirtual

Called on render thread at the start of rendering.

Reimplemented in FFrameCaptureViewExtension, UMotionControllerComponent::FViewExtension, and FLandscapeSceneViewExtension.

SetupView()

virtual void ISceneViewExtension::SetupView ( FSceneViewFamily &  InViewFamily, FSceneView &  InView  )

inlinevirtual

Called on game thread when creating the view.

Reimplemented in FHLODResourcesResidencySceneViewExtension, and FFrameCaptureViewExtension.

SetupViewFamily()

virtual void ISceneViewExtension::SetupViewFamily ( FSceneViewFamily &  InViewFamily )

inlinevirtual

Called on game thread when creating the view family.

Reimplemented in FHLODResourcesResidencySceneViewExtension, and FFrameCaptureViewExtension.

SetupViewPoint()

virtual void ISceneViewExtension::SetupViewPoint ( APlayerController *  Player, FMinimalViewInfo &  InViewInfo  )

inlinevirtual

Called when creating the viewpoint, before culling, in case an external tracking device needs to modify the base location of the view

SetupViewProjectionMatrix()

virtual void ISceneViewExtension::SetupViewProjectionMatrix ( FSceneViewProjectionData &  InOutProjectionData )

inlinevirtual

Called when creating the view, in case non-stereo devices need to update projection matrix.

SubscribeToPostProcessingPass() [1/2]

virtual void ISceneViewExtension::SubscribeToPostProcessingPass ( EPostProcessingPass  Pass, const FSceneView &  InView, FPostProcessingPassDelegateArray &  InOutPassCallbacks, bool  bIsPassEnabled  )

inlinevirtual

This will be called at the beginning of post processing to make sure that each view extension gets a chance to subscribe to a post-processing pass event.

• The pass MUST write to the override output texture if it is active (this occurs when the pass is the last in the post processing chain writing to the back buffer). For performance reasons it is recommended to only subscribe to a pass when the pass will produce a GPU resource.

SubscribeToPostProcessingPass() [2/2]

virtual void ISceneViewExtension::SubscribeToPostProcessingPass ( EPostProcessingPass  Pass, FPostProcessingPassDelegateArray &  InOutPassCallbacks, bool  bIsPassEnabled  )

inlinevirtual

Deprecated APIs - These are no longer called and must be converted to restore functionality.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Engine/Public/SceneViewExtension.h
