FLandscapeSceneViewExtension Class Reference

#include <LandscapeRender.h>

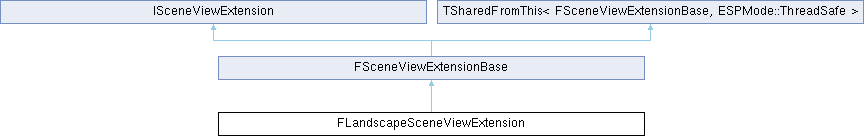

Inheritance diagram for FLandscapeSceneViewExtension:

Public Member Functions
	FLandscapeSceneViewExtension (const FAutoRegister &AutoReg)
virtual	~FLandscapeSceneViewExtension ()
virtual void	BeginRenderViewFamily (FSceneViewFamily &InViewFamily) override
virtual void	PreRenderViewFamily_RenderThread (FRDGBuilder &GraphBuilder, FSceneViewFamily &InViewFamily) override
virtual void	PreRenderView_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView) override
virtual void	PreInitViews_RenderThread (FRDGBuilder &GraphBuilder) override
int32	GetNumViewsWithShowCollision () const
Public Member Functions inherited from FSceneViewExtensionBase
ENGINE_API	FSceneViewExtensionBase (const FAutoRegister &)
virtual ENGINE_API	~FSceneViewExtensionBase ()
virtual ENGINE_API bool	IsActiveThisFrame (const FSceneViewExtensionContext &Context) const override final
Public Member Functions inherited from ISceneViewExtension
virtual void	SetupViewFamily (FSceneViewFamily &InViewFamily)
virtual void	SetupView (FSceneViewFamily &InViewFamily, FSceneView &InView)
virtual void	SetupViewPoint (APlayerController *Player, FMinimalViewInfo &InViewInfo)
virtual void	SetupViewProjectionMatrix (FSceneViewProjectionData &InOutProjectionData)
virtual void	PostCreateSceneRenderer (const FSceneViewFamily &InViewFamily, ISceneRenderer *Renderer)
virtual void	PreRenderBasePass_RenderThread (FRDGBuilder &GraphBuilder, bool bDepthBufferIsPopulated)
virtual void	PostRenderBasePassDeferred_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView, const FRenderTargetBindingSlots &RenderTargets, TRDGUniformBufferRef< FSceneTextureUniformParameters > SceneTextures)
virtual void	PostRenderBasePassMobile_RenderThread (FRHICommandList &RHICmdList, FSceneView &InView)
virtual void	PostTLASBuild_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView)
virtual void	PrePostProcessPass_RenderThread (FRDGBuilder &GraphBuilder, const FSceneView &InView, const FPostProcessingInputs &Inputs)
virtual void	PrePostProcessPassMobile_RenderThread (FRDGBuilder &GraphBuilder, const FSceneView &InView, const FMobilePostProcessingInputs &Inputs)
virtual void	SubscribeToPostProcessingPass (EPostProcessingPass Pass, const FSceneView &InView, FPostProcessingPassDelegateArray &InOutPassCallbacks, bool bIsPassEnabled)
virtual void	PostRenderViewFamily_RenderThread (FRDGBuilder &GraphBuilder, FSceneViewFamily &InViewFamily)
virtual void	PostRenderView_RenderThread (FRDGBuilder &GraphBuilder, FSceneView &InView)
virtual int32	GetPriority () const
virtual ESceneViewExtensionFlags	GetFlags () const
virtual void	SubscribeToPostProcessingPass (EPostProcessingPass Pass, FPostProcessingPassDelegateArray &InOutPassCallbacks, bool bIsPassEnabled)
	Deprecated APIs - These are no longer called and must be converted to restore functionality.
Public Member Functions inherited from TSharedFromThis< FSceneViewExtensionBase, ESPMode::ThreadSafe >
TSharedRef< FSceneViewExtensionBase, Mode >	AsShared ()
TSharedRef< FSceneViewExtensionBase const, Mode >	AsShared () const
TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const
TWeakPtr< FSceneViewExtensionBase, Mode >	AsWeak ()
TWeakPtr< FSceneViewExtensionBase const, Mode >	AsWeak () const
TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const
void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const
void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const
UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Static Public Member Functions
static LANDSCAPE_API const TMap< uint32, FLandscapeRenderSystem * > &	GetLandscapeRenderSystems ()
static TArray< FLandscapeRenderSystem * >	GetLandscapeRenderSystems (const class FSceneInterface *InScene)
static FLandscapeRenderSystem *	GetLandscapeRenderSystem (const class FSceneInterface *InScene, uint32 InLandscapeKey)

Additional Inherited Members
Public Types inherited from ISceneViewExtension
enum class	EPostProcessingPass : uint32 {   BeforeDOF , AfterDOF , TranslucencyAfterDOF , SSRInput ,   ReplacingTonemapper , MotionBlur , Tonemap , FXAA ,   SMAA , VisualizeDepthOfField , MAX }
Public Attributes inherited from FSceneViewExtensionBase
TArray< FSceneViewExtensionIsActiveFunctor >	IsActiveThisFrameFunctions
Protected Member Functions inherited from ISceneViewExtension
virtual bool	IsActiveThisFrame_Internal (const FSceneViewExtensionContext &Context) const
Protected Member Functions inherited from TSharedFromThis< FSceneViewExtensionBase, ESPMode::ThreadSafe >
	TSharedFromThis ()
	TSharedFromThis (TSharedFromThis const &)
UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)
	~TSharedFromThis ()
Static Protected Member Functions inherited from TSharedFromThis< FSceneViewExtensionBase, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)
static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Constructor & Destructor Documentation

FLandscapeSceneViewExtension()

FLandscapeSceneViewExtension::FLandscapeSceneViewExtension

(

const FAutoRegister &

AutoReg

)

~FLandscapeSceneViewExtension()

FLandscapeSceneViewExtension::~FLandscapeSceneViewExtension ( )

virtual

Member Function Documentation

BeginRenderViewFamily()

void FLandscapeSceneViewExtension::BeginRenderViewFamily ( FSceneViewFamily &  InViewFamily )

overridevirtual

Called on game thread when view family is about to be rendered.

Reimplemented from ISceneViewExtension.

GetLandscapeRenderSystem()

FLandscapeRenderSystem * FLandscapeSceneViewExtension::GetLandscapeRenderSystem ( const class FSceneInterface *  InScene, uint32  InLandscapeKey  )

static

GetLandscapeRenderSystems() [1/2]

const TMap< uint32, FLandscapeRenderSystem * > & FLandscapeSceneViewExtension::GetLandscapeRenderSystems ( )

static

GetLandscapeRenderSystems() [2/2]

static TArray< FLandscapeRenderSystem * > FLandscapeSceneViewExtension::GetLandscapeRenderSystems ( const class FSceneInterface *  InScene )

static

GetNumViewsWithShowCollision()

int32 FLandscapeSceneViewExtension::GetNumViewsWithShowCollision ( ) const

inline

PreInitViews_RenderThread()

void FLandscapeSceneViewExtension::PreInitViews_RenderThread ( FRDGBuilder &  GraphBuilder )

overridevirtual

Called on render thread prior to initializing views.

Reimplemented from ISceneViewExtension.

PreRenderView_RenderThread()

void FLandscapeSceneViewExtension::PreRenderView_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneView &  InView  )

overridevirtual

Called on render thread at the start of rendering, for each view, after PreRenderViewFamily_RenderThread call.

Reimplemented from ISceneViewExtension.

PreRenderViewFamily_RenderThread()

void FLandscapeSceneViewExtension::PreRenderViewFamily_RenderThread ( FRDGBuilder &  GraphBuilder, FSceneViewFamily &  InViewFamily  )

overridevirtual

Called on render thread at the start of rendering.

Reimplemented from ISceneViewExtension.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Landscape/Public/LandscapeRender.h
• Engine/Source/Runtime/Landscape/Private/LandscapeRender.cpp
