#include <TextureResource.h>

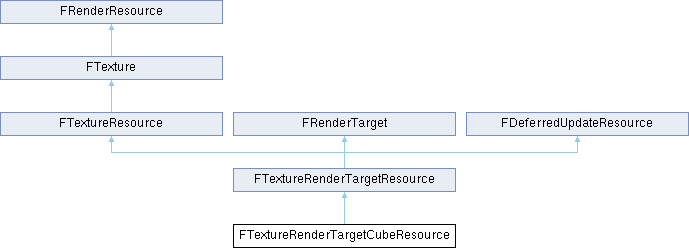

Inheritance diagram for FTextureRenderTargetCubeResource:

Public Member Functions
	FTextureRenderTargetCubeResource (const class UTextureRenderTargetCube *InOwner)

virtual class FTextureRenderTargetCubeResource *	GetTextureRenderTargetCubeResource ()

virtual void	InitRHI (FRHICommandListBase &RHICmdList) override

virtual void	ReleaseRHI () override

virtual uint32	GetSizeX () const override

virtual uint32	GetSizeY () const override

virtual FIntPoint	GetSizeXY () const override

FUnorderedAccessViewRHIRef	GetUnorderedAccessViewRHI ()

float	GetDisplayGamma () const override

ENGINE_API bool	ReadPixels (TArray< FColor > &OutImageData, FReadSurfaceDataFlags InFlags, FIntRect InRect=FIntRect(0, 0, 0, 0))

ENGINE_API bool	ReadPixels (TArray< FFloat16Color > &OutImageData, FReadSurfaceDataFlags InFlags, FIntRect InRect=FIntRect(0, 0, 0, 0))

Public Member Functions inherited from FTextureRenderTargetResource
	FTextureRenderTargetResource ()

virtual const FTextureRHIRef &	GetShaderResourceTexture () const override

virtual class FTextureRenderTarget2DResource *	GetTextureRenderTarget2DResource ()

virtual class FTextureRenderTarget2DArrayResource *	GetTextureRenderTarget2DArrayResource ()

virtual class FTextureRenderTargetVolumeResource *	GetTextureRenderTargetVolumeResource ()

virtual void	ClampSize (int32 SizeX, int32 SizeY)

virtual FRHIGPUMask	GetGPUMask (FRHICommandListImmediate &RHICmdList) const final override

void	SetActiveGPUMask (FRHIGPUMask InGPUMask)

Public Member Functions inherited from FTextureResource
	FTextureResource ()

virtual	~FTextureResource ()

virtual bool	IsProxy () const

virtual FTexture2DResource *	GetTexture2DResource ()

virtual FTexture3DResource *	GetTexture3DResource ()

virtual FTexture2DArrayResource *	GetTexture2DArrayResource ()

virtual FStreamableTextureResource *	GetStreamableTextureResource ()

virtual FVirtualTexture2DResource *	GetVirtualTexture2DResource ()

virtual const FTexture2DResource *	GetTexture2DResource () const

virtual const FTexture3DResource *	GetTexture3DResource () const

virtual const FTexture2DArrayResource *	GetTexture2DArrayResource () const

virtual const FStreamableTextureResource *	GetStreamableTextureResource () const

virtual const FVirtualTexture2DResource *	GetVirtualTexture2DResource () const

int32	GetCurrentMipCount () const

bool	IsTextureRHIPartiallyResident () const

FRHITexture *	GetTexture2DRHI () const

FRHITexture *	GetTexture3DRHI () const

FRHITexture *	GetTexture2DArrayRHI () const

void	SetTextureReference (FRHITextureReference *TextureReference)

FRHITextureReference *	GetTextureReference () const

Public Member Functions inherited from FTexture
RENDERCORE_API	FTexture ()

virtual RENDERCORE_API	~FTexture ()

RENDERCORE_API	FTexture (const FTexture &)

RENDERCORE_API	FTexture (FTexture &&)

RENDERCORE_API FTexture &	operator= (const FTexture &Other)

RENDERCORE_API FTexture &	operator= (FTexture &&Other)

const FTextureRHIRef &	GetTextureRHI ()

virtual RENDERCORE_API uint32	GetSizeZ () const

virtual RENDERCORE_API FString	GetFriendlyName () const override

Public Member Functions inherited from FRenderResource
RENDERCORE_API	FRenderResource ()

RENDERCORE_API	FRenderResource (ERHIFeatureLevel::Type InFeatureLevel)

RENDERCORE_API	FRenderResource (const FRenderResource &)

RENDERCORE_API	FRenderResource (FRenderResource &&)

RENDERCORE_API FRenderResource &	operator= (const FRenderResource &Other)

RENDERCORE_API FRenderResource &	operator= (FRenderResource &&Other)

virtual RENDERCORE_API	~FRenderResource ()

virtual RENDERCORE_API void	InitResource (FRHICommandListBase &RHICmdList)

virtual RENDERCORE_API void	ReleaseResource ()

RENDERCORE_API void	UpdateRHI (FRHICommandListBase &RHICmdList)

bool	IsInitialized () const

int32	GetListIndex () const

EInitPhase	GetInitPhase () const

void	SetOwnerName (FName InOwnerName)

FName	GetOwnerName () const

void	SetResourceName (FName InResourceName)

FName	GetResourceName () const

Public Member Functions inherited from FRenderTarget
ENGINE_API	FRenderTarget ()

virtual ENGINE_API	~FRenderTarget ()

virtual ENGINE_API const FTextureRHIRef &	GetRenderTargetTexture () const

virtual ENGINE_API FUnorderedAccessViewRHIRef	GetRenderTargetUAV () const

virtual ENGINE_API FRDGTextureRef	GetRenderTargetTexture (FRDGBuilder &GraphBuilder) const

virtual EDisplayColorGamut	GetDisplayColorGamut () const

virtual EDisplayOutputFormat	GetDisplayOutputFormat () const

virtual bool	GetSceneHDREnabled () const

virtual void	ProcessToggleFreezeCommand ()

virtual bool	HasToggleFreezeCommand ()

ENGINE_API bool	ReadPixelsPtr (FColor *OutImageBytes, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))

ENGINE_API bool	ReadFloat16Pixels (TArray< FFloat16Color > &OutImageData, ECubeFace CubeFace)

virtual ENGINE_API bool	ReadFloat16Pixels (TArray< FFloat16Color > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))

virtual ENGINE_API bool	ReadLinearColorPixels (TArray< FLinearColor > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_MinMax, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))

ENGINE_API bool	ReadLinearColorPixelsPtr (FLinearColor *OutImageBytes, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_MinMax, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))

Public Member Functions inherited from FDeferredUpdateResource
	FDeferredUpdateResource ()

ENGINE_API void	FlushDeferredResourceUpdate (FRHICommandListImmediate &RHICmdList)

ENGINE_API void	ResetSceneTextureExtentsHistory ()

Protected Member Functions
virtual void	UpdateDeferredResource (FRHICommandListImmediate &RHICmdList, bool bClearRenderTarget=true) override

Protected Member Functions inherited from FTextureRenderTargetResource
void	SetGPUMask (FRHIGPUMask InGPUMask)

Protected Member Functions inherited from FRenderResource
void	SetFeatureLevel (const FStaticFeatureLevel InFeatureLevel)

const FStaticFeatureLevel	GetFeatureLevel () const

bool	HasValidFeatureLevel () const

template<typename T >
FBufferRHIRef	CreateRHIBuffer (FRHICommandListBase &RHICmdList, T &InOutResourceObject, uint32 ResourceCount, EBufferUsageFlags InBufferUsageFlags, const TCHAR *InDebugName)

void	SetInitPhase (EInitPhase InInitPhase)

Protected Member Functions inherited from FDeferredUpdateResource
ENGINE_API void	AddToDeferredUpdateList (bool OnlyUpdateOnce)

ENGINE_API void	RemoveFromDeferredUpdateList ()

Friends
class	UTextureRenderTargetCube

Additional Inherited Members
Public Types inherited from FRenderResource
enum class	EInitPhase : uint8 { Pre , Default , MAX }

Static Public Member Functions inherited from FTextureRenderTargetResource
static ENGINE_API bool	IsSupportedFormat (EPixelFormat Format)

Static Public Member Functions inherited from FRenderResource
static RENDERCORE_API void	ReleaseRHIForAllResources ()

static RENDERCORE_API void	InitPreRHIResources ()

static RENDERCORE_API void	ChangeFeatureLevel (ERHIFeatureLevel::Type NewFeatureLevel)

static RENDERCORE_API FName	SetScopeName (FName Name)

Static Public Member Functions inherited from FRenderTarget
static float	GetEngineDisplayGamma ()

Static Public Member Functions inherited from FDeferredUpdateResource
static ENGINE_API void	UpdateResources (FRHICommandListImmediate &RHICmdList)

static void	ResetNeedsUpdate ()

static bool	IsUpdateNeeded ()

Public Attributes inherited from FTexture
FTextureRHIRef	TextureRHI

FSamplerStateRHIRef	SamplerStateRHI

FSamplerStateRHIRef	DeferredPassSamplerStateRHI

double	LastRenderTime = -FLT_MAX

FMipBiasFade	MipBiasFade

bool	bGreyScaleFormat = false

bool	bIgnoreGammaConversions = false

bool	bSRGB = false

Public Attributes inherited from FRenderResource
ERenderResourceState	ResourceState = ERenderResourceState::Default

Static Protected Member Functions inherited from FTexture
static RENDERCORE_API FRHISamplerState *	GetOrCreateSamplerState (const FSamplerStateInitializerRHI &Initializer)

Static Protected Member Functions inherited from FRenderResource
static RENDERCORE_API FRHICommandListBase &	GetImmediateCommandList ()

Protected Attributes inherited from FTextureResource
FTextureReferenceRHIRef	TextureReferenceRHI

Protected Attributes inherited from FRenderTarget
FTextureRHIRef	RenderTargetTextureRHI

Detailed Description

FTextureResource type for cube render target textures.

Constructor & Destructor Documentation

◆ FTextureRenderTargetCubeResource()

FTextureRenderTargetCubeResource::FTextureRenderTargetCubeResource ( const class UTextureRenderTargetCube * InOwner )

inline

Constructor

Parameters

InOwner - cube texture object to create a resource for

Member Function Documentation

◆ GetDisplayGamma()

float FTextureRenderTargetCubeResource::GetDisplayGamma ( ) const

overridevirtual

Render target resource should be sampled in linear color space

Returns: display gamma expected for rendering to this render target

Reimplemented from FTextureRenderTargetResource.

◆ GetSizeX()

uint32 FTextureRenderTargetCubeResource::GetSizeX ( ) const

overridevirtual

Returns: width of the target; width of target

Implements FTextureRenderTargetResource.

◆ GetSizeXY()

FIntPoint FTextureRenderTargetCubeResource::GetSizeXY ( ) const

overridevirtual

Returns: dimensions of the target; dimensions of target surface

Implements FRenderTarget.

◆ GetSizeY()

uint32 FTextureRenderTargetCubeResource::GetSizeY ( ) const

overridevirtual

Returns: height of the target; height of target

Implements FTextureRenderTargetResource.

◆ GetTextureRenderTargetCubeResource()

virtual class FTextureRenderTargetCubeResource * FTextureRenderTargetCubeResource::GetTextureRenderTargetCubeResource ( )

inlinevirtual

Cube texture RT resource interface

Reimplemented from FTextureRenderTargetResource.

◆ GetUnorderedAccessViewRHI()

FUnorderedAccessViewRHIRef FTextureRenderTargetCubeResource::GetUnorderedAccessViewRHI ( )

inline

Returns: UnorderedAccessView for rendering

◆ InitRHI()

void FTextureRenderTargetCubeResource::InitRHI ( FRHICommandListBase & RHICmdList )

overridevirtual

Initializes the dynamic RHI resource and/or RHI render target used by this resource. Called when the resource is initialized, or when reseting all RHI resources. Resources that need to initialize after a D3D device reset must implement this function. This is only called by the rendering thread.

Initializes the RHI render target resources used by this resource. Called when the resource is initialized, or when reseting all RHI resources. This is only called by the rendering thread.

Reimplemented from FRenderResource.

◆ ReadPixels() [1/2]

PRAGMA_DISABLE_DEPRECATION_WARNINGS bool FTextureRenderTargetCubeResource::ReadPixels	(	TArray< FColor > &	OutImageData,
		FReadSurfaceDataFlags	InFlags,
		FIntRect	InRect = `FIntRect(0, 0, 0, 0)`
	)

virtual

Copy the texels of a single face of the cube into an array.

Parameters

OutImageData	- float16 values will be stored in this array.
InFlags	- read flags. ensure cubeface member has been set.
InRect	- Rectangle of texels to copy.

Returns: true if the read succeeded.

Copy the texels of a single face of a cube texture into an array.

Parameters

OutImageData	- RGBA8 values will be stored in this array.
InFlags	- read flags. ensure cubeface member has been set.
InRect	- Rectangle of texels to copy. Empty InRect (0,0,0,0) defaults to the whole surface size.

Returns: True if the read succeeded.

Reimplemented from FRenderTarget.

◆ ReadPixels() [2/2]

bool FTextureRenderTargetCubeResource::ReadPixels	(	TArray< FFloat16Color > &	OutImageData,
		FReadSurfaceDataFlags	InFlags,
		FIntRect	InRect = `FIntRect(0, 0, 0, 0)`
	)

Copy the texels of a single face of the cube into an array.

Parameters

OutImageData	- float16 values will be stored in this array.
InFlags	- read flags. ensure cubeface member has been set.
InRect	- Rectangle of texels to copy.

Returns: true if the read succeeded.

Copy the texels of a single face of a cube texture into an array.

Parameters

OutImageData	- float16 values will be stored in this array.
InFlags	- read flags. ensure cubeface member has been set.
InRect	- Rectangle of texels to copy. Empty InRect (0,0,0,0) defaults to the whole surface size.

Returns: True if the read succeeded.

◆ ReleaseRHI()

void FTextureRenderTargetCubeResource::ReleaseRHI ( )

overridevirtual

Releases the dynamic RHI resource and/or RHI render target resources used by this resource. Called when the resource is released, or when reseting all RHI resources. Resources that need to release before a D3D device reset must implement this function. This is only called by the rendering thread.

Release the RHI render target resources used by this resource. Called when the resource is released, or when reseting all RHI resources. This is only called by the rendering thread.

Reimplemented from FTexture.

◆ UpdateDeferredResource()

void FTextureRenderTargetCubeResource::UpdateDeferredResource	(	FRHICommandListImmediate &	RHICmdList,
		bool	bClearRenderTarget = `true`
	)

overrideprotectedvirtual

Updates (resolves) the render target texture. Optionally clears each face of the render target to the clear color. This is only called by the rendering thread.

Implements FDeferredUpdateResource.

Friends And Related Symbol Documentation

◆ UTextureRenderTargetCube

friend class UTextureRenderTargetCube

friend

Updates (resolves) the render target texture. Optionally clears each face of the render target to green. This is only called by the rendering thread.

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Engine/Public/TextureResource.h
Engine/Source/Runtime/Engine/Private/TextureRenderTargetCube.cpp

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FTextureRenderTargetCubeResource()

Member Function Documentation

◆ GetDisplayGamma()

◆ GetSizeX()

◆ GetSizeXY()

◆ GetSizeY()

◆ GetTextureRenderTargetCubeResource()

◆ GetUnorderedAccessViewRHI()

◆ InitRHI()

◆ ReadPixels() [1/2]

◆ ReadPixels() [2/2]

◆ ReleaseRHI()

◆ UpdateDeferredResource()

Friends And Related Symbol Documentation

◆ UTextureRenderTargetCube
