#include <TextureRenderTargetVolumeResource.h>

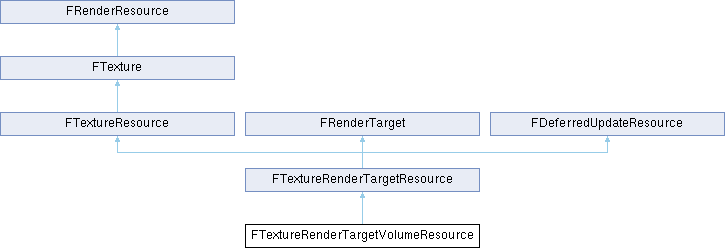

Inheritance diagram for FTextureRenderTargetVolumeResource:

Public Member Functions
	FTextureRenderTargetVolumeResource (const class UTextureRenderTargetVolume *InOwner)

virtual class FTextureRenderTargetVolumeResource *	GetTextureRenderTargetVolumeResource ()

virtual void	InitRHI (FRHICommandListBase &RHICmdList) override

virtual void	ReleaseRHI () override

virtual uint32	GetSizeX () const override

virtual uint32	GetSizeY () const override

virtual uint32	GetSizeZ () const override

virtual FIntPoint	GetSizeXY () const override

FUnorderedAccessViewRHIRef	GetUnorderedAccessViewRHI ()

float	GetDisplayGamma () const override

virtual bool	ReadPixels (TArray< FColor > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0)) override

virtual bool	ReadFloat16Pixels (TArray< FFloat16Color > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0)) override

virtual bool	ReadLinearColorPixels (TArray< FLinearColor > &OutImageData, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0)) override

ENGINE_API bool	ReadPixels (TArray< FColor > &OutImageData, int32 InDepthSlice, FIntRect InRect=FIntRect(0, 0, 0, 0))

ENGINE_API bool	ReadPixels (TArray< FFloat16Color > &OutImageData, int32 InDepthSlice, FIntRect InRect=FIntRect(0, 0, 0, 0))

Public Member Functions inherited from FTextureRenderTargetResource
	FTextureRenderTargetResource ()

virtual const FTextureRHIRef &	GetShaderResourceTexture () const override

virtual class FTextureRenderTarget2DResource *	GetTextureRenderTarget2DResource ()

virtual class FTextureRenderTarget2DArrayResource *	GetTextureRenderTarget2DArrayResource ()

virtual class FTextureRenderTargetCubeResource *	GetTextureRenderTargetCubeResource ()

virtual void	ClampSize (int32 SizeX, int32 SizeY)

virtual FRHIGPUMask	GetGPUMask (FRHICommandListImmediate &RHICmdList) const final override

void	SetActiveGPUMask (FRHIGPUMask InGPUMask)

Public Member Functions inherited from FTextureResource
	FTextureResource ()

virtual	~FTextureResource ()

virtual bool	IsProxy () const

virtual FTexture2DResource *	GetTexture2DResource ()

virtual FTexture3DResource *	GetTexture3DResource ()

virtual FTexture2DArrayResource *	GetTexture2DArrayResource ()

virtual FStreamableTextureResource *	GetStreamableTextureResource ()

virtual FVirtualTexture2DResource *	GetVirtualTexture2DResource ()

virtual const FTexture2DResource *	GetTexture2DResource () const

virtual const FTexture3DResource *	GetTexture3DResource () const

virtual const FTexture2DArrayResource *	GetTexture2DArrayResource () const

virtual const FStreamableTextureResource *	GetStreamableTextureResource () const

virtual const FVirtualTexture2DResource *	GetVirtualTexture2DResource () const

int32	GetCurrentMipCount () const

bool	IsTextureRHIPartiallyResident () const

FRHITexture *	GetTexture2DRHI () const

FRHITexture *	GetTexture3DRHI () const

FRHITexture *	GetTexture2DArrayRHI () const

void	SetTextureReference (FRHITextureReference *TextureReference)

FRHITextureReference *	GetTextureReference () const

Public Member Functions inherited from FTexture
RENDERCORE_API	FTexture ()

virtual RENDERCORE_API	~FTexture ()

RENDERCORE_API	FTexture (const FTexture &)

RENDERCORE_API	FTexture (FTexture &&)

RENDERCORE_API FTexture &	operator= (const FTexture &Other)

RENDERCORE_API FTexture &	operator= (FTexture &&Other)

const FTextureRHIRef &	GetTextureRHI ()

virtual RENDERCORE_API FString	GetFriendlyName () const override

Public Member Functions inherited from FRenderResource
RENDERCORE_API	FRenderResource ()

RENDERCORE_API	FRenderResource (ERHIFeatureLevel::Type InFeatureLevel)

RENDERCORE_API	FRenderResource (const FRenderResource &)

RENDERCORE_API	FRenderResource (FRenderResource &&)

RENDERCORE_API FRenderResource &	operator= (const FRenderResource &Other)

RENDERCORE_API FRenderResource &	operator= (FRenderResource &&Other)

virtual RENDERCORE_API	~FRenderResource ()

virtual RENDERCORE_API void	InitResource (FRHICommandListBase &RHICmdList)

virtual RENDERCORE_API void	ReleaseResource ()

RENDERCORE_API void	UpdateRHI (FRHICommandListBase &RHICmdList)

bool	IsInitialized () const

int32	GetListIndex () const

EInitPhase	GetInitPhase () const

void	SetOwnerName (FName InOwnerName)

FName	GetOwnerName () const

void	SetResourceName (FName InResourceName)

FName	GetResourceName () const

Public Member Functions inherited from FRenderTarget
ENGINE_API	FRenderTarget ()

virtual ENGINE_API	~FRenderTarget ()

virtual ENGINE_API const FTextureRHIRef &	GetRenderTargetTexture () const

virtual ENGINE_API FUnorderedAccessViewRHIRef	GetRenderTargetUAV () const

virtual ENGINE_API FRDGTextureRef	GetRenderTargetTexture (FRDGBuilder &GraphBuilder) const

virtual EDisplayColorGamut	GetDisplayColorGamut () const

virtual EDisplayOutputFormat	GetDisplayOutputFormat () const

virtual bool	GetSceneHDREnabled () const

virtual void	ProcessToggleFreezeCommand ()

virtual bool	HasToggleFreezeCommand ()

ENGINE_API bool	ReadPixelsPtr (FColor *OutImageBytes, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))

ENGINE_API bool	ReadFloat16Pixels (TArray< FFloat16Color > &OutImageData, ECubeFace CubeFace)

ENGINE_API bool	ReadLinearColorPixelsPtr (FLinearColor *OutImageBytes, FReadSurfaceDataFlags InFlags=FReadSurfaceDataFlags(RCM_MinMax, CubeFace_MAX), FIntRect InSrcRect=FIntRect(0, 0, 0, 0))

Public Member Functions inherited from FDeferredUpdateResource
	FDeferredUpdateResource ()

ENGINE_API void	FlushDeferredResourceUpdate (FRHICommandListImmediate &RHICmdList)

ENGINE_API void	ResetSceneTextureExtentsHistory ()

Protected Member Functions
virtual void	UpdateDeferredResource (FRHICommandListImmediate &RHICmdList, bool bClearRenderTarget=true) override

Protected Member Functions inherited from FTextureRenderTargetResource
void	SetGPUMask (FRHIGPUMask InGPUMask)

Protected Member Functions inherited from FRenderResource
void	SetFeatureLevel (const FStaticFeatureLevel InFeatureLevel)

const FStaticFeatureLevel	GetFeatureLevel () const

bool	HasValidFeatureLevel () const

template<typename T >
FBufferRHIRef	CreateRHIBuffer (FRHICommandListBase &RHICmdList, T &InOutResourceObject, uint32 ResourceCount, EBufferUsageFlags InBufferUsageFlags, const TCHAR *InDebugName)

void	SetInitPhase (EInitPhase InInitPhase)

Protected Member Functions inherited from FDeferredUpdateResource
ENGINE_API void	AddToDeferredUpdateList (bool OnlyUpdateOnce)

ENGINE_API void	RemoveFromDeferredUpdateList ()

Friends
class	UTextureRenderTargetVolume

Additional Inherited Members
Public Types inherited from FRenderResource
enum class	EInitPhase : uint8 { Pre , Default , MAX }

Static Public Member Functions inherited from FTextureRenderTargetResource
static ENGINE_API bool	IsSupportedFormat (EPixelFormat Format)

Static Public Member Functions inherited from FRenderResource
static RENDERCORE_API void	ReleaseRHIForAllResources ()

static RENDERCORE_API void	InitPreRHIResources ()

static RENDERCORE_API void	ChangeFeatureLevel (ERHIFeatureLevel::Type NewFeatureLevel)

static RENDERCORE_API FName	SetScopeName (FName Name)

Static Public Member Functions inherited from FRenderTarget
static float	GetEngineDisplayGamma ()

Static Public Member Functions inherited from FDeferredUpdateResource
static ENGINE_API void	UpdateResources (FRHICommandListImmediate &RHICmdList)

static void	ResetNeedsUpdate ()

static bool	IsUpdateNeeded ()

Public Attributes inherited from FTexture
FTextureRHIRef	TextureRHI

FSamplerStateRHIRef	SamplerStateRHI

FSamplerStateRHIRef	DeferredPassSamplerStateRHI

double	LastRenderTime = -FLT_MAX

FMipBiasFade	MipBiasFade

bool	bGreyScaleFormat = false

bool	bIgnoreGammaConversions = false

bool	bSRGB = false

Public Attributes inherited from FRenderResource
ERenderResourceState	ResourceState = ERenderResourceState::Default

Static Protected Member Functions inherited from FTexture
static RENDERCORE_API FRHISamplerState *	GetOrCreateSamplerState (const FSamplerStateInitializerRHI &Initializer)

Static Protected Member Functions inherited from FRenderResource
static RENDERCORE_API FRHICommandListBase &	GetImmediateCommandList ()

Protected Attributes inherited from FTextureResource
FTextureReferenceRHIRef	TextureReferenceRHI

Protected Attributes inherited from FRenderTarget
FTextureRHIRef	RenderTargetTextureRHI

Detailed Description

FTextureRenderTargetVolumeResource type for Volume render target textures.

Constructor & Destructor Documentation

◆ FTextureRenderTargetVolumeResource()

FTextureRenderTargetVolumeResource::FTextureRenderTargetVolumeResource ( const class UTextureRenderTargetVolume * InOwner )

inline

Constructor

Parameters

InOwner - Volume texture object to create a resource for

Member Function Documentation

◆ GetDisplayGamma()

float FTextureRenderTargetVolumeResource::GetDisplayGamma ( ) const

overridevirtual

Render target resource should be sampled in linear color space

Returns: display gamma expected for rendering to this render target

Reimplemented from FTextureRenderTargetResource.

◆ GetSizeX()

uint32 FTextureRenderTargetVolumeResource::GetSizeX ( ) const

overridevirtual

Returns the width of the texture in pixels.

Implements FTextureRenderTargetResource.

◆ GetSizeXY()

FIntPoint FTextureRenderTargetVolumeResource::GetSizeXY ( ) const

overridevirtual

Implements FRenderTarget.

◆ GetSizeY()

uint32 FTextureRenderTargetVolumeResource::GetSizeY ( ) const

overridevirtual

Returns the height of the texture in pixels.

Implements FTextureRenderTargetResource.

◆ GetSizeZ()

uint32 FTextureRenderTargetVolumeResource::GetSizeZ ( ) const

overridevirtual

Returns the depth of the texture in pixels.

Reimplemented from FTexture.

◆ GetTextureRenderTargetVolumeResource()

virtual class FTextureRenderTargetVolumeResource * FTextureRenderTargetVolumeResource::GetTextureRenderTargetVolumeResource ( )

inlinevirtual

Volume texture RT resource interface

Reimplemented from FTextureRenderTargetResource.

◆ GetUnorderedAccessViewRHI()

FUnorderedAccessViewRHIRef FTextureRenderTargetVolumeResource::GetUnorderedAccessViewRHI ( )

inline

Returns: UnorderedAccessView for rendering

◆ InitRHI()

void FTextureRenderTargetVolumeResource::InitRHI ( FRHICommandListBase & RHICmdList )

overridevirtual

Initializes the dynamic RHI resource and/or RHI render target used by this resource. Called when the resource is initialized, or when reseting all RHI resources. Resources that need to initialize after a D3D device reset must implement this function. This is only called by the rendering thread.

Initializes the RHI render target resources used by this resource. Called when the resource is initialized, or when reseting all RHI resources. This is only called by the rendering thread.

Reimplemented from FRenderResource.

◆ ReadFloat16Pixels()

bool FTextureRenderTargetVolumeResource::ReadFloat16Pixels	(	TArray< FFloat16Color > &	OutImageData,
		FReadSurfaceDataFlags	InFlags = `FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX)`,
		FIntRect	InSrcRect = `FIntRect(0, 0, 0, 0)`
	)

overridevirtual

Reads the render target's displayed pixels into the given color buffer.

Parameters

OutImageData	- RGBA16F values will be stored in this buffer
InFlags	- Additional information about how to to read the surface data (cube face, slice index, etc.)
InSrcRect	- InSrcRect not specified means the whole rect

Returns: True if the read succeeded.

The default value for InFlags specifies RCM_UNorm which will cause values to be scaled into [0,1] ; use RCM_MinMax to retrieve values without change.

Unlike other RenderTarget Read functions, this only works if surface is PF_FloatRGBA exactly ; it does not convert. Prefer using FImageUtils::GetRenderTargetImage rather than calling this directly.

Reimplemented from FRenderTarget.

◆ ReadLinearColorPixels()

bool FTextureRenderTargetVolumeResource::ReadLinearColorPixels	(	TArray< FLinearColor > &	OutImageData,
		FReadSurfaceDataFlags	InFlags = `FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX)`,
		FIntRect	InSrcRect = `FIntRect(0, 0, 0, 0)`
	)

overridevirtual

Reads the render target's displayed pixels into the given color buffer.

Parameters

OutImageData	- Linear color array to store the value
InFlags	- Additional information about how to to read the surface data (cube face, slice index, etc.)
InSrcRect	- InSrcRect not specified means the whole rect

Returns: True if the read succeeded.

The default value for InFlags specifies RCM_UNorm which will cause values to be scaled into [0,1] ; use RCM_MinMax to retrieve values without change.

This will convert whatever the pixel format is to FLinearColor (if supported). Prefer using FImageUtils::GetRenderTargetImage rather than calling this directly.

Reimplemented from FRenderTarget.

◆ ReadPixels() [1/3]

bool FTextureRenderTargetVolumeResource::ReadPixels	(	TArray< FColor > &	OutImageData,
		FReadSurfaceDataFlags	InFlags = `FReadSurfaceDataFlags(RCM_UNorm, CubeFace_MAX)`,
		FIntRect	InSrcRect = `FIntRect(0, 0, 0, 0)`
	)

overridevirtual

Reads the render target's displayed pixels into a preallocated color buffer.

Parameters

OutImageData	- RGBA8 values will be stored in this buffer
InFlags	- Additional information about how to to read the surface data (cube face, slice index, etc.)
InSrcRect	- InSrcRect not specified means the whole rect

Returns: True if the read succeeded.

This will convert whatever the pixel format is to FColor Prefer using FImageUtils::GetRenderTargetImage rather than calling this directly.

The default value for InFlags specifies RCM_UNorm which will cause values to be scaled into [0,1] ; use RCM_MinMax to retrieve values without change.

If the RenderTarget surface is float linear, it will converted to SRGB FColor, if InFlags.bLinearToGamma is set (which is on by default). If the RenderTarget surface is U8, then the SRGB/not state is unchanged, the U8 values are retrieved unchanged in either Linear or SRGB. Gamma is handled correctly automatically by FImageUtils::GetRenderTargetImage

Reimplemented from FRenderTarget.

◆ ReadPixels() [2/3]

PRAGMA_DISABLE_DEPRECATION_WARNINGS bool FTextureRenderTargetVolumeResource::ReadPixels	(	TArray< FColor > &	OutImageData,
		int32	InDepthSlice,
		FIntRect	InRect = `FIntRect(0, 0, 0, 0)`
	)

Copy the texels of a single depth slice of the volume into an array.

Parameters

OutImageData	- float16 values will be stored in this array.
InDepthSlice	- which depth slice to read.
InRect	- Rectangle of texels to copy.

Returns: true if the read succeeded.

◆ ReadPixels() [3/3]

bool FTextureRenderTargetVolumeResource::ReadPixels	(	TArray< FFloat16Color > &	OutImageData,
		int32	InDepthSlice,
		FIntRect	InRect = `FIntRect(0, 0, 0, 0)`
	)

Copy the texels of a single depth slice of the cube into an array.

Parameters

OutImageData	- float16 values will be stored in this array.
InDepthSlice	- which depth slice to read.
InRect	- Rectangle of texels to copy.

Returns: true if the read succeeded.

◆ ReleaseRHI()

void FTextureRenderTargetVolumeResource::ReleaseRHI ( )

overridevirtual

Releases the dynamic RHI resource and/or RHI render target resources used by this resource. Called when the resource is released, or when reseting all RHI resources. Resources that need to release before a D3D device reset must implement this function. This is only called by the rendering thread.

Release the RHI render target resources used by this resource. Called when the resource is released, or when reseting all RHI resources. This is only called by the rendering thread.

Reimplemented from FTexture.

◆ UpdateDeferredResource()

void FTextureRenderTargetVolumeResource::UpdateDeferredResource	(	FRHICommandListImmediate &	RHICmdList,
		bool	bClearRenderTarget = `true`
	)

overrideprotectedvirtual

Updates (resolves) the render target texture. Optionally clears each face of the render target to green. This is only called by the rendering thread.

Updates (resolves) the render target texture. Optionally clears each face of the render target to the clear color. This is only called by the rendering thread.

Implements FDeferredUpdateResource.

Friends And Related Symbol Documentation

◆ UTextureRenderTargetVolume

friend class UTextureRenderTargetVolume

friend

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Engine/Public/TextureRenderTargetVolumeResource.h
Engine/Source/Runtime/Engine/Private/TextureRenderTargetVolume.cpp

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FTextureRenderTargetVolumeResource()

Member Function Documentation

◆ GetDisplayGamma()

◆ GetSizeX()

◆ GetSizeXY()

◆ GetSizeY()

◆ GetSizeZ()

◆ GetTextureRenderTargetVolumeResource()

◆ GetUnorderedAccessViewRHI()

◆ InitRHI()

◆ ReadFloat16Pixels()

◆ ReadLinearColorPixels()

◆ ReadPixels() [1/3]

◆ ReadPixels() [2/3]

◆ ReadPixels() [3/3]

◆ ReleaseRHI()

◆ UpdateDeferredResource()

Friends And Related Symbol Documentation

◆ UTextureRenderTargetVolume
