#include <GPUSkinVertexFactory.h>

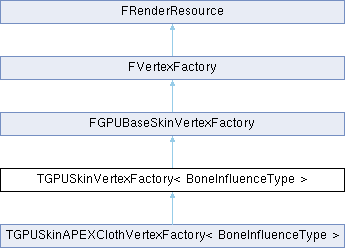

Inheritance diagram for TGPUSkinVertexFactory< BoneInfluenceType >:

Public Member Functions
	TGPUSkinVertexFactory (const FInitializer &Initializer)

virtual void	InitRHI (FRHICommandListBase &RHICmdList) override

virtual void	ReleaseRHI () override

Public Member Functions inherited from FGPUBaseSkinVertexFactory
	FGPUBaseSkinVertexFactory (const FInitializer &Initializer)

	FGPUBaseSkinVertexFactory (ERHIFeatureLevel::Type InFeatureLevel, uint32 InNumBones, uint32 InNumVertices, uint32 InBaseVertexIndex, bool bInUsedForPassthroughVertexFactory)

virtual	~FGPUBaseSkinVertexFactory ()

FShaderDataType &	GetShaderData ()

const FShaderDataType &	GetShaderData () const

void	SetData (const FGPUSkinDataType *InData)

virtual void	SetData (FRHICommandListBase &RHICmdList, const FGPUSkinDataType *InData)

uint32	GetBoneBufferSize () const

uint32	GetNumBones () const

uint32	GetBoneOffset () const

uint32	GetNumVertices () const

uint32	GetBaseVertexIndex () const

void	UpdateMorphState (FRHICommandListBase &RHICmdList, bool bUseMorphTarget)

const class FMorphVertexBuffer *	GetMorphVertexBuffer (bool bPrevious) const

uint32	GetMorphVertexBufferUpdatedFrameNumber () const

virtual class FGPUBaseSkinAPEXClothVertexFactory *	GetClothVertexFactory ()

virtual class FGPUBaseSkinAPEXClothVertexFactory const *	GetClothVertexFactory () const

virtual GPUSkinBoneInfluenceType	GetBoneInfluenceType () const

virtual uint32	GetNumBoneInfluences () const

virtual bool	Use16BitBoneIndex () const

virtual const FShaderResourceViewRHIRef	GetPositionsSRV () const

virtual const FShaderResourceViewRHIRef	GetTangentsSRV () const

virtual const FShaderResourceViewRHIRef	GetTextureCoordinatesSRV () const

virtual const FShaderResourceViewRHIRef	GetColorComponentsSRV () const

virtual uint32	GetNumTexCoords () const

virtual const uint32	GetColorIndexMask () const

virtual bool	IsMorphTarget () const

virtual FShaderResourceViewRHIRef	GetTriangleSortingPositionSRV () const override

void	UpdateUniformBuffer (FRHICommandListBase &RHICmdList)

FRHIUniformBuffer *	GetUniformBuffer () const

const FVertexStreamComponent &	GetPositionStreamComponent () const

const FVertexStreamComponent &	GetTangentStreamComponent (int Index) const

void	CopyDataTypeForLocalVertexFactory (FLocalVertexFactory::FDataType &OutDestData) const

void	GetOverrideVertexStreams (FVertexInputStreamArray &VertexStreams) const

bool	IsReadyForStaticMeshCaching () const

void	MarkUniformBufferDirty ()

bool	IsUniformBufferValid () const

Public Member Functions inherited from FVertexFactory
	FVertexFactory (ERHIFeatureLevel::Type InFeatureLevel)

virtual RENDERCORE_API	~FVertexFactory ()

virtual FVertexFactoryType *	GetType () const

RENDERCORE_API void	GetStreams (ERHIFeatureLevel::Type InFeatureLevel, EVertexInputStreamType VertexStreamType, FVertexInputStreamArray &OutVertexStreams) const

RENDERCORE_API void	OffsetInstanceStreams (uint32 InstanceOffset, EVertexInputStreamType VertexStreamType, FVertexInputStreamArray &VertexStreams) const

FVertexDeclarationRHIRef &	GetDeclaration ()

void	SetDeclaration (FVertexDeclarationRHIRef &NewDeclaration)

const FVertexDeclarationRHIRef &	GetDeclaration (EVertexInputStreamType InputStreamType) const

virtual bool	SupportsPositionOnlyStream () const

virtual bool	SupportsPositionAndNormalOnlyStream () const

bool	SupportsNullPixelShader () const

bool	SupportsTriangleSorting () const

virtual bool	RendersPrimitivesAsCameraFacingSprites () const

bool	NeedsDeclaration () const

bool	SupportsManualVertexFetch (const FStaticFeatureLevel InFeatureLevel) const

int32	GetPrimitiveIdStreamIndex (const FStaticFeatureLevel InFeatureLevel, EVertexInputStreamType InputStreamType) const

bool	SupportsGPUScene (const FStaticFeatureLevel InFeatureLevel) const

Public Member Functions inherited from FRenderResource
RENDERCORE_API	FRenderResource ()

RENDERCORE_API	FRenderResource (ERHIFeatureLevel::Type InFeatureLevel)

RENDERCORE_API	FRenderResource (const FRenderResource &)

RENDERCORE_API	FRenderResource (FRenderResource &&)

RENDERCORE_API FRenderResource &	operator= (const FRenderResource &Other)

RENDERCORE_API FRenderResource &	operator= (FRenderResource &&Other)

virtual RENDERCORE_API	~FRenderResource ()

virtual RENDERCORE_API void	InitResource (FRHICommandListBase &RHICmdList)

virtual RENDERCORE_API void	ReleaseResource ()

RENDERCORE_API void	UpdateRHI (FRHICommandListBase &RHICmdList)

virtual FString	GetFriendlyName () const

bool	IsInitialized () const

int32	GetListIndex () const

EInitPhase	GetInitPhase () const

void	SetOwnerName (FName InOwnerName)

FName	GetOwnerName () const

void	SetResourceName (FName InResourceName)

FName	GetResourceName () const

Static Public Member Functions
static TGPUSkinVertexFactory(ERHIFeatureLevel::Type InFeatureLevel, uint32 InNumBones, uint32 InNumVertices, uint32 InBaseVertexIndex, bool bInUsedForPassthroughVertexFactory) PRAGMA_DISABLE_DEPRECATION_WARNINGS bool	ShouldCompilePermutation (const FVertexFactoryShaderPermutationParameters &Parameters)

static void	GetPSOPrecacheVertexFetchElements (EVertexInputStreamType VertexInputStreamType, FVertexDeclarationElementList &Elements)

static void	GetVertexElements (ERHIFeatureLevel::Type FeatureLevel, EVertexInputStreamType InputStreamType, FGPUSkinDataType &GPUSkinData, FVertexDeclarationElementList &Elements)

Static Public Member Functions inherited from FGPUBaseSkinVertexFactory
static ENGINE_API int32	GetMinimumPerPlatformMaxGPUSkinBonesValue ()

static ENGINE_API int32	GetMaxGPUSkinBones (const class ITargetPlatform *TargetPlatform=nullptr)

static ENGINE_API bool	UseUnlimitedBoneInfluences (uint32 MaxBoneInfluences, const ITargetPlatform *TargetPlatform=nullptr)

static ENGINE_API bool	GetUnlimitedBoneInfluences (const ITargetPlatform *TargetPlatform=nullptr)

static ENGINE_API int32	GetBoneInfluenceLimitForAsset (int32 AssetProvidedLimit, const ITargetPlatform *TargetPlatform=nullptr)

static ENGINE_API bool	GetAlwaysUseDeformerForUnlimitedBoneInfluences (EShaderPlatform Platform)

Static Public Member Functions inherited from FVertexFactory
static void	ModifyCompilationEnvironment (const FVertexFactoryShaderPermutationParameters &Parameters, FShaderCompilerEnvironment &OutEnvironment)

static void	ValidateCompiledResult (const FVertexFactoryType *Type, EShaderPlatform Platform, const FShaderParameterMap &ParameterMap, TArray< FString > &OutErrors)

static void	GetPSOPrecacheVertexFetchElements (EVertexInputStreamType VertexInputStreamType, FVertexDeclarationElementList &Elements)

Static Public Member Functions inherited from FRenderResource
static RENDERCORE_API void	ReleaseRHIForAllResources ()

static RENDERCORE_API void	InitPreRHIResources ()

static RENDERCORE_API void	ChangeFeatureLevel (ERHIFeatureLevel::Type NewFeatureLevel)

static RENDERCORE_API FName	SetScopeName (FName Name)

Protected Member Functions
virtual void	AddVertexElements (FVertexDeclarationElementList &OutElements) override

Protected Member Functions inherited from FVertexFactory
void	SetPrimitiveIdStreamIndex (const FStaticFeatureLevel InFeatureLevel, EVertexInputStreamType InputStreamType, int32 StreamIndex)

RENDERCORE_API bool	AddPrimitiveIdStreamElement (EVertexInputStreamType InputStreamType, FVertexDeclarationElementList &Elements, uint8 AttributeIndex, uint8 AttributeIndex_Mobile)

FVertexElement	AccessStreamComponent (const FVertexStreamComponent &Component, uint8 AttributeIndex)

RENDERCORE_API FVertexElement	AccessStreamComponent (const FVertexStreamComponent &Component, uint8 AttributeIndex, EVertexInputStreamType InputStreamType)

RENDERCORE_API void	InitDeclaration (const FVertexDeclarationElementList &Elements, EVertexInputStreamType StreamType=EVertexInputStreamType::Default)

Protected Member Functions inherited from FRenderResource
void	SetFeatureLevel (const FStaticFeatureLevel InFeatureLevel)

const FStaticFeatureLevel	GetFeatureLevel () const

bool	HasValidFeatureLevel () const

template<typename T >
FBufferRHIRef	CreateRHIBuffer (FRHICommandListBase &RHICmdList, T &InOutResourceObject, uint32 ResourceCount, EBufferUsageFlags InBufferUsageFlags, const TCHAR *InDebugName)

void	SetInitPhase (EInitPhase InInitPhase)

Static Protected Member Functions
static void	GetVertexElements (ERHIFeatureLevel::Type FeatureLevel, EVertexInputStreamType InputStreamType, FGPUSkinDataType &GPUSkinData, FVertexDeclarationElementList &Elements, FVertexStreamList &InOutStreams, int32 &OutMorphDeltaStreamIndex)

Static Protected Member Functions inherited from FVertexFactory
template<typename VertexStreamListType >
static FVertexElement	AccessStreamComponent (const FVertexStreamComponent &Component, uint8 AttributeIndex, VertexStreamListType &InOutStreams)

Static Protected Member Functions inherited from FRenderResource
static RENDERCORE_API FRHICommandListBase &	GetImmediateCommandList ()

Additional Inherited Members
Public Types inherited from FRenderResource
enum class	EInitPhase : uint8 { Pre , Default , MAX }

Public Attributes inherited from FRenderResource
ERenderResourceState	ResourceState = ERenderResourceState::Default

Static Public Attributes inherited from FGPUBaseSkinVertexFactory
static const uint32	GHardwareMaxGPUSkinBones = 65536

Protected Types inherited from FVertexFactory
typedef TArray< FVertexStream, TInlineAllocator< 8 > >	FVertexStreamList

Protected Attributes inherited from FGPUBaseSkinVertexFactory
FShaderDataType	ShaderData

TUniquePtr< FGPUSkinDataType >	Data

FUniformBufferRHIRef	UniformBuffer

TRefCountPtr< FRHIStreamSourceSlot >	MorphDeltaBufferSlot

int32	MorphDeltaStreamIndex = -1

Protected Attributes inherited from FVertexFactory
FVertexStreamList	Streams

bool	bNeedsDeclaration = true

Detailed Description

template<GPUSkinBoneInfluenceType BoneInfluenceType>
class TGPUSkinVertexFactory< BoneInfluenceType >

Vertex factory with vertex stream components for GPU skinned vertices

Constructor & Destructor Documentation

◆ TGPUSkinVertexFactory()

template<GPUSkinBoneInfluenceType BoneInfluenceType>

TGPUSkinVertexFactory< BoneInfluenceType >::TGPUSkinVertexFactory ( const FInitializer & Initializer )

inline

Member Function Documentation

◆ AddVertexElements()

template<GPUSkinBoneInfluenceType BoneInfluenceType>

void TGPUSkinVertexFactory< BoneInfluenceType >::AddVertexElements ( FVertexDeclarationElementList & OutElements )

overrideprotectedvirtual

Add the decl elements for the streams

Parameters

InData	- type with stream components
OutElements	- vertex decl list to modify

Add the vertex declaration elements for the streams.

Parameters

InData	- Type with stream components.
OutElements	- Vertex declaration list to modify.

Implements FGPUBaseSkinVertexFactory.

◆ GetPSOPrecacheVertexFetchElements()

template<GPUSkinBoneInfluenceType BoneInfluenceType>

void TGPUSkinVertexFactory< BoneInfluenceType >::GetPSOPrecacheVertexFetchElements	(	EVertexInputStreamType	VertexInputStreamType,
		FVertexDeclarationElementList &	Elements
	)

static

TGPUSkinVertexFactory does not support manual vertex fetch yet so worst case element set is returned to make sure the PSO can be compiled

◆ GetVertexElements() [1/2]

template<GPUSkinBoneInfluenceType BoneInfluenceType>

void TGPUSkinVertexFactory< BoneInfluenceType >::GetVertexElements	(	ERHIFeatureLevel::Type	FeatureLevel,
		EVertexInputStreamType	InputStreamType,
		FGPUSkinDataType &	GPUSkinData,
		FVertexDeclarationElementList &	Elements
	)

static

◆ GetVertexElements() [2/2]

template<GPUSkinBoneInfluenceType BoneInfluenceType>

void TGPUSkinVertexFactory< BoneInfluenceType >::GetVertexElements	(	ERHIFeatureLevel::Type	FeatureLevel,
		EVertexInputStreamType	InputStreamType,
		FGPUSkinDataType &	GPUSkinData,
		FVertexDeclarationElementList &	Elements,
		FVertexStreamList &	InOutStreams,
		int32 &	OutMorphDeltaStreamIndex
	)

staticprotected

◆ InitRHI()

template<GPUSkinBoneInfluenceType BoneInfluenceType>

void TGPUSkinVertexFactory< BoneInfluenceType >::InitRHI ( FRHICommandListBase & RHICmdList )

overridevirtual

Creates declarations for each of the vertex stream components and initializes the device resource

Reimplemented from FGPUBaseSkinVertexFactory.

Reimplemented in TGPUSkinAPEXClothVertexFactory< BoneInfluenceType >.

◆ ReleaseRHI()

template<GPUSkinBoneInfluenceType BoneInfluenceType>

void TGPUSkinVertexFactory< BoneInfluenceType >::ReleaseRHI ( )

overridevirtual

Releases the RHI resources used by this resource. Called when leaving the state where both the resource and the RHI have been initialized. This is only called by the rendering thread.

Reimplemented from FGPUBaseSkinVertexFactory.

Reimplemented in TGPUSkinAPEXClothVertexFactory< BoneInfluenceType >.

◆ ShouldCompilePermutation()

template<GPUSkinBoneInfluenceType BoneInfluenceType>

bool TGPUSkinVertexFactory< BoneInfluenceType >::ShouldCompilePermutation ( const FVertexFactoryShaderPermutationParameters & Parameters )

static

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Engine/Public/GPUSkinVertexFactory.h
Engine/Source/Runtime/Engine/Private/GPUSkinVertexFactory.cpp
