FBSPSurfaceStaticLighting Class Reference

#include <ModelLight.h>

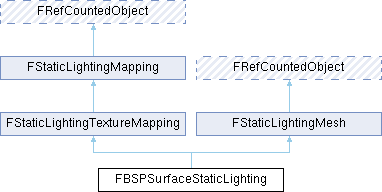

+ Inheritance diagram for FBSPSurfaceStaticLighting:

Public Member Functions

ENGINE_API FBSPSurfaceStaticLighting (const FNodeGroup *InNodeGroup, UModel *Model, UModelComponent *Component)

virtual void GetTriangle (int32 TriangleIndex, FStaticLightingVertex &OutV0, FStaticLightingVertex &OutV1, FStaticLightingVertex &OutV2) const override

virtual void GetTriangleIndices (int32 TriangleIndex, int32 &OutI0, int32 &OutI1, int32 &OutI2) const override

virtual FLightRayIntersection IntersectLightRay (const FVector &Start, const FVector &End, bool bFindNearestIntersection) const override

virtual bool IsInstancedMesh () const override

virtual bool IsValidMapping () const override

virtual const FGuid & GetLightingGuid () const override

virtual FString GetDescription () const override

const UModel * GetModel () const

- Public Member Functions inherited from FStaticLightingTextureMapping
ENGINE_API FStaticLightingTextureMapping (FStaticLightingMesh *InMesh, UObject *InOwner, int32 InSizeX, int32 InSizeY, int32 InLightmapTextureCoordinateIndex, bool bInBilinearFilter=true)

virtual void Apply (struct FQuantizedLightmapData *QuantizedData, const TMap< ULightComponent *, class FShadowMapData2D * > &ShadowMapData, const FStaticLightingBuildContext *LightingContext)=0

virtual FStaticLightingTextureMapping * GetTextureMapping ()

virtual bool IsTextureMapping () const

virtual int32 GetTexelCount () const

 FStaticLightingTextureMapping (const FArchive &Ar)

- Public Member Functions inherited from FStaticLightingMapping
 FStaticLightingMapping (FStaticLightingMesh *InMesh, UObject *InOwner)

virtual ~FStaticLightingMapping ()

bool IsDeferred () const

 FStaticLightingMapping (const FArchive &)

- Public Member Functions inherited from FRefCountedObject
 FRefCountedObject ()

virtual ~FRefCountedObject ()

 FRefCountedObject (const FRefCountedObject &Rhs)=delete

FRefCountedObject & operator= (const FRefCountedObject &Rhs)=delete

FReturnedRefCountValue AddRef () const

uint32 Release () const

uint32 GetRefCount () const

- Public Member Functions inherited from FStaticLightingMesh
ENGINE_API FStaticLightingMesh (int32 InNumTriangles, int32 InNumShadingTriangles, int32 InNumVertices, int32 InNumShadingVertices, int32 InTextureCoordinateIndex, bool bInCastShadow, bool bInTwoSidedMaterial, const TArray< ULightComponent * > &InRelevantLights, const UPrimitiveComponent *const InComponent, const FBox &InBoundingBox, const FGuid &InSourceMeshGuid, const FGuid &InComponentGuid)

ENGINE_API FStaticLightingMesh ()

virtual ENGINE_API void Serialize (FArchive &Ar)

virtual ~FStaticLightingMesh ()

virtual void GetShadingTriangle (int32 TriangleIndex, FStaticLightingVertex &OutV0, FStaticLightingVertex &OutV1, FStaticLightingVertex &OutV2) const

virtual void GetShadingTriangleIndices (int32 TriangleIndex, int32 &OutI0, int32 &OutI1, int32 &OutI2) const

virtual bool ShouldCastShadow (ULightComponent *Light, const FStaticLightingMapping *Receiver) const

virtual bool IsTriangleCastingShadow (uint32 TriangleIndex) const

virtual bool IsControllingShadowPerElement () const

virtual bool IsUniformShadowCaster () const


Public Attributes

const FNodeGroup * NodeGroup

bool bComplete

TMap< ULightComponent *, FShadowMapData2D * > ShadowMapData

FQuantizedLightmapData * QuantizedData

FIntRect MappedRect

- Public Attributes inherited from FStaticLightingTextureMapping
int32 SizeX

int32 SizeY

int32 LightmapTextureCoordinateIndex

bool bBilinearFilter

- Public Attributes inherited from FStaticLightingMapping
class FStaticLightingMesh * Mesh

UObject * Owner

uint32 bProcessMapping: 1

uint32 bIsDeferred: 1

- Public Attributes inherited from FStaticLightingMesh
const int32 NumTriangles

const int32 NumShadingTriangles

const int32 NumVertices

const int32 NumShadingVertices

const int32 TextureCoordinateIndex

TArray< int32 > VisibilityIds

const uint32 bCastShadow: 1

const uint32 bTwoSidedMaterial: 1

const TArray< ULightComponent * > RelevantLights

TArray< FGuid > RelevantLightsGuid

const UPrimitiveComponent *const Component

FGuid ComponentGuid

FBox BoundingBox

FGuid Guid

FGuid SourceMeshGuid

TArray< TRefCountPtr< FStaticLightingMesh > > OtherMeshLODs

uint32 HLODTreeIndex

uint32 HLODChildStartIndex

uint32 HLODChildEndIndex


Detailed Description

Represents a BSP surface to the static lighting system.

Constructor & Destructor Documentation

◆ FBSPSurfaceStaticLighting()

FBSPSurfaceStaticLighting::FBSPSurfaceStaticLighting ( const FNodeGroup *  InNodeGroup,
UModel *  Model,
UModelComponent *  Component
)

Initialization constructor.

Member Function Documentation

◆ GetDescription()

virtual FString FBSPSurfaceStaticLighting::GetDescription ( ) const
inlineoverridevirtual

Reimplemented from FStaticLightingTextureMapping.

◆ GetLightingGuid()

virtual const FGuid & FBSPSurfaceStaticLighting::GetLightingGuid ( ) const
inlineoverridevirtual

Returns the Guid used for static lighting.

Returns
FGuid that identifies the mapping

Reimplemented from FStaticLightingMapping.

◆ GetModel()

const UModel * FBSPSurfaceStaticLighting::GetModel ( ) const
inline

◆ GetTriangle()

void FBSPSurfaceStaticLighting::GetTriangle ( int32  TriangleIndex,
FStaticLightingVertex &  OutV0,
FStaticLightingVertex &  OutV1,
FStaticLightingVertex &  OutV2
) const
overridevirtual

Accesses a triangle.

Parameters
TriangleIndex- The triangle to access.
OutV0- Upon return, should contain the first vertex of the triangle.
OutV1- Upon return, should contain the second vertex of the triangle.
OutV2- Upon return, should contain the third vertex of the triangle.

Implements FStaticLightingMesh.

◆ GetTriangleIndices()

void FBSPSurfaceStaticLighting::GetTriangleIndices ( int32  TriangleIndex,
int32 &  OutI0,
int32 &  OutI1,
int32 &  OutI2
) const
overridevirtual

Accesses a triangle's vertex indices.

Parameters
TriangleIndex- The triangle to access.
OutI0- Upon return, should contain the first vertex index of the triangle.
OutI1- Upon return, should contain the second vertex index of the triangle.
OutI2- Upon return, should contain the third vertex index of the triangle.

Implements FStaticLightingMesh.

◆ IntersectLightRay()

FLightRayIntersection FBSPSurfaceStaticLighting::IntersectLightRay ( const FVector &  Start,
const FVector &  End,
bool  bFindNearestIntersection
) const
overridevirtual

Checks if a line segment intersects the mesh.

Parameters
Start- The start point of the line segment.
End- The end point of the line segment.
bFindNearestIntersection- Whether the nearest intersection is needed, or any intersection.
Returns
The intersection of the light-ray with the mesh.

Implements FStaticLightingMesh.

◆ IsInstancedMesh()

virtual bool FBSPSurfaceStaticLighting::IsInstancedMesh ( ) const
inlineoverridevirtual

Returns true if this mesh is an instanced mesh.

Implements FStaticLightingMesh.

◆ IsValidMapping()

virtual bool FBSPSurfaceStaticLighting::IsValidMapping ( ) const
inlineoverridevirtual

Whether or not this mapping should be processed or imported

Reimplemented from FStaticLightingTextureMapping.

Member Data Documentation

◆ bComplete

bool FBSPSurfaceStaticLighting::bComplete

true if the surface has complete static lighting.

◆ MappedRect

FIntRect FBSPSurfaceStaticLighting::MappedRect

Minimum rectangle that encompasses all mapped texels.

◆ NodeGroup

const FNodeGroup* FBSPSurfaceStaticLighting::NodeGroup

The surface's static lighting node group mapping info.

◆ QuantizedData

FQuantizedLightmapData* FBSPSurfaceStaticLighting::QuantizedData

Quantized light map data

◆ ShadowMapData

TMap<ULightComponent*,FShadowMapData2D*> FBSPSurfaceStaticLighting::ShadowMapData
