FGameplayDebuggerCategory Class Reference

#include <GameplayDebuggerCategory.h>

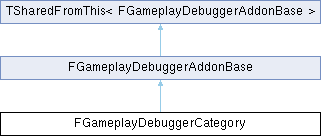

Inheritance diagram for FGameplayDebuggerCategory:

Public Member Functions
GAMEPLAYDEBUGGER_API	FGameplayDebuggerCategory ()
virtual GAMEPLAYDEBUGGER_API	~FGameplayDebuggerCategory ()
virtual GAMEPLAYDEBUGGER_API void	CollectData (APlayerController *OwnerPC, AActor *DebugActor)
virtual GAMEPLAYDEBUGGER_API void	DrawData (APlayerController *OwnerPC, FGameplayDebuggerCanvasContext &CanvasContext)
virtual GAMEPLAYDEBUGGER_API FDebugRenderSceneProxy *	CreateDebugSceneProxy (const UPrimitiveComponent *InComponent, FDebugDrawDelegateHelper *&OutDelegateHelper)
virtual GAMEPLAYDEBUGGER_API void	OnDataPackReplicated (int32 DataPackId)
GAMEPLAYDEBUGGER_API void	AddTextLine (const FString &TextLine)
GAMEPLAYDEBUGGER_API void	AddShape (const FGameplayDebuggerShape &Shape)
GAMEPLAYDEBUGGER_API void	DrawCategory (APlayerController *OwnerPC, FGameplayDebuggerCanvasContext &CanvasContext)
bool	ShouldDrawCategory (bool bHasDebugActor) const
bool	ShouldDrawReplicationStatus () const
FName	GetCategoryName () const
bool	IsCategoryHeaderVisible () const
bool	IsCategoryEnabled () const
bool	IsCategoryLocal () const
bool	IsCategoryAuth () const
bool	ShouldCollectDataOnClient () const
int32	GetNumDataPacks () const
float	GetDataPackProgress (int32 DataPackId) const
bool	IsDataPackReplicating (int32 DataPackId) const
FGameplayDebuggerDataPack::FHeader	GetDataPackHeaderCopy (int32 DataPackId) const
TArray< FString >	GetReplicatedLinesCopy () const
TArray< FGameplayDebuggerShape >	GetReplicatedShapesCopy () const
Public Member Functions inherited from FGameplayDebuggerAddonBase
virtual	~FGameplayDebuggerAddonBase ()
int32	GetNumInputHandlers () const
FGameplayDebuggerInputHandler &	GetInputHandler (int32 HandlerId)
GAMEPLAYDEBUGGER_API FString	GetInputHandlerDescription (int32 HandlerId) const
GAMEPLAYDEBUGGER_API UWorld *	GetWorldFromReplicator () const
GAMEPLAYDEBUGGER_API UWorld *	GetDataWorld (const APlayerController *OwnerPC, const AActor *DebugActor) const
virtual GAMEPLAYDEBUGGER_API void	OnGameplayDebuggerActivated ()
virtual GAMEPLAYDEBUGGER_API void	OnGameplayDebuggerDeactivated ()
Public Member Functions inherited from TSharedFromThis< FGameplayDebuggerAddonBase >
TSharedRef< FGameplayDebuggerAddonBase, Mode >	AsShared ()
TSharedRef< FGameplayDebuggerAddonBase const, Mode >	AsShared () const
TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const
TWeakPtr< FGameplayDebuggerAddonBase, Mode >	AsWeak ()
TWeakPtr< FGameplayDebuggerAddonBase const, Mode >	AsWeak () const
TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const
void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const
void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const
UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Protected Member Functions
GAMEPLAYDEBUGGER_API bool	GetViewPoint (const APlayerController *OwnerPC, FVector &OutViewLocation, FVector &OutViewDirection) const
GAMEPLAYDEBUGGER_API void	MarkDataPackDirty (int32 DataPackId)
GAMEPLAYDEBUGGER_API void	MarkRenderStateDirty ()
GAMEPLAYDEBUGGER_API FString	GetSceneProxyViewFlag () const
template<typename T >
int32	SetDataPackReplication (T *DataPackAddr, EGameplayDebuggerDataPack Flags=EGameplayDebuggerDataPack::ResetOnTick)
void	ForceImmediateCollect ()
GAMEPLAYDEBUGGER_API void	ResetReplicatedData ()
Protected Member Functions inherited from FGameplayDebuggerAddonBase
GAMEPLAYDEBUGGER_API AActor *	FindLocalDebugActor () const
GAMEPLAYDEBUGGER_API AGameplayDebuggerCategoryReplicator *	GetReplicator () const
template<class UserClass >
bool	BindKeyPress (FName KeyName, UserClass *KeyHandlerObject, typename FGameplayDebuggerInputHandler::FHandler::TMethodPtr< UserClass > KeyHandlerFunc, EGameplayDebuggerInputMode InputMode=EGameplayDebuggerInputMode::Local)
template<class UserClass >
bool	BindKeyPress (FName KeyName, FGameplayDebuggerInputModifier KeyModifer, UserClass *KeyHandlerObject, typename FGameplayDebuggerInputHandler::FHandler::TMethodPtr< UserClass > KeyHandlerFunc, EGameplayDebuggerInputMode InputMode=EGameplayDebuggerInputMode::Local)
template<class UserClass >
bool	BindKeyPress (const FGameplayDebuggerInputHandlerConfig &InputConfig, UserClass *KeyHandlerObject, typename FGameplayDebuggerInputHandler::FHandler::TMethodPtr< UserClass > KeyHandlerFunc, EGameplayDebuggerInputMode InputMode=EGameplayDebuggerInputMode::Local)
Protected Member Functions inherited from TSharedFromThis< FGameplayDebuggerAddonBase >
	TSharedFromThis ()
	TSharedFromThis (TSharedFromThis const &)
UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)
	~TSharedFromThis ()

Static Protected Member Functions
static GAMEPLAYDEBUGGER_API bool	IsLocationInViewCone (const FVector &ViewLocation, const FVector &ViewDirection, const FVector &TargetLocation)
Static Protected Member Functions inherited from TSharedFromThis< FGameplayDebuggerAddonBase >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)
static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Protected Attributes
float	CollectDataInterval
uint32	bShowDataPackReplication: 1
uint32	bShowUpdateTimer: 1
uint32	bShowCategoryName: 1
uint32	bShowOnlyWithDebugActor: 1
uint32	bAllowLocalDataCollection: 1

Friends
class	FGameplayDebuggerAddonManager
class	AGameplayDebuggerCategoryReplicator
struct	FGameplayDebuggerNetPack

Additional Inherited Members
Static Public Member Functions inherited from FGameplayDebuggerAddonBase
static GAMEPLAYDEBUGGER_API bool	IsSimulateInEditor ()

Detailed Description

Single category of visual debugger tool

Constructor & Destructor Documentation

FGameplayDebuggerCategory()

FGameplayDebuggerCategory::FGameplayDebuggerCategory

(

)

~FGameplayDebuggerCategory()

FGameplayDebuggerCategory::~FGameplayDebuggerCategory ( )

virtual

Member Function Documentation

AddShape()

void FGameplayDebuggerCategory::AddShape

(

const FGameplayDebuggerShape &

Shape

)

[AUTH] adds shape to replicated data

AddTextLine()

void FGameplayDebuggerCategory::AddTextLine

(

const FString &

TextLine

)

[AUTH] adds line of text tagged with {color} to replicated data

CollectData()

void FGameplayDebuggerCategory::CollectData ( APlayerController *  OwnerPC, AActor *  DebugActor  )

virtual

[AUTH] gather data for replication

CreateDebugSceneProxy()

FDebugRenderSceneProxy * FGameplayDebuggerCategory::CreateDebugSceneProxy ( const UPrimitiveComponent *  InComponent, FDebugDrawDelegateHelper *&  OutDelegateHelper  )

virtual

[LOCAL] creates a scene proxy for more advanced debug rendering

DrawCategory()

void FGameplayDebuggerCategory::DrawCategory	(	APlayerController *	OwnerPC,
		FGameplayDebuggerCanvasContext &	CanvasContext
	)

[LOCAL] draw category

DrawData()

void FGameplayDebuggerCategory::DrawData ( APlayerController *  OwnerPC, FGameplayDebuggerCanvasContext &  CanvasContext  )

virtual

[LOCAL] draw collected data

ForceImmediateCollect()

void FGameplayDebuggerCategory::ForceImmediateCollect ( )

inlineprotected

[AUTH] force data collection on next update

GetCategoryName()

FName FGameplayDebuggerCategory::GetCategoryName ( ) const

inline

[ALL] get name of category

GetDataPackHeaderCopy()

FGameplayDebuggerDataPack::FHeader FGameplayDebuggerCategory::GetDataPackHeaderCopy ( int32  DataPackId ) const

inline

GetDataPackProgress()

float FGameplayDebuggerCategory::GetDataPackProgress ( int32  DataPackId ) const

inline

GetNumDataPacks()

int32 FGameplayDebuggerCategory::GetNumDataPacks ( ) const

inline

GetReplicatedLinesCopy()

TArray< FString > FGameplayDebuggerCategory::GetReplicatedLinesCopy ( ) const

inline

GetReplicatedShapesCopy()

TArray< FGameplayDebuggerShape > FGameplayDebuggerCategory::GetReplicatedShapesCopy ( ) const

inline

GetSceneProxyViewFlag()

FString FGameplayDebuggerCategory::GetSceneProxyViewFlag ( ) const

protected

[LOCAL] preferred view flag for creating scene proxy

GetViewPoint()

bool FGameplayDebuggerCategory::GetViewPoint ( const APlayerController *  OwnerPC, FVector &  OutViewLocation, FVector &  OutViewDirection  ) const

protected

Returns view location and direction from replicated data if available or will extract it from the provided player controller. The replicated data is used first since it might be provided from a detached camera.

Returns

whether OutViewLocation and OutViewDirection were assigned to valid values

Note

Method is expected to always return valid outputs if valid controller is provided. Otherwise it depends if the view information has been replicated before the methods gets called.

IsCategoryAuth()

bool FGameplayDebuggerCategory::IsCategoryAuth ( ) const

inline

[ALL] check if category has authority (collects data)

IsCategoryEnabled()

bool FGameplayDebuggerCategory::IsCategoryEnabled ( ) const

inline

[ALL] check if category is enabled

IsCategoryHeaderVisible()

bool FGameplayDebuggerCategory::IsCategoryHeaderVisible ( ) const

inline

[ALL] check if category header should be drawn

IsCategoryLocal()

bool FGameplayDebuggerCategory::IsCategoryLocal ( ) const

inline

[ALL] check if category is local (present data)

IsDataPackReplicating()

bool FGameplayDebuggerCategory::IsDataPackReplicating ( int32  DataPackId ) const

inline

IsLocationInViewCone()

bool FGameplayDebuggerCategory::IsLocationInViewCone ( const FVector &  ViewLocation, const FVector &  ViewDirection, const FVector &  TargetLocation  )

staticprotected

Indicates if a given location is within a vision cone built from provided view location and direction based on MaxViewDistance and MaxViewAngle from GameplayDebuggerUserSettings

MarkDataPackDirty()

void FGameplayDebuggerCategory::MarkDataPackDirty ( int32  DataPackId )

protected

[AUTH] marks data pack as needing replication

MarkRenderStateDirty()

void FGameplayDebuggerCategory::MarkRenderStateDirty ( )

protected

[LOCAL] requests new scene proxy

OnDataPackReplicated()

void FGameplayDebuggerCategory::OnDataPackReplicated ( int32  DataPackId )

virtual

[LOCAL] called after successful replication of entire data pack to client

ResetReplicatedData()

void FGameplayDebuggerCategory::ResetReplicatedData ( )

protected

[ALL] Clears out accumulated replicated data.

SetDataPackReplication()

template<typename T >

int32 FGameplayDebuggerCategory::SetDataPackReplication ( T *  DataPackAddr, EGameplayDebuggerDataPack  Flags = EGameplayDebuggerDataPack::ResetOnTick  )

inlineprotected

[ALL] sets up DataPack replication, needs address of property holding data, DataPack's struct must define Serialize(FArchive& Ar) function returns DataPackId

ShouldCollectDataOnClient()

bool FGameplayDebuggerCategory::ShouldCollectDataOnClient ( ) const

inline

[LOCAL]

ShouldDrawCategory()

bool FGameplayDebuggerCategory::ShouldDrawCategory ( bool  bHasDebugActor ) const

inline

[LOCAL] check if category should be drawn

ShouldDrawReplicationStatus()

bool FGameplayDebuggerCategory::ShouldDrawReplicationStatus ( ) const

inline

[LOCAL] check if data pack replication status

Friends And Related Symbol Documentation

AGameplayDebuggerCategoryReplicator

friend class AGameplayDebuggerCategoryReplicator

friend

FGameplayDebuggerAddonManager

friend class FGameplayDebuggerAddonManager

friend

FGameplayDebuggerNetPack

friend struct FGameplayDebuggerNetPack

friend

Member Data Documentation

bAllowLocalDataCollection

uint32 FGameplayDebuggerCategory::bAllowLocalDataCollection

protected

False by default. If set to True will make data collection functions work on Local categories as well. Note that in client-server setting the data is still being replicated over from the server as well, and data collection on the client can also be used to annotate the incoming data. If this is undesired you need to call ResetReplicatedData before gathering the client-side data.

bShowCategoryName

uint32 FGameplayDebuggerCategory::bShowCategoryName

protected

include category name in drawn messages

bShowDataPackReplication

uint32 FGameplayDebuggerCategory::bShowDataPackReplication

protected

include data pack replication details in drawn messages

bShowOnlyWithDebugActor

uint32 FGameplayDebuggerCategory::bShowOnlyWithDebugActor

protected

draw category only when DebugActor is present

bShowUpdateTimer

uint32 FGameplayDebuggerCategory::bShowUpdateTimer

protected

include remaining time to next data collection in drawn messages

CollectDataInterval

float FGameplayDebuggerCategory::CollectDataInterval

protected

update interval, 0 = each tick

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/GameplayDebugger/Public/GameplayDebuggerCategory.h
• Engine/Source/Runtime/GameplayDebugger/Private/GameplayDebuggerCategory.cpp
