Chaos::FImplicitObject Class Referenceabstract

#include <ImplicitObject.h>

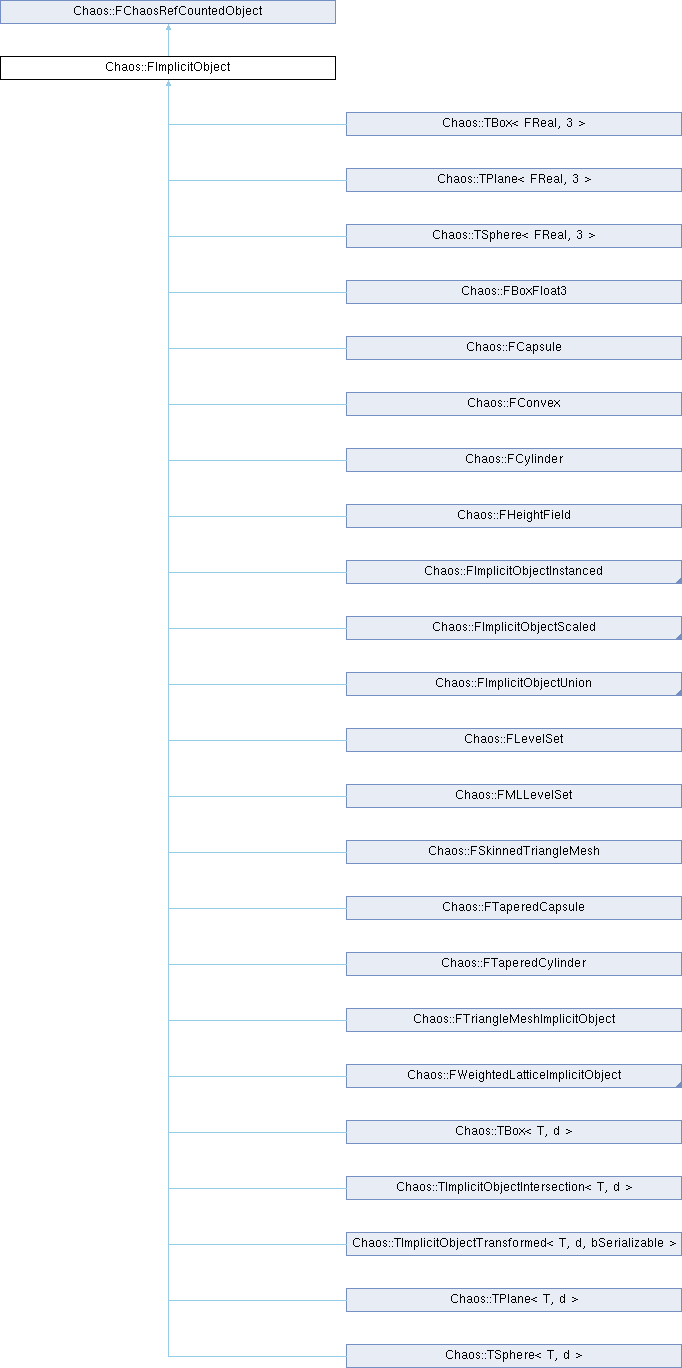

+ Inheritance diagram for Chaos::FImplicitObject:

Public Types

using TType = FReal


Public Member Functions

CHAOS_API FImplicitObject (int32 Flags, EImplicitObjectType InType=ImplicitObjectType::Unknown)

 FImplicitObject (const FImplicitObject &)=delete

 FImplicitObject (FImplicitObject &&)=delete

virtual CHAOS_API ~FImplicitObject () override

template<typename TargetType >
bool IsA () const

template<typename TargetType >
const TargetType * AsA () const

template<typename TargetType >
TargetType * AsA ()

template<typename TargetType >
const TargetType * AsAChecked () const

template<typename TargetType >
TargetType * AsAChecked ()

template<class T_DERIVED >
T_DERIVED * GetObject ()

template<class T_DERIVED >
const T_DERIVED * GetObject () const

template<class T_DERIVED >
const T_DERIVED & GetObjectChecked () const

template<class T_DERIVED >
T_DERIVED & GetObjectChecked ()

virtual EImplicitObjectType GetNestedType () const

CHAOS_API EImplicitObjectType GetType () const

CHAOS_API EImplicitObjectType GetCollisionType () const

void SetCollisionType (EImplicitObjectType InCollisionType)

virtual FReal GetRadius () const

virtual FRealSingle GetRadiusf () const

virtual FReal GetMargin () const

virtual FRealSingle GetMarginf () const

virtual CHAOS_API bool IsValidGeometry () const

virtual CHAOS_API Chaos::FImplicitObjectPtr CopyGeometry () const

virtual CHAOS_API Chaos::FImplicitObjectPtr CopyGeometryWithScale (const FVec3 &Scale) const

virtual Chaos::FImplicitObjectPtr DeepCopyGeometry () const

virtual Chaos::FImplicitObjectPtr DeepCopyGeometryWithScale (const FVec3 &Scale) const

virtual FImplicitObject * Duplicate () const

virtual TUniquePtr< FImplicitObject > Copy () const

virtual TUniquePtr< FImplicitObject > CopyWithScale (const FVec3 &Scale) const

virtual TUniquePtr< FImplicitObject > DeepCopy () const

virtual TUniquePtr< FImplicitObject > DeepCopyWithScale (const FVec3 &Scale) const

CHAOS_API bool IsUnderlyingUnion () const

CHAOS_API bool IsUnderlyingMesh () const

CHAOS_API FReal SignedDistance (const FVec3 &x) const

CHAOS_API FVec3 Normal (const FVec3 &x) const

virtual FReal PhiWithNormal (const FVec3 &x, FVec3 &Normal) const =0

virtual FReal PhiWithNormalScaled (const FVec3 &Pos, const FVec3 &Scale, FVec3 &Normal) const

virtual CHAOS_API const FAABB3 BoundingBox () const

virtual FAABB3 CalculateTransformedBounds (const FRigidTransform3 &Transform) const

bool HasBoundingBox () const

bool IsConvex () const

void SetConvex (const bool Convex=true)

void SetDoCollide (const bool Collide)

bool GetDoCollide () const

CHAOS_API void Track (TSerializablePtr< FImplicitObject > This, const FString &DebugInfo)

virtual bool IsPerformanceWarning () const

virtual FString PerformanceWarningAndSimplifaction ()

CHAOS_API Pair< FVec3, bool > FindDeepestIntersection (const FImplicitObject *Other, const FBVHParticles *Particles, const FMatrix33 &OtherToLocalTransform, const FReal Thickness) const

CHAOS_API Pair< FVec3, bool > FindDeepestIntersection (const FImplicitObject *Other, const FParticles *Particles, const FMatrix33 &OtherToLocalTransform, const FReal Thickness) const

CHAOS_API Pair< FVec3, bool > FindClosestIntersection (const FVec3 &StartPoint, const FVec3 &EndPoint, const FReal Thickness) const

virtual bool Raycast (const FVec3 &StartPoint, const FVec3 &Dir, const FReal Length, const FReal Thickness, FReal &OutTime, FVec3 &OutPosition, FVec3 &OutNormal, int32 &OutFaceIndex) const

virtual int32 FindMostOpposingFace (const FVec3 &Position, const FVec3 &UnitDir, int32 HintFaceIndex, FReal SearchDist) const

virtual int32 FindMostOpposingFaceScaled (const FVec3 &Position, const FVec3 &UnitDir, int32 HintFaceIndex, FReal SearchDist, const FVec3 &Scale) const

virtual int32 FindClosestFaceAndVertices (const FVec3 &Position, TArray< FVec3 > &FaceVertices, FReal SearchDist=0.01f) const

virtual FVec3 FindGeometryOpposingNormal (const FVec3 &DenormDir, int32 FaceIndex, const FVec3 &OriginalNormal) const

virtual bool Overlap (const FVec3 &Point, const FReal Thickness) const

virtual void AccumulateAllImplicitObjects (TArray< Pair< const FImplicitObject *, FRigidTransform3 > > &Out, const FRigidTransform3 &ParentTM) const

virtual void AccumulateAllSerializableImplicitObjects (TArray< Pair< TSerializablePtr< FImplicitObject >, FRigidTransform3 > > &Out, const FRigidTransform3 &ParentTM, TSerializablePtr< FImplicitObject > This) const

virtual CHAOS_API void FindAllIntersectingObjects (TArray< Pair< const FImplicitObject *, FRigidTransform3 > > &Out, const FAABB3 &LocalBounds) const

virtual FString ToString () const

CHAOS_API void SerializeImp (FArchive &Ar)

virtual void Serialize (FArchive &Ar)

virtual CHAOS_API void Serialize (FChaosArchive &Ar)

virtual uint32 GetTypeHash () const =0

virtual FName GetTypeName () const

virtual uint16 GetMaterialIndex (uint32 HintIndex) const

int32 CountObjectsInHierarchy () const

int32 CountLeafObjectsInHierarchy () const

void VisitOverlappingLeafObjects (const FAABB3 &LocalBounds, const FImplicitHierarchyVisitor &Visitor) const

void VisitLeafObjects (const FImplicitHierarchyVisitor &Visitor) const

void VisitObjects (const FImplicitHierarchyVisitorBool &Visitor) const

bool IsOverlappingBounds (const FAABB3 &LocalBounds) const

virtual int32 CountObjectsInHierarchyImpl () const

virtual int32 CountLeafObjectsInHierarchyImpl () const

virtual void VisitOverlappingLeafObjectsImpl (const FAABB3 &LocalBounds, const FRigidTransform3 &ObjectTransform, const int32 RootObjectIndex, int32 &ObjectIndex, int32 &LeafObjectIndex, const FImplicitHierarchyVisitor &VisitorFunc) const

virtual void VisitLeafObjectsImpl (const FRigidTransform3 &ObjectTransform, const int32 RootObjectIndex, int32 &ObjectIndex, int32 &LeafObjectIndex, const FImplicitHierarchyVisitor &VisitorFunc) const

virtual bool VisitObjectsImpl (const FRigidTransform3 &ObjectTransform, const int32 RootObjectIndex, int32 &ObjectIndex, int32 &LeafObjectIndex, const FImplicitHierarchyVisitorBool &VisitorFunc) const

virtual bool IsOverlappingBoundsImpl (const FAABB3 &LocalBounds) const

- Public Member Functions inherited from Chaos::FChaosRefCountedObject
 FChaosRefCountedObject ()

virtual ~FChaosRefCountedObject ()

 FChaosRefCountedObject (const FChaosRefCountedObject &Rhs)=delete

FChaosRefCountedObject & operator= (const FChaosRefCountedObject &Rhs)=delete

uint32 AddRef () const

uint32 Release () const

uint32 GetRefCount () const

void MakePersistent () const


Static Public Member Functions

static CHAOS_API FImplicitObject * SerializationFactory (FChaosArchive &Ar, FImplicitObject *Obj)

static int32 GetOffsetOfType ()

static int32 GetOffsetOfMargin ()

static constexpr EImplicitObjectType StaticType ()

static CHAOS_API FArchive & SerializeLegacyHelper (FArchive &Ar, TUniquePtr< FImplicitObject > &Value)

static CHAOS_API const FName GetTypeName (const EImplicitObjectType InType)


Static Public Attributes

static constexpr int D = 3


Protected Member Functions

void SetMargin (FReal InMargin)

void SetMargin (FRealSingle InMargin)


Static Protected Member Functions

static FVec3 ScaleNormalizedHelper (const FVec3 &Normal, const FVec3 &Scale)

static FVec3 GetOuterScaledNormal (const FVec3 &InnerNormal, const FVec3 &Scale)

static FVec3 GetInnerUnscaledNormal (const FVec3 &OuterNormal, const FVec3 &Scale)


Protected Attributes

FRealSingle Margin

bool bIsConvex

bool bDoCollide

bool bHasBoundingBox

bool bIsTracked

EImplicitObjectType Type

EImplicitObjectType CollisionType


Member Typedef Documentation

◆ TType

using Chaos::FImplicitObject::TType = FReal

Constructor & Destructor Documentation

◆ FImplicitObject() [1/3]

Chaos::FImplicitObject::FImplicitObject ( int32  Flags,
EImplicitObjectType  InType = ImplicitObjectType::Unknown
)

◆ FImplicitObject() [2/3]

Chaos::FImplicitObject::FImplicitObject ( const FImplicitObject &  )
delete

◆ FImplicitObject() [3/3]

Chaos::FImplicitObject::FImplicitObject ( FImplicitObject &&  )
delete

◆ ~FImplicitObject()

Chaos::FImplicitObject::~FImplicitObject ( )
overridevirtual

Member Function Documentation

◆ AccumulateAllImplicitObjects()

virtual void Chaos::FImplicitObject::AccumulateAllImplicitObjects ( TArray< Pair< const FImplicitObject *, FRigidTransform3 > > &  Out,
const FRigidTransform3 &  ParentTM
) const
inlinevirtual

Reimplemented in Chaos::FImplicitObjectUnion.

◆ AccumulateAllSerializableImplicitObjects()

virtual void Chaos::FImplicitObject::AccumulateAllSerializableImplicitObjects ( TArray< Pair< TSerializablePtr< FImplicitObject >, FRigidTransform3 > > &  Out,
const FRigidTransform3 &  ParentTM,
TSerializablePtr< FImplicitObject >  This
) const
inlinevirtual

◆ AsA() [1/2]

template<typename TargetType >
TargetType * Chaos::FImplicitObject::AsA ( )
inline

◆ AsA() [2/2]

template<typename TargetType >
const TargetType * Chaos::FImplicitObject::AsA ( ) const
inline

◆ AsAChecked() [1/2]

template<typename TargetType >
TargetType * Chaos::FImplicitObject::AsAChecked ( )
inline

◆ AsAChecked() [2/2]

template<typename TargetType >
const TargetType * Chaos::FImplicitObject::AsAChecked ( ) const
inline

◆ BoundingBox()

const FAABB3 Chaos::FImplicitObject::BoundingBox ( ) const
virtual

Reimplemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FHeightField, Chaos::TImplicitObjectIntersection< T, d >, Chaos::FCapsule, Chaos::FConvex, Chaos::FCylinder, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::FImplicitObjectScaled, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, Chaos::FLevelSet, Chaos::FMLLevelSet, Chaos::FSkinnedTriangleMesh, Chaos::TSphere< T, d >, Chaos::TSphere< FReal, 3 >, Chaos::FTaperedCapsule, Chaos::FTaperedCylinder, Chaos::FTriangleMeshImplicitObject, and Chaos::FWeightedLatticeImplicitObject.

◆ CalculateTransformedBounds()

virtual FAABB3 Chaos::FImplicitObject::CalculateTransformedBounds ( const FRigidTransform3 &  Transform) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FCapsule, Chaos::TSphere< T, d >, and Chaos::TSphere< FReal, 3 >.

◆ Copy()

virtual TUniquePtr< FImplicitObject > Chaos::FImplicitObject::Copy ( ) const
inlinevirtual

◆ CopyGeometry()

Chaos::FImplicitObjectPtr Chaos::FImplicitObject::CopyGeometry ( ) const
virtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, Chaos::FTriangleMeshImplicitObject, Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FCapsule, Chaos::FConvex, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::FLevelSet, Chaos::FMLLevelSet, Chaos::FSkinnedTriangleMesh, Chaos::TSphere< T, d >, Chaos::TSphere< FReal, 3 >, Chaos::TWeightedLatticeImplicitObject< TConcrete >, and Chaos::TWeightedLatticeImplicitObject< Chaos::FLevelSet >.

◆ CopyGeometryWithScale()

Chaos::FImplicitObjectPtr Chaos::FImplicitObject::CopyGeometryWithScale ( const FVec3 &  Scale) const
virtual

Reimplemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FCapsule, Chaos::FConvex, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, Chaos::FLevelSet, Chaos::FMLLevelSet, Chaos::FSkinnedTriangleMesh, Chaos::TSphere< T, d >, and Chaos::TSphere< FReal, 3 >.

◆ CopyWithScale()

virtual TUniquePtr< FImplicitObject > Chaos::FImplicitObject::CopyWithScale ( const FVec3 &  Scale) const
inlinevirtual

◆ CountLeafObjectsInHierarchy()

int32 Chaos::FImplicitObject::CountLeafObjectsInHierarchy ( ) const
inline

◆ CountLeafObjectsInHierarchyImpl()

virtual int32 Chaos::FImplicitObject::CountLeafObjectsInHierarchyImpl ( ) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, and Chaos::FImplicitObjectUnion.

◆ CountObjectsInHierarchy()

int32 Chaos::FImplicitObject::CountObjectsInHierarchy ( ) const
inline

◆ CountObjectsInHierarchyImpl()

virtual int32 Chaos::FImplicitObject::CountObjectsInHierarchyImpl ( ) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, and Chaos::FImplicitObjectUnion.

◆ DeepCopy()

virtual TUniquePtr< FImplicitObject > Chaos::FImplicitObject::DeepCopy ( ) const
inlinevirtual

◆ DeepCopyGeometry()

virtual Chaos::FImplicitObjectPtr Chaos::FImplicitObject::DeepCopyGeometry ( ) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, Chaos::FTriangleMeshImplicitObject, Chaos::FConvex, Chaos::TWeightedLatticeImplicitObject< TConcrete >, and Chaos::TWeightedLatticeImplicitObject< Chaos::FLevelSet >.

◆ DeepCopyGeometryWithScale()

virtual Chaos::FImplicitObjectPtr Chaos::FImplicitObject::DeepCopyGeometryWithScale ( const FVec3 &  Scale) const
inlinevirtual

Reimplemented in Chaos::FConvex, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, and Chaos::FImplicitObjectUnion.

◆ DeepCopyWithScale()

virtual TUniquePtr< FImplicitObject > Chaos::FImplicitObject::DeepCopyWithScale ( const FVec3 &  Scale) const
inlinevirtual

◆ Duplicate()

virtual FImplicitObject * Chaos::FImplicitObject::Duplicate ( ) const
inlinevirtual

◆ FindAllIntersectingObjects()

void Chaos::FImplicitObject::FindAllIntersectingObjects ( TArray< Pair< const FImplicitObject *, FRigidTransform3 > > &  Out,
const FAABB3 &  LocalBounds
) const
virtual

Reimplemented in Chaos::FImplicitObjectUnion.

◆ FindClosestFaceAndVertices()

virtual int32 Chaos::FImplicitObject::FindClosestFaceAndVertices ( const FVec3 &  Position,
TArray< FVec3 > &  FaceVertices,
FReal  SearchDist = 0.01f
) const
inlinevirtual

Finds the first intersecting face at given position

Parameters
Position- local position to search around (for example a point on the surface of a convex hull)
FaceIndices- Vertices that lie on the face plane.
SearchDistance- distance to surface [def:0.01]

Reimplemented in Chaos::FConvex, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, and Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >.

◆ FindClosestIntersection()

Pair< FVec3, bool > Chaos::FImplicitObject::FindClosestIntersection ( const FVec3 &  StartPoint,
const FVec3 &  EndPoint,
const FReal  Thickness
) const

◆ FindDeepestIntersection() [1/2]

Pair< FVec3, bool > Chaos::FImplicitObject::FindDeepestIntersection ( const FImplicitObject *  Other,
const FBVHParticles *  Particles,
const FMatrix33 &  OtherToLocalTransform,
const FReal  Thickness
) const

◆ FindDeepestIntersection() [2/2]

Pair< FVec3, bool > Chaos::FImplicitObject::FindDeepestIntersection ( const FImplicitObject *  Other,
const FParticles *  Particles,
const FMatrix33 &  OtherToLocalTransform,
const FReal  Thickness
) const

◆ FindGeometryOpposingNormal()

virtual FVec3 Chaos::FImplicitObject::FindGeometryOpposingNormal ( const FVec3 &  DenormDir,
int32  FaceIndex,
const FVec3 &  OriginalNormal
) const
inlinevirtual

Given a normal and a face index, compute the most opposing normal associated with the underlying geometry features. For example a sphere swept against a box may not give a normal associated with one of the box faces. This function will return a normal associated with one of the faces.

Parameters
DenormDir- the direction we want to oppose
FaceIndex- the face index associated with the geometry (for example if we hit a specific face of a convex hull)
OriginalNormal- the original normal given by something like a sphere sweep
Returns
The most opposing normal associated with the underlying geometry's feature (like a face)

Reimplemented in Chaos::FConvex, Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FHeightField, Chaos::FTriangleMeshImplicitObject, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, and Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >.

◆ FindMostOpposingFace()

virtual int32 Chaos::FImplicitObject::FindMostOpposingFace ( const FVec3 &  Position,
const FVec3 &  UnitDir,
int32  HintFaceIndex,
FReal  SearchDist
) const
inlinevirtual

Returns the most opposing face.

Parameters
Position- local position to search around (for example an edge of a convex hull)
UnitDir- the direction we want to oppose (for example a ray moving into the edge of a convex hull would get the face with the most negative dot(FaceNormal, UnitDir)
HintFaceIndex- for certain geometry we can use this to accelerate the search.
Returns
Index of the most opposing face

Reimplemented in Chaos::FConvex, Chaos::FHeightField, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, and Chaos::FTriangleMeshImplicitObject.

◆ FindMostOpposingFaceScaled()

virtual int32 Chaos::FImplicitObject::FindMostOpposingFaceScaled ( const FVec3 &  Position,
const FVec3 &  UnitDir,
int32  HintFaceIndex,
FReal  SearchDist,
const FVec3 &  Scale
) const
inlinevirtual

Reimplemented in Chaos::FConvex, and Chaos::FTriangleMeshImplicitObject.

◆ GetCollisionType()

EImplicitObjectType Chaos::FImplicitObject::GetCollisionType ( ) const

◆ GetDoCollide()

bool Chaos::FImplicitObject::GetDoCollide ( ) const
inline

◆ GetInnerUnscaledNormal()

static FVec3 Chaos::FImplicitObject::GetInnerUnscaledNormal ( const FVec3 &  OuterNormal,
const FVec3 &  Scale
)
inlinestaticprotected

◆ GetMargin()

virtual FReal Chaos::FImplicitObject::GetMargin ( ) const
inlinevirtual

Reimplemented in Chaos::FConvex, and Chaos::TImplicitObjectTransformed< T, d, bSerializable >.

◆ GetMarginf()

virtual FRealSingle Chaos::FImplicitObject::GetMarginf ( ) const
inlinevirtual

◆ GetMaterialIndex()

virtual uint16 Chaos::FImplicitObject::GetMaterialIndex ( uint32  HintIndex) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::FHeightField, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, and Chaos::FTriangleMeshImplicitObject.

◆ GetNestedType()

virtual EImplicitObjectType Chaos::FImplicitObject::GetNestedType ( ) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, and Chaos::TImplicitObjectTransformed< T, d, bSerializable >.

◆ GetObject() [1/2]

template<class T_DERIVED >
T_DERIVED * Chaos::FImplicitObject::GetObject ( )
inline

◆ GetObject() [2/2]

template<class T_DERIVED >
const T_DERIVED * Chaos::FImplicitObject::GetObject ( ) const
inline

◆ GetObjectChecked() [1/2]

template<class T_DERIVED >
T_DERIVED & Chaos::FImplicitObject::GetObjectChecked ( )
inline

◆ GetObjectChecked() [2/2]

template<class T_DERIVED >
const T_DERIVED & Chaos::FImplicitObject::GetObjectChecked ( ) const
inline

◆ GetOffsetOfMargin()

static int32 Chaos::FImplicitObject::GetOffsetOfMargin ( )
inlinestatic

◆ GetOffsetOfType()

static int32 Chaos::FImplicitObject::GetOffsetOfType ( )
inlinestatic

◆ GetOuterScaledNormal()

static FVec3 Chaos::FImplicitObject::GetOuterScaledNormal ( const FVec3 &  InnerNormal,
const FVec3 &  Scale
)
inlinestaticprotected

◆ GetRadius()

virtual FReal Chaos::FImplicitObject::GetRadius ( ) const
inlinevirtual

Reimplemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FCapsule, Chaos::FConvex, Chaos::FCylinder, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::TPlane< T, d >, Chaos::TPlane< FReal, 3 >, Chaos::TSphere< T, d >, Chaos::TSphere< FReal, 3 >, and Chaos::FTriangleMeshImplicitObject.

◆ GetRadiusf()

virtual FRealSingle Chaos::FImplicitObject::GetRadiusf ( ) const
inlinevirtual

Reimplemented in Chaos::FCapsule, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TSphere< T, d >, and Chaos::TSphere< FReal, 3 >.

◆ GetType()

EImplicitObjectType Chaos::FImplicitObject::GetType ( ) const

◆ GetTypeHash()

virtual uint32 Chaos::FImplicitObject::GetTypeHash ( ) const
pure virtual

Implemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FBoxFloat3, Chaos::FCapsule, Chaos::FConvex, Chaos::FHeightField, Chaos::TImplicitObjectIntersection< T, d >, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, Chaos::FLevelSet, Chaos::FMLLevelSet, Chaos::TPlane< T, d >, Chaos::TPlane< FReal, 3 >, Chaos::FSkinnedTriangleMesh, Chaos::TSphere< T, d >, Chaos::TSphere< FReal, 3 >, Chaos::FTaperedCapsule, Chaos::FTaperedCylinder, Chaos::FTriangleMeshImplicitObject, Chaos::TWeightedLatticeImplicitObject< TConcrete >, and Chaos::TWeightedLatticeImplicitObject< Chaos::FLevelSet >.

◆ GetTypeName() [1/2]

virtual FName Chaos::FImplicitObject::GetTypeName ( ) const
inlinevirtual

Reimplemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FCapsule, Chaos::FConvex, Chaos::FCylinder, Chaos::FHeightField, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, Chaos::TPlane< T, d >, Chaos::TPlane< FReal, 3 >, Chaos::FSkinnedTriangleMesh, Chaos::TSphere< T, d >, Chaos::TSphere< FReal, 3 >, Chaos::FTriangleMeshImplicitObject, and Chaos::FWeightedLatticeImplicitObject.

◆ GetTypeName() [2/2]

const FName Chaos::FImplicitObject::GetTypeName ( const EImplicitObjectType  InType)
static

◆ HasBoundingBox()

bool Chaos::FImplicitObject::HasBoundingBox ( ) const
inline

◆ IsA()

template<typename TargetType >
bool Chaos::FImplicitObject::IsA ( ) const
inline

◆ IsConvex()

bool Chaos::FImplicitObject::IsConvex ( ) const
inline

◆ IsOverlappingBounds()

bool Chaos::FImplicitObject::IsOverlappingBounds ( const FAABB3 &  LocalBounds) const
inline

Whether this implicit (possibly a hierarchy) overlaps the bounds. This is a deeper, more accurate test than simply checking BoundingBox() because it will query the BVH in Unions, Heightfields and Triangle Meshes, and only return true if we overlap the bounds of a leaf node that contains some elements.

◆ IsOverlappingBoundsImpl()

virtual bool Chaos::FImplicitObject::IsOverlappingBoundsImpl ( const FAABB3 &  LocalBounds) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, and Chaos::FHeightField.

◆ IsPerformanceWarning()

virtual bool Chaos::FImplicitObject::IsPerformanceWarning ( ) const
inlinevirtual

Reimplemented in Chaos::FConvex.

◆ IsUnderlyingMesh()

bool Chaos::FImplicitObject::IsUnderlyingMesh ( ) const

◆ IsUnderlyingUnion()

bool Chaos::FImplicitObject::IsUnderlyingUnion ( ) const

◆ IsValidGeometry()

bool Chaos::FImplicitObject::IsValidGeometry ( ) const
virtual

Reimplemented in Chaos::FImplicitObjectUnion, and Chaos::FConvex.

◆ Normal()

FVec3 Chaos::FImplicitObject::Normal ( const FVec3 &  x) const

◆ Overlap()

virtual bool Chaos::FImplicitObject::Overlap ( const FVec3 &  Point,
const FReal  Thickness
) const
inlinevirtual

Reimplemented in Chaos::FHeightField, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::FImplicitObjectUnion, and Chaos::FTriangleMeshImplicitObject.

◆ PerformanceWarningAndSimplifaction()

virtual FString Chaos::FImplicitObject::PerformanceWarningAndSimplifaction ( )
inlinevirtual

Reimplemented in Chaos::FConvex.

◆ PhiWithNormal()

virtual FReal Chaos::FImplicitObject::PhiWithNormal ( const FVec3 &  x,
FVec3 &  Normal
) const
pure virtual

Implemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FHeightField, Chaos::FTaperedCylinder, Chaos::FBoxFloat3, Chaos::FCapsule, Chaos::FConvex, Chaos::FCylinder, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::FImplicitObjectUnion, Chaos::FLevelSet, Chaos::FMLLevelSet, Chaos::TPlane< T, d >, Chaos::TPlane< FReal, 3 >, Chaos::FSkinnedTriangleMesh, Chaos::FTriangleMeshImplicitObject, Chaos::TWeightedLatticeImplicitObject< TConcrete >, Chaos::TWeightedLatticeImplicitObject< Chaos::FLevelSet >, and Chaos::FTaperedCapsule.

◆ PhiWithNormalScaled()

virtual FReal Chaos::FImplicitObject::PhiWithNormalScaled ( const FVec3 &  Pos,
const FVec3 &  Scale,
FVec3 &  Normal
) const
inlinevirtual

Reimplemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, and Chaos::FConvex.

◆ Raycast()

virtual bool Chaos::FImplicitObject::Raycast ( const FVec3 &  StartPoint,
const FVec3 &  Dir,
const FReal  Length,
const FReal  Thickness,
FReal &  OutTime,
FVec3 &  OutPosition,
FVec3 &  OutNormal,
int32 &  OutFaceIndex
) const
inlinevirtual

Reimplemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FCapsule, Chaos::FConvex, Chaos::FHeightField, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::FImplicitObjectUnion, Chaos::TPlane< T, d >, Chaos::TPlane< FReal, 3 >, and Chaos::FTriangleMeshImplicitObject.

◆ ScaleNormalizedHelper()

static FVec3 Chaos::FImplicitObject::ScaleNormalizedHelper ( const FVec3 &  Normal,
const FVec3 &  Scale
)
inlinestaticprotected

◆ SerializationFactory()

FImplicitObject * Chaos::FImplicitObject::SerializationFactory ( FChaosArchive &  Ar,
FImplicitObject *  Obj
)
static

◆ Serialize() [1/2]

virtual void Chaos::FImplicitObject::Serialize ( FArchive &  Ar)
inlinevirtual

Reimplemented in Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FBoxFloat3, Chaos::FConvex, Chaos::FLevelSet, Chaos::FMLLevelSet, Chaos::TPlane< T, d >, Chaos::TPlane< FReal, 3 >, Chaos::TSphere< T, d >, and Chaos::TSphere< FReal, 3 >.

◆ Serialize() [2/2]

void Chaos::FImplicitObject::Serialize ( FChaosArchive &  Ar)
virtual

Reimplemented in Chaos::FCylinder, Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FBoxFloat3, Chaos::FCapsule, Chaos::FConvex, Chaos::FHeightField, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, Chaos::FLevelSet, Chaos::FMLLevelSet, Chaos::TPlane< T, d >, Chaos::TPlane< FReal, 3 >, Chaos::FSkinnedTriangleMesh, Chaos::TSphere< T, d >, Chaos::TSphere< FReal, 3 >, Chaos::FTriangleMeshImplicitObject, Chaos::FWeightedLatticeImplicitObject, Chaos::TWeightedLatticeImplicitObject< TConcrete >, and Chaos::TWeightedLatticeImplicitObject< Chaos::FLevelSet >.

◆ SerializeImp()

void Chaos::FImplicitObject::SerializeImp ( FArchive &  Ar)

◆ SerializeLegacyHelper()

FArchive & Chaos::FImplicitObject::SerializeLegacyHelper ( FArchive &  Ar,
TUniquePtr< FImplicitObject > &  Value
)
static

◆ SetCollisionType()

void Chaos::FImplicitObject::SetCollisionType ( EImplicitObjectType  InCollisionType)
inline

◆ SetConvex()

void Chaos::FImplicitObject::SetConvex ( const bool  Convex = true)
inline

◆ SetDoCollide()

void Chaos::FImplicitObject::SetDoCollide ( const bool  Collide)
inline

◆ SetMargin() [1/2]

void Chaos::FImplicitObject::SetMargin ( FReal  InMargin)
inlineprotected

◆ SetMargin() [2/2]

void Chaos::FImplicitObject::SetMargin ( FRealSingle  InMargin)
inlineprotected

◆ SignedDistance()

FReal Chaos::FImplicitObject::SignedDistance ( const FVec3 &  x) const

◆ StaticType()

static constexpr EImplicitObjectType Chaos::FImplicitObject::StaticType ( )
inlinestaticconstexpr

◆ ToString()

virtual FString Chaos::FImplicitObject::ToString ( ) const
inlinevirtual

Reimplemented in Chaos::FTriangleMeshImplicitObject, Chaos::TBox< T, d >, Chaos::TBox< FReal, 3 >, Chaos::FCapsule, Chaos::FConvex, Chaos::TImplicitObjectInstanced< TConcrete >, Chaos::TImplicitObjectScaled< TConcrete, bInstanced >, Chaos::TImplicitObjectScaled< Chaos::TBox< FReal, 3 > >, Chaos::TSphere< T, d >, and Chaos::TSphere< FReal, 3 >.

◆ Track()

CHAOS_API void Chaos::FImplicitObject::Track ( TSerializablePtr< FImplicitObject >  This,
const FString &  DebugInfo
)

◆ VisitLeafObjects()

void Chaos::FImplicitObject::VisitLeafObjects ( const FImplicitHierarchyVisitor &  Visitor) const
inline

Visit all the leaf objects in the hierarchy

See also
FImplicitHierarchyVisitor for visitor notes

◆ VisitLeafObjectsImpl()

virtual void Chaos::FImplicitObject::VisitLeafObjectsImpl ( const FRigidTransform3 &  ObjectTransform,
const int32  RootObjectIndex,
int32 &  ObjectIndex,
int32 &  LeafObjectIndex,
const FImplicitHierarchyVisitor &  VisitorFunc
) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, and Chaos::FImplicitObjectUnion.

◆ VisitObjects()

void Chaos::FImplicitObject::VisitObjects ( const FImplicitHierarchyVisitorBool &  Visitor) const
inline

Visit all the objects in the hierarchy, including inner nodes like Union and Transform

See also
FImplicitHierarchyVisitor for visitor notes

◆ VisitObjectsImpl()

virtual bool Chaos::FImplicitObject::VisitObjectsImpl ( const FRigidTransform3 &  ObjectTransform,
const int32  RootObjectIndex,
int32 &  ObjectIndex,
int32 &  LeafObjectIndex,
const FImplicitHierarchyVisitorBool &  VisitorFunc
) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, and Chaos::FImplicitObjectUnion.

◆ VisitOverlappingLeafObjects()

void Chaos::FImplicitObject::VisitOverlappingLeafObjects ( const FAABB3 &  LocalBounds,
const FImplicitHierarchyVisitor &  Visitor
) const
inline

Visit all the leaf objects in the hierarchy that overlap the specified local-space bounds. NOTE: Templated decorators like Instanced and Scaled cound as leafs, but object decorators like Transformed do not.

See also
FImplicitHierarchyVisitor for visitor notes

◆ VisitOverlappingLeafObjectsImpl()

virtual void Chaos::FImplicitObject::VisitOverlappingLeafObjectsImpl ( const FAABB3 &  LocalBounds,
const FRigidTransform3 &  ObjectTransform,
const int32  RootObjectIndex,
int32 &  ObjectIndex,
int32 &  LeafObjectIndex,
const FImplicitHierarchyVisitor &  VisitorFunc
) const
inlinevirtual

Reimplemented in Chaos::TImplicitObjectTransformed< T, d, bSerializable >, Chaos::FImplicitObjectUnion, and Chaos::FHeightField.

Member Data Documentation

◆ bDoCollide

bool Chaos::FImplicitObject::bDoCollide
protected

◆ bHasBoundingBox

bool Chaos::FImplicitObject::bHasBoundingBox
protected

◆ bIsConvex

bool Chaos::FImplicitObject::bIsConvex
protected

◆ bIsTracked

bool Chaos::FImplicitObject::bIsTracked
protected

◆ CollisionType

EImplicitObjectType Chaos::FImplicitObject::CollisionType
protected

◆ D

constexpr int Chaos::FImplicitObject::D = 3
staticconstexpr

◆ Margin

FRealSingle Chaos::FImplicitObject::Margin
protected

◆ Type

EImplicitObjectType Chaos::FImplicitObject::Type
protected
The documentation for this class was generated from the following files:
