FAnimNode_SkeletalControlBase Struct Reference

#include <AnimNode_SkeletalControlBase.h>

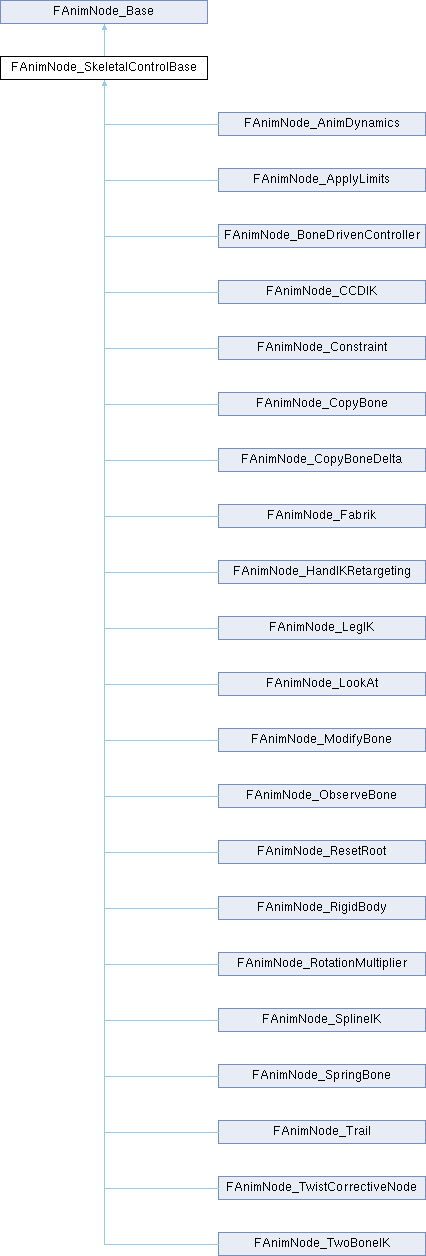

Inheritance diagram for FAnimNode_SkeletalControlBase:

Public Member Functions
	FAnimNode_SkeletalControlBase ()
virtual	~FAnimNode_SkeletalControlBase ()
virtual ANIMGRAPHRUNTIME_API void	Initialize_AnyThread (const FAnimationInitializeContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	CacheBones_AnyThread (const FAnimationCacheBonesContext &Context) override
virtual ANIMGRAPHRUNTIME_API void	Update_AnyThread (const FAnimationUpdateContext &Context) final
virtual ANIMGRAPHRUNTIME_API void	EvaluateComponentSpace_AnyThread (FComponentSpacePoseContext &Output) final
virtual int32	GetLODThreshold () const override
ANIMGRAPHRUNTIME_API void	SetAlpha (float InAlpha)
ANIMGRAPHRUNTIME_API float	GetAlpha () const
ANIMGRAPHRUNTIME_API void	InitializeAndValidateBoneRef (FBoneReference &BoneRef, const FBoneContainer &RequiredBones)
Public Member Functions inherited from FAnimNode_Base
virtual ENGINE_API void	Evaluate_AnyThread (FPoseContext &Output)
virtual void	GatherDebugData (FNodeDebugData &DebugData)
virtual bool	CanUpdateInWorkerThread () const
virtual bool	HasPreUpdate () const
virtual void	PreUpdate (const UAnimInstance *InAnimInstance)
virtual bool	NeedsDynamicReset () const
virtual ENGINE_API void	ResetDynamics (ETeleportType InTeleportType)
virtual void	PostCompile (const class USkeleton *InSkeleton)
virtual bool	NeedsOnInitializeAnimInstance () const
virtual	~FAnimNode_Base ()
virtual void	ResetDynamics ()
virtual bool	WantsSkippedUpdates () const
virtual void	OnUpdatesSkipped (TArrayView< const FAnimationUpdateContext * > SkippedUpdateContexts)
virtual void	OverrideAsset (class UAnimationAsset *NewAsset)
ENGINE_API const FExposedValueHandler &	GetEvaluateGraphExposedInputs () const
void	SetExposedValueHandler (const FExposedValueHandler *Handler)
int32	GetNodeIndex () const
const IAnimClassInterface *	GetAnimClassInterface () const

Public Attributes
FComponentSpacePoseLink	ComponentPose
int32	LODThreshold
float	ActualAlpha
EAnimAlphaInputType	AlphaInputType
bool	bAlphaBoolEnabled
float	Alpha
FInputScaleBias	AlphaScaleBias
FInputAlphaBoolBlend	AlphaBoolBlend
FName	AlphaCurveName
FInputScaleBiasClamp	AlphaScaleBiasClamp

Protected Member Functions
virtual ANIMGRAPHRUNTIME_API void	UpdateInternal (const FAnimationUpdateContext &Context)
virtual ANIMGRAPHRUNTIME_API void	UpdateComponentPose_AnyThread (const FAnimationUpdateContext &Context)
virtual ANIMGRAPHRUNTIME_API void	EvaluateComponentPose_AnyThread (FComponentSpacePoseContext &Output)
virtual ANIMGRAPHRUNTIME_API void	EvaluateComponentSpaceInternal (FComponentSpacePoseContext &Context)
virtual ANIMGRAPHRUNTIME_API void	EvaluateSkeletalControl_AnyThread (FComponentSpacePoseContext &Output, TArray< FBoneTransform > &OutBoneTransforms)
virtual bool	IsValidToEvaluate (const USkeleton *Skeleton, const FBoneContainer &RequiredBones)
virtual void	InitializeBoneReferences (const FBoneContainer &RequiredBones)
ANIMGRAPHRUNTIME_API void	AddDebugNodeData (FString &OutDebugData)
Protected Member Functions inherited from FAnimNode_Base
template<typename DataType >
const DataType &	GetData (UE::Anim::FNodeDataId InId, const UObject *InObject=nullptr) const
template<typename DataType >
DataType *	GetInstanceDataPtr (UE::Anim::FNodeDataId InId, UObject *InObject=nullptr)
ENGINE_API bool	IsLODEnabled (FAnimInstanceProxy *AnimInstanceProxy)
virtual ENGINE_API void	OnInitializeAnimInstance (const FAnimInstanceProxy *InProxy, const UAnimInstance *InAnimInstance)

Constructor & Destructor Documentation

FAnimNode_SkeletalControlBase()

FAnimNode_SkeletalControlBase::FAnimNode_SkeletalControlBase ( )

inline

~FAnimNode_SkeletalControlBase()

virtual FAnimNode_SkeletalControlBase::~FAnimNode_SkeletalControlBase ( )

inlinevirtual

Member Function Documentation

AddDebugNodeData()

void FAnimNode_SkeletalControlBase::AddDebugNodeData ( FString &  OutDebugData )

protected

Allow base to add info to the node debug output

CacheBones_AnyThread()

void FAnimNode_SkeletalControlBase::CacheBones_AnyThread ( const FAnimationCacheBonesContext &  Context )

overridevirtual

Called to cache any bones that this node needs to track (e.g. in a FBoneReference). This is usually called at startup when LOD switches occur. This can be called on any thread.

Parameters

Context

Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

Reimplemented in FAnimNode_SpringBone, and FAnimNode_TwistCorrectiveNode.

EvaluateComponentPose_AnyThread()

void FAnimNode_SkeletalControlBase::EvaluateComponentPose_AnyThread ( FComponentSpacePoseContext &  Output )

protectedvirtual

Reimplemented in FAnimNode_RigidBody.

EvaluateComponentSpace_AnyThread()

void FAnimNode_SkeletalControlBase::EvaluateComponentSpace_AnyThread ( FComponentSpacePoseContext &  Output )

finalvirtual

Called to evaluate component-space bone transforms according to the weights set up in Update(). You should implement either Evaluate or EvaluateComponentSpace, but not both of these. This can be called on any thread.

Parameters

Output

Output structure to write pose or curve data to. Also provides access to relevant data as a context.

Reimplemented from FAnimNode_Base.

EvaluateComponentSpaceInternal()

void FAnimNode_SkeletalControlBase::EvaluateComponentSpaceInternal ( FComponentSpacePoseContext &  Context )

protectedvirtual

Reimplemented in FAnimNode_BoneDrivenController, FAnimNode_LookAt, and FAnimNode_TwistCorrectiveNode.

EvaluateSkeletalControl_AnyThread()

void FAnimNode_SkeletalControlBase::EvaluateSkeletalControl_AnyThread ( FComponentSpacePoseContext &  Output, TArray< FBoneTransform > &  OutBoneTransforms  )

protectedvirtual

Reimplemented in FAnimNode_AnimDynamics, FAnimNode_ApplyLimits, FAnimNode_BoneDrivenController, FAnimNode_CCDIK, FAnimNode_Constraint, FAnimNode_CopyBone, FAnimNode_CopyBoneDelta, FAnimNode_Fabrik, FAnimNode_HandIKRetargeting, FAnimNode_LegIK, FAnimNode_LookAt, FAnimNode_ModifyBone, FAnimNode_ObserveBone, FAnimNode_ResetRoot, FAnimNode_RigidBody, FAnimNode_RotationMultiplier, FAnimNode_SplineIK, FAnimNode_SpringBone, FAnimNode_Trail, and FAnimNode_TwoBoneIK.

GetAlpha()

float FAnimNode_SkeletalControlBase::GetAlpha

(

)

const

GetLODThreshold()

virtual int32 FAnimNode_SkeletalControlBase::GetLODThreshold ( ) const

inlineoverridevirtual

Get the LOD level at which this node is enabled. Node is enabled if the current LOD is less than or equal to this threshold.

Reimplemented from FAnimNode_Base.

Reimplemented in FAnimNode_AnimDynamics, and FAnimNode_RigidBody.

Initialize_AnyThread()

void FAnimNode_SkeletalControlBase::Initialize_AnyThread ( const FAnimationInitializeContext &  Context )

overridevirtual

Called when the node first runs. If the node is inside a state machine or cached pose branch then this can be called multiple times. This can be called on any thread.

Parameters

Context

Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

Reimplemented in FAnimNode_AnimDynamics, FAnimNode_Fabrik, FAnimNode_LegIK, FAnimNode_LookAt, FAnimNode_RigidBody, FAnimNode_SpringBone, FAnimNode_Trail, FAnimNode_TwistCorrectiveNode, and FAnimNode_TwoBoneIK.

InitializeAndValidateBoneRef()

void FAnimNode_SkeletalControlBase::InitializeAndValidateBoneRef	(	FBoneReference &	BoneRef,
		const FBoneContainer &	RequiredBones
	)

InitializeBoneReferences()

virtual void FAnimNode_SkeletalControlBase::InitializeBoneReferences ( const FBoneContainer &  RequiredBones )

inlineprotectedvirtual

Reimplemented in FAnimNode_AnimDynamics, FAnimNode_BoneDrivenController, and FAnimNode_TwistCorrectiveNode.

IsValidToEvaluate()

virtual bool FAnimNode_SkeletalControlBase::IsValidToEvaluate ( const USkeleton *  Skeleton, const FBoneContainer &  RequiredBones  )

inlineprotectedvirtual

Reimplemented in FAnimNode_AnimDynamics, FAnimNode_ApplyLimits, FAnimNode_BoneDrivenController, FAnimNode_CCDIK, FAnimNode_Constraint, FAnimNode_CopyBone, FAnimNode_CopyBoneDelta, FAnimNode_Fabrik, FAnimNode_HandIKRetargeting, FAnimNode_LegIK, FAnimNode_LookAt, FAnimNode_ModifyBone, FAnimNode_ObserveBone, FAnimNode_ResetRoot, FAnimNode_RigidBody, FAnimNode_RotationMultiplier, FAnimNode_SplineIK, FAnimNode_SpringBone, FAnimNode_Trail, FAnimNode_TwistCorrectiveNode, and FAnimNode_TwoBoneIK.

SetAlpha()

void FAnimNode_SkeletalControlBase::SetAlpha

(

float

InAlpha

)

Update_AnyThread()

void FAnimNode_SkeletalControlBase::Update_AnyThread ( const FAnimationUpdateContext &  Context )

finalvirtual

Called to update the state of the graph relative to this node. Generally this should configure any weights (etc.) that could affect the poses that will need to be evaluated. This function is what usually executes EvaluateGraphExposedInputs. This can be called on any thread.

Parameters

Context

Context structure providing access to relevant data

Reimplemented from FAnimNode_Base.

UpdateComponentPose_AnyThread()

void FAnimNode_SkeletalControlBase::UpdateComponentPose_AnyThread ( const FAnimationUpdateContext &  Context )

protectedvirtual

Reimplemented in FAnimNode_RigidBody.

UpdateInternal()

void FAnimNode_SkeletalControlBase::UpdateInternal ( const FAnimationUpdateContext &  Context )

protectedvirtual

Reimplemented in FAnimNode_AnimDynamics, FAnimNode_LookAt, FAnimNode_RigidBody, FAnimNode_SpringBone, and FAnimNode_Trail.

Member Data Documentation

ActualAlpha

float FAnimNode_SkeletalControlBase::ActualAlpha

Alpha

float FAnimNode_SkeletalControlBase::Alpha

AlphaBoolBlend

FInputAlphaBoolBlend FAnimNode_SkeletalControlBase::AlphaBoolBlend

AlphaCurveName

FName FAnimNode_SkeletalControlBase::AlphaCurveName

AlphaInputType

EAnimAlphaInputType FAnimNode_SkeletalControlBase::AlphaInputType

AlphaScaleBias

FInputScaleBias FAnimNode_SkeletalControlBase::AlphaScaleBias

AlphaScaleBiasClamp

FInputScaleBiasClamp FAnimNode_SkeletalControlBase::AlphaScaleBiasClamp

bAlphaBoolEnabled

bool FAnimNode_SkeletalControlBase::bAlphaBoolEnabled

ComponentPose

FComponentSpacePoseLink FAnimNode_SkeletalControlBase::ComponentPose

LODThreshold

int32 FAnimNode_SkeletalControlBase::LODThreshold

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/AnimGraphRuntime/Public/BoneControllers/AnimNode_SkeletalControlBase.h
• Engine/Source/Runtime/AnimGraphRuntime/Private/BoneControllers/AnimNode_SkeletalControlBase.cpp
