Classes | Public Member Functions | Static Public Member Functions | Public Attributes | Protected Attributes | Friends | List of all members
FSkeletalMeshObject Class Referenceabstract

#include <SkeletalRenderPublic.h>

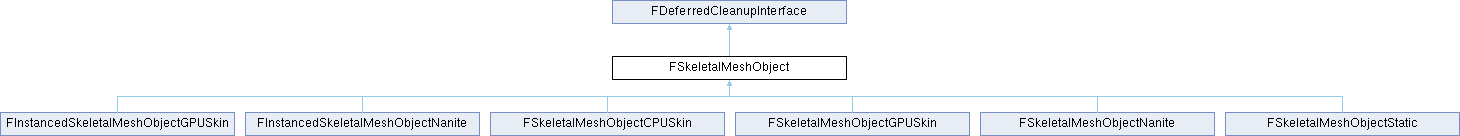

+ Inheritance diagram for FSkeletalMeshObject:

Classes

struct  FSkelMeshObjectLODInfo


Public Member Functions

ENGINE_API FSkeletalMeshObject (const USkinnedMeshComponent *InMeshComponent, FSkeletalMeshRenderData *InSkelMeshRenderData, ERHIFeatureLevel::Type FeatureLevel)

ENGINE_API FSkeletalMeshObject (const FSkinnedMeshSceneProxyDesc &InMeshDesc, FSkeletalMeshRenderData *InSkelMeshRenderData, ERHIFeatureLevel::Type FeatureLevel)

virtual ENGINE_API ~FSkeletalMeshObject ()

virtual void InitResources (const FSkinnedMeshSceneProxyDesc &InMeshDesc)=0

virtual void ReleaseResources ()=0

ENGINE_API void Update (int32 LODIndex, const USkinnedMeshComponent *InMeshComponent, const FMorphTargetWeightMap &InActiveMorphTargets, const TArray< float > &MorphTargetWeights, EPreviousBoneTransformUpdateMode PreviousBoneTransformUpdateMode, const FExternalMorphWeightData &InExternalMorphWeightData)

virtual void Update (int32 LODIndex, const FSkinnedMeshSceneProxyDynamicData &InDynamicData, const FPrimitiveSceneProxy *InSceneProxy, const USkinnedAsset *InSkinnedAsset, const FMorphTargetWeightMap &InActiveMorphTargets, const TArray< float > &InMorphTargetWeights, EPreviousBoneTransformUpdateMode PreviousBoneTransformUpdateMode, const FExternalMorphWeightData &InExternalMorphWeightData)=0

virtual void PreGDMECallback (FRHICommandList &RHICmdList, class FGPUSkinCache *GPUSkinCache, uint32 FrameNumber)

virtual const FVertexFactory * GetSkinVertexFactory (const FSceneView *View, int32 LODIndex, int32 ChunkIdx, ESkinVertexFactoryMode VFMode=ESkinVertexFactoryMode::Default) const =0

virtual const FVertexFactory * GetStaticSkinVertexFactory (int32 LODIndex, int32 ChunkIdx, ESkinVertexFactoryMode VFMode) const =0

virtual const FSkinBatchVertexFactoryUserData * GetVertexFactoryUserData (const int32 LODIndex, int32 ChunkIdx, ESkinVertexFactoryMode VFMode) const

virtual bool IsCPUSkinned () const

virtual bool IsGPUSkinMesh () const

virtual bool IsNaniteMesh () const

virtual const Nanite::FMaterialAudit * GetNaniteMaterials () const

virtual TArray< FTransform > * GetComponentSpaceTransforms () const =0

virtual TConstArrayView< FMatrix44f > GetReferenceToLocalMatrices () const =0

virtual TConstArrayView< FMatrix44f > GetPrevReferenceToLocalMatrices () const

virtual const TArray< FMatrix3x4 > * GetCurrentBoneTransforms () const

virtual const TArray< FMatrix3x4 > * GetPreviousBoneTransforms () const

virtual FSkinningSceneExtensionProxy * CreateSceneExtensionProxy (const USkinnedAsset *InSkinnedAsset, bool bAllowScaling)

virtual bool GetCachedGeometry (FRDGBuilder &GraphBuilder, FCachedGeometry &OutCachedGeometry) const

bool GetCachedGeometry (FCachedGeometry &OutCachedGeometry) const

void UpdateSkinWeightBuffer (const USkinnedMeshComponent *InMeshComponent)

virtual void UpdateSkinWeightBuffer (const TArrayView< const FSkelMeshComponentLODInfo > InLODInfo)=0

virtual int32 GetLOD () const =0

virtual void EnableOverlayRendering (bool bEnabled, const TArray< int32 > *InBonesOfInterest, const TArray< UMorphTarget * > *MorphTargetOfInterest)

virtual void DrawVertexElements (FPrimitiveDrawInterface *PDI, const FMatrix &ToWorldSpace, bool bDrawNormals, bool bDrawTangents, bool bDrawBinormals) const

void UpdateMinDesiredLODLevel (const FSceneView *View, const FBoxSphereBounds &Bounds)

virtual bool HaveValidDynamicData () const =0

bool ShouldUsePerBoneMotionBlur () const

virtual void GetResourceSizeEx (FResourceSizeEx &CumulativeResourceSize)=0

ENGINE_API const TArray< FSkelMeshRenderSection > & GetRenderSections (int32 InLODIndex) const

void SetHiddenMaterials (int32 InLODIndex, const TArray< bool > &HiddenMaterials)

bool IsMaterialHidden (int32 InLODIndex, int32 MaterialIdx) const

void InitLODInfos (const TArrayView< const FSkelMeshComponentLODInfo > InComponentLODInfo, const USkinnedAsset *InSkinnedAsset)

uint32 GetComponentId () const

TStatId GetStatId () const

FSkeletalMeshRenderData & GetSkeletalMeshRenderData () const

FColor GetSkinCacheVisualizationDebugColor (const FName &GPUSkinCacheVisualizationMode, uint32 SectionIndex) const

FName GetAssetPathName (int32 LODIndex=-1) const

virtual void SetTransform (const FMatrix &InNewLocalToWorld, uint32 FrameNumber)

virtual void RefreshClothingTransforms (const FMatrix &InNewLocalToWorld, uint32 FrameNumber)

FName GetDebugName () const

ERHIFeatureLevel::Type GetFeatureLevel () const

bool SupportsStaticRelevance () const

float GetScreenSize (int32 LODIndex) const

virtual const FSkinWeightVertexBuffer * GetSkinWeightVertexBuffer (int32 LODIndex) const

virtual int32 GetDynamicBoundsStartOffset (int32 LODIndex) const

- Public Member Functions inherited from FDeferredCleanupInterface
virtual ~FDeferredCleanupInterface ()


Static Public Member Functions

static FSkinWeightVertexBuffer * GetSkinWeightVertexBuffer (FSkeletalMeshLODRenderData &LODData, const FSkelMeshComponentLODInfo *CompLODInfo)

static FColorVertexBuffer * GetColorVertexBuffer (FSkeletalMeshLODRenderData &LODData, const FSkelMeshComponentLODInfo *CompLODInfo)


Public Attributes

TArray< FSkelMeshObjectLODInfo > LODInfo

TArray< FCapsuleShape3f > ShadowCapsuleShapes

int32 MinDesiredLODLevel

float MaxDistanceFactor

int32 WorkingMinDesiredLODLevel

float WorkingMaxDistanceFactor

bool bHasBeenUpdatedAtLeastOnce

FName DebugName


Protected Attributes

FSkeletalMeshRenderData * SkeletalMeshRenderData

FGPUSkinCacheEntry * SkinCacheEntry

FGPUSkinCacheEntry * SkinCacheEntryForRayTracing

uint32 LastFrameNumber

UE::FMutex DesiredLODLevelMutex

bool bUsePerBoneMotionBlur

bool bSupportsStaticRelevance = false

TStatId StatId

ERHIFeatureLevel::Type FeatureLevel

uint32 ComponentId

FVector WorldScale = FVector::OneVector


Friends

class FDynamicSkelMeshObjectDataCPUSkin

class FDynamicSkelMeshObjectDataGPUSkin

class FSkeletalMeshSceneProxy

class FSkeletalMeshSectionIter


Constructor & Destructor Documentation

◆ FSkeletalMeshObject() [1/2]

FSkeletalMeshObject::FSkeletalMeshObject ( const USkinnedMeshComponent *  InMeshComponent,
FSkeletalMeshRenderData *  InSkelMeshRenderData,
ERHIFeatureLevel::Type  FeatureLevel
)

◆ FSkeletalMeshObject() [2/2]

FSkeletalMeshObject::FSkeletalMeshObject ( const FSkinnedMeshSceneProxyDesc &  InMeshDesc,
FSkeletalMeshRenderData *  InSkelMeshRenderData,
ERHIFeatureLevel::Type  FeatureLevel
)

◆ ~FSkeletalMeshObject()

FSkeletalMeshObject::~FSkeletalMeshObject ( )
virtual

Member Function Documentation

◆ CreateSceneExtensionProxy()

FSkinningSceneExtensionProxy * FSkeletalMeshObject::CreateSceneExtensionProxy ( const USkinnedAsset *  InSkinnedAsset,
bool  bAllowScaling
)
virtual

Reimplemented in FSkeletalMeshObjectCPUSkin, FInstancedSkeletalMeshObjectGPUSkin, and FInstancedSkeletalMeshObjectNanite.

◆ DrawVertexElements()

virtual void FSkeletalMeshObject::DrawVertexElements ( FPrimitiveDrawInterface *  PDI,
const FMatrix &  ToWorldSpace,
bool  bDrawNormals,
bool  bDrawTangents,
bool  bDrawBinormals
) const
inlinevirtual

Draw Normals/Tangents based on skinned vertex data

Parameters
PDI- Draw Interface
ToWorldSpace- Transform from component space to world space
bDrawNormals- Should draw vertex normals
bDrawTangents- Should draw vertex tangents
bDrawBinormals- Should draw vertex binormals

Reimplemented in FSkeletalMeshObjectCPUSkin, and FSkeletalMeshObjectStatic.

◆ EnableOverlayRendering()

virtual void FSkeletalMeshObject::EnableOverlayRendering ( bool  bEnabled,
const TArray< int32 > *  InBonesOfInterest,
const TArray< UMorphTarget * > *  MorphTargetOfInterest
)
inlinevirtual

Enable blend weight rendering in the editor

Parameters
bEnabled- turn on or off the rendering mode optional parameters will decide which one to draw
(optional)BonesOfInterest - array of bone indices to capture weights for
(optional)MorphTargetsOfInterest - array of morphtargets to render for

Reimplemented in FSkeletalMeshObjectCPUSkin, and FSkeletalMeshObjectStatic.

◆ GetAssetPathName()

FName FSkeletalMeshObject::GetAssetPathName ( int32  LODIndex = -1) const

Helper function to return the asset path name, optionally joined with the LOD index if LODIndex > -1.

◆ GetCachedGeometry() [1/2]

bool FSkeletalMeshObject::GetCachedGeometry ( FCachedGeometry &  OutCachedGeometry) const
inline

◆ GetCachedGeometry() [2/2]

virtual bool FSkeletalMeshObject::GetCachedGeometry ( FRDGBuilder &  GraphBuilder,
FCachedGeometry &  OutCachedGeometry
) const
inlinevirtual

If we are caching geometry deformation through skin-cache/mesh-deformers or other, then this returns the currently cached geoemtry.

Reimplemented in FSkeletalMeshObjectGPUSkin.

◆ GetColorVertexBuffer()

FColorVertexBuffer * FSkeletalMeshObject::GetColorVertexBuffer ( FSkeletalMeshLODRenderData &  LODData,
const FSkelMeshComponentLODInfo *  CompLODInfo
)
static

Get the color buffer either from the component LOD info or the skeletal mesh LOD render data

◆ GetComponentId()

uint32 FSkeletalMeshObject::GetComponentId ( ) const
inline

Return the ID of the component to which the skeletal mesh object belongs to.

◆ GetComponentSpaceTransforms()

virtual TArray< FTransform > * FSkeletalMeshObject::GetComponentSpaceTransforms ( ) const
pure virtual

Get the array of component-space bone transforms. May include transforms that are inherited by follower components. Not safe to hold this point between frames, because it exists in dynamic data passed from main thread.

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ GetCurrentBoneTransforms()

virtual const TArray< FMatrix3x4 > * FSkeletalMeshObject::GetCurrentBoneTransforms ( ) const
inlinevirtual

◆ GetDebugName()

FName FSkeletalMeshObject::GetDebugName ( ) const
inline

◆ GetDynamicBoundsStartOffset()

virtual int32 FSkeletalMeshObject::GetDynamicBoundsStartOffset ( int32  LODIndex) const
inlinevirtual

Get the offset in the dynamic mesh bounds buffer for the current LOD. Only needed for GPU skin cache.

Reimplemented in FSkeletalMeshObjectGPUSkin.

◆ GetFeatureLevel()

ERHIFeatureLevel::Type FSkeletalMeshObject::GetFeatureLevel ( ) const
inline

returns the feature level this FSkeletalMeshObject was created with

◆ GetLOD()

virtual int32 FSkeletalMeshObject::GetLOD ( ) const
pure virtual

Get the LOD to render this mesh at.

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ GetNaniteMaterials()

virtual const Nanite::FMaterialAudit * FSkeletalMeshObject::GetNaniteMaterials ( ) const
inlinevirtual

Returns a valid object if IsNaniteMesh() == true

Reimplemented in FSkeletalMeshObjectNanite, and FInstancedSkeletalMeshObjectNanite.

◆ GetPreviousBoneTransforms()

virtual const TArray< FMatrix3x4 > * FSkeletalMeshObject::GetPreviousBoneTransforms ( ) const
inlinevirtual

◆ GetPrevReferenceToLocalMatrices()

virtual TConstArrayView< FMatrix44f > FSkeletalMeshObject::GetPrevReferenceToLocalMatrices ( ) const
inlinevirtual

Get the array of previous refpose->local matrices Not safe to hold this reference between frames, because it exists in dynamic data passed from main thread.

Reimplemented in FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, and FInstancedSkeletalMeshObjectNanite.

◆ GetReferenceToLocalMatrices()

virtual TConstArrayView< FMatrix44f > FSkeletalMeshObject::GetReferenceToLocalMatrices ( ) const
pure virtual

Get the array of refpose->local matrices Not safe to hold this reference between frames, because it exists in dynamic data passed from main thread.

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ GetRenderSections()

const TArray< FSkelMeshRenderSection > & FSkeletalMeshObject::GetRenderSections ( int32  InLODIndex) const

List of sections to be rendered based on instance weight usage. Full swap of weights will render with its own sections.

Returns
Sections to iterate over for rendering

List of chunks to be rendered based on instance weight usage. Full swap of weights will render with its own chunks.

Returns
Chunks to iterate over for rendering

◆ GetResourceSizeEx()

virtual void FSkeletalMeshObject::GetResourceSizeEx ( FResourceSizeEx &  CumulativeResourceSize)
pure virtual

Returns the size of memory allocated by render data

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ GetScreenSize()

float FSkeletalMeshObject::GetScreenSize ( int32  LODIndex) const

Returns the display factor for the given LOD level

@Param LODIndex - The LOD to get the display factor for

◆ GetSkeletalMeshRenderData()

FSkeletalMeshRenderData & FSkeletalMeshObject::GetSkeletalMeshRenderData ( ) const
inline

Get the skeletal mesh resource for which this mesh object was created.

◆ GetSkinCacheVisualizationDebugColor()

FColor FSkeletalMeshObject::GetSkinCacheVisualizationDebugColor ( const FName &  GPUSkinCacheVisualizationMode,
uint32  SectionIndex
) const

◆ GetSkinVertexFactory()

virtual const FVertexFactory * FSkeletalMeshObject::GetSkinVertexFactory ( const FSceneView *  View,
int32  LODIndex,
int32  ChunkIdx,
ESkinVertexFactoryMode  VFMode = ESkinVertexFactoryMode::Default
) const
pure virtual
Parameters
View- View, must not be 0, allows to cull depending on showflags (normally not needed/used in SHIPPING)
LODIndex- each LOD has its own vertex data
ChunkIdx- not used
Returns
vertex factory for rendering the LOD, 0 to suppress rendering

Implemented in FInstancedSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectNanite, FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ GetSkinWeightVertexBuffer() [1/2]

FSkinWeightVertexBuffer * FSkeletalMeshObject::GetSkinWeightVertexBuffer ( FSkeletalMeshLODRenderData &  LODData,
const FSkelMeshComponentLODInfo *  CompLODInfo
)
static

Get the weight buffer either from the component LOD info or the skeletal mesh LOD render data

◆ GetSkinWeightVertexBuffer() [2/2]

virtual const FSkinWeightVertexBuffer * FSkeletalMeshObject::GetSkinWeightVertexBuffer ( int32  LODIndex) const
inlinevirtual

Get the weight buffer for specific LOD index. Only needed for GPU skin cache

Reimplemented in FSkeletalMeshObjectGPUSkin, and FSkeletalMeshObjectNanite.

◆ GetStaticSkinVertexFactory()

virtual const FVertexFactory * FSkeletalMeshObject::GetStaticSkinVertexFactory ( int32  LODIndex,
int32  ChunkIdx,
ESkinVertexFactoryMode  VFMode
) const
pure virtual

Called by DrawStaticElements to cache mesh draw commands for skeletal meshes.

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectNanite, FSkeletalMeshObjectStatic, and FSkeletalMeshObjectNanite.

◆ GetStatId()

TStatId FSkeletalMeshObject::GetStatId ( ) const
inline

◆ GetVertexFactoryUserData()

virtual const FSkinBatchVertexFactoryUserData * FSkeletalMeshObject::GetVertexFactoryUserData ( const int32  LODIndex,
int32  ChunkIdx,
ESkinVertexFactoryMode  VFMode
) const
inlinevirtual

◆ HaveValidDynamicData()

virtual bool FSkeletalMeshObject::HaveValidDynamicData ( ) const
pure virtual

Return true if this does have valid dynamic data to render

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ InitLODInfos()

void FSkeletalMeshObject::InitLODInfos ( const TArrayView< const FSkelMeshComponentLODInfo >  InComponentLODInfo,
const USkinnedAsset *  InSkinnedAsset
)

Initialize the array of LODInfo based on the settings of the current skel mesh component

◆ InitResources()

virtual void FSkeletalMeshObject::InitResources ( const FSkinnedMeshSceneProxyDesc &  InMeshDesc)
pure virtual

Initialize rendering resources for each LOD

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ IsCPUSkinned()

virtual bool FSkeletalMeshObject::IsCPUSkinned ( ) const
inlinevirtual

Returns true if this mesh performs skinning on the CPU.

Reimplemented in FSkeletalMeshObjectCPUSkin, and FSkeletalMeshObjectStatic.

◆ IsGPUSkinMesh()

virtual bool FSkeletalMeshObject::IsGPUSkinMesh ( ) const
inlinevirtual

Returns true if this mesh is an FSkeletalMeshObjectGPUSkin

Reimplemented in FSkeletalMeshObjectGPUSkin, and FInstancedSkeletalMeshObjectGPUSkin.

◆ IsMaterialHidden()

bool FSkeletalMeshObject::IsMaterialHidden ( int32  InLODIndex,
int32  MaterialIdx
) const

Determine if the material section entry for an LOD is hidden or not

Parameters
InLODIndex- LOD entry to get hidden material flags for
MaterialIdx- index of the material section to check

◆ IsNaniteMesh()

virtual bool FSkeletalMeshObject::IsNaniteMesh ( ) const
inlinevirtual

Returns true if this mesh is an FSkeletalMeshObjectNanite

Reimplemented in FSkeletalMeshObjectNanite, and FInstancedSkeletalMeshObjectNanite.

◆ PreGDMECallback()

virtual void FSkeletalMeshObject::PreGDMECallback ( FRHICommandList &  RHICmdList,
class FGPUSkinCache *  GPUSkinCache,
uint32  FrameNumber
)
inlinevirtual

Called by FSkeletalMeshObject prior to GDME. This allows the GPU skin version to update bones etc now that we know we are going to render

Parameters
FrameNumberfrom GFrameNumber

◆ RefreshClothingTransforms()

virtual void FSkeletalMeshObject::RefreshClothingTransforms ( const FMatrix &  InNewLocalToWorld,
uint32  FrameNumber
)
inlinevirtual

Called to notify clothing data that component transform has changed

Reimplemented in FSkeletalMeshObjectGPUSkin.

◆ ReleaseResources()

virtual void FSkeletalMeshObject::ReleaseResources ( )
pure virtual

Release rendering resources for each LOD

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ SetHiddenMaterials()

void FSkeletalMeshObject::SetHiddenMaterials ( int32  InLODIndex,
const TArray< bool > &  HiddenMaterials
)

Update the hidden material section flags for an LOD entry

Parameters
InLODIndex- LOD entry to update hidden material flags for
HiddenMaterials- array of hidden material sections

◆ SetTransform()

virtual void FSkeletalMeshObject::SetTransform ( const FMatrix &  InNewLocalToWorld,
uint32  FrameNumber
)
inlinevirtual

Called when that component transform has changed

Reimplemented in FSkeletalMeshObjectGPUSkin.

◆ ShouldUsePerBoneMotionBlur()

bool FSkeletalMeshObject::ShouldUsePerBoneMotionBlur ( ) const
inline
Returns
if per-bone motion blur is enabled for this object. This includes is the system overwrites the skeletal mesh setting.

◆ SupportsStaticRelevance()

bool FSkeletalMeshObject::SupportsStaticRelevance ( ) const
inline

◆ Update() [1/2]

virtual void FSkeletalMeshObject::Update ( int32  LODIndex,
const FSkinnedMeshSceneProxyDynamicData &  InDynamicData,
const FPrimitiveSceneProxy *  InSceneProxy,
const USkinnedAsset *  InSkinnedAsset,
const FMorphTargetWeightMap &  InActiveMorphTargets,
const TArray< float > &  InMorphTargetWeights,
EPreviousBoneTransformUpdateMode  PreviousBoneTransformUpdateMode,
const FExternalMorphWeightData &  InExternalMorphWeightData
)
pure virtual

Implemented in FSkeletalMeshObjectCPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectNanite, FSkeletalMeshObjectNanite, FSkeletalMeshObjectGPUSkin, and FSkeletalMeshObjectStatic.

◆ Update() [2/2]

void FSkeletalMeshObject::Update ( int32  LODIndex,
const USkinnedMeshComponent *  InMeshComponent,
const FMorphTargetWeightMap &  InActiveMorphTargets,
const TArray< float > &  MorphTargetWeights,
EPreviousBoneTransformUpdateMode  PreviousBoneTransformUpdateMode,
const FExternalMorphWeightData &  InExternalMorphWeightData
)

Called by the game thread for any dynamic data updates for this skel mesh object

Parameters
LODIndex- lod level to update
InSkeletalMeshComponen- parent prim component doing the updating
ActiveMorphs- morph targets to blend with during skinning

◆ UpdateMinDesiredLODLevel()

void FSkeletalMeshObject::UpdateMinDesiredLODLevel ( const FSceneView *  View,
const FBoxSphereBounds &  Bounds
)

Given a set of views, update the MinDesiredLODLevel member to indicate the minimum (ie best) LOD we would like to use to render this mesh. This is called from the rendering thread (PreRender) so be very careful what you read/write to.

Parameters
FrameNumberfrom ViewFamily.FrameNumber

◆ UpdateSkinWeightBuffer() [1/2]

virtual void FSkeletalMeshObject::UpdateSkinWeightBuffer ( const TArrayView< const FSkelMeshComponentLODInfo >  InLODInfo)
pure virtual

Implemented in FSkeletalMeshObjectCPUSkin, FSkeletalMeshObjectGPUSkin, FInstancedSkeletalMeshObjectGPUSkin, FSkeletalMeshObjectNanite, FInstancedSkeletalMeshObjectNanite, and FSkeletalMeshObjectStatic.

◆ UpdateSkinWeightBuffer() [2/2]

void FSkeletalMeshObject::UpdateSkinWeightBuffer ( const USkinnedMeshComponent *  InMeshComponent)

Will force re-evaluating which Skin Weight buffer should be used for skinning, determined by checking for any override weights or a skin weight profile being set. This prevents re-creating the vertex factories, but rather updates the bindings in place.

Friends And Related Symbol Documentation

◆ FDynamicSkelMeshObjectDataCPUSkin

friend class FDynamicSkelMeshObjectDataCPUSkin
friend

◆ FDynamicSkelMeshObjectDataGPUSkin

friend class FDynamicSkelMeshObjectDataGPUSkin
friend

◆ FSkeletalMeshSceneProxy

friend class FSkeletalMeshSceneProxy
friend

◆ FSkeletalMeshSectionIter

friend class FSkeletalMeshSectionIter
friend

Member Data Documentation

◆ bHasBeenUpdatedAtLeastOnce

bool FSkeletalMeshObject::bHasBeenUpdatedAtLeastOnce

This is set to true when we have sent our Mesh data to the rendering thread at least once as it needs to have have a datastructure created there for each MeshObject

◆ bSupportsStaticRelevance

bool FSkeletalMeshObject::bSupportsStaticRelevance = false
protected

If true, the skeletal mesh will take the static relevance path using cached mesh draw commands.

◆ bUsePerBoneMotionBlur

bool FSkeletalMeshObject::bUsePerBoneMotionBlur
protected

If true, per-bone motion blur is enabled for this object. This includes is the system overwrites the skeletal mesh setting.

◆ ComponentId

uint32 FSkeletalMeshObject::ComponentId
protected

Component ID to which belong this mesh object

◆ DebugName

FName FSkeletalMeshObject::DebugName

◆ DesiredLODLevelMutex

UE::FMutex FSkeletalMeshObject::DesiredLODLevelMutex
protected

Guards the call to UpdateMinDesiredLODLevel

◆ FeatureLevel

ERHIFeatureLevel::Type FSkeletalMeshObject::FeatureLevel
protected

Feature level to render for.

◆ LastFrameNumber

uint32 FSkeletalMeshObject::LastFrameNumber
protected

Used to keep track of the first call to UpdateMinDesiredLODLevel each frame. from ViewFamily.FrameNumber

◆ LODInfo

TArray<FSkelMeshObjectLODInfo> FSkeletalMeshObject::LODInfo

◆ MaxDistanceFactor

float FSkeletalMeshObject::MaxDistanceFactor

High (best) DistanceFactor that was desired for rendering this SkeletalMesh last frame. Represents how big this mesh was in screen space
This should only ever be WRITTEN by the RENDER thread (in FSkeletalMeshProxy::PreRenderView) and READ by the GAME thread (in USkeletalMeshComponent::UpdateSkelPose).

◆ MinDesiredLODLevel

int32 FSkeletalMeshObject::MinDesiredLODLevel

Lowest (best) LOD that was desired for rendering this SkeletalMesh last frame.

Note that if LOD streaming is enabled, the desired LOD is not guaranteed to be currently loaded.

This should only ever be WRITTEN by the RENDER thread (in FSkeletalMeshProxy::PreRenderView) and READ by the GAME thread (in USkeletalMeshComponent::UpdateSkelPose).

◆ ShadowCapsuleShapes

TArray<FCapsuleShape3f> FSkeletalMeshObject::ShadowCapsuleShapes

◆ SkeletalMeshRenderData

FSkeletalMeshRenderData* FSkeletalMeshObject::SkeletalMeshRenderData
protected

The skeletal mesh resource with which to render.

◆ SkinCacheEntry

FGPUSkinCacheEntry* FSkeletalMeshObject::SkinCacheEntry
protected

◆ SkinCacheEntryForRayTracing

FGPUSkinCacheEntry* FSkeletalMeshObject::SkinCacheEntryForRayTracing
protected

◆ StatId

TStatId FSkeletalMeshObject::StatId
protected

Used for dynamic stats

◆ WorkingMaxDistanceFactor

float FSkeletalMeshObject::WorkingMaxDistanceFactor

This frames max distance factor. This is copied (flipped) to MaxDistanceFactor at the beginning of the next frame.

◆ WorkingMinDesiredLODLevel

int32 FSkeletalMeshObject::WorkingMinDesiredLODLevel

This frames min desired LOD level. This is copied (flipped) to MinDesiredLODLevel at the beginning of the next frame.

◆ WorldScale

FVector FSkeletalMeshObject::WorldScale = FVector::OneVector
protected
The documentation for this class was generated from the following files:
