#include <DynamicRHI.h>

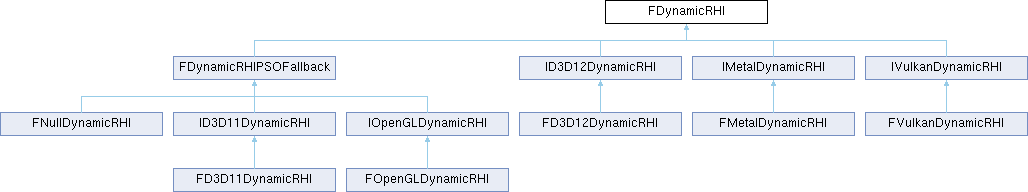

Inheritance diagram for FDynamicRHI:

Classes
struct	FRHIEndFrameArgs

struct	FRHIFinalizeContextArgs

struct	FRHISubmitCommandListsArgs

Public Types
using	FRHICalcTextureSizeResult = ::FRHICalcTextureSizeResult

Public Member Functions
virtual RHI_API	~FDynamicRHI ()

virtual void	Init ()=0

virtual void	PostInit ()

virtual void	Shutdown ()=0

virtual const TCHAR *	GetName ()=0

virtual ERHIInterfaceType	GetInterfaceType () const

virtual FDynamicRHI *	GetNonValidationRHI ()

void	InitPixelFormatInfo (const TArray< uint32 > &PixelFormatBlockBytesIn)

virtual RHI_API void	RHIEndFrame_RenderThread (FRHICommandListImmediate &RHICmdList)

virtual void	RHIEndFrame (const FRHIEndFrameArgs &Args)=0

virtual FSamplerStateRHIRef	RHICreateSamplerState (const FSamplerStateInitializerRHI &Initializer)=0

virtual FRasterizerStateRHIRef	RHICreateRasterizerState (const FRasterizerStateInitializerRHI &Initializer)=0

virtual FDepthStencilStateRHIRef	RHICreateDepthStencilState (const FDepthStencilStateInitializerRHI &Initializer)=0

virtual FBlendStateRHIRef	RHICreateBlendState (const FBlendStateInitializerRHI &Initializer)=0

virtual FVertexDeclarationRHIRef	RHICreateVertexDeclaration (const FVertexDeclarationElementList &Elements)=0

virtual FPixelShaderRHIRef	RHICreatePixelShader (TArrayView< const uint8 > Code, const FSHAHash &Hash)=0

virtual FVertexShaderRHIRef	RHICreateVertexShader (TArrayView< const uint8 > Code, const FSHAHash &Hash)=0

virtual FGeometryShaderRHIRef	RHICreateGeometryShader (TArrayView< const uint8 > Code, const FSHAHash &Hash)=0

virtual FMeshShaderRHIRef	RHICreateMeshShader (TArrayView< const uint8 > Code, const FSHAHash &Hash)

virtual FAmplificationShaderRHIRef	RHICreateAmplificationShader (TArrayView< const uint8 > Code, const FSHAHash &Hash)

virtual void	FlushPendingLogs ()

virtual FComputeShaderRHIRef	RHICreateComputeShader (TArrayView< const uint8 > Code, const FSHAHash &Hash)=0

virtual FWorkGraphShaderRHIRef	RHICreateWorkGraphShader (TArrayView< const uint8 > Code, const FSHAHash &Hash, EShaderFrequency ShaderFrequency)

virtual FRHIShaderLibraryRef	RHICreateShaderLibrary (EShaderPlatform Platform, FString const &FilePath, FString const &Name)

virtual FGPUFenceRHIRef	RHICreateGPUFence (const FName &Name)=0

virtual RHI_API void	RHIWriteGPUFence_TopOfPipe (FRHICommandListBase &RHICmdList, FRHIGPUFence *FenceRHI)

virtual void	RHICreateTransition (FRHITransition *Transition, const FRHITransitionCreateInfo &CreateInfo)

virtual void	RHIReleaseTransition (FRHITransition *Transition)

virtual IRHITransientResourceAllocator *	RHICreateTransientResourceAllocator ()

virtual FStagingBufferRHIRef	RHICreateStagingBuffer ()

virtual RHI_API void *	RHILockStagingBuffer (FRHIStagingBuffer StagingBuffer, FRHIGPUFence Fence, uint32 Offset, uint32 SizeRHI)

virtual RHI_API void	RHIUnlockStagingBuffer (FRHIStagingBuffer *StagingBuffer)

virtual RHI_API void *	LockStagingBuffer_RenderThread (class FRHICommandListImmediate &RHICmdList, FRHIStagingBuffer StagingBuffer, FRHIGPUFence Fence, uint32 Offset, uint32 SizeRHI)

virtual RHI_API void	UnlockStagingBuffer_RenderThread (class FRHICommandListImmediate &RHICmdList, FRHIStagingBuffer *StagingBuffer)

virtual FBoundShaderStateRHIRef	RHICreateBoundShaderState (FRHIVertexDeclaration VertexDeclaration, FRHIVertexShader VertexShader, FRHIPixelShader PixelShader, FRHIGeometryShader GeometryShader)=0

virtual FGraphicsPipelineStateRHIRef	RHICreateGraphicsPipelineState (const FGraphicsPipelineStateInitializer &Initializer)=0

virtual FComputePipelineStateRHIRef	RHICreateComputePipelineState (const FComputePipelineStateInitializer &Initializer)=0

virtual FWorkGraphPipelineStateRHIRef	RHICreateWorkGraphPipelineState (const FWorkGraphPipelineStateInitializer &Initializer)

virtual FUniformBufferRHIRef	RHICreateUniformBuffer (const void Contents, const FRHIUniformBufferLayout Layout, EUniformBufferUsage Usage, EUniformBufferValidation Validation)=0

virtual void	RHIUpdateUniformBuffer (FRHICommandListBase &RHICmdList, FRHIUniformBuffer UniformBufferRHI, const void Contents)=0

virtual void	RHIReplaceResources (FRHICommandListBase &RHICmdList, TArray< FRHIResourceReplaceInfo > &&ReplaceInfos)=0

virtual FRHIBufferInitializer	RHICreateBufferInitializer (FRHICommandListBase &RHICmdList, const FRHIBufferCreateDesc &CreateDesc)=0

virtual RHI_API void *	RHILockBuffer (FRHICommandListBase &RHICmdList, FRHIBuffer *Buffer, uint32 Offset, uint32 Size, EResourceLockMode LockMode)

virtual RHI_API void *	RHILockBufferMGPU (FRHICommandListBase &RHICmdList, FRHIBuffer *Buffer, uint32 GPUIndex, uint32 Offset, uint32 Size, EResourceLockMode LockMode)

virtual RHI_API void	RHIUnlockBuffer (FRHICommandListBase &RHICmdList, FRHIBuffer *Buffer)

virtual RHI_API void	RHIUnlockBufferMGPU (FRHICommandListBase &RHICmdList, FRHIBuffer *Buffer, uint32 GPUIndex)

virtual RHI_API void	RHIUpdateTextureReference (FRHICommandListBase &RHICmdList, FRHITextureReference TextureRef, FRHITexture NewTexture)

virtual FRHICalcTextureSizeResult	RHICalcTexturePlatformSize (FRHITextureDesc const &Desc, uint32 FirstMipIndex)=0

virtual RHI_API uint64	RHIGetMinimumAlignmentForBufferBackedSRV (EPixelFormat Format)

virtual void	RHIGetTextureMemoryStats (FTextureMemoryStats &OutStats)=0

virtual bool	RHIGetTextureMemoryVisualizeData (FColor *TextureData, int32 SizeX, int32 SizeY, int32 Pitch, int32 PixelSize)=0

virtual FRHITextureInitializer	RHICreateTextureInitializer (FRHICommandListBase &RHICmdList, const FRHITextureCreateDesc &CreateDesc)=0

virtual FTextureRHIRef	RHIAsyncCreateTexture2D (uint32 SizeX, uint32 SizeY, uint8 Format, uint32 NumMips, ETextureCreateFlags Flags, ERHIAccess InResourceState, void *InitialMipData, uint32 NumInitialMips, const TCHAR DebugName, FGraphEventRef &OutCompletionEvent)=0

virtual RHI_API FTextureReferenceRHIRef	RHICreateTextureReference (FRHICommandListBase &RHICmdList, FRHITexture *InReferencedTexture)

virtual FShaderResourceViewRHIRef	RHICreateShaderResourceView (class FRHICommandListBase &RHICmdList, FRHIViewableResource *Resource, FRHIViewDesc const &ViewDesc)=0

virtual FUnorderedAccessViewRHIRef	RHICreateUnorderedAccessView (class FRHICommandListBase &RHICmdList, FRHIViewableResource *Resource, FRHIViewDesc const &ViewDesc)=0

virtual FRHIResourceCollectionRef	RHICreateResourceCollection (FRHICommandListBase &RHICmdList, TConstArrayView< FRHIResourceCollectionMember > InMembers)

virtual void	RHIUpdateResourceCollection (FRHICommandListBase &RHICmdList, FRHIResourceCollection *InResourceCollection, uint32 InStartIndex, TConstArrayView< FRHIResourceCollectionMember > InMemberUpdates)

virtual uint32	RHIComputeMemorySize (FRHITexture *TextureRHI)=0

virtual FTextureRHIRef	RHIAsyncReallocateTexture2D (FRHITexture Texture2D, int32 NewMipCount, int32 NewSizeX, int32 NewSizeY, FThreadSafeCounter RequestStatus)=0

virtual FRHILockTextureResult	RHILockTexture (FRHICommandListImmediate &RHICmdList, const FRHILockTextureArgs &Arguments)=0

virtual void	RHIUnlockTexture (FRHICommandListImmediate &RHICmdList, const FRHILockTextureArgs &Arguments)=0

virtual void	RHIUpdateTexture2D (FRHICommandListBase &RHICmdList, FRHITexture Texture, uint32 MipIndex, const struct FUpdateTextureRegion2D &UpdateRegion, uint32 SourcePitch, const uint8 SourceData)=0

virtual void	RHIUpdateFromBufferTexture2D (FRHICommandListBase &RHICmdList, FRHITexture Texture, uint32 MipIndex, const struct FUpdateTextureRegion2D &UpdateRegion, uint32 SourcePitch, FRHIBuffer Buffer, uint32 BufferOffset)

virtual void	RHIUpdateTexture3D (FRHICommandListBase &RHICmdList, FRHITexture Texture, uint32 MipIndex, const struct FUpdateTextureRegion3D &UpdateRegion, uint32 SourceRowPitch, uint32 SourceDepthPitch, const uint8 SourceData)=0

virtual RHI_API void	RHIBindDebugLabelName (FRHICommandListBase &RHICmdList, FRHITexture Texture, const TCHAR Name)

virtual RHI_API void	RHIBindDebugLabelName (FRHICommandListBase &RHICmdList, FRHIBuffer Buffer, const TCHAR Name)

virtual RHI_API void	RHIBindDebugLabelName (FRHICommandListBase &RHICmdList, FRHIUnorderedAccessView UnorderedAccessViewRHI, const TCHAR Name)

virtual void	RHIReadSurfaceData (FRHITexture *Texture, FIntRect Rect, TArray< FColor > &OutData, FReadSurfaceDataFlags InFlags)=0

virtual RHI_API void	RHIReadSurfaceData (FRHITexture *Texture, FIntRect Rect, TArray< FLinearColor > &OutData, FReadSurfaceDataFlags InFlags)

virtual void	RHIMapStagingSurface (FRHITexture Texture, FRHIGPUFence Fence, void *&OutData, int32 &OutWidth, int32 &OutHeight, uint32 GPUIndex=0)=0

virtual void	RHIUnmapStagingSurface (FRHITexture *Texture, uint32 GPUIndex=0)=0

virtual void	RHIReadSurfaceFloatData (FRHITexture *Texture, FIntRect Rect, TArray< FFloat16Color > &OutData, ECubeFace CubeFace, int32 ArrayIndex, int32 MipIndex)=0

virtual RHI_API void	RHIReadSurfaceFloatData (FRHITexture *Texture, FIntRect Rect, TArray< FFloat16Color > &OutData, FReadSurfaceDataFlags InFlags)

virtual void	RHIRead3DSurfaceFloatData (FRHITexture *Texture, FIntRect Rect, FIntPoint ZMinMax, TArray< FFloat16Color > &OutData)=0

virtual RHI_API void	RHIRead3DSurfaceFloatData (FRHITexture *Texture, FIntRect Rect, FIntPoint ZMinMax, TArray< FFloat16Color > &OutData, FReadSurfaceDataFlags InFlags)

virtual FRenderQueryRHIRef	RHICreateRenderQuery (ERenderQueryType QueryType)=0

virtual void	RHIBeginRenderQueryBatch_TopOfPipe (FRHICommandListBase &RHICmdList, ERenderQueryType QueryType)

virtual void	RHIEndRenderQueryBatch_TopOfPipe (FRHICommandListBase &RHICmdList, ERenderQueryType QueryType)

virtual RHI_API void	RHIBeginRenderQuery_TopOfPipe (FRHICommandListBase &RHICmdList, FRHIRenderQuery *RenderQuery)

virtual RHI_API void	RHIEndRenderQuery_TopOfPipe (FRHICommandListBase &RHICmdList, FRHIRenderQuery *RenderQuery)

virtual bool	RHIGetRenderQueryResult (FRHIRenderQuery *RenderQuery, uint64 &OutResult, bool bWait, uint32 GPUIndex=INDEX_NONE)=0

virtual uint32	RHIGetViewportNextPresentGPUIndex (FRHIViewport *Viewport)

virtual FTextureRHIRef	RHIGetViewportBackBuffer (FRHIViewport *Viewport)=0

virtual FUnorderedAccessViewRHIRef	RHIGetViewportBackBufferUAV (FRHIViewport *ViewportRHI)

virtual uint32	RHIGetHTilePlatformConfig (uint32 DepthWidth, uint32 DepthHeight) const

virtual uint32	RHIGetHTilePlatformConfig (const FRHITextureDesc &DepthDesc) const

virtual void	RHIAliasTextureResources (FTextureRHIRef &DestTexture, FTextureRHIRef &SrcTexture)

virtual FTextureRHIRef	RHICreateAliasedTexture (FTextureRHIRef &SourceTexture)

virtual void	RHIGetDisplaysInformation (FDisplayInformationArray &OutDisplayInformation)

virtual RHI_API uint64	RHIComputeStatePrecachePSOHash (const FGraphicsPipelineStateInitializer &Initializer)

virtual RHI_API uint64	RHIComputePrecachePSOHash (const FGraphicsPipelineStateInitializer &Initializer)

virtual RHI_API bool	RHIMatchPrecachePSOInitializers (const FGraphicsPipelineStateInitializer &LHS, const FGraphicsPipelineStateInitializer &RHS)

virtual void	RHIAdvanceFrameForGetViewportBackBuffer (FRHIViewport *Viewport, bool bPresent)=0

virtual void	RHIAcquireThreadOwnership ()

virtual void	RHIReleaseThreadOwnership ()

virtual void	RHIFlushResources ()=0

virtual FViewportRHIRef	RHICreateViewport (void *WindowHandle, uint32 SizeX, uint32 SizeY, bool bIsFullscreen, EPixelFormat PreferredPixelFormat)=0

virtual void	RHIResizeViewport (FRHIViewport *Viewport, uint32 SizeX, uint32 SizeY, bool bIsFullscreen)=0

virtual void	RHIResizeViewport (FRHIViewport *Viewport, uint32 SizeX, uint32 SizeY, bool bIsFullscreen, EPixelFormat PreferredPixelFormat)

virtual EPixelFormat	RHIPreferredPixelFormatHint (EPixelFormat PreferredPixelFormat)

virtual RHI_API void	RHICheckViewportHDRStatus (FRHIViewport *Viewport)

virtual void	RHIHandleDisplayChange ()

virtual void	RHITick (float DeltaTime)=0

virtual void	RHIBlockUntilGPUIdle ()=0

virtual void	RHIBeginSuspendRendering ()

virtual void	RHISuspendRendering ()

virtual void	RHIResumeRendering ()

virtual bool	RHIIsRenderingSuspended ()

virtual bool	RHIGetAvailableResolutions (FScreenResolutionArray &Resolutions, bool bIgnoreRefreshRate)=0

virtual void	RHIGetSupportedResolution (uint32 &Width, uint32 &Height)=0

virtual RHI_API void	RHIVirtualTextureSetFirstMipInMemory (class FRHICommandListImmediate &RHICmdList, FRHITexture *Texture, uint32 FirstMip)

virtual RHI_API void	RHIVirtualTextureSetFirstMipVisible (class FRHICommandListImmediate &RHICmdList, FRHITexture *Texture, uint32 FirstMip)

virtual void *	RHIGetNativeDevice ()=0

virtual void *	RHIGetNativePhysicalDevice ()

virtual void *	RHIGetNativeGraphicsQueue ()

virtual void *	RHIGetNativeComputeQueue ()

virtual void *	RHIGetNativeInstance ()=0

virtual void *	RHIGetNativeCommandBuffer ()

virtual IRHICommandContext *	RHIGetDefaultContext ()=0

virtual IRHIComputeContext *	RHIGetCommandContext (ERHIPipeline Pipeline, FRHIGPUMask GPUMask)=0

virtual IRHIComputeContext *	RHIGetParallelCommandContext (FRHIParallelRenderPassInfo const &ParallelRenderPass, FRHIGPUMask GPUMask)

virtual IRHIUploadContext *	RHIGetUploadContext ()

void	RHICloseTranslateChain (FRHIFinalizeContextArgs &&Args, TRHIPipelineArray< IRHIPlatformCommandList * > &Output, bool bShouldFinalize)

virtual void	RHIFinalizeContext (FRHIFinalizeContextArgs &&Args, TRHIPipelineArray< IRHIPlatformCommandList * > &Output)=0

virtual IRHIPlatformCommandList *	RHIFinalizeParallelContext (IRHIComputeContext *Context)

virtual void	RHISubmitCommandLists (FRHISubmitCommandListsArgs &&Args)=0

virtual void	RHIProcessDeleteQueue ()

virtual RHI_API FTextureRHIRef	AsyncReallocateTexture2D_RenderThread (class FRHICommandListImmediate &RHICmdList, FRHITexture Texture2D, int32 NewMipCount, int32 NewSizeX, int32 NewSizeY, FThreadSafeCounter RequestStatus)

virtual RHI_API FUpdateTexture3DData	RHIBeginUpdateTexture3D (FRHICommandListBase &RHICmdList, FRHITexture *Texture, uint32 MipIndex, const struct FUpdateTextureRegion3D &UpdateRegion)

virtual RHI_API void	RHIEndUpdateTexture3D (FRHICommandListBase &RHICmdList, FUpdateTexture3DData &UpdateData)

virtual RHI_API void	RHIEndMultiUpdateTexture3D (FRHICommandListBase &RHICmdList, TArray< FUpdateTexture3DData > &UpdateDataArray)

virtual RHI_API FRHIShaderLibraryRef	RHICreateShaderLibrary_RenderThread (class FRHICommandListImmediate &RHICmdList, EShaderPlatform Platform, FString FilePath, FString Name)

virtual RHI_API void	RHIMapStagingSurface_RenderThread (class FRHICommandListImmediate &RHICmdList, FRHITexture Texture, uint32 GPUIndex, FRHIGPUFence Fence, void *&OutData, int32 &OutWidth, int32 &OutHeight)

virtual RHI_API void	RHIUnmapStagingSurface_RenderThread (class FRHICommandListImmediate &RHICmdList, FRHITexture *Texture, uint32 GPUIndex)

virtual RHI_API void	RHIReadSurfaceFloatData_RenderThread (class FRHICommandListImmediate &RHICmdList, FRHITexture *Texture, FIntRect Rect, TArray< FFloat16Color > &OutData, ECubeFace CubeFace, int32 ArrayIndex, int32 MipIndex)

virtual RHI_API void	RHIReadSurfaceFloatData_RenderThread (class FRHICommandListImmediate &RHICmdList, FRHITexture *Texture, FIntRect Rect, TArray< FFloat16Color > &OutData, FReadSurfaceDataFlags Flags)

virtual void *	LockBuffer_BottomOfPipe (class FRHICommandListBase &RHICmdList, FRHIBuffer *Buffer, uint32 Offset, uint32 SizeRHI, EResourceLockMode LockMode)

virtual void	UnlockBuffer_BottomOfPipe (class FRHICommandListBase &RHICmdList, FRHIBuffer *Buffer)

virtual FRHIFlipDetails	RHIWaitForFlip (double TimeoutInSeconds)

virtual void	RHISignalFlipEvent ()

virtual uint16	RHIGetPlatformTextureMaxSampleCount ()

virtual FRayTracingAccelerationStructureSize	RHICalcRayTracingSceneSize (const FRayTracingSceneInitializer &Initializer)

virtual FRayTracingAccelerationStructureSize	RHICalcRayTracingGeometrySize (const FRayTracingGeometryInitializer &Initializer)

virtual FRayTracingClusterOperationSize	RHICalcRayTracingClusterOperationSize (const FRayTracingClusterOperationInitializer &Initializer)

virtual FRayTracingAccelerationStructureOfflineMetadata	RHIGetRayTracingGeometryOfflineMetadata (const FRayTracingGeometryOfflineDataHeader &OfflineDataHeader)

virtual FRayTracingGeometryRHIRef	RHICreateRayTracingGeometry (FRHICommandListBase &RHICmdList, const FRayTracingGeometryInitializer &Initializer)

virtual FRayTracingSceneRHIRef	RHICreateRayTracingScene (FRayTracingSceneInitializer Initializer)

virtual FRayTracingShaderRHIRef	RHICreateRayTracingShader (TArrayView< const uint8 > Code, const FSHAHash &Hash, EShaderFrequency ShaderFrequency)

virtual FRayTracingPipelineStateRHIRef	RHICreateRayTracingPipelineState (const FRayTracingPipelineStateInitializer &Initializer)

virtual FShaderBindingTableRHIRef	RHICreateShaderBindingTable (FRHICommandListBase &RHICmdList, const FRayTracingShaderBindingTableInitializer &Initializer)

virtual void	RHISerializeAccelerationStructure (FRHICommandListImmediate &RHICmdList, FRHIRayTracingScene Scene, const TCHAR Path)

virtual FShaderBundleRHIRef	RHICreateShaderBundle (const FShaderBundleCreateInfo &CreateInfo)

Static Public Member Functions
static RHI_API void	EnableIdealGPUCaptureOptions (bool bEnable)

Protected Attributes
TArray< uint32 >	PixelFormatBlockBytes

Friends
class	FValidationRHI

Detailed Description

The interface which is implemented by the dynamically bound RHI.

Member Typedef Documentation

◆ FRHICalcTextureSizeResult

using FDynamicRHI::FRHICalcTextureSizeResult = ::FRHICalcTextureSizeResult

Constructor & Destructor Documentation

◆ ~FDynamicRHI()

FDynamicRHI::~FDynamicRHI ( )

virtualdefault

Declare a virtual destructor, so the dynamic RHI can be deleted without knowing its type.

Member Function Documentation

◆ AsyncReallocateTexture2D_RenderThread()

FTextureRHIRef FDynamicRHI::AsyncReallocateTexture2D_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		FRHITexture *	Texture2D,
		int32	NewMipCount,
		int32	NewSizeX,
		int32	NewSizeY,
		FThreadSafeCounter *	RequestStatus
	)

virtual

Reimplemented in FD3D12DynamicRHI, FMetalDynamicRHI, FOpenGLDynamicRHI, FD3D11DynamicRHI, and FVulkanDynamicRHI.

◆ EnableIdealGPUCaptureOptions()

void FDynamicRHI::EnableIdealGPUCaptureOptions ( bool bEnable )

static

◆ FlushPendingLogs()

virtual void FDynamicRHI::FlushPendingLogs ( )

inlinevirtual

Reimplemented in FD3D11DynamicRHI.

◆ GetInterfaceType()

virtual ERHIInterfaceType FDynamicRHI::GetInterfaceType ( ) const

inlinevirtual

Reimplemented in FNullDynamicRHI, IVulkanDynamicRHI, IMetalDynamicRHI, ID3D12DynamicRHI, IOpenGLDynamicRHI, and ID3D11DynamicRHI.

◆ GetName()

virtual const TCHAR * FDynamicRHI::GetName ( )

pure virtual

Implemented in FVulkanDynamicRHI, FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, and FD3D11DynamicRHI.

◆ GetNonValidationRHI()

virtual FDynamicRHI * FDynamicRHI::GetNonValidationRHI ( )

inlinevirtual

◆ Init()

virtual void FDynamicRHI::Init ( )

pure virtual

Initializes the RHI; separate from IDynamicRHIModule::CreateRHI so that GDynamicRHI is set when it is called.

Implemented in FMetalDynamicRHI, FNullDynamicRHI, FVulkanDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, and FD3D11DynamicRHI.

◆ InitPixelFormatInfo()

void FDynamicRHI::InitPixelFormatInfo ( const TArray< uint32 > & PixelFormatBlockBytesIn )

inline

Called after PostInit to initialize the pixel format info, which is needed for some commands default implementations

◆ LockBuffer_BottomOfPipe()

virtual void * FDynamicRHI::LockBuffer_BottomOfPipe	(	class FRHICommandListBase &	RHICmdList,
		FRHIBuffer *	Buffer,
		uint32	Offset,
		uint32	SizeRHI,
		EResourceLockMode	LockMode
	)

inlinevirtual

Reimplemented in FOpenGLDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, FMetalDynamicRHI, and FNullDynamicRHI.

◆ LockStagingBuffer_RenderThread()

void * FDynamicRHI::LockStagingBuffer_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		FRHIStagingBuffer *	StagingBuffer,
		FRHIGPUFence *	Fence,
		uint32	Offset,
		uint32	SizeRHI
	)

virtual

Lock a staging buffer to read contents on the CPU that were written by the GPU, without having to stall. @discussion This function requires that you have issued an CopyToStagingBuffer invocation and verified that the FRHIGPUFence has been signaled before calling.

Parameters

RHICmdList	The command-list to execute on or synchronize with.
StagingBuffer	The buffer to lock.
Fence	An optional fence synchronized with the last buffer update.
Offset	The offset in the buffer to return.
SizeRHI	The length of the region in the buffer to lock.

Returns: A pointer to the data starting at 'Offset' and of length 'SizeRHI' from 'StagingBuffer', or nullptr when there is an error.

Reimplemented in FOpenGLDynamicRHI.

◆ PostInit()

virtual void FDynamicRHI::PostInit ( )

inlinevirtual

Called after the RHI is initialized; before the render thread is started.

Reimplemented in FVulkanDynamicRHI, and FD3D12DynamicRHI.

◆ RHIAcquireThreadOwnership()

virtual void FDynamicRHI::RHIAcquireThreadOwnership ( )

inlinevirtual

Reimplemented in FOpenGLDynamicRHI.

◆ RHIAdvanceFrameForGetViewportBackBuffer()

virtual void FDynamicRHI::RHIAdvanceFrameForGetViewportBackBuffer	(	FRHIViewport *	Viewport,
		bool	bPresent
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIAliasTextureResources()

virtual void FDynamicRHI::RHIAliasTextureResources	(	FTextureRHIRef &	DestTexture,
		FTextureRHIRef &	SrcTexture
	)

inlinevirtual

Reimplemented in FD3D12DynamicRHI, FNullDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FOpenGLDynamicRHI.

◆ RHIAsyncCreateTexture2D()

virtual FTextureRHIRef FDynamicRHI::RHIAsyncCreateTexture2D	(	uint32	SizeX,
		uint32	SizeY,
		uint8	Format,
		uint32	NumMips,
		ETextureCreateFlags	Flags,
		ERHIAccess	InResourceState,
		void **	InitialMipData,
		uint32	NumInitialMips,
		const TCHAR *	DebugName,
		FGraphEventRef &	OutCompletionEvent
	)

pure virtual

Thread-safe function that can be used to create a texture outside of the rendering thread. This function can ONLY be called if GRHISupportsAsyncTextureCreation is true. Cannot create rendertargets with this method.

Parameters

SizeX	- width of the texture to create
SizeY	- height of the texture to create
Format	- EPixelFormat texture format
NumMips	- number of mips to generate or 0 for full mip pyramid
Flags	- ETextureCreateFlags creation flags
InitialMipData	- pointers to mip data with which to create the texture
NumInitialMips	- how many mips are provided in InitialMipData
OutCompletionEvent	- An event signaled on operation completion. Can return null. Operation can still be pending after function returns (e.g. initial data upload in-flight)

Returns: a reference to a 2D texture resource

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIAsyncReallocateTexture2D()

virtual FTextureRHIRef FDynamicRHI::RHIAsyncReallocateTexture2D	(	FRHITexture *	Texture2D,
		int32	NewMipCount,
		int32	NewSizeX,
		int32	NewSizeY,
		FThreadSafeCounter *	RequestStatus
	)

pure virtual

Starts an asynchronous texture reallocation. It may complete immediately if the reallocation could be performed without any reshuffling of texture memory, or if there isn't enough memory. The specified status counter will be decremented by 1 when the reallocation is complete (success or failure).

Returns a new reference to the texture, which will represent the new mip count when the reallocation is complete. RHIFinalizeAsyncReallocateTexture2D() must be called to complete the reallocation.

Parameters

Texture2D	- Texture to reallocate
NewMipCount	- New number of mip-levels
NewSizeX	- New width, in pixels
NewSizeY	- New height, in pixels
RequestStatus	- Will be decremented by 1 when the reallocation is complete (success or failure).

Returns: - New reference to the texture, or an invalid reference upon failure

Implemented in FMetalDynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FD3D12DynamicRHI.

◆ RHIBeginRenderQuery_TopOfPipe()

void FDynamicRHI::RHIBeginRenderQuery_TopOfPipe	(	FRHICommandListBase &	RHICmdList,
		FRHIRenderQuery *	RenderQuery
	)

virtual

Reimplemented in FMetalDynamicRHI, and FOpenGLDynamicRHI.

◆ RHIBeginRenderQueryBatch_TopOfPipe()

virtual void FDynamicRHI::RHIBeginRenderQueryBatch_TopOfPipe	(	FRHICommandListBase &	RHICmdList,
		ERenderQueryType	QueryType
	)

inlinevirtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIBeginSuspendRendering()

virtual void FDynamicRHI::RHIBeginSuspendRendering ( )

inlinevirtual

◆ RHIBeginUpdateTexture3D()

FUpdateTexture3DData FDynamicRHI::RHIBeginUpdateTexture3D	(	FRHICommandListBase &	RHICmdList,
		FRHITexture *	Texture,
		uint32	MipIndex,
		const struct FUpdateTextureRegion3D &	UpdateRegion
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIBindDebugLabelName() [1/3]

void FDynamicRHI::RHIBindDebugLabelName	(	FRHICommandListBase &	RHICmdList,
		FRHIBuffer *	Buffer,
		const TCHAR *	Name
	)

virtual

Reimplemented in FD3D12DynamicRHI, and FD3D11DynamicRHI.

◆ RHIBindDebugLabelName() [2/3]

void FDynamicRHI::RHIBindDebugLabelName	(	FRHICommandListBase &	RHICmdList,
		FRHITexture *	Texture,
		const TCHAR *	Name
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIBindDebugLabelName() [3/3]

void FDynamicRHI::RHIBindDebugLabelName	(	FRHICommandListBase &	RHICmdList,
		FRHIUnorderedAccessView *	UnorderedAccessViewRHI,
		const TCHAR *	Name
	)

virtual

Reimplemented in FD3D11DynamicRHI.

◆ RHIBlockUntilGPUIdle()

virtual void FDynamicRHI::RHIBlockUntilGPUIdle ( )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICalcRayTracingClusterOperationSize()

virtual FRayTracingClusterOperationSize FDynamicRHI::RHICalcRayTracingClusterOperationSize ( const FRayTracingClusterOperationInitializer & Initializer )

inlinevirtual

◆ RHICalcRayTracingGeometrySize()

virtual FRayTracingAccelerationStructureSize FDynamicRHI::RHICalcRayTracingGeometrySize ( const FRayTracingGeometryInitializer & Initializer )

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHICalcRayTracingSceneSize()

virtual FRayTracingAccelerationStructureSize FDynamicRHI::RHICalcRayTracingSceneSize ( const FRayTracingSceneInitializer & Initializer )

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHICalcTexturePlatformSize()

virtual FRHICalcTextureSizeResult FDynamicRHI::RHICalcTexturePlatformSize	(	FRHITextureDesc const &	Desc,
		uint32	FirstMipIndex
	)

pure virtual

Computes the total GPU memory a texture resource with the specified parameters will occupy on the current RHI platform. Also returns the required alignment for the resource.

Parameters

Desc	- The texture descriptor (width, height, format etc)
FirstMipIndex	- The index of the most detailed mip to consider in the memory size calculation.

Returns: - The computed size and alignment of the platform texture resource.

Implemented in FD3D12DynamicRHI, FMetalDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FNullDynamicRHI.

◆ RHICheckViewportHDRStatus()

void FDynamicRHI::RHICheckViewportHDRStatus ( FRHIViewport * Viewport )

virtual

Reimplemented in FNullDynamicRHI.

◆ RHICloseTranslateChain()

void FDynamicRHI::RHICloseTranslateChain	(	FRHIFinalizeContextArgs &&	Args,
		TRHIPipelineArray< IRHIPlatformCommandList * > &	Output,
		bool	bShouldFinalize
	)

inline

◆ RHIComputeMemorySize()

virtual uint32 FDynamicRHI::RHIComputeMemorySize ( FRHITexture * TextureRHI )

pure virtual

Computes the size in memory required by a given texture.

Parameters

TextureRHI - Texture we want to know the size of, 0 is safely ignored

Returns: - Size in Bytes

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIComputePrecachePSOHash()

uint64 FDynamicRHI::RHIComputePrecachePSOHash ( const FGraphicsPipelineStateInitializer & Initializer )

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, and FVulkanDynamicRHI.

◆ RHIComputeStatePrecachePSOHash()

uint64 FDynamicRHI::RHIComputeStatePrecachePSOHash ( const FGraphicsPipelineStateInitializer & Initializer )

virtual

Reimplemented in FD3D12DynamicRHI, FOpenGLDynamicRHI, and FVulkanDynamicRHI.

◆ RHICreateAliasedTexture()

virtual FTextureRHIRef FDynamicRHI::RHICreateAliasedTexture ( FTextureRHIRef & SourceTexture )

inlinevirtual

Reimplemented in FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateAmplificationShader()

virtual FAmplificationShaderRHIRef FDynamicRHI::RHICreateAmplificationShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash
	)

inlinevirtual

Reimplemented in FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHICreateBlendState()

virtual FBlendStateRHIRef FDynamicRHI::RHICreateBlendState ( const FBlendStateInitializerRHI & Initializer )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateBoundShaderState()

virtual FBoundShaderStateRHIRef FDynamicRHI::RHICreateBoundShaderState	(	FRHIVertexDeclaration *	VertexDeclaration,
		FRHIVertexShader *	VertexShader,
		FRHIPixelShader *	PixelShader,
		FRHIGeometryShader *	GeometryShader
	)

pure virtual

Creates a bound shader state instance which encapsulates a decl, vertex shader and pixel shader CAUTION: Even though this is marked as threadsafe, it is only valid to call from the render thread or the RHI thread. It need not be threadsafe unless the RHI support parallel translation. CAUTION: Platforms that support RHIThread but don't actually have a threadsafe implementation must flush internally with FScopedRHIThreadStaller StallRHIThread(FRHICommandListExecutor::GetImmediateCommandList()); when the call is from the render thread

Parameters

VertexDeclaration	- existing vertex decl
VertexShader	- existing vertex shader
GeometryShader	- existing geometry shader
PixelShader	- existing pixel shader

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FOpenGLDynamicRHI.

◆ RHICreateBufferInitializer()

virtual FRHIBufferInitializer FDynamicRHI::RHICreateBufferInitializer	(	FRHICommandListBase &	RHICmdList,
		const FRHIBufferCreateDesc &	CreateDesc
	)

pure virtual

Implemented in FMetalDynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FD3D12DynamicRHI.

◆ RHICreateComputePipelineState()

virtual FComputePipelineStateRHIRef FDynamicRHI::RHICreateComputePipelineState ( const FComputePipelineStateInitializer & Initializer )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FVulkanDynamicRHI, and FDynamicRHIPSOFallback.

◆ RHICreateComputeShader()

virtual FComputeShaderRHIRef FDynamicRHI::RHICreateComputeShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash
	)

pure virtual

Implemented in FMetalDynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FD3D12DynamicRHI.

◆ RHICreateDepthStencilState()

virtual FDepthStencilStateRHIRef FDynamicRHI::RHICreateDepthStencilState ( const FDepthStencilStateInitializerRHI & Initializer )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateGeometryShader()

virtual FGeometryShaderRHIRef FDynamicRHI::RHICreateGeometryShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateGPUFence()

virtual FGPUFenceRHIRef FDynamicRHI::RHICreateGPUFence ( const FName & Name )

pure virtual

Implemented in FNullDynamicRHI, FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateGraphicsPipelineState()

virtual FGraphicsPipelineStateRHIRef FDynamicRHI::RHICreateGraphicsPipelineState ( const FGraphicsPipelineStateInitializer & Initializer )

pure virtual

Creates a graphics pipeline state object (PSO) that represents a complete gpu pipeline for rendering. This function should be considered expensive to call at runtime and may cause hitches as pipelines are compiled.

Parameters

Initializer - Descriptor object defining all the information needed to create the PSO, as well as behavior hints to the RHI.

Returns: FGraphicsPipelineStateRHIRef that can be bound for rendering; nullptr if the compilation fails. CAUTION: On certain RHI implementations (eg, ones that do not support runtime compilation) a compilation failure is a Fatal error and this function will not return. CAUTION: Even though this is marked as threadsafe, it is only valid to call from the render thread or the RHI thread. It need not be threadsafe unless the RHI support parallel translation. CAUTION: Platforms that support RHIThread but don't actually have a threadsafe implementation must flush internally with FScopedRHIThreadStaller StallRHIThread(FRHICommandListExecutor::GetImmediateCommandList()); when the call is from the render thread

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FVulkanDynamicRHI, FOpenGLDynamicRHI, and FDynamicRHIPSOFallback.

◆ RHICreateMeshShader()

virtual FMeshShaderRHIRef FDynamicRHI::RHICreateMeshShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash
	)

inlinevirtual

Reimplemented in FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHICreatePixelShader()

virtual FPixelShaderRHIRef FDynamicRHI::RHICreatePixelShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateRasterizerState()

virtual FRasterizerStateRHIRef FDynamicRHI::RHICreateRasterizerState ( const FRasterizerStateInitializerRHI & Initializer )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateRayTracingGeometry()

virtual FRayTracingGeometryRHIRef FDynamicRHI::RHICreateRayTracingGeometry	(	FRHICommandListBase &	RHICmdList,
		const FRayTracingGeometryInitializer &	Initializer
	)

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHICreateRayTracingPipelineState()

virtual FRayTracingPipelineStateRHIRef FDynamicRHI::RHICreateRayTracingPipelineState ( const FRayTracingPipelineStateInitializer & Initializer )

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHICreateRayTracingScene()

virtual FRayTracingSceneRHIRef FDynamicRHI::RHICreateRayTracingScene ( FRayTracingSceneInitializer Initializer )

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHICreateRayTracingShader()

virtual FRayTracingShaderRHIRef FDynamicRHI::RHICreateRayTracingShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash,
		EShaderFrequency	ShaderFrequency
	)

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHICreateRenderQuery()

virtual FRenderQueryRHIRef FDynamicRHI::RHICreateRenderQuery ( ERenderQueryType QueryType )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateResourceCollection()

virtual FRHIResourceCollectionRef FDynamicRHI::RHICreateResourceCollection	(	FRHICommandListBase &	RHICmdList,
		TConstArrayView< FRHIResourceCollectionMember >	InMembers
	)

inlinevirtual

◆ RHICreateSamplerState()

virtual FSamplerStateRHIRef FDynamicRHI::RHICreateSamplerState ( const FSamplerStateInitializerRHI & Initializer )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateShaderBindingTable()

virtual FShaderBindingTableRHIRef FDynamicRHI::RHICreateShaderBindingTable	(	FRHICommandListBase &	RHICmdList,
		const FRayTracingShaderBindingTableInitializer &	Initializer
	)

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHICreateShaderBundle()

virtual FShaderBundleRHIRef FDynamicRHI::RHICreateShaderBundle ( const FShaderBundleCreateInfo & CreateInfo )

inlinevirtual

Reimplemented in FD3D12DynamicRHI.

◆ RHICreateShaderLibrary()

virtual FRHIShaderLibraryRef FDynamicRHI::RHICreateShaderLibrary	(	EShaderPlatform	Platform,
		FString const &	FilePath,
		FString const &	Name
	)

inlinevirtual

Attempts to open a shader library for the given shader platform & name within the provided directory.

Parameters

Platform	The shader platform for shaders withing the library.
FilePath	The directory in which the library should exist.
Name	The name of the library, i.e. "Global" or "Unreal" without shader-platform or file-extension qualification.

Returns: The new library if one exists and can be constructed, otherwise nil.

Reimplemented in FMetalDynamicRHI.

◆ RHICreateShaderLibrary_RenderThread()

FRHIShaderLibraryRef FDynamicRHI::RHICreateShaderLibrary_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		EShaderPlatform	Platform,
		FString	FilePath,
		FString	Name
	)

virtual

Reimplemented in FMetalDynamicRHI.

◆ RHICreateShaderResourceView()

virtual FShaderResourceViewRHIRef FDynamicRHI::RHICreateShaderResourceView	(	class FRHICommandListBase &	RHICmdList,
		FRHIViewableResource *	Resource,
		FRHIViewDesc const &	ViewDesc
	)

pure virtual

Implemented in FNullDynamicRHI, FMetalDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FD3D12DynamicRHI.

◆ RHICreateStagingBuffer()

virtual FStagingBufferRHIRef FDynamicRHI::RHICreateStagingBuffer ( )

inlinevirtual

Creates a staging buffer, which is memory visible to the cpu without any locking.

Returns: The new staging-buffer.

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateTextureInitializer()

virtual FRHITextureInitializer FDynamicRHI::RHICreateTextureInitializer	(	FRHICommandListBase &	RHICmdList,
		const FRHITextureCreateDesc &	CreateDesc
	)

pure virtual

Implemented in FNullDynamicRHI, FVulkanDynamicRHI, FMetalDynamicRHI, FOpenGLDynamicRHI, FD3D11DynamicRHI, and FD3D12DynamicRHI.

◆ RHICreateTextureReference()

FTextureReferenceRHIRef FDynamicRHI::RHICreateTextureReference	(	FRHICommandListBase &	RHICmdList,
		FRHITexture *	InReferencedTexture
	)

virtual

Create a texture reference. InReferencedTexture can be null.

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHICreateTransientResourceAllocator()

virtual IRHITransientResourceAllocator * FDynamicRHI::RHICreateTransientResourceAllocator ( )

inlinevirtual

Create a new transient resource allocator

Reimplemented in FVulkanDynamicRHI, and FD3D12DynamicRHI.

◆ RHICreateTransition()

virtual void FDynamicRHI::RHICreateTransition	(	FRHITransition *	Transition,
		const FRHITransitionCreateInfo &	CreateInfo
	)

inlinevirtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateUniformBuffer()

virtual FUniformBufferRHIRef FDynamicRHI::RHICreateUniformBuffer	(	const void *	Contents,
		const FRHIUniformBufferLayout *	Layout,
		EUniformBufferUsage	Usage,
		EUniformBufferValidation	Validation
	)

pure virtual

Creates a uniform buffer. The contents of the uniform buffer are provided in a parameter, and are immutable. CAUTION: Even though this is marked as threadsafe, it is only valid to call from the render thread or the RHI thread. Thus is need not be threadsafe on platforms that do not support or aren't using an RHIThread

Parameters

Contents	- A pointer to a memory block of size NumBytes that is copied into the new uniform buffer.
NumBytes	- The number of bytes the uniform buffer should contain.

Returns: The new uniform buffer.

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateUnorderedAccessView()

virtual FUnorderedAccessViewRHIRef FDynamicRHI::RHICreateUnorderedAccessView	(	class FRHICommandListBase &	RHICmdList,
		FRHIViewableResource *	Resource,
		FRHIViewDesc const &	ViewDesc
	)

pure virtual

Implemented in FNullDynamicRHI, FMetalDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FD3D12DynamicRHI.

◆ RHICreateVertexDeclaration()

virtual FVertexDeclarationRHIRef FDynamicRHI::RHICreateVertexDeclaration ( const FVertexDeclarationElementList & Elements )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateVertexShader()

virtual FVertexShaderRHIRef FDynamicRHI::RHICreateVertexShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateViewport()

virtual FViewportRHIRef FDynamicRHI::RHICreateViewport	(	void *	WindowHandle,
		uint32	SizeX,
		uint32	SizeY,
		bool	bIsFullscreen,
		EPixelFormat	PreferredPixelFormat
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHICreateWorkGraphPipelineState()

virtual FWorkGraphPipelineStateRHIRef FDynamicRHI::RHICreateWorkGraphPipelineState ( const FWorkGraphPipelineStateInitializer & Initializer )

inlinevirtual

Reimplemented in FD3D12DynamicRHI.

◆ RHICreateWorkGraphShader()

virtual FWorkGraphShaderRHIRef FDynamicRHI::RHICreateWorkGraphShader	(	TArrayView< const uint8 >	Code,
		const FSHAHash &	Hash,
		EShaderFrequency	ShaderFrequency
	)

inlinevirtual

Reimplemented in FD3D12DynamicRHI.

◆ RHIEndFrame()

virtual void FDynamicRHI::RHIEndFrame ( const FRHIEndFrameArgs & Args )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIEndFrame_RenderThread()

void FDynamicRHI::RHIEndFrame_RenderThread ( FRHICommandListImmediate & RHICmdList )

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIEndMultiUpdateTexture3D()

void FDynamicRHI::RHIEndMultiUpdateTexture3D	(	FRHICommandListBase &	RHICmdList,
		TArray< FUpdateTexture3DData > &	UpdateDataArray
	)

virtual

Reimplemented in FD3D12DynamicRHI.

◆ RHIEndRenderQuery_TopOfPipe()

void FDynamicRHI::RHIEndRenderQuery_TopOfPipe	(	FRHICommandListBase &	RHICmdList,
		FRHIRenderQuery *	RenderQuery
	)

virtual

Reimplemented in FD3D12DynamicRHI, FVulkanDynamicRHI, FMetalDynamicRHI, FOpenGLDynamicRHI, and FD3D11DynamicRHI.

◆ RHIEndRenderQueryBatch_TopOfPipe()

virtual void FDynamicRHI::RHIEndRenderQueryBatch_TopOfPipe	(	FRHICommandListBase &	RHICmdList,
		ERenderQueryType	QueryType
	)

inlinevirtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIEndUpdateTexture3D()

void FDynamicRHI::RHIEndUpdateTexture3D	(	FRHICommandListBase &	RHICmdList,
		FUpdateTexture3DData &	UpdateData
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FD3D11DynamicRHI, and FVulkanDynamicRHI.

◆ RHIFinalizeContext()

virtual void FDynamicRHI::RHIFinalizeContext	(	FRHIFinalizeContextArgs &&	Args,
		TRHIPipelineArray< IRHIPlatformCommandList * > &	Output
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIFinalizeParallelContext()

virtual IRHIPlatformCommandList * FDynamicRHI::RHIFinalizeParallelContext ( IRHIComputeContext * Context )

inlinevirtual

Reimplemented in FMetalDynamicRHI, FVulkanDynamicRHI, and FNullDynamicRHI.

◆ RHIFlushResources()

virtual void FDynamicRHI::RHIFlushResources ( )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetAvailableResolutions()

virtual bool FDynamicRHI::RHIGetAvailableResolutions	(	FScreenResolutionArray &	Resolutions,
		bool	bIgnoreRefreshRate
	)

pure virtual

Retrieve available screen resolutions.

Parameters

Resolutions	TArray<FScreenResolutionRHI> parameter that will be filled in.
bIgnoreRefreshRate	If true, ignore refresh rates.

Returns: bool true if successfully filled the array

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetCommandContext()

virtual IRHIComputeContext * FDynamicRHI::RHIGetCommandContext	(	ERHIPipeline	Pipeline,
		FRHIGPUMask	GPUMask
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetDefaultContext()

virtual IRHICommandContext * FDynamicRHI::RHIGetDefaultContext ( )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetDisplaysInformation()

virtual void FDynamicRHI::RHIGetDisplaysInformation ( FDisplayInformationArray & OutDisplayInformation )

inlinevirtual

Reimplemented in FD3D12DynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetHTilePlatformConfig() [1/2]

virtual uint32 FDynamicRHI::RHIGetHTilePlatformConfig ( const FRHITextureDesc & DepthDesc ) const

inlinevirtual

◆ RHIGetHTilePlatformConfig() [2/2]

virtual uint32 FDynamicRHI::RHIGetHTilePlatformConfig	(	uint32	DepthWidth,
		uint32	DepthHeight
	)		const

inlinevirtual

◆ RHIGetMinimumAlignmentForBufferBackedSRV()

uint64 FDynamicRHI::RHIGetMinimumAlignmentForBufferBackedSRV ( EPixelFormat Format )

virtual

Gets the minimum alignment (in bytes) required for creating a shader resource view on a buffer-backed resource.

Parameters

Format - EPixelFormat texture format of the SRV.

Reimplemented in FMetalDynamicRHI, FOpenGLDynamicRHI, and FVulkanDynamicRHI.

◆ RHIGetNativeCommandBuffer()

virtual void * FDynamicRHI::RHIGetNativeCommandBuffer ( )

inlinevirtual

Provides access to the native command buffer. Generally this should be avoided but is useful for third party plugins.

Reimplemented in FD3D11DynamicRHI.

◆ RHIGetNativeComputeQueue()

virtual void * FDynamicRHI::RHIGetNativeComputeQueue ( )

inlinevirtual

Provides access to the native compute command queue. Generally this should be avoided but is useful for third party plugins.

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIGetNativeDevice()

virtual void * FDynamicRHI::RHIGetNativeDevice ( )

pure virtual

Provides access to the native device. Generally this should be avoided but is useful for third party plugins.

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetNativeGraphicsQueue()

virtual void * FDynamicRHI::RHIGetNativeGraphicsQueue ( )

inlinevirtual

Provides access to the native graphics command queue. Generally this should be avoided but is useful for third party plugins.

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIGetNativeInstance()

virtual void * FDynamicRHI::RHIGetNativeInstance ( )

pure virtual

Provides access to the native instance. Generally this should be avoided but is useful for third party plugins.

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetNativePhysicalDevice()

virtual void * FDynamicRHI::RHIGetNativePhysicalDevice ( )

inlinevirtual

Provides access to the native device. Generally this should be avoided but is useful for third party plugins.

Reimplemented in FVulkanDynamicRHI.

◆ RHIGetParallelCommandContext()

virtual IRHIComputeContext * FDynamicRHI::RHIGetParallelCommandContext	(	FRHIParallelRenderPassInfo const &	ParallelRenderPass,
		FRHIGPUMask	GPUMask
	)

inlinevirtual

Reimplemented in FMetalDynamicRHI, FNullDynamicRHI, and FVulkanDynamicRHI.

◆ RHIGetPlatformTextureMaxSampleCount()

virtual uint16 FDynamicRHI::RHIGetPlatformTextureMaxSampleCount ( )

inlinevirtual

Reimplemented in FMetalDynamicRHI.

◆ RHIGetRayTracingGeometryOfflineMetadata()

virtual FRayTracingAccelerationStructureOfflineMetadata FDynamicRHI::RHIGetRayTracingGeometryOfflineMetadata ( const FRayTracingGeometryOfflineDataHeader & OfflineDataHeader )

inlinevirtual

◆ RHIGetRenderQueryResult()

virtual bool FDynamicRHI::RHIGetRenderQueryResult	(	FRHIRenderQuery *	RenderQuery,
		uint64 &	OutResult,
		bool	bWait,
		uint32	GPUIndex = `INDEX_NONE`
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetSupportedResolution()

virtual void FDynamicRHI::RHIGetSupportedResolution	(	uint32 &	Width,
		uint32 &	Height
	)

pure virtual

Returns a supported screen resolution that most closely matches input.

Parameters

Width	- Input: Desired resolution width in pixels. Output: A width that the platform supports.
Height	- Input: Desired resolution height in pixels. Output: A height that the platform supports.

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetTextureMemoryStats()

virtual void FDynamicRHI::RHIGetTextureMemoryStats ( FTextureMemoryStats & OutStats )

pure virtual

Retrieves texture memory stats. safe to call on the main thread

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetTextureMemoryVisualizeData()

virtual bool FDynamicRHI::RHIGetTextureMemoryVisualizeData	(	FColor *	TextureData,
		int32	SizeX,
		int32	SizeY,
		int32	Pitch,
		int32	PixelSize
	)

pure virtual

Fills a texture with to visualize the texture pool memory.

Parameters

TextureData	Start address
SizeX	Number of pixels along X
SizeY	Number of pixels along Y
Pitch	Number of bytes between each row
PixelSize	Number of bytes each pixel represents

Returns: true if successful, false otherwise

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetUploadContext()

virtual IRHIUploadContext * FDynamicRHI::RHIGetUploadContext ( )

inlinevirtual

Reimplemented in FMetalDynamicRHI, and FVulkanDynamicRHI.

◆ RHIGetViewportBackBuffer()

virtual FTextureRHIRef FDynamicRHI::RHIGetViewportBackBuffer ( FRHIViewport * Viewport )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIGetViewportBackBufferUAV()

virtual FUnorderedAccessViewRHIRef FDynamicRHI::RHIGetViewportBackBufferUAV ( FRHIViewport * ViewportRHI )

inlinevirtual

◆ RHIGetViewportNextPresentGPUIndex()

virtual uint32 FDynamicRHI::RHIGetViewportNextPresentGPUIndex ( FRHIViewport * Viewport )

inlinevirtual

Reimplemented in FD3D12DynamicRHI.

◆ RHIHandleDisplayChange()

virtual void FDynamicRHI::RHIHandleDisplayChange ( )

inlinevirtual

Reimplemented in FD3D11DynamicRHI.

◆ RHIIsRenderingSuspended()

virtual bool FDynamicRHI::RHIIsRenderingSuspended ( )

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHILockBuffer()

void * FDynamicRHI::RHILockBuffer	(	FRHICommandListBase &	RHICmdList,
		FRHIBuffer *	Buffer,
		uint32	Offset,
		uint32	Size,
		EResourceLockMode	LockMode
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHILockBufferMGPU()

void * FDynamicRHI::RHILockBufferMGPU	(	FRHICommandListBase &	RHICmdList,
		FRHIBuffer *	Buffer,
		uint32	GPUIndex,
		uint32	Offset,
		uint32	Size,
		EResourceLockMode	LockMode
	)

virtual

Reimplemented in FD3D12DynamicRHI.

◆ RHILockStagingBuffer()

void * FDynamicRHI::RHILockStagingBuffer	(	FRHIStagingBuffer *	StagingBuffer,
		FRHIGPUFence *	Fence,
		uint32	Offset,
		uint32	SizeRHI
	)

virtual

Lock a staging buffer to read contents on the CPU that were written by the GPU, without having to stall. @discussion This function requires that you have issued an CopyToStagingBuffer invocation and verified that the FRHIGPUFence has been signaled before calling.

Parameters

StagingBuffer	The buffer to lock.
Fence	An optional fence synchronized with the last buffer update.
Offset	The offset in the buffer to return.
SizeRHI	The length of the region in the buffer to lock.

Returns: A pointer to the data starting at 'Offset' and of length 'SizeRHI' from 'StagingBuffer', or nullptr when there is an error.

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHILockTexture()

virtual FRHILockTextureResult FDynamicRHI::RHILockTexture	(	FRHICommandListImmediate &	RHICmdList,
		const FRHILockTextureArgs &	Arguments
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIMapStagingSurface()

virtual void FDynamicRHI::RHIMapStagingSurface	(	FRHITexture *	Texture,
		FRHIGPUFence *	Fence,
		void *&	OutData,
		int32 &	OutWidth,
		int32 &	OutHeight,
		uint32	GPUIndex = `0`
	)

pure virtual

Implemented by the platform to read directly from the texture. Useful for getting the last back buffer content after a crash. As the RHIReadSurfaceData implementation will copy the texture's content to a new temporary buffer, that won't work for an unknown crash state. Watch out for OutData to be 0 (can happen on DXGI_ERROR_DEVICE_REMOVED), don't call RHIUnmapStagingSurface in that case.

Implemented in FNullDynamicRHI, FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIMapStagingSurface_RenderThread()

void FDynamicRHI::RHIMapStagingSurface_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		FRHITexture *	Texture,
		uint32	GPUIndex,
		FRHIGPUFence *	Fence,
		void *&	OutData,
		int32 &	OutWidth,
		int32 &	OutHeight
	)

virtual

Reimplemented in FOpenGLDynamicRHI.

◆ RHIMatchPrecachePSOInitializers()

bool FDynamicRHI::RHIMatchPrecachePSOInitializers	(	const FGraphicsPipelineStateInitializer &	LHS,
		const FGraphicsPipelineStateInitializer &	RHS
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, and FVulkanDynamicRHI.

◆ RHIPreferredPixelFormatHint()

virtual EPixelFormat FDynamicRHI::RHIPreferredPixelFormatHint ( EPixelFormat PreferredPixelFormat )

inlinevirtual

Reimplemented in FOpenGLDynamicRHI.

◆ RHIProcessDeleteQueue()

virtual void FDynamicRHI::RHIProcessDeleteQueue ( )

inlinevirtual

Reimplemented in FMetalDynamicRHI, and FD3D12DynamicRHI.

◆ RHIRead3DSurfaceFloatData() [1/2]

virtual void FDynamicRHI::RHIRead3DSurfaceFloatData	(	FRHITexture *	Texture,
		FIntRect	Rect,
		FIntPoint	ZMinMax,
		TArray< FFloat16Color > &	OutData
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIRead3DSurfaceFloatData() [2/2]

void FDynamicRHI::RHIRead3DSurfaceFloatData	(	FRHITexture *	Texture,
		FIntRect	Rect,
		FIntPoint	ZMinMax,
		TArray< FFloat16Color > &	OutData,
		FReadSurfaceDataFlags	InFlags
	)

virtual

Reimplemented in FD3D12DynamicRHI.

◆ RHIReadSurfaceData() [1/2]

virtual void FDynamicRHI::RHIReadSurfaceData	(	FRHITexture *	Texture,
		FIntRect	Rect,
		TArray< FColor > &	OutData,
		FReadSurfaceDataFlags	InFlags
	)

pure virtual

Reads the contents of a texture to an output buffer (non MSAA and MSAA) and returns it as a FColor array. If the format or texture type is unsupported the OutData array will be size 0

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIReadSurfaceData() [2/2]

void FDynamicRHI::RHIReadSurfaceData	(	FRHITexture *	Texture,
		FIntRect	Rect,
		TArray< FLinearColor > &	OutData,
		FReadSurfaceDataFlags	InFlags
	)

virtual

Reimplemented in FOpenGLDynamicRHI, FVulkanDynamicRHI, FMetalDynamicRHI, FD3D12DynamicRHI, and FD3D11DynamicRHI.

◆ RHIReadSurfaceFloatData() [1/2]

virtual void FDynamicRHI::RHIReadSurfaceFloatData	(	FRHITexture *	Texture,
		FIntRect	Rect,
		TArray< FFloat16Color > &	OutData,
		ECubeFace	CubeFace,
		int32	ArrayIndex,
		int32	MipIndex
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIReadSurfaceFloatData() [2/2]

void FDynamicRHI::RHIReadSurfaceFloatData	(	FRHITexture *	Texture,
		FIntRect	Rect,
		TArray< FFloat16Color > &	OutData,
		FReadSurfaceDataFlags	InFlags
	)

virtual

Reimplemented in FD3D12DynamicRHI.

◆ RHIReadSurfaceFloatData_RenderThread() [1/2]

void FDynamicRHI::RHIReadSurfaceFloatData_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		FRHITexture *	Texture,
		FIntRect	Rect,
		TArray< FFloat16Color > &	OutData,
		ECubeFace	CubeFace,
		int32	ArrayIndex,
		int32	MipIndex
	)

virtual

◆ RHIReadSurfaceFloatData_RenderThread() [2/2]

void FDynamicRHI::RHIReadSurfaceFloatData_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		FRHITexture *	Texture,
		FIntRect	Rect,
		TArray< FFloat16Color > &	OutData,
		FReadSurfaceDataFlags	Flags
	)

virtual

◆ RHIReleaseThreadOwnership()

virtual void FDynamicRHI::RHIReleaseThreadOwnership ( )

inlinevirtual

Reimplemented in FOpenGLDynamicRHI.

◆ RHIReleaseTransition()

virtual void FDynamicRHI::RHIReleaseTransition ( FRHITransition * Transition )

inlinevirtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIReplaceResources()

virtual void FDynamicRHI::RHIReplaceResources	(	FRHICommandListBase &	RHICmdList,
		TArray< FRHIResourceReplaceInfo > &&	ReplaceInfos
	)

pure virtual

Transfer metadata and underlying resource from src to dest and release any resource owned by dest.

Parameters

DestBuffer	- the buffer to update
SrcBuffer	- don't use after call. If null, will release any resource owned by DestBuffer

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIResizeViewport() [1/2]

virtual void FDynamicRHI::RHIResizeViewport	(	FRHIViewport *	Viewport,
		uint32	SizeX,
		uint32	SizeY,
		bool	bIsFullscreen
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIResizeViewport() [2/2]

virtual void FDynamicRHI::RHIResizeViewport	(	FRHIViewport *	Viewport,
		uint32	SizeX,
		uint32	SizeY,
		bool	bIsFullscreen,
		EPixelFormat	PreferredPixelFormat
	)

inlinevirtual

Reimplemented in FMetalDynamicRHI, FVulkanDynamicRHI, FD3D11DynamicRHI, and FD3D12DynamicRHI.

◆ RHIResumeRendering()

virtual void FDynamicRHI::RHIResumeRendering ( )

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHISerializeAccelerationStructure()

virtual void FDynamicRHI::RHISerializeAccelerationStructure	(	FRHICommandListImmediate &	RHICmdList,
		FRHIRayTracingScene *	Scene,
		const TCHAR *	Path
	)

inlinevirtual

◆ RHISignalFlipEvent()

virtual void FDynamicRHI::RHISignalFlipEvent ( )

inlinevirtual

◆ RHISubmitCommandLists()

virtual void FDynamicRHI::RHISubmitCommandLists ( FRHISubmitCommandListsArgs && Args )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHISuspendRendering()

virtual void FDynamicRHI::RHISuspendRendering ( )

inlinevirtual

Reimplemented in FVulkanDynamicRHI.

◆ RHITick()

virtual void FDynamicRHI::RHITick ( float DeltaTime )

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIUnlockBuffer()

void FDynamicRHI::RHIUnlockBuffer	(	FRHICommandListBase &	RHICmdList,
		FRHIBuffer *	Buffer
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIUnlockBufferMGPU()

void FDynamicRHI::RHIUnlockBufferMGPU	(	FRHICommandListBase &	RHICmdList,
		FRHIBuffer *	Buffer,
		uint32	GPUIndex
	)

virtual

Reimplemented in FD3D12DynamicRHI.

◆ RHIUnlockStagingBuffer()

void FDynamicRHI::RHIUnlockStagingBuffer ( FRHIStagingBuffer * StagingBuffer )

virtual

Unlock a staging buffer previously locked with RHILockStagingBuffer.

Parameters

StagingBuffer The buffer that was previously locked.

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIUnlockTexture()

virtual void FDynamicRHI::RHIUnlockTexture	(	FRHICommandListImmediate &	RHICmdList,
		const FRHILockTextureArgs &	Arguments
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIUnmapStagingSurface()

virtual void FDynamicRHI::RHIUnmapStagingSurface	(	FRHITexture *	Texture,
		uint32	GPUIndex = `0`
	)

pure virtual

call after a succesful RHIMapStagingSurface() call

Implemented in FNullDynamicRHI, FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIUnmapStagingSurface_RenderThread()

void FDynamicRHI::RHIUnmapStagingSurface_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		FRHITexture *	Texture,
		uint32	GPUIndex
	)

virtual

Reimplemented in FOpenGLDynamicRHI.

◆ RHIUpdateFromBufferTexture2D()

virtual void FDynamicRHI::RHIUpdateFromBufferTexture2D	(	FRHICommandListBase &	RHICmdList,
		FRHITexture *	Texture,
		uint32	MipIndex,
		const struct FUpdateTextureRegion2D &	UpdateRegion,
		uint32	SourcePitch,
		FRHIBuffer *	Buffer,
		uint32	BufferOffset
	)

inlinevirtual

Updates a region of a 2D texture from GPU memory provided by the given buffer (may not be implemented on every platform)

Parameters

Texture	- the RHI texture resource to update
MipIndex	- mip level index to be modified
UpdateRegion	- The rectangle to copy source image data from
SourcePitch	- size in bytes of each row of the source image
Buffer,BufferOffset	- source image data, starting at the upper left corner of the source rectangle (in same pixel format as texture)

◆ RHIUpdateResourceCollection()

virtual void FDynamicRHI::RHIUpdateResourceCollection	(	FRHICommandListBase &	RHICmdList,
		FRHIResourceCollection *	InResourceCollection,
		uint32	InStartIndex,
		TConstArrayView< FRHIResourceCollectionMember >	InMemberUpdates
	)

inlinevirtual

◆ RHIUpdateTexture2D()

virtual void FDynamicRHI::RHIUpdateTexture2D	(	FRHICommandListBase &	RHICmdList,
		FRHITexture *	Texture,
		uint32	MipIndex,
		const struct FUpdateTextureRegion2D &	UpdateRegion,
		uint32	SourcePitch,
		const uint8 *	SourceData
	)

pure virtual

Updates a region of a 2D texture from system memory

Parameters

Texture	- the RHI texture resource to update
MipIndex	- mip level index to be modified
UpdateRegion	- The rectangle to copy source image data from
SourcePitch	- size in bytes of each row of the source image
SourceData	- source image data, starting at the upper left corner of the source rectangle (in same pixel format as texture)

Implemented in FNullDynamicRHI, FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIUpdateTexture3D()

virtual void FDynamicRHI::RHIUpdateTexture3D	(	FRHICommandListBase &	RHICmdList,
		FRHITexture *	Texture,
		uint32	MipIndex,
		const struct FUpdateTextureRegion3D &	UpdateRegion,
		uint32	SourceRowPitch,
		uint32	SourceDepthPitch,
		const uint8 *	SourceData
	)

pure virtual

Updates a region of a 3D texture from system memory

Parameters

Texture	- the RHI texture resource to update
MipIndex	- mip level index to be modified
UpdateRegion	- The rectangle to copy source image data from
SourceRowPitch	- size in bytes of each row of the source image, usually Bpp * SizeX
SourceDepthPitch	- size in bytes of each depth slice of the source image, usually Bpp * SizeX * SizeY
SourceData	- source image data, starting at the upper left corner of the source rectangle (in same pixel format as texture)

Implemented in FNullDynamicRHI, FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIUpdateTextureReference()

void FDynamicRHI::RHIUpdateTextureReference	(	FRHICommandListBase &	RHICmdList,
		FRHITextureReference *	TextureRef,
		FRHITexture *	NewTexture
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, and FVulkanDynamicRHI.

◆ RHIUpdateUniformBuffer()

virtual void FDynamicRHI::RHIUpdateUniformBuffer	(	FRHICommandListBase &	RHICmdList,
		FRHIUniformBuffer *	UniformBufferRHI,
		const void *	Contents
	)

pure virtual

Implemented in FMetalDynamicRHI, FD3D12DynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ RHIVirtualTextureSetFirstMipInMemory()

void FDynamicRHI::RHIVirtualTextureSetFirstMipInMemory	(	class FRHICommandListImmediate &	RHICmdList,
		FRHITexture *	Texture,
		uint32	FirstMip
	)

virtual

Function that is used to allocate / free space used for virtual texture mip levels. Make sure you also update the visible mip levels.

Parameters

Texture	- the texture to update, must have been created with TexCreate_Virtual
FirstMip	- the first mip that should be in memory

◆ RHIVirtualTextureSetFirstMipVisible()

void FDynamicRHI::RHIVirtualTextureSetFirstMipVisible	(	class FRHICommandListImmediate &	RHICmdList,
		FRHITexture *	Texture,
		uint32	FirstMip
	)

virtual

Function that can be used to update which is the first visible mip to the GPU.

Parameters

Texture	- the texture to update, must have been created with TexCreate_Virtual
FirstMip	- the first mip that should be visible to the GPU

◆ RHIWaitForFlip()

virtual FRHIFlipDetails FDynamicRHI::RHIWaitForFlip ( double TimeoutInSeconds )

inlinevirtual

◆ RHIWriteGPUFence_TopOfPipe()

void FDynamicRHI::RHIWriteGPUFence_TopOfPipe	(	FRHICommandListBase &	RHICmdList,
		FRHIGPUFence *	FenceRHI
	)

virtual

Reimplemented in FMetalDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ Shutdown()

virtual void FDynamicRHI::Shutdown ( )

pure virtual

Shutdown the RHI; handle shutdown and resource destruction before the RHI's actual destructor is called (so that all resources of the RHI are still available for shutdown).

Implemented in FMetalDynamicRHI, FNullDynamicRHI, FVulkanDynamicRHI, FD3D12DynamicRHI, FOpenGLDynamicRHI, and FD3D11DynamicRHI.

◆ UnlockBuffer_BottomOfPipe()

virtual void FDynamicRHI::UnlockBuffer_BottomOfPipe	(	class FRHICommandListBase &	RHICmdList,
		FRHIBuffer *	Buffer
	)

inlinevirtual

Reimplemented in FMetalDynamicRHI, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanDynamicRHI, and FD3D11DynamicRHI.

◆ UnlockStagingBuffer_RenderThread()

void FDynamicRHI::UnlockStagingBuffer_RenderThread	(	class FRHICommandListImmediate &	RHICmdList,
		FRHIStagingBuffer *	StagingBuffer
	)

virtual

Unlock a staging buffer previously locked with LockStagingBuffer_RenderThread.

Parameters

RHICmdList	The command-list to execute on or synchronize with.
StagingBuffer	The buffer what was previously locked.

Reimplemented in FOpenGLDynamicRHI.

Friends And Related Symbol Documentation

◆ FValidationRHI

friend class FValidationRHI

friend

Member Data Documentation

◆ PixelFormatBlockBytes

TArray<uint32> FDynamicRHI::PixelFormatBlockBytes

protected

The documentation for this class was generated from the following files:

Engine/Source/Runtime/RHI/Public/DynamicRHI.h
Engine/Source/Runtime/RHI/Private/DynamicRHI.cpp
Engine/Source/Runtime/RHI/Private/RHICommandList.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ FRHICalcTextureSizeResult

Constructor & Destructor Documentation

◆ ~FDynamicRHI()

Member Function Documentation

◆ AsyncReallocateTexture2D_RenderThread()

◆ EnableIdealGPUCaptureOptions()

◆ FlushPendingLogs()

◆ GetInterfaceType()

◆ GetName()

◆ GetNonValidationRHI()

◆ Init()

◆ InitPixelFormatInfo()

◆ LockBuffer_BottomOfPipe()

◆ LockStagingBuffer_RenderThread()

◆ PostInit()

◆ RHIAcquireThreadOwnership()

◆ RHIAdvanceFrameForGetViewportBackBuffer()

◆ RHIAliasTextureResources()

◆ RHIAsyncCreateTexture2D()

◆ RHIAsyncReallocateTexture2D()

◆ RHIBeginRenderQuery_TopOfPipe()

◆ RHIBeginRenderQueryBatch_TopOfPipe()

◆ RHIBeginSuspendRendering()

◆ RHIBeginUpdateTexture3D()

◆ RHIBindDebugLabelName() [1/3]

◆ RHIBindDebugLabelName() [2/3]

◆ RHIBindDebugLabelName() [3/3]

◆ RHIBlockUntilGPUIdle()

◆ RHICalcRayTracingClusterOperationSize()

◆ RHICalcRayTracingGeometrySize()

◆ RHICalcRayTracingSceneSize()

◆ RHICalcTexturePlatformSize()

◆ RHICheckViewportHDRStatus()

◆ RHICloseTranslateChain()

◆ RHIComputeMemorySize()

◆ RHIComputePrecachePSOHash()

◆ RHIComputeStatePrecachePSOHash()

◆ RHICreateAliasedTexture()

◆ RHICreateAmplificationShader()

◆ RHICreateBlendState()

◆ RHICreateBoundShaderState()

◆ RHICreateBufferInitializer()

◆ RHICreateComputePipelineState()

◆ RHICreateComputeShader()

◆ RHICreateDepthStencilState()

◆ RHICreateGeometryShader()

◆ RHICreateGPUFence()

◆ RHICreateGraphicsPipelineState()

◆ RHICreateMeshShader()

◆ RHICreatePixelShader()

◆ RHICreateRasterizerState()

◆ RHICreateRayTracingGeometry()

◆ RHICreateRayTracingPipelineState()

◆ RHICreateRayTracingScene()

◆ RHICreateRayTracingShader()

◆ RHICreateRenderQuery()

◆ RHICreateResourceCollection()

◆ RHICreateSamplerState()

◆ RHICreateShaderBindingTable()

◆ RHICreateShaderBundle()

◆ RHICreateShaderLibrary()

◆ RHICreateShaderLibrary_RenderThread()

◆ RHICreateShaderResourceView()

◆ RHICreateStagingBuffer()

◆ RHICreateTextureInitializer()

◆ RHICreateTextureReference()

◆ RHICreateTransientResourceAllocator()

◆ RHICreateTransition()

◆ RHICreateUniformBuffer()

◆ RHICreateUnorderedAccessView()

◆ RHICreateVertexDeclaration()

◆ RHICreateVertexShader()
